Removing the Liquid Cooler Fan Assembly

WARNING:The heat sink becomes very hot when the system is on. NEVER touch the heat sink with any metal
or with your hands.
1. See "Removing the Bezel Door" on page 31.
2. See "Removing the Left Side Panel" on page 34.
3. See "Removing the Front Bezel" on page 36.

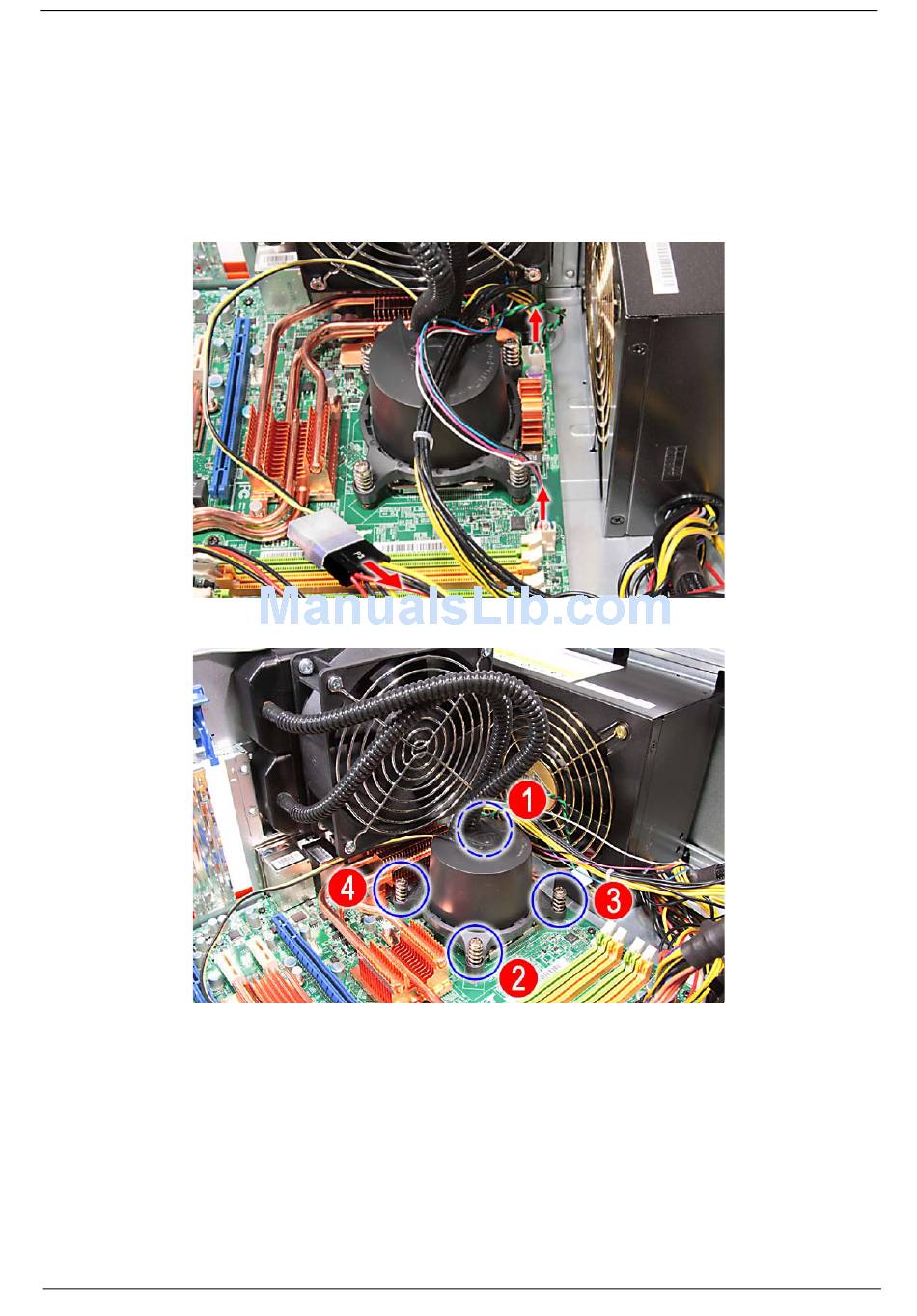

4. Disconnect the power and two fan cables.
5. Loosen the four screws on the liquid cooler, in the order shown.
Chapter 3 49
