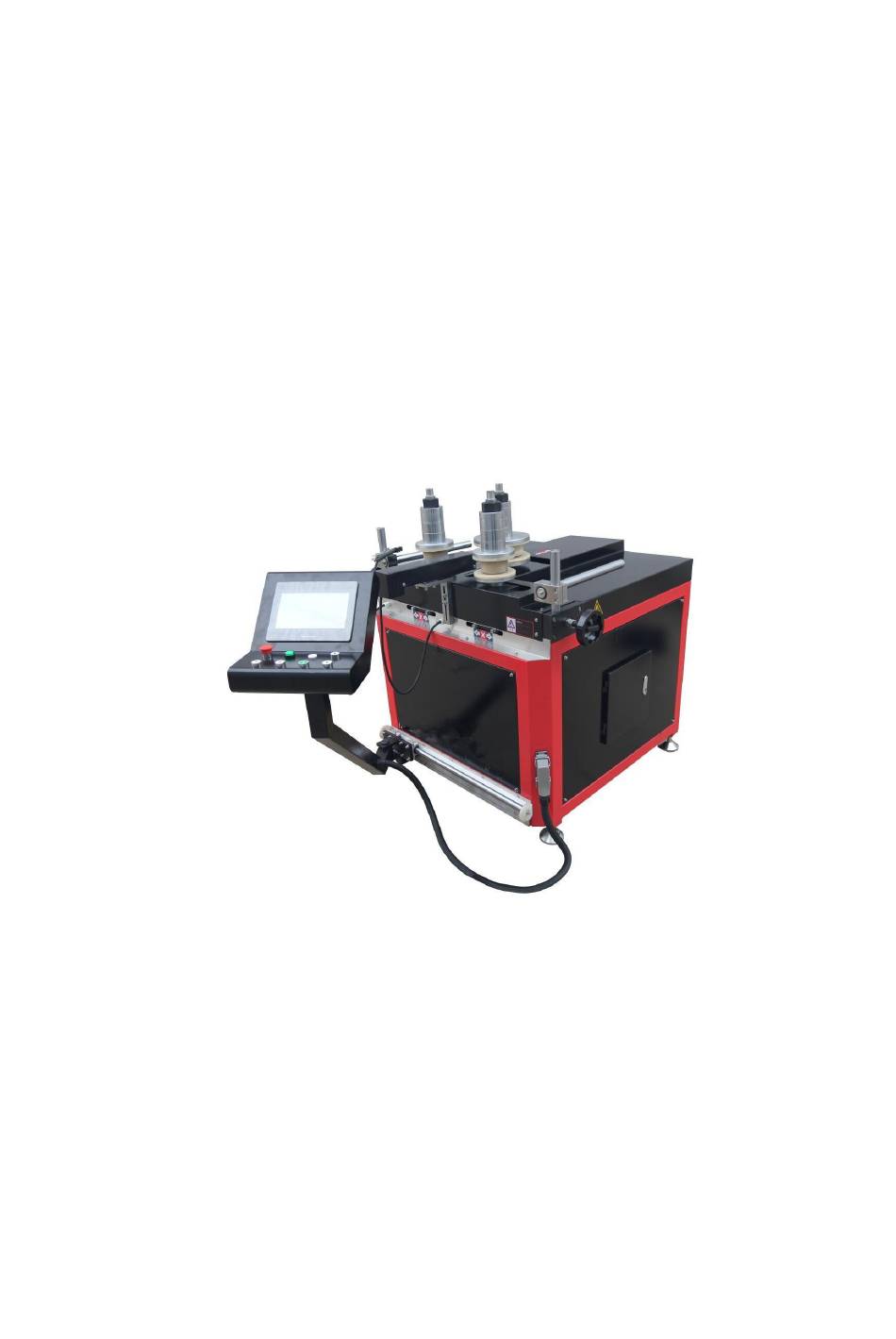

- Page 1 CNC aluminum profile bending machine LGW-CNC-13T Instruction manual...
- Page 2 PREFACE Thank you for using our production equipment, before you use the equipment, please spare some time to read the manual, so that your device is in the best running state, but also make your device to obtain the best economic benefit. We sincerely hope that you in the process of using the equipment, the problems found and good suggestions timely feedback to us, so that we can better work in the future cooperation.
- Page 3 3, Operation screen: Taiwan weinview Touch Screen 4. Electrical components: Schneider, France 5，Speed reducer: China production 6, the transmission device: China production 7, mechanical parts: China production 8，The mould: our company processing (customer could make themselves) The technical parameters 四、 Model: LGW-CNC-13T Input power: 4.0KW...
- Page 4 Voltage: 380V 50Hz 3 phase Min. radius of bending:100mm (relate to profile) Max. processing profile size:120mm*150mm Spindle diameter:50mm Y axis Hydraulic thrust:13T, max. 20 tons Max torque of X axis:2500N.M Rotation speed of shaft:1-15r/min Y axis push rod repeat positioning accuracy: ≤ 0.01mm Total weight:900kg Overall dimension:1500mm*1200mm*1400mm Equipment installation...
- Page 5 2, To enter the main interface Press "ENGLISH" button in the initial screen, then press "INTO" key, the screen to enter the password input interface, as shown in: In the "password" interface, click the password input box, enter the password "85761765", "the main interface of system":...
- Page 6 In the main interface screen, click on each key, the operation panel is converted into a corresponding interface. 3, Manual operation In the "Main interface", click "Manual operation" button, the system appears the following the manual operation interface: In the "Manual" interface, Click on the "Return"...
- Page 7 Click on the "speed setting" , set the speed roller spindle rotation; Click on the "up" or "down" arrow, the intermediate shaft move backward and forward; Click on the "home" button, can make the intermediate roll back to zero position; Enter the data of”move to”...
- Page 8 "Manual" means that the speed of hydraulic cylinder to move the manual operation "Start" said hydraulic cylinder move start speed "forward speed" indicates the maximum speed of the cylinder when the cylinder is positioned forward "forward creeping" means the speed of the cylinder after it has decelerated before moving to the target position "Backward speed"...
- Page 9 Forward soft limit: the amount of displacement from the Y axis to the forefront; Retreat distance: After the automatic processing is completed, the distance that the moving wheel shaft retracts from the starting position; Retreat sync length: After the automatic processing is completed, the Y-axis moves backward from the end position to the starting position, and the corresponding distance the workpiece moves in the discharge direction.
- Page 10 rebound coefficient profiles for increase of bending radius increases, it is a linear relationship between the irregular. The coefficient of restitution of the input is a empirical data, in the processing of the first workpiece, rocessing of the arc can not achieve the desired size, this needs to be calculated by the "Rebound calculator"...
- Page 11 calculate the new parameter K1, in profile formula interface, the parameter of K1 to replace the old K0 parameters, click on the "conserve" button, and then enter to automatic processing. 7, Signal monitoring diagnosis In the main interface, click on the " "...
- Page 12 In the "C shape editor "interface, press the" + "or" - "button, can obtain the corresponding formula, C shape processing can store 100 profile formula, in each profile formula, enter the profile name, arc radius, arc length, fixed wheel radius RA, rolling start position, rebound coefficient,etc.
- Page 13 C shape automatic processing steps: In "C shape processing" interface, press the "PUMP" button, hydraulic station start,loosen the nut, the workpiece is placed into the machine, press "AUTO start" button, the middle roller moves to the rolling start point, then tighten the nut(no need very tight, suitable is ok), Again press to the "AUTO start"...
- Page 14 "U-shaped processing" interface, and it can be processed automatically. U shape automatic processing steps: In "U shape processing" interface, press the "PUMP" button, hydraulic station start,loosen the nut, the workpiece is placed into the machine, press "AUTO start" button, the middle roller moves to the rolling start point, then tighten the nut(no need very tight, suitable is ok), Again press to the "AUTO start"...
- Page 15 above process, can be produced in large quantities. once finished, press the "pump" button, the oil pump motor to stop, this time can turn off the power switch. In "U shape processing" interface, you can set the find the reference speed and bending speed.
- Page 16 "AUTO start" button, the machine automatically start bending processing. Repeat the above process, can be produced in large quantities. once finished, press the "pump" button, the oil pump motor to stop, this time can turn off the power switch. In "3R shape processing" interface, you can set the find the reference speed and bending speed.
