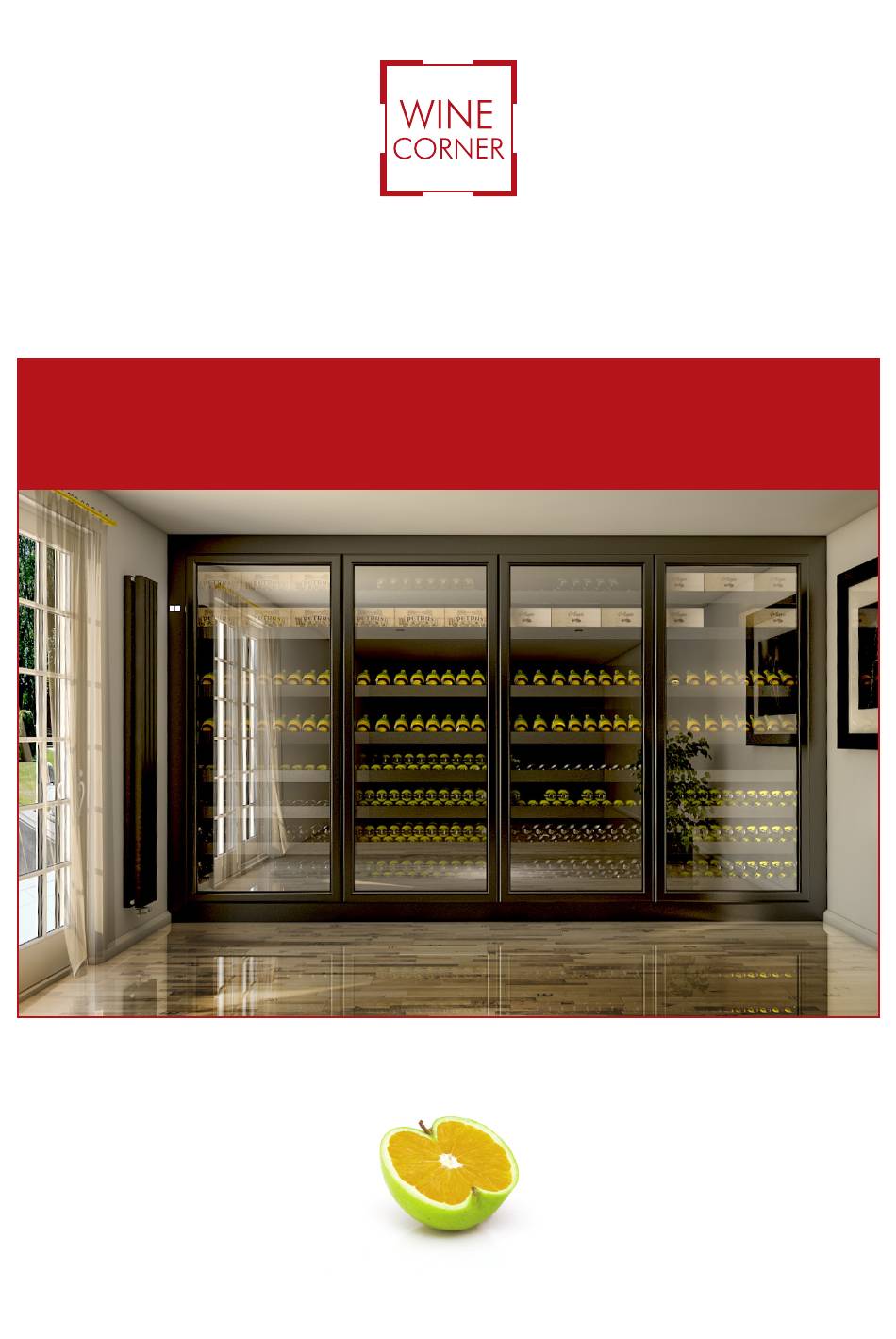

- Page 1 I N S T A L L A T I O N & U S E R G U I D E Wine Cellar Conditioning Unit SP40CAPRO for Bespoke Wine Cabinets D E F Y I N G C O N V E N T I O N...
-
Page 2: Table Of Contents
User manual Table of contents TECHNICAL DATAS ..................5 EQUIPMENT ....................7 Outside unit ....................7 2.1. Inside unit ....................7 2.2. Thermostat ....................7 2.3. Connection box ..................7 2.4. - Page 3 Introduction ® You purchased an air conditioner WINEMASTER and we thank you for your confidence. From conception to marketing, everything has been implemented to offer an exclusive and high quality product. Brainchild of a team who find in this a motivation to ®...
-
Page 4: Technical Datas
1. TECHNICAL DATAS WINESP40CAPRO Outside unit Inside unit Weight of units 35 kg 17 kg Dimensions H x L x D 408 x 633 x 415 262 x 517 x 327 Temperature setting Preset at 12°C, adjustable between 4 & 15°C Maximum outside temperature. - Page 5 Technical drawing Outside unit Inside unit Thermostat Wiring box INSTALLATION AND USER MANUAL WINESP40CAPRO Page 6...
-
Page 6: Equipment
2. EQUIPMENT The air conditioner is composed of 2 separate units, of a thermostat and a wiring box. They must be connected by frigorific ducting pipes and electric connections. The ducting pipes length between both units should not exceed 20m. 2.1. -
Page 7: Cellar Insulation
Cellar insulation Cellar insulation 2.6. 2.6. Insulation is essential for an efficient functioning of the WINEMASTER Insulation is essential for an efficient functioning of the WINEMASTER ® ® . An appropriate insulation . An appropriate insulation enables to maintain a stable temperature and humidity level. The chart on the next page will allow enables to maintain a stable temperature and humidity level. -
Page 8: Insulation Of Walls, Ceiling And Floor
2.6.1. Insulation of walls, ceiling and floor Type of insulation panels You can select among the following type of panels: Usual panels, « Complex panels »: insulation is covered with a with a cover material (plaster, mineral …..) « Sandwich panels »: insulation is covered on each side with a wooden panel or plaster board. Important: The covering of the panels protects the insulation against damage and guarantees its longevity. -
Page 9: Installation Of The Air Conditioner Winemaster
® 3. INSTALLATION OF THE AIR CONDITIONER WINEMASTER List of required material 3.1. A cord 4G1.5mm² for outside unit connection A cord 3G1.5mm² for the connection of wiring box Copper pipes 1/4" & 3/8" for the cooling connection Screws and tools for fixing the outside unit 3.2. -
Page 10: Installation Of The Inside Unit
Installation of the inside unit 3.3. Due to the diversity of installations and the type of locations, each installer must adapt to the constraints of its installation. Provide openings on the bottom for suction and blowing Provide space for refrigeration and electrical connections and the passage of the condensate drain The suction and blowing should in no way... -
Page 11: Electric Connection
Electric connection 3.5. THE UNIT HAS TO BE INSTALLED RESPECTING THE NATIONAL RULES OF ELECTRIC INSTALLATIONS. 3.5.1. Connection of outside unit Unscrew and remove the cover from outside unit Unscrew the cover from the waterproof box Connect the box and the outside unit via the 4G1.5 cord (not supplied) as per wiring drawing (§3.5.4) Close the waterproof box Close the outside unit... -
Page 12: Wiring Drawing
3.5.4. Wiring drawing INSTALLATION AND USER MANUAL WINESP40CAPRO Page 13... -
Page 13: Installation Of The Water Drain System
3.6. Installation of the water drain system The evacuation of the condensate is made through a drain pipe supplied with the unit Fit the drain pipe on the bracket (1) with a clamp (2) supplied with the unit The flow is done by gravity and must be connected to a sewage or bucket that must regularly be emptied THE TUBE DRAIN SHOULD NOT BE CLOOGED OR DO LOOP UP! The condensate bucket may overflow if the drain is not directed downwards... -
Page 14: Start Up
Start up 4.2. 4.2.1. Temperature setting The setting of the targeted temperature is made on the thermostat: - Press on one second until the targeted temperature is blinking. - Use to increase the temperature. - Use to lower the temperature. Once the right temperature is set, press on again to confirm. -
Page 15: Maintenance Of The Air Conditioner Winemaster
® 5. MAINTENANCE OF THE AIR CONDITIONER WINEMASTER Filter and outside unit cleaning 5.1. The outside unit is equipped with a washable and reusable filter. Unscrew the 2 plastic screws (1) Remove the filter cover (2) Take the filter out (3) ... -
Page 16: Warranty
6. WARRANTY Legal warranty 6.1. The contractual warranty is not exclusive, earnings for the benefit of the purchaser profit of the legal warranty against defects or hidden defects that applies under the conditions of article 1641 and following from the civil code. 2 years contractual warranty 6.2. - Page 17 E-mail: info@winecorner.co.uk linkedin.com/company/wine-corner-ltd www.winecorner.co.uk © Wine Corner Limited November 2016. We reserve the right to change product specifications and D E F Y I N G prices without prior notice. Wine Corner Limited does not accept any responsibility for any loss, C O N V E N T I O N which may arise as a consequence of reliance on information contained in this price list.
