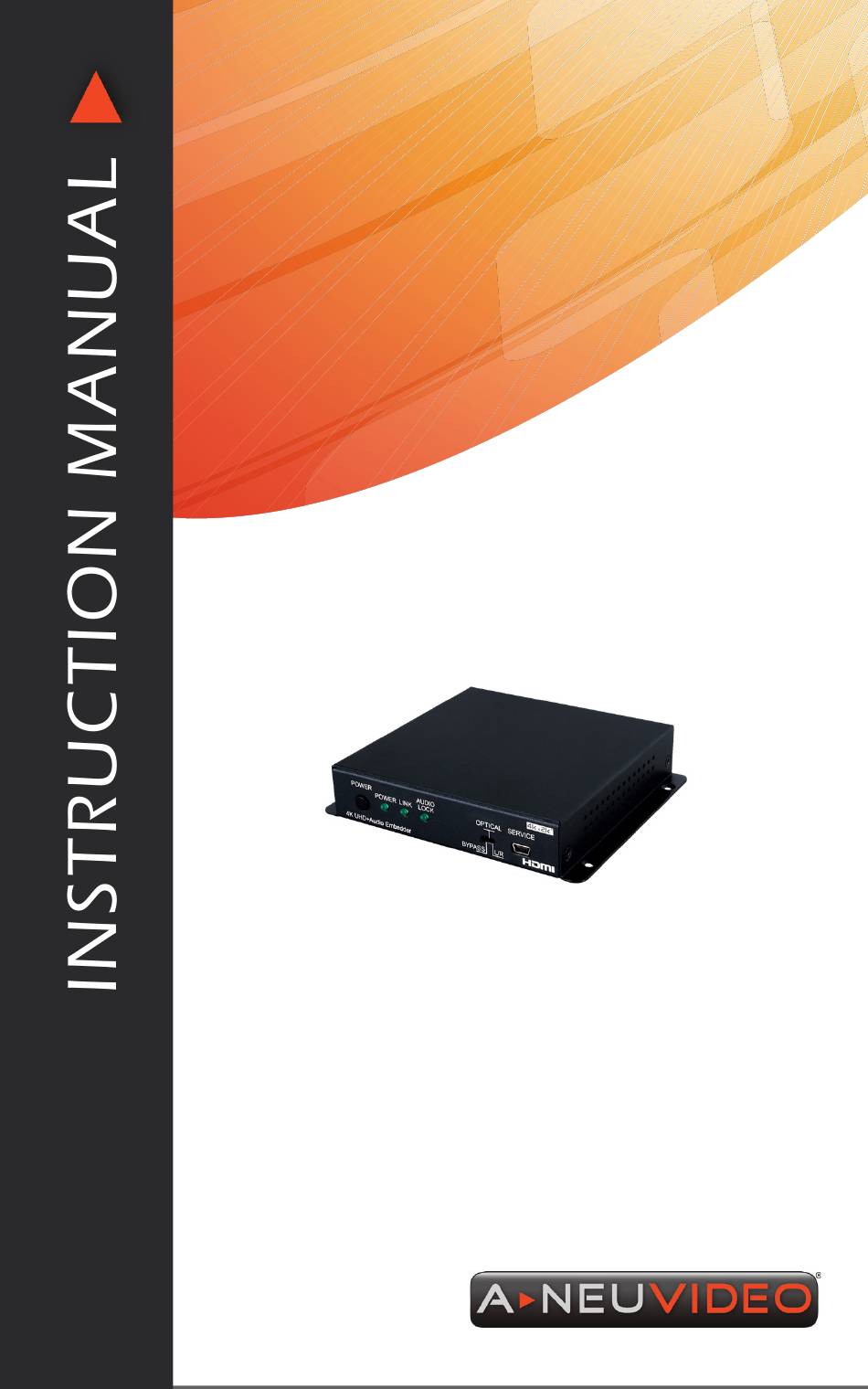

- Page 1 ANI-HDAINSERT4K6 4K UHD+ HDMI Audio Inserter AUDIO / VIDEO MANUFACTURER A-NeuVideo.com Frisco, Texas 75036...
- Page 2 SAFETY INFORMATION 1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. 2. Follow all instructions printed on unit chassis for proper operation. 3.
- Page 3 NEUVIDEO SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. •...
-
Page 4: Table Of Contents
CONNECTION DIAGRAM ....................13 INTRODUCTION The ANI-HDAINSERT4K6 Audio Inserter is designed to insert an external audio signal (analog or digital) into any HDMI or DVI source signal to generate an HDMI compliant output with new audio. Both stereo LPCM 2.0 and multi-channel Bitstream audio is supported for insertion and the preferred source can be selected with a simple switch. -
Page 5: Features
FEATURES • HDMI input and output with 18Gbps (600MHz) 4K UHD support • DVI 1.0 compatible with the use of an HDMI-DVI adaptor • HDCP 1.4 and 2.2 compliant • Supports HD resolutions up to 3840x2160@60 Hz (4:4:4, 8-bit) & 4096x2160@60Hz (4:4:4, 8-bit) •... -
Page 6: Specifications
SPECIFICATIONS • HDMI Bandwidth: 600MHz/18Gbps • Input Ports: • HDMI • Optical (S/PDIF) • (2) RCA (Stereo) • Output Port: HDMI • Control Interface: USB Mini-B • HDMI Cable Length: 32 ft / 10M (1080p@60Hz, 12-bit) 9 ft / 3M (4K@60Hz, 4:4:4, 8-bit) •... -
Page 7: Operation Controls And Functions
OPERATION CONTROLS AND FUNCTIONS Front Panel q POWER: Press this button to power the unit on or off. w POWER: This LED will be lit when the unit is receiving power. Note: Press and hold the Power button for 3 seconds (until the LEDs begin flashing) to perform a factory reset. - Page 8 OPERATION CONTROLS AND FUNCTIONS BACK Panel q HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. w HDMI OUT: Connect to an HDMI TV, monitor or amplifier for digital video and audio output (LPCM up to 7.1, Bitstream, HD Bitstream).
-
Page 9: Virtual Com Port Control
Virtual COM Port Control COMMAND DESCRIPTION & PARAMETERS Show the full command list. HELP Show the full command list. Power the unit on. Power the unit off (Stand-by mode). Show the current power state. SOURCEDET Show the current input source detection state. SINKINFO Show information about the currently connected display. -
Page 10: Edid Commands
EDID CommandS 1. This unit uses an EDID Management application which allows the user to copy the EDID from an attached display, edit an existing EDID file stored on the PC or create a basic EDID from scratch. The EDID can then be uploaded to the unit for use. 2. - Page 11 EDID CommandS • The six Internal EDIDs are: • FHD/2CH....1080p@60Hz with LPCM 2.0 • FHD/MCH....1080p@60Hz with LPCM 7.1 & Bitstream • 4K UHD/2CH... 4K@30Hz with LPCM 2.0 • 4K UHD/MCH..4K@30Hz with LPCM 7.1 & Bitstream • 4K UHD+/2CH..4K@60Hz (4:4:4, 8-bit) with LPCM 2.0 •...
- Page 12 EDID CommandS • Edit: The following tabs provide access to a wide range of EDID information which can be edited: • Descriptor: This tab allows for the editing of various description and information fields within the EDID file such as Manufacturer Name, Monitor Name, etc. •...
-
Page 13: Virtual Com Port Settings / Video Specifications
VIRTUAL COM Port SETTINGS / Video Specifications VIRTUAL COM Port SETTINGS VIRTUAL COMPORT SETTINGS Baud Rate 115200 Data Bits Parity None Stop Bits Flow Control None Video Specifications Standard Resolution Support Standard Resolution Support 640x480 60, 72, 75, 85 720x576p 800x600 56, 60, 72, 75, 85 1280x720p... -
Page 14: Audio Specifications
Audio Specifications Input/Output Audio Analysis: Input Connector HDMI Optical Analog Measurement Level 0dBFs 0dBFs 2Vrms Frequency 1kHz 1kHz 1kHz Output Connector HDMI Measurement Level 0~−1dB Frequency <0.01% Frequency Response ±1dBFS SNR >80dB Crosstalk <−80dB Audio Sampling Rates: Level 32, 44.1, 48, 88.2, 96, 176.4, 192kHz (Passthrough) Frequency 32, 44.1, 48, 88.2, 96, 192kHz (Passthrough) -
Page 15: Connection Diagram
CONNECTION DIAGRAM... - Page 16 Product. The Product is sold to you and any use of any associated intellectual property is deemed to be licensed to you by A-NeuVideo for your personal use only. A-NeuVideo does not transfer either the title or the intellectual property rights to the Product and A-NeuVideo retains full and complete title to the intellectual property rights therein.
