OWNER'S MANUAL

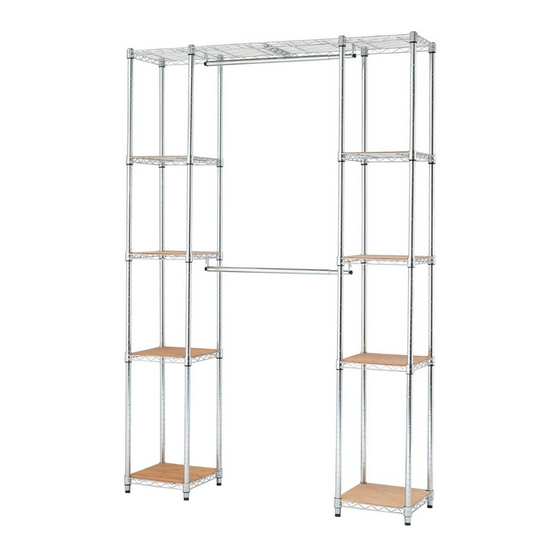

TRINITY EXPANDABLE CLOSET ORGANIZER
Model # TBFZ-2701 / TBFPBR-2701
Important / Important / Importante
FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
POUR DES DIRECTIVES D'ASSEMBLAGE 3D RAPIDES ET FACILES
Direct ives int elligent es
Inst rucciones Int eligent es
PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D
DOWNLOAD THE FREE APP | TÉLÉCHARGER L'APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA
Advertisement
Table of Contents
Related Manuals for Trinity TBFZ-2701
Summary of Contents for Trinity TBFZ-2701
- Page 1 OWNER’S MANUAL TRINITY EXPANDABLE CLOSET ORGANIZER Model # TBFZ-2701 / TBFPBR-2701 Important / Important / Importante FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES Direct ives int elligent es Inst rucciones Int eligent es PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D...
- Page 2 Your TRINITY Expandable Closet Organizer should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online via “Contact Us”...
- Page 3 SMALL SHELF (A) down over the collars is helpful but not necessary. Note: For stability, the lowest SMALL SHELF (A) should be installed no higher than the 3rd indentation from the bottom of the BOTTOM POLES (F). © 2021 TRINITY - 800.985.5506...
- Page 4 SLEEVES (J). STEP 4 E (4) L (4) Screw the CONNECTORS (L) into the top of the BOTTOM POLES (F), connect the four MIDDLE POLES (E) and the four BOTTOM POLES (F) with the CONNECTORS (L). © 2021 TRINITY - 800.985.5506...
- Page 5 The first tower is ready. Repeat STEP 1 through STEP 6 to assemble the second tower. Note: For stability, the TOP SHELF (B) should be installed no lower than the 3 indentation from the top. © 2021 TRINITY - 800.985.5506...
- Page 6 TOP SHELF (B) as the image shows, and close up the cable loop, connecting CLOSET ORGANIZER to the wall via ANTI- TIPPING KIT (M). Place each BAMBOO BOARD (C) onto each SMALL SHELF (A) as shown. © 2021 TRINITY - 800.985.5506...
- Page 7 SERVICE PARTS LIST – TBFPBR-2701 Bronze Color TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description XBK-01-012-2543 Slip Sleeve ONA-20-003-1313 Bamboo Board PBR-04-006-2750 Top Pole PBR-13-008-2700 Hanging Rod ZSV-01-013-2523 Pole Connector XBK-01-024-0627 Hanging Screw PBR-04-007-2800...
- Page 8 SERVICE PARTS LIST – TBFZ-2701 Chrome Color TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description XBK-01-011-2543 Slip Sleeve ONA-20-003-1313 Bamboo Board ZSV-04-006-2750 Top Pole ZSV-13-008-2700 Hanging Rod ZSV-01-013-2523 Pole Connector XBK-01-024-0627 Hanging Screw ZSV-04-007-2800...
