Summary of Contents for Trinity TBFC-2208

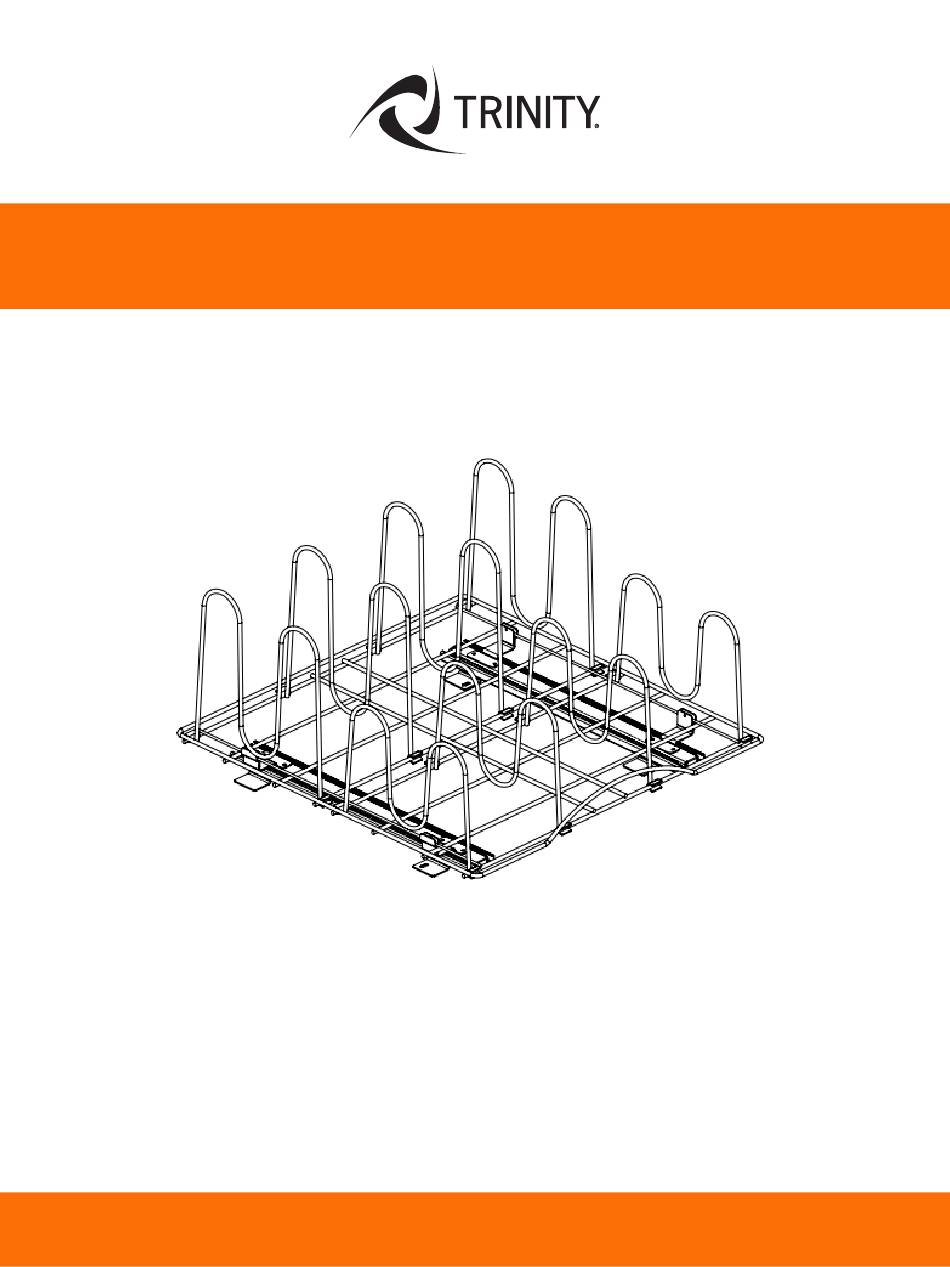

- Page 1 OWNER’S MANUAL TRINITY SLIDING POT ORGANIZER Model # TBFC-2208...
-
Page 2: Parts List
Your TRINITY Sliding Pot Organizer should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online at our customer center at www.trinityii.com. -
Page 3: Installation Instructions
Extend the SLIDES (B) & (C) slightly and align the center of the oval slots to your marking in the cabinet. Use the self-tapping CABINET SCREWS (F) to fasten the LEFT (B) and RIGHT (C) SLIDES in your cabinet. BACK FRONT © 2018 TRINITY - 800.985.5506... - Page 4 POT ORGANIZER (A) with one hand and, with a rubber mallet, lightly tap each bottom corner of the POT ORGANIZER (A) to secure the POT ORGANIZER (A) into the Clips. © 2018 TRINITY - 800.985.5506...
- Page 5 Rest POT ORGANIZER (A) on top of the Clips to ensure proper SLIDE (B & C) spacing. • Note: For ease of installation, do NOT clip the POT ORGANIZER (A) into the LEFT (B) and RIGHT (C) SLIDES until Step 4. Position as such: A (1) © 2018 TRINITY - 800.985.5506...
- Page 6 Installation Suggestion: With the POT ORGANIZER (A) resting on top of the Clip, brace the top of the POT ORGANIZER (A) with one hand and, with a rubber mallet, lightly tap each bottom corner of the Clips to secure the POT ORGANIZER (A) into the Clips. © 2018 TRINITY - 800.985.5506...
-
Page 7: Usage Instructions
To install the SHORT (H) and TALL (I) DIVIDER first clip in one side of the DIVIDER (H) & (I). Then flex the SHORT (H) or TALL (I) DIVIDER and clip in the other side. H (4) I (4) © 2018 TRINITY - 800.985.5506... - Page 8 SERVICE PARTS LIST – TBFC-2208 TRINITY Customer Service provides the following replacement parts: Part Number Description CSV-02-012-0001 Tall Divider CSV-02-012-0002 Short Divider CSV-21-008-2020 Pot Organizer ZSV-12-003-1575 Right Slide ZSV-01-003-0420 Cabinet Screw XWH-96-001-0003 Template ZSV-01-004-0410 Plate Screw ZSV-01-005-0428 Rack Plate ZSV-12-004-1575 Left Slide ©...
-
Page 9: Care And Maintenance
Each organizer holds up to 50 lb with equal weight distribution. 6. Do NOT allow children to climb or play on the organizer. CARE AND MAINTENANCE • Avoid harsh, abrasive cleaners, and other corrosive chemicals • Keep dry and avoid damp environments © 2018 TRINITY - 800.985.5506... -
Page 10: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a TRINITY Sliding Pot Organizer. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com. -
Page 11: Year Limited Warranty
Product, use contrary to this User’s Manual, or alteration by any one other than Trinity. The warranty period of 1 year shall not be extended or renewed by the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is limited in duration to one year from the date of purchase and is subject to the same conditions and limitations as is provided for our express warranty. - Page 12 WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com Monday through Friday 5:00 AM –...
