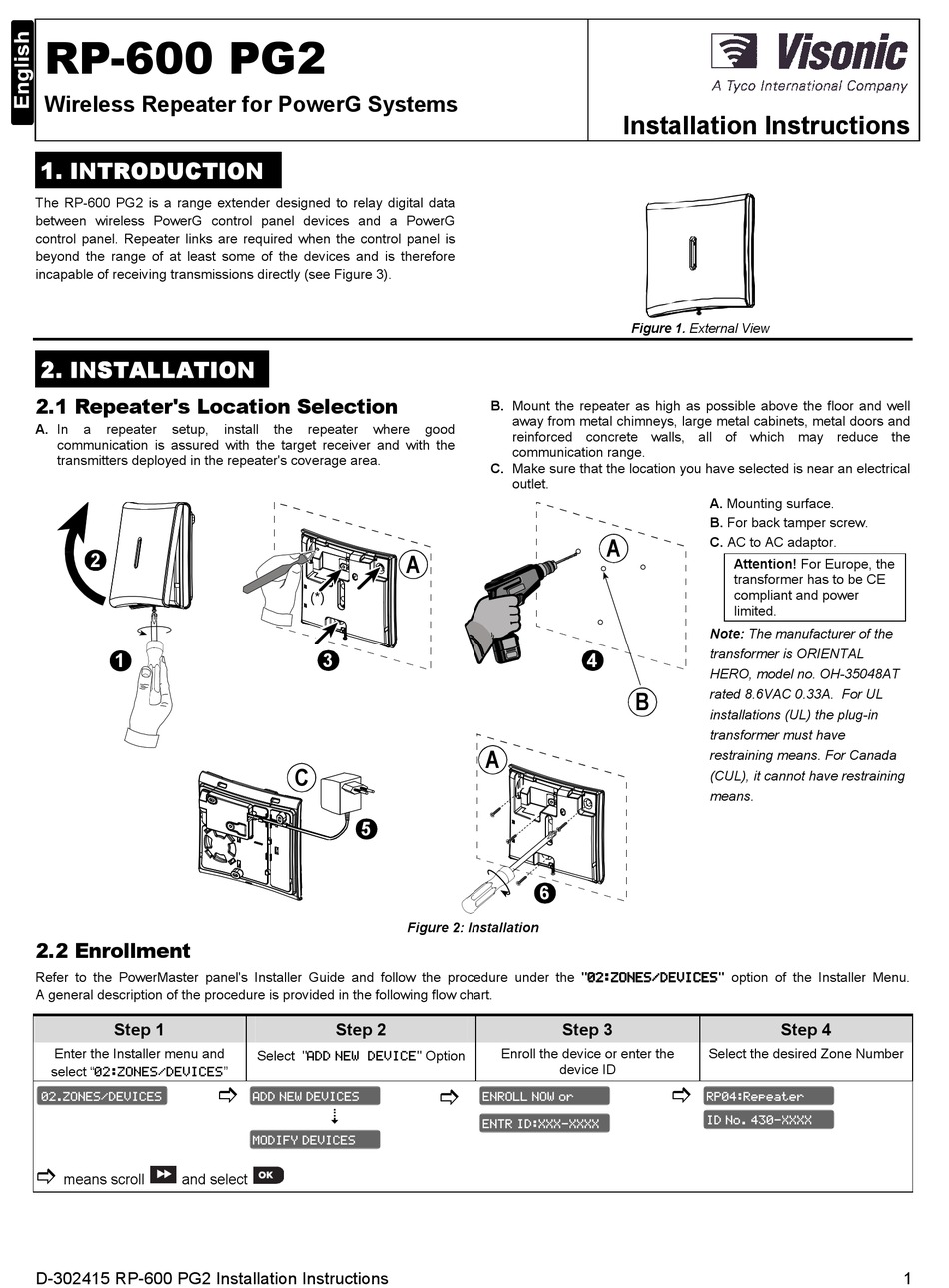

RP-600 PG2
Wireless Repeater for PowerG Systems
1. INTRODUCTION
The RP-600 PG2 is a range extender designed to relay digital data
between wireless PowerG control panel devices and a PowerG
control panel. Repeater links are required when the control panel is
beyond the range of at least some of the devices and is therefore
incapable of receiving transmissions directly (see Figure 3).
2. INSTALLATION
2.1 Repeater's Location Selection
A. In
a
repeater
setup,
communication is assured with the target receiver and with the
transmitters deployed in the repeater's coverage area.
2
1
2.2 Enrollment
Refer to the PowerMaster panel's Installer Guide and follow the procedure under the "02:ZONES/DEVICES" option of the Installer Menu.
A general description of the procedure is provided in the following flow chart.
Step 1
Enter the Installer menu and
select "02:ZONES/DEVICES"
02.ZONES/DEVICES
means scroll
and select
D-302415 RP-600 PG2 Installation Instructions
install
the
repeater
where
(*)
3
C
5
Step 2
Select "ADD NEW DEVICE" Option
ADD NEW DEVICES
MODIFY DEVICES
B. Mount the repeater as high as possible above the floor and well
away from metal chimneys, large metal cabinets, metal doors and
good
reinforced concrete walls, all of which may reduce the
communication range.
C. Make sure that the location you have selected is near an electrical
outlet.
A
A
6
Figure 2: Installation
Step 3
Enroll the device or enter the
device ID
ENROLL NOW or
ENTR ID:XXX-XXXX
Installation Instructions
Figure 1. External View
A. Mounting surface.
B. For back tamper screw.
A
C. AC to AC adaptor.
Attention! For Europe, the
transformer has to be CE
compliant and power
limited.
Note: The manufacturer of the
transformer is ORIENTAL
4
HERO, model no. OH-35048AT
rated 8.6VAC 0.33A. For UL
B
installations (UL) the plug-in
transformer must have
restraining means. For Canada
(CUL), it cannot have restraining
means.
Select the desired Zone Number
RP04:Repeater
ID No. 430-XXXX
Step 4
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tyco Visonic RP-600 PG2
Summary of Contents for Tyco Visonic RP-600 PG2
- Page 1 RP-600 PG2 Wireless Repeater for PowerG Systems Installation Instructions 1. INTRODUCTION The RP-600 PG2 is a range extender designed to relay digital data between wireless PowerG control panel devices and a PowerG control panel. Repeater links are required when the control panel is beyond the range of at least some of the devices and is therefore incapable of receiving transmissions directly (see Figure 3).
- Page 2 3. CONFIGURATION AND OPERATION Service Messages Five kinds of event codes are automatically included in a service transmission in addition to the repeater’s: AC fail Low Battery End of life Tamper Supervision . Upon power failure, recharging stops and the backup battery takes over. It is therefore correct to assume that without power input the battery is gradually weakening and may be reported as “low”.
- Page 3 6. COVER CLOSURE See Figure 5 Figure 5: Cover Closure 7. NOTES AND WARNINGS 7.1 Product Limitations A. Receivers may be blocked by radio signals occurring on or near their operating frequencies, regardless of the code selected. Visonic Ltd. wireless systems are very reliable and are tested to high B.
- Page 4 The technical documentation as required by the European Conformity Assessment procedure is kept at: UNIT 6 MADINGLEY COURT CHIPPENHAM DRIVE KINGSTON MILTON KEYNES MK10 0BZ. TEL.: +44(0)845 0755800 FAX: +44(0)845 0755801 W.E.E.E. Product Recycling Declaration For information regarding the recycling of this product you must contact the company from which you orignially purchased it. If you are discarding this product and not returning it for repair then you must ensure that it is returned as identified by your supplier.
