Commercial Electric 5018-WH Installation Manual

PACKAGE CONTENTS

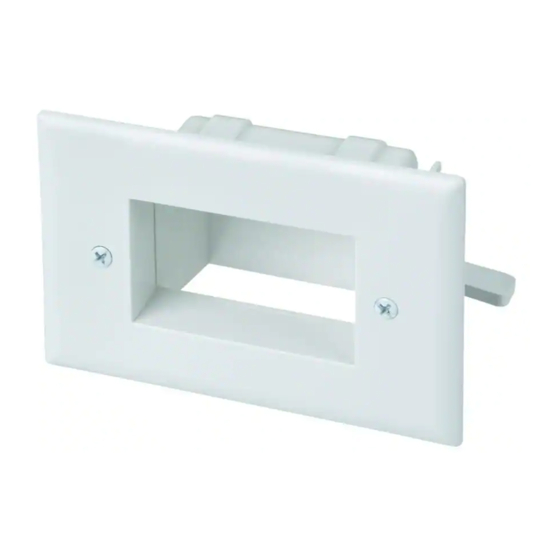

(1) Low Voltage Recessed Cable Plate
For video information visit homedepot.com and search SKU 640816 or model number 5018-WH
Installation
1
PREPARING THE INSTALL LOCATION
□
Use a drywall saw (not included) and the included template
to cut a hole in your install location. Then route your
cables through the opening in the wall.
3
INSTALLING THE PLATE
□
Secure the Low Voltage Recessed Cable Plate to the wall
using a Phillips head screwdriver to tighten the attached
screws with wings.
ETL LISTED
CONFORMS TO
UL STD. 1863
CERTIFIED TO
3026001
CAN/CSA STD. C22.2#182.4
TOOLS NEEDED
Drywall Saw
#2 Phillips head screwdriver
Pencil
*The use of power tools is not recommended
2
□
4
□
RoHS Compliant
This product is patent protected by
U.S. Patent number: 7390964
Installation Guide
Low Voltage Recessed Cable Plate
Scan Me
ROUTING THE CABLES
Route your low voltage cables through the opening in the back of
the Low Voltage Recessed Cable Plate and out through the front
of the Plate.
INSTALLATION COMPLETE
Installation is complete. You can now connect your home theater
devices and equipment.
Item #640816
Model #5018-WH
Rev. 01/29/2019
