Mainstays STACK MS16-D4-1007-02 Assembly Instructions Manual page 12

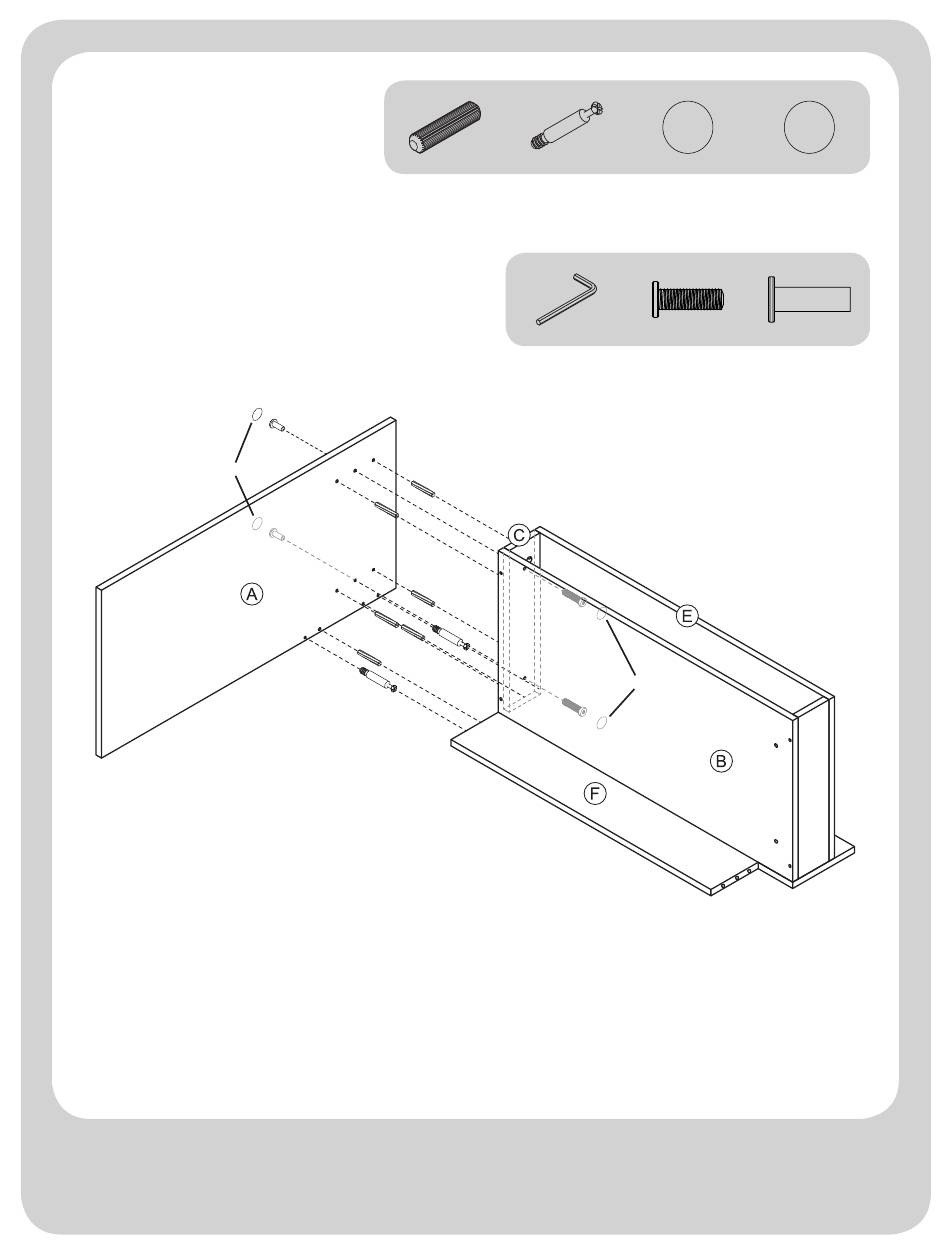

STEP 6
5
NOT TO SCALE. REFER TO PAGE 3 FOR ACTUAL SIZE HARDWARE.
1. Carefully tap small wooden dowels into place. Leave 1/2" of the dowels sticking out.
3. Refer to page 4 for instructions on how to use the cam lock system.
4. Make sure the bolts go through the pre-drilled holes properly.
x 6
1 . W o o d
D o w e l
2. Screw-In cam bolts must be screwed down flush.
5. Do not over tighten bolts.
x 2 x 2
2 . C a m B o l t 5 . B r o w n
S t i c k e r
x 2 x 2
7 . A l l e n 8 . B o l t
W r e n c h
6
x 2
6 . W h i t e
S t i c k e r
x 2
9 . B i n d i n g
B o l t
12
