Section 7: steering system
Table of Contents

Advertisement

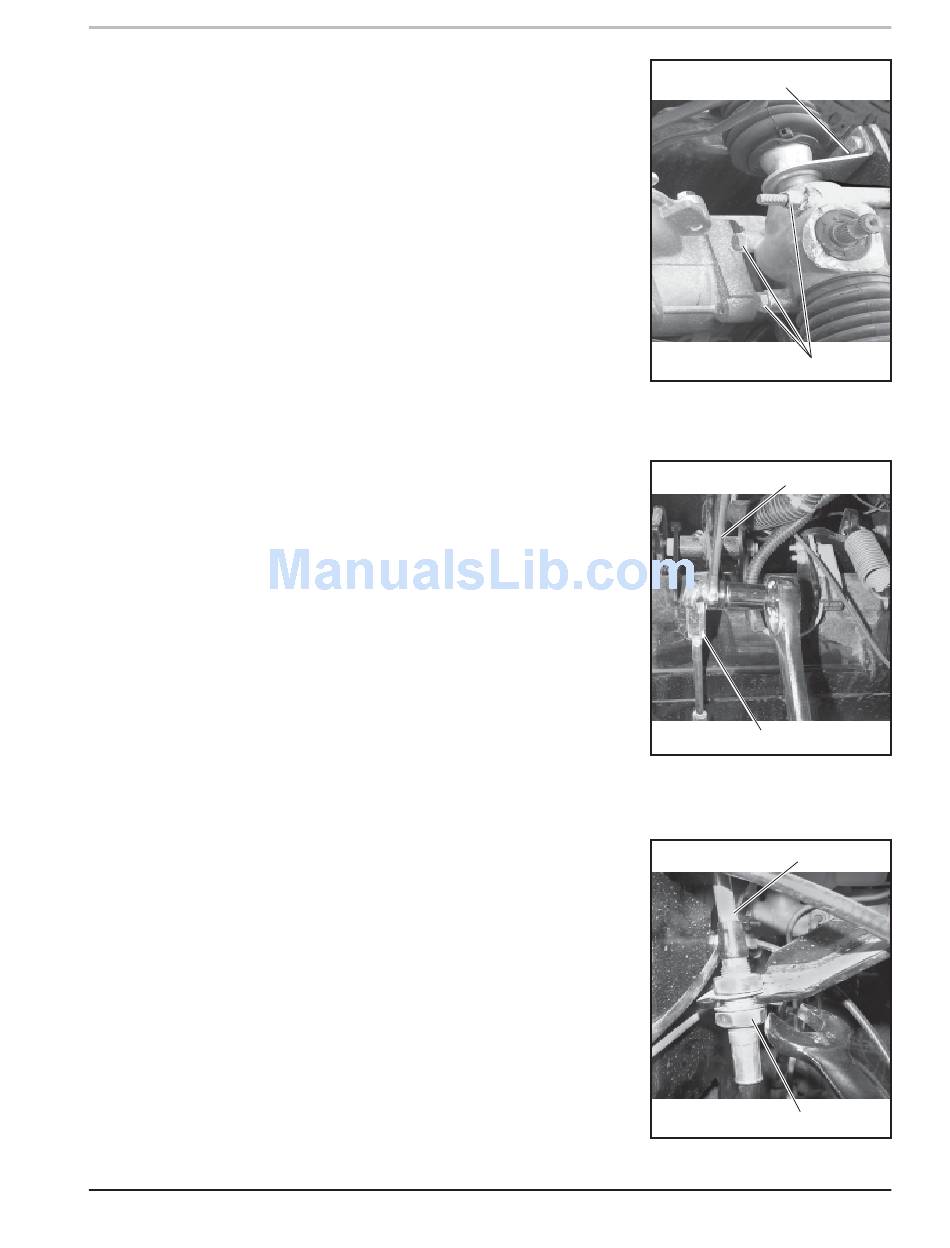

9. Remove three capscrews and hex nuts securing the rack and
pinion assembly (Figure 6) to the frame support.
10. Remove two capscrews and lock nuts securing the right side
rack bracket (Figure 6) to the machine frame.
11. Disconnect the shifting cable from the shifting arm (Figure 7).
12. Loosen the shifting cable housing lock nuts just enough to
remove the housing from the bracket (Figure 8).
13. Carefully remove the rack and pinion from machine.
14. Place the rack and pinion assembly on a work bench.
®
BUSH HOG
UTILITY VEHICLE WORKSHOP MANUAL – SECTION 7: STEERING SYSTEM
BRACKET & CAPSCREWS
CAPSCREWS
Figure 6
Rack and Pinion Assembly
SHIFTING ARM
SHIFTING CABLE
Figure 7
Shifting Cable Linkage
SHIFTING CABLE
SHIFTING CABLE HOUSING
Figure 8
Shifting Cable Housing
7-7
