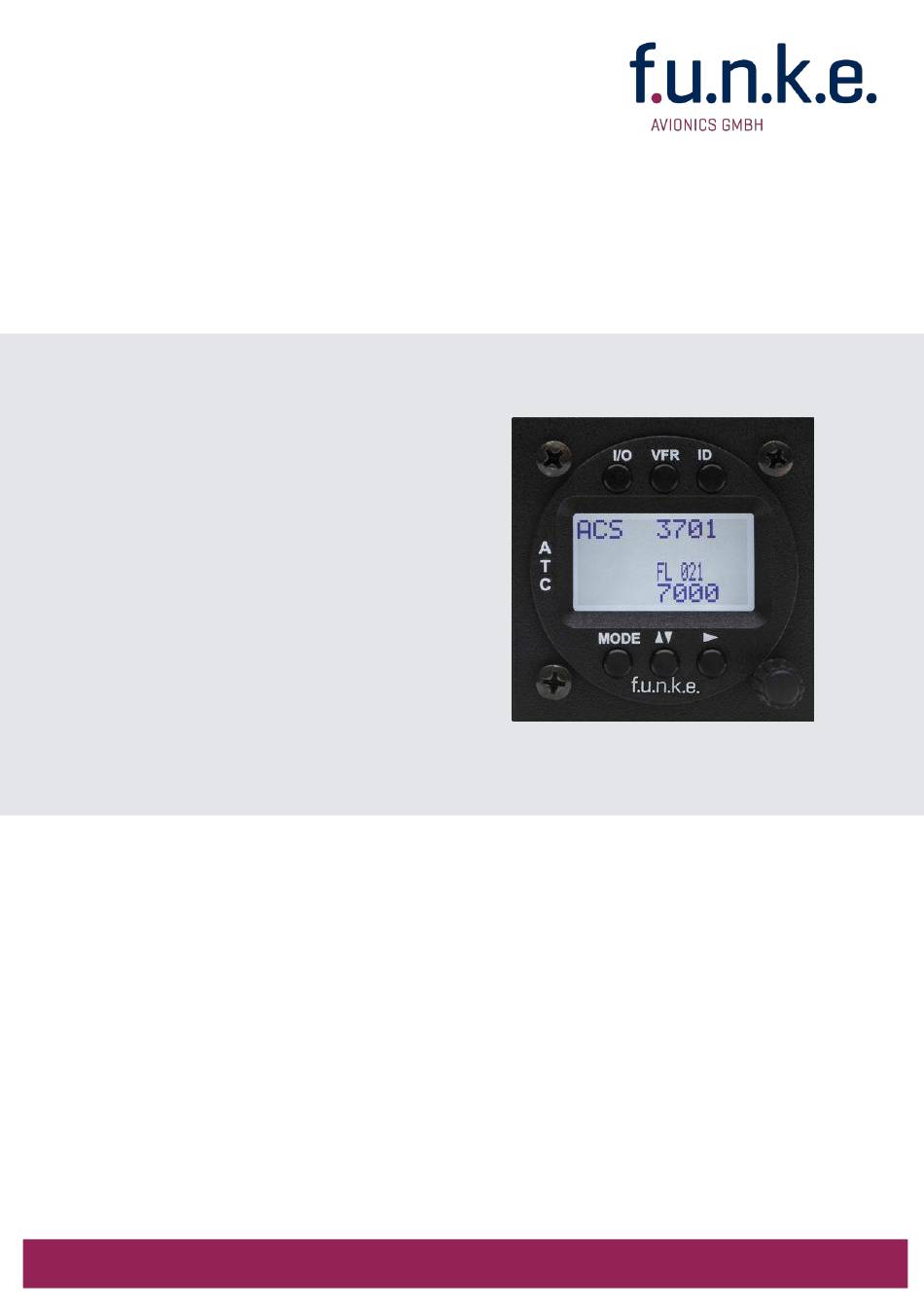

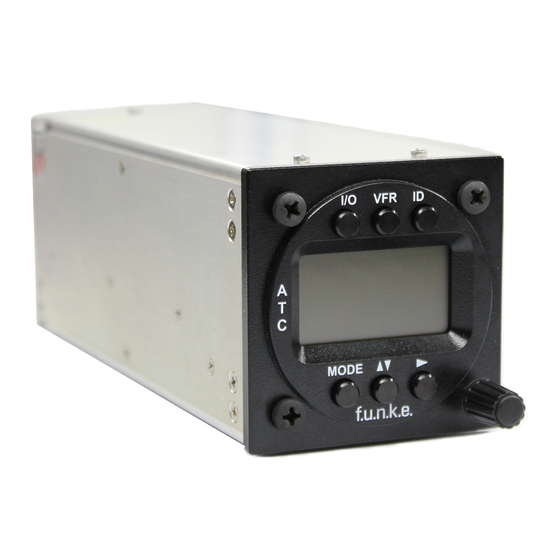

- Page 1 TRT800H-LCD Mode-S Transponder P/N 800ATC-H-(2xx)-(26x) Operation and Installation (Dokument-Nr. 03.2126.010.71e) f.u.n.k.e. means – fabrication · utilities · network · know-how · engineering k.e.
- Page 3 TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation Change History Revision Date Description of Change 1.00 18.03.2016 First Release from SW V6.0 Extended configuration options for GPS 2.00 22.10.2019 Protocol and remote control interface. Accuracy and integrity value selection added List of Service-Bulletins (SB) Service Bulletins have to be inserted into this manual and to be enlisted in the following table.
-
Page 4: Table Of Contents
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation Table of Contents GENERAL ..................5 Symbols .................. 5 Abbreviations ................6 Customer Support ..............6 Features .................. 7 Deviations and Important Notes ..........8 OPERATION ..................9 Controls ................... 9 Switch ON/OFF ..............11 Display - Indications .............. - Page 5 TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 3.8.1 Antenna Selection ............25 3.8.2 Installation Recommendation........25 3.8.3 Antenna Wiring ............26 Post-Installation Check............26 3.10 Starting Up ................27 3.11 Accessories ................27 3.12 Drawings ................28 3.12.1 Dimensions ..............28 3.12.2 Mounting Advices ............
-
Page 6: General
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 1 GENERAL This manual contains information about the physical, mechanical and electrical characteristics and about installation and operation of the Mode S Transponder TRT800H. The conditions and tests required for TSO approval of this article are minimum performance standards. -
Page 7: Abbreviations
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 1.2 Abbreviations Abb. Meaning Explanation Flight ID Flight plan number or if not assigned registration number of aircraft Special Position Activation on request by controllers Identification „Squawk Ident“, transmits SPI Pulse for 18 seconds, which highlights the respective traffic item on the controllers radar screen Aircraft Address... -
Page 8: Features
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 1.4 Features In order to operate the Mode S transponder it is necessary to request an ICAO 24-bit Aircraft Address at the responsible national aviation authorities. The received Code is assigned to the specific transponder/aircraft and must be configured within the transponder. -
Page 9: Deviations And Important Notes
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 1.5 Deviations and Important Notes The following deviations have been granted by the FAA: The device is certified to FAA TSO-C112c in lieu of FAA TSO-C112d. Environmental Qualification Testing was performed according to RTCA/DO-160D in lieu of RTCA/DO-160F. The Software of this device was developed according to RTCA DO-178B Design Assurance Level "D". -
Page 10: Operation
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 2 OPERATION 2.1 Controls Activate/ deactivate VFR „Squawk Ident“ ON / OFF Active active Squawk Operation Mode Standby standby Squawk Cursor Select Operation adjustment Mode Rotary Knob Change for adjusting values Active Standby at the cursor position Squawk... - Page 11 TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation ► Switch ON press button for approx. 0,5 s ON/OFF ► Switch OFFpress button for approx. 3 s ► activate/deactivate VFR Squawk (press shortly) store active Squawk as VFR/VFRW-Squawk ► (press button 3 s, →2.8) ►...
-
Page 12: Switch On/Off
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 2.2 Switch ON/OFF Switch ON: press I/O for 0.5 s Switch OFF: press I/O for 3 s 2.2.1 Display information after power up After turning-on the display appears as follows (example): Device Name TRT800H. -
Page 13: Display - Indications
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 2.3 Display - Indications Operational Mode: Lock out Reply Active Squawk Active indication indication Test mode 7000 indicatior PLL/TRX/ DC BAT/DIM Brightness setup FL 030 SPI indicator Low battery ind. STBY 2000 Flight level GND switch Operational Mode: Error... -
Page 14: Display-Brightness
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation Value Meaning Remarks Error indicators PLL Error Internal Error Transmit Failure Check antenna and wiring Low internal voltage Internal error FPGA-Failure Internal error Battery Power too low maybe battery/generator fault 2.4 Display-Brightness ► In active mode (not standby) press for 2 s Display indicates “DIM”... -
Page 15: Configure Flight-Id
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 2.5.2 Configure Flight-ID Press MODE (repeatedly) until „STBY“ appears Press and hold ID while a counter is shown beside the active squawk. Release ID when “CHANGE FID” is displayed CHANGE FID _ _ _ _ _ _ _ _ A B C D E F G H exit Enter Flight-ID with cursor button... -
Page 16: Squawk-Setting
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation If no 24-bit address (AA) was defined or entered as “000000“ the transponder operates as a Mode A/C transponder, in that case the following Modes are possible apart from Standby: • A C – „Mode A+C“... -
Page 17: Id - Special Position Identification (Spi): "Squawk Ident
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation • Display Standby Squawk: or use the Press VFR or rotary knob (the VFR- ▼▲ Squawk remains active!) Example: 4700 7000 7000 FL 030 FL 030 FL 030 STBY 5600 STBY STBY 4700 •... -
Page 18: Installation
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 3 INSTALLATION 3.1 Notes The following suggestions should be considered before installing. The assigned installation company will supply wiring. For diagrams refer to 3.7 Wiring. Transponder, External Memory, all cables and antennas shall be installed according to „FAA AC-143.13-2A Acceptable Methods, Techniques and Practices –... -
Page 19: Unpacking And Inspecting Of The Equipment
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 3.4 Unpacking and Inspecting of the Equipment Carefully unpack the equipment and inspect for transport damages. If a damage claim has to be filed, save the shipping container and all packing materials as evidence to your claim. For storage or reshipment the original packaging should be used. -
Page 20: Equipment Connections
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 3.6 Equipment Connections 3.6.1 Electrical Connections One 15 pin D-SUB miniature connector includes all electrical connections, except for the antenna. Use only an External Memory Adapter TRT800EMxx as this is part of the certification and includes a memory device in which the ICAO 24-bit Aircraft Address is stored. -
Page 21: Static Air Port
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 3.6.1.3 Auto-On The Auto-On input allows to define how the transponder will behave when power is supplied to it. If the aircraft is equipped with a dedicated avionics master switch that switches the power supply to the transponder, the pin "Auto-On" must be wired together with the UB+ pin to the avionic master switch. -
Page 22: Pin Assignment
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 3.7.2 Pin Assignment The transponder may only be operated together with an external memory address adaptor TRT800EMxx Pin Signal Remarks Adaptor Adaptor Adaptor TRT800 TRT800 TRT800 EMRS EMSS ● ● ● Remote control Input ●... -
Page 23: Cable Plan External Memory Em800
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 3.7.3 Cable plan External Memory EM800 3.7.3.1 Cable plan TRT800EMRS (older version with interface remote) to S/N 90932013 DSUB 15pol white < PIN-5 > black open < PIN-12> yellow cable < PIN-15> FLY_GND ends <... - Page 24 TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 3.7.3.2 Cable plan TRT800EMRS (newer version with interface remote) from S/N 90932114 DSUB 15pol white < PIN-5 > brown open < PIN-12> yellow cable < PIN-15> FLY_GND green ends < PIN-13> SUPP_I/O shield brown RMT-TXD <...
- Page 25 TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 3.7.3.3 Cable plan TRT800EMSS (newer version without interface remote) from S/N 91032115 DSUB 15pol white < PIN-5 > brown open < PIN-12> yellow cable < PIN-15> FLY_GND green ends < PIN-13> SUPP_I/O shield <...
-
Page 26: Antenna
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 3.8 Antenna 3.8.1 Antenna Selection • Recommended antennas: see section 3.11 Accessories • Choose an antenna type compatible with the vehicle and the mounting location. • Specified features depend on proper installation of the antenna. •... -
Page 27: Antenna Wiring
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 3.8.3 Antenna Wiring • Suitable antenna cables: see section 3.11 Accessories • Keep wiring as short as possible. • The smallest cable bend radius is 10cm. Avoid sharp bends. • Keep away from an ADF antenna cable at least 12 inches. •... -
Page 28: Starting Up
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 3.10 Starting Up Turn the transponder on with I/O. After start-up the following screens appear (example): 2000 TRT800H. V6.3 FL 030 STBY 7000 FPGA-Vers: 104 The TRT800H starts in standby mode (indicated with STBY). -
Page 29: Drawings
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 3.12 Drawings 3.12.1 Dimensions Power/RS232 TRT800 Static Air TRT800H Antenna 65 mm Ø 57 mm 170 mm 15 mm 20mm 3.12.2 Mounting Advices Connections Area Panel Cut-out Ø 57,5 mm 4 x Ø 4 mm 47,0 mm Fixing clips (spring) left / right... -
Page 30: Transponder Settings
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 4 TRANSPONDER SETTINGS 4.1 Overview The TRT800H is capable of storing the following information: • ICAO 24-Bit Aircraft-Address (AA) • Aircraft Category (AC), • Flight Identification (FID) • Ground-Switch (Yes/No) • Speed Category (RI) •... - Page 31 TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation Page 1 Aircraft Address AA : F E 1 2 3 4 Aircraft Category AC : FID: 4 4 E 1 2 3 Flight Identification next MODE Page 2 Speed Category Speed Cat : 8 Ground Switch option Ground Sw.: YES Remote Hd.: NO...
-
Page 32: General Settings
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation Page 5 Altitude correction settings 18000 ft: 25000 ft: + 100ft (part 2) 35000 ft: 50ft exit Note : Position data will only be displayed if • a GPS protocol is set (NMEA / FREEFLIGHT / …) •... -
Page 33: Aircraft Category (Ac)
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 4.3.2 Aircraft Category (AC) Setup→4.5.4 Code Description Code Description Emergency Vehicle 1C Ultra-Light / Paraglider Service Vehicle Drone Glider Aircraft (D-Exxx) < 15.500 lbs, Motor Glider (D-Kxxx) Balloon & Airship Aircraft ≥ 15.500 lbs,< 75.000 lbs Paratrooper Rotorcraft Only one of the Codes mentioned in the table above must... -
Page 34: Reply Information - Speed Category (Ri)
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation The ICAO Flight Plan only specifies 7 characters for FID. f.u.n.k.e. AVIONICS GmbH reserves 8 characters as stated in ED-73B for further expansion of the flight plan. The user shall only program 7 characters for FID. 4.3.4 Reply Information - Speed Category (RI) Setup→4.5.4 Besides AA, AC and FID another important part of the Mode-S data is... -
Page 35: Option Remote Header
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation periodically sent data (squitters, ADS-B) is reduced. This allows ATC to distinguish between airborne aircraft and those on the ground and it reduces the Mode S channel load. For small aircraft, authorities normally do not require such a ground switch. - Page 36 TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation The standard setting for most GPS receivers is NMEA 4800 baud. If NMEA_RAIM or FREEFLIGHT is selected static Source Integrity Level (SIL) and Navigation Accuracy Category (NAC) can be configured additionally. How to change configuration settings is described in the manual chapter 4.5.4 Important FAA-Note: The ADS-B function of this device has not been evaluated...
- Page 37 TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation Option Description Baud rate Other Comm-A/B- Data format for special purpose. An 38400 support additional data link processor allows COMM-A/B operation and processing of the position information of a flight management system simultaneously Disabled No communication via RS232 interface.
-
Page 38: Altitude Correction/Offset
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation The NAC value can only be configured if the GPS protocol is set to either FREEFLIGHT or NMEA_RAIM. In this case, one can choose either "0" (unknown accuracy) or "AUTO" (NAC will be set according to the data provided by the GPS receiver). -
Page 39: Setup Procedure
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation The check for correspondence between the primary altimeter and the TRT800H is usually performed every 24 months as part of the aircraft's altimeter checks. Altitude correction is based on setup configurable offset values at five interpolation points ( 2,000, 8,000, 18,000, 25,000 and 35,000 ft).The offset value itself is limited to a range from -100 to + 100ft at each point (10ft steps). -
Page 40: Transponder Configuration/Record Structure
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 4.5.2 Transponder configuration/record structure Aircraft related parts of transponder configuration are stored in one out of eight possible records (record=presetting). Each record contains the following information: • Aircraft Address (AA, 24bit) • Aircraft category (AC) •... - Page 41 TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation Step Display (Example) Start-up Transponder 2000 Ensure, the transponder-mode is FL 030 „STBY“. If necessary change the STBY 7000 mode by pressing MODE ENTER SETUP Press A counter is shown at the upper-right corner.
- Page 42 TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation Step Display (Example) MODE Record 1: At this stage the respective speed category shall be selected by using Speed Cat.: 08-15 the rotary knob. next MODE Record 1: At this stage a GPS receiver for ADS-B Out can be selected GPS/INT: NMEA/..
- Page 43 TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation Step Display (Example) 11. At this stage remote interface for Record 1: communication between TRT800H REMOTE Header: and remote header can be activated Yes/No/Test (Selectable by rotary knob). next If no TRT800RT is connected, "No"...
-
Page 44: Altitude Correction Setup
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 4.5.5 Altitude Correction Setup Description→4.4.4 Altitude correction setup shall be executed by qualified personnel only! Pilot and owner are responsible for correctly set altitude offset values. The use/setting of altitude correction values is only necessary in exceptional cases (see 4.4.4 for details) Altitude correction is based on five interpolation points ( 2000, 10000, 18000, 25000 and 35000 ft).The offset value at each interpolation point... - Page 45 TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation Step Display (Example) After release of ID the first altitude level + corresponding offset value is Altitude: 2000 ft displayed. Offset 0 ft next 5. Change offset value with rotary knob Altitude: 2000 ft Offset 0 ft next...
-
Page 46: Appendix
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 5 APPENDIX 5.1 Technical Data Compliance CS-ETSO-2C112a EASA.21O.269 FAA TSO-C112c Applicable Documents CS-ETSO-2C112a FAA TSO-C112c EUROCAE ED-73C Class 1 Level 2es RTCA DO-181D Class 1 Level 2es EUROCAE ED-26 RTCA DO-160D RTCA DO-178B Software-Level D Temperature Ranges Operation -20 °C to +55 °C;... - Page 47 TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation Fuse External 2A-slow-blow fuse Mounting Panel cut-out d=57,5 mm Weight 0,6 kg (1.32 lbs.) Receiver Characteristics: RF input power level resulting in a 90 % reply rate: Sensitivity A. MTL for ATCRBS and ATCRBS/Mode S All-Call interrogations: -74 dBm ±3 dB.
-
Page 48: Environmental Conditions
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation 5.2 Environmental Conditions Characteristic DO–160D Section Cat. Condition Temperature / Altitude Low ground survival 4.5.1 – 55°C temperature Low operating temperature 4.5.1 – 20°C High ground survival 4.5.2 + 85°C Temperature High Short-time Operating 4.5.2 + 70°C Temperature... -
Page 49: Do-178B Open Problem Reports
TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation Characteristic DO–160D Section Cat. Condition Induced Signal Susceptibility 19.0 Radio Frequency 20.0 Susceptibility Emission of RF Energy 21.0 Lightning Induced Transient 22.0 Susceptibility Lightning Direct Effects 23.0 No test required Icing 24.0 No test required Electrostatic Discharge (ESD) 25.0 5.3 DO-178B Open Problem Reports There are no open problem reports for the software of this device. - Page 50 TRT800H / P/N 800ATC-H-(2xx)-(26x) Operation and Installation Notes: Document-No: 03.2126.010.71e / Revision: 2.00...
- Page 52 f.u.n.k.e. AVIONICS GmbH Heinz-Strachowitz-Str. 4 DE-86807 Buchloe Germany phone.: +49-8241 80066 0 fax.: +49-8241 80066 99 E-mail: service@funkeavionics.de www.funkeavionics.de f.u.n.k.e. means – fabrication · utilities · network · know-how · engineering k.e.
