Smart HD mini Projector M300A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M300A and is the answer not in the manual?

Questions and answers

Related Manuals for Miroir M300A

Summary of Contents for Miroir M300A

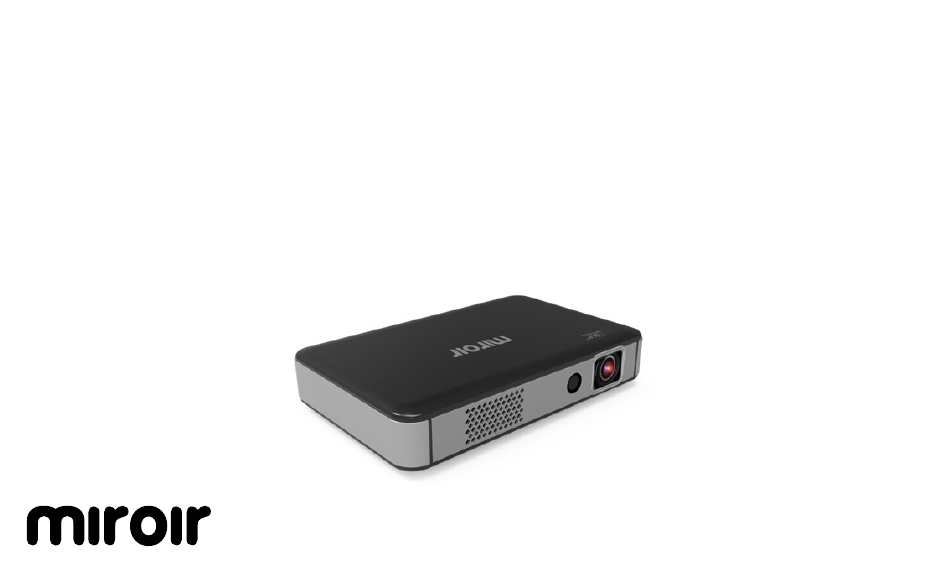

  • Page 1 Smart HD mini Projector M300A...

  • Page 3: Table Of Contents

    contentS Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Warning! .

  • Page 4: Caution

    caution • TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER . THERE ARE NO SERVICEABLE PARTS INSIDE • TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE . The lightning flash with arrow-head symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 5 Danger To reduce the risk of electric shock, burns, fire or injury: Do not use while bathing or in a shower . Do not place or store unit where it can fall or be pulled into a tub or sink . Do not place in, drop or submerge in water or other liquid .
  • Page 6 The unit should be situated away from direct sunlight or heat sources such as radiators, electric heaters, heat registers, stoves, or other units (including amplifiers) that produce heat . Avoid placing on top of stereo equipment that radiates heat . Never block the air openings of the unit with materials such as clothing, plastic bags or papers, or place it on a soft surface such as a bed or couch, where the air openings may be blocked .

  • Page 7: Warning

    Warning! This producT conTains a rechargeable baTTery • Do not store this product in high temperatures, damp areas, or in direct sunlight . • Never disassemble the product . • Never dispose of the product in fire or water, which may result in explosion and/or injury . •...

  • Page 8: Fcc Information

    fcc information This device complies with part 15 of the FCC rules . Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received including interference that may cause undesired operation .
  • Page 9 can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna . • Increase the separation between the equipment and receiver . •...

  • Page 10: Parts And Controls

    PartS anD controlS Volume up Auto image correction Volume down Power button Audio Output USB (5V out) HDMI Reset USB-C charging input...
  • Page 11 PartS anD controlS 10 . Tripod mount 11 . Auto image correction sensor 12 . Lens...

  • Page 12: Specifications

    SPECIFICATIONS Product Dimensions 6˝ x 3.75˝ x 1.1˝ Brightness Up to 400 Lumens* Lamp Life LED lamp with up to 20,000 hours Image Size Up to 100˝ Throw Ratio 1.12 Contrast Ratio 400:1 Native Resolution 1280 x 720 (720p) Aspect Ratio 16:9 Built-in Speaker 2 2-watt speakers...

  • Page 13: Charging The Battery

    cHarging tHe Battery The built-in battery is charged using the included USB-C cable . The power indicator light on the projector will illuminate red to indicate the battery is charging . Once fully charged, the power indicator light will turn green . When powered on, the projector will also display charging icon on the home screen status bar when plugged into power .

  • Page 14: Operating The Remote Control

    oPerating tHe remote control seTup The remoTe Install included (2) AAA batteries in the remote control . • Turn the remote control over and locate the battery door on the rear of the unit . • Press on the remote door arrow and slide in the direction indicated by the arrow . •...
  • Page 15 note: The first time the projector is powered on, the remote pairing screen will automatically appear . To pair the remote: Press and hold the volume up (+) and volume down (-) buttons on the remote . The red light on the remote will blink as the remote pairs with the projector . •...

  • Page 16: Controls And Buttons

    conTrols and buTTons [Status light] Displays remote usage information [eco power] Turn ECO power mode on or off [up] or [Down], Move up or down; [left] or [right] Move left or right [Home] Return to the projector’s home screen [mouse] Use the remote as a mouse [volume down] Decrease volume [auto image correction] Automatically focus and adjust the vertical keystoning...

  • Page 17: Operating The Projector

    oPerating tHe Projector seTup The projector can be powered using the internal battery or while plugged into power with the USB-C charging cable . • To power the projector with AC power, connect the power adapter to the USB-C charging cable . Connect the USB-C end of the cable to the projector’s DC in port and the power adapter into an outlet .

  • Page 18: Connecting The Projector To A Wireless Network

    connecTing The projecTor To a Wireless neTWork Select “Settings” from the projector’s home screen . Scroll to “Wi-Fi” on the settings menu . Select “Scan” to search for nearby available networks . Select the desired network from the listed options . Enter the required network credentials, then select “Connect .

  • Page 19: Projecting Content

    projecTing conTenT The projector can be used as a standalone streaming device with many popular streaming applications, or to share content from a variety of devices with a wired HDMI connection or wireless connection . STANDALONE STREAMING Visit miroirusa . c om/smart-apps/ for a list of available streaming apps, or select the App Center icon from the projector’s home screen .
  • Page 20 Enter any required app access credentials . Stream From the projector’s home screen, select the streaming app desired . Select the content to view and play as you normally would . tiP: For simplier navigation with the remote, enable the remote’s mouse mode . Mouse mode will allow the remote to show an on screen cursor, similar to a typical computer mouse .
  • Page 21 HDMI CONNECTION The projector can be connected to a variety of devices such as smart phones, tablets, laptops, media streamers, and digital cameras via HDMI . imPortant: Devices that do not have an HDMI port will require an adapter to connect or may need to be connected wirelessly .
  • Page 22 What do i need to connect? Source Device needed to connect Apple iPad , iPhone and iPod touch devices Apple digital AV adapter (not included) and HDMI ® ® ® ® cable (included) Android™ devices with SlimPort SlimPort to HDMI adapter (not included) and HDMI ®...
  • Page 23 AirPlay and wireless screen mirroring are not supported on iOS devices . Wireless iOS viewing is limited to certain files types such as native video, photos, . P PTX files, . K EY files, and . P DF files through the Miroir Wireless app .
  • Page 24 The iOS device and your projector must be on the same wireless network to establish a wireless connection with the Miroir Wireless App . Select the content to project from the folders inside the Miroir Wireless app on the iOS device .
  • Page 25 USB FLASH DRIVE Content can be played directly from a USB flash drive: Select the “File Browser” icon from the projector’s home screen . Select “USB Disk” from the device list . Navigate to the desired file on the USB flash drive and select the file to view . imPortant: Built in media player supports .

  • Page 26: Image Adjustments

    image adjusTmenTs AUTO FOCUS AND AUTO KEYSTONE ADjUSTMENT Press the auto image correction button on the remote or the projector . Allow the projector a few moments to automatically focus and vertical keystone of the image . MANUAL FOCUS ADjUSTMENT To manually adjust image focus: Select “Settings”...

  • Page 27: Audio

    VIVID MODE Vivid mode enhances image contrast and brightness, ideal for movie watching . Turn vivid mode on or off: Select the settings icon from the projector’s home screen . Scroll down to the vivid mode option in the settings menu . Select on or off .

  • Page 28: Check Internal Storage Capacity

    CONNECTING AN EXTERNAL SPEAKER External speakers can be connected to the projector through the 3 . 5 mm audio port on the projector or wirelessly with a Bluetooth speaker . To connect an external Bluetooth speaker: Set the Bluetooth speaker to discoverable mode . Select “Settings”...

  • Page 29: Powering Off

    poWering off To power the projector off, press and hold the power button for 6 seconds . Allow the projector a few seconds to power off completely before storing the device . cleaning tHe lenS An optical lens cleaning solution can be used to clean the projector’s optical lens . Apply a small amount of the cleaning solution to a clean soft cleaning cloth and gently wipe the lens in a circular motion .

  • Page 30: Troubleshooting

    trouBleSHooting the projected image is blurry. • Adjust the focus wheel on the projector to fine-tune the picture . • Check that the surface you are projecting on is smooth . • Check that the projector’s lens is free of dust and debris . the projected image is too small.
  • Page 31 the projector is not connecting to your wireless network. • Check that you have selected the correct wireless router name in the setup menu . • Check that you are inputting the correct password if your network is security enabled (passwords are case sensitive) .
  • Page 32 the projector’s remote control isn’t functioning. • If the status light on the remote flashes each time your press a button on the remote, the problem is not with your remote . • Try moving closer to the projector with the remote . •...
  • Page 33 • If connected to the projector with a wireless connection to an ioS device: - Check that you have downloaded, installed and launched the Miroir Wireless app on your device . - Check that your projector and your iOS device are connected to the same wireless network .

  • Page 34: One (1) Year Limited Warranty

    To obtain warranty service for any Product that is subject to the foregoing warranty, Consumer must contact Miroir at info@miroirusa . c om, providing proof of purchase from an authorized dealer and a description of the issue . Consumer shall bear the cost of returning the Product for repair or replacement under this limited warranty .
  • Page 35 PRODUCT IS ERROR FREE OR THAT IT WILL FUNCTION WITHOUT INTERRUPTION . To the extent Miroir may not, as a matter of applicable law, disclaim certain implied warranties, the duration of any such implied warranty shall be limited to the shorter of the one (1) year limited warranty period or the minimum time period permitted under such law .
  • Page 36 Information contained herein is subject to change without notice . © 2016 Miroir USA . All rights reserved . Miroir is a registered trademark of Miroir USA in the US and other countries . All other trademarks are the property of their respective owners .
