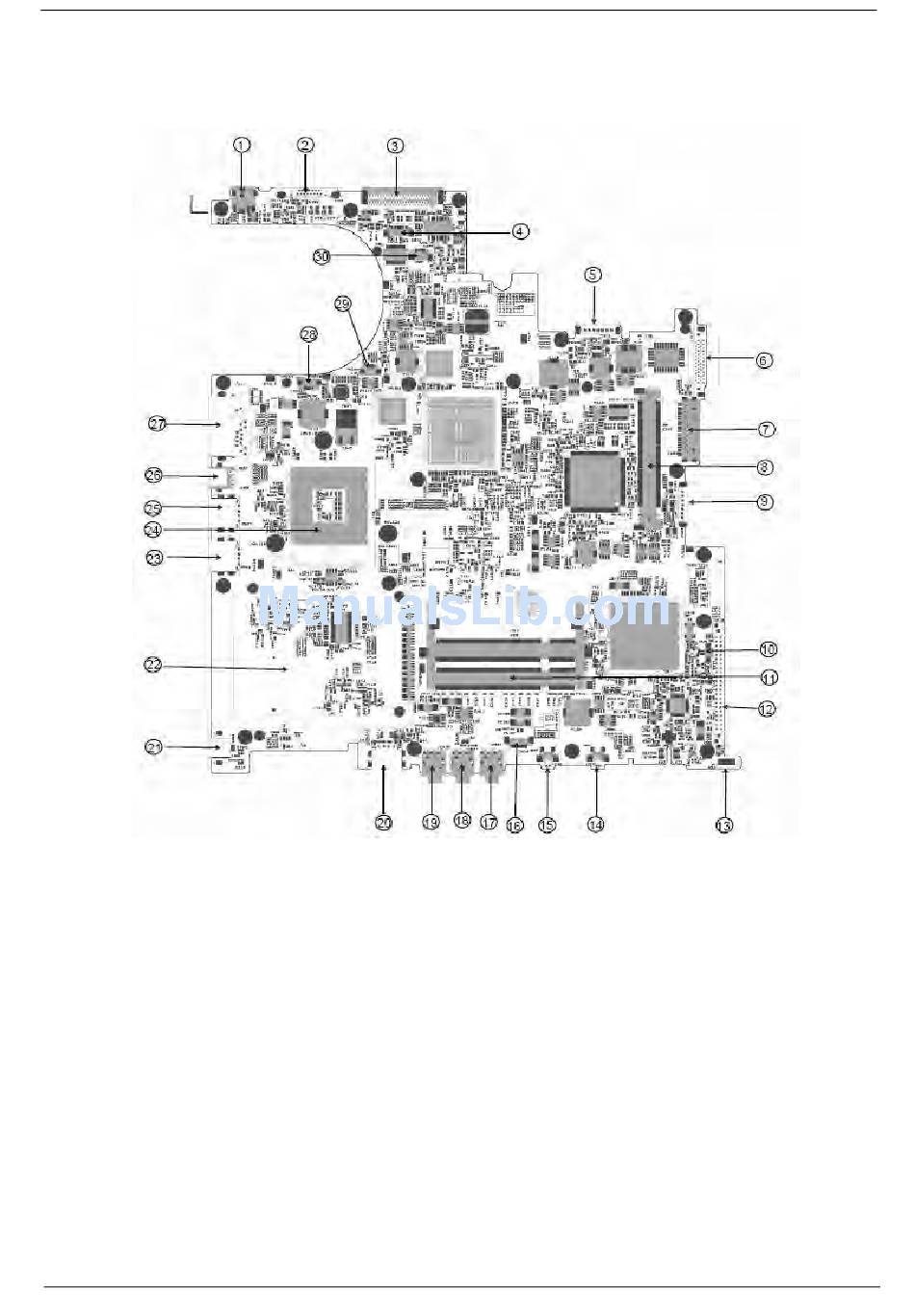

Bottom View
1
Power Jack
2
CRT
3
Docking
4
Audio Cable Connector
5
Main Battery Connector
6
ODD Connector
7
Media Bay Connector
8
Mini PCI Slot
9
Second Battery Connector
10
RTC Battery Connector
11
DDR DIMM Connector
12
HDD Connector
13
IR
Chapter 5
CN13
16
Audio Cable Connector
CN14
17
Line-in Connector
CN15
18
Headphone Out Connector
CN16
19
Microphone-in Connector
CN18
20
USB Connector
CN19
21
IEEE 1394 Connector
CN23
22
PCMCIA
CN24
23
USB Connector
CN26
24
CPU Socket
CN31
25
USB Connector
CN32
26
S-Video
CN33
27
RJ45 and RJ11 Connector
U53
28
LAN Cable Connector
CN34
CN39
CN37
CN38
CN36
CN35
CN30
CN28
U41
CN27
CN25
CN22
CN21
