Removing the HDD Module/the Memory and the Wireless LAN Card/the
Thermal Module and the CPU/ODD Module and LCD Module

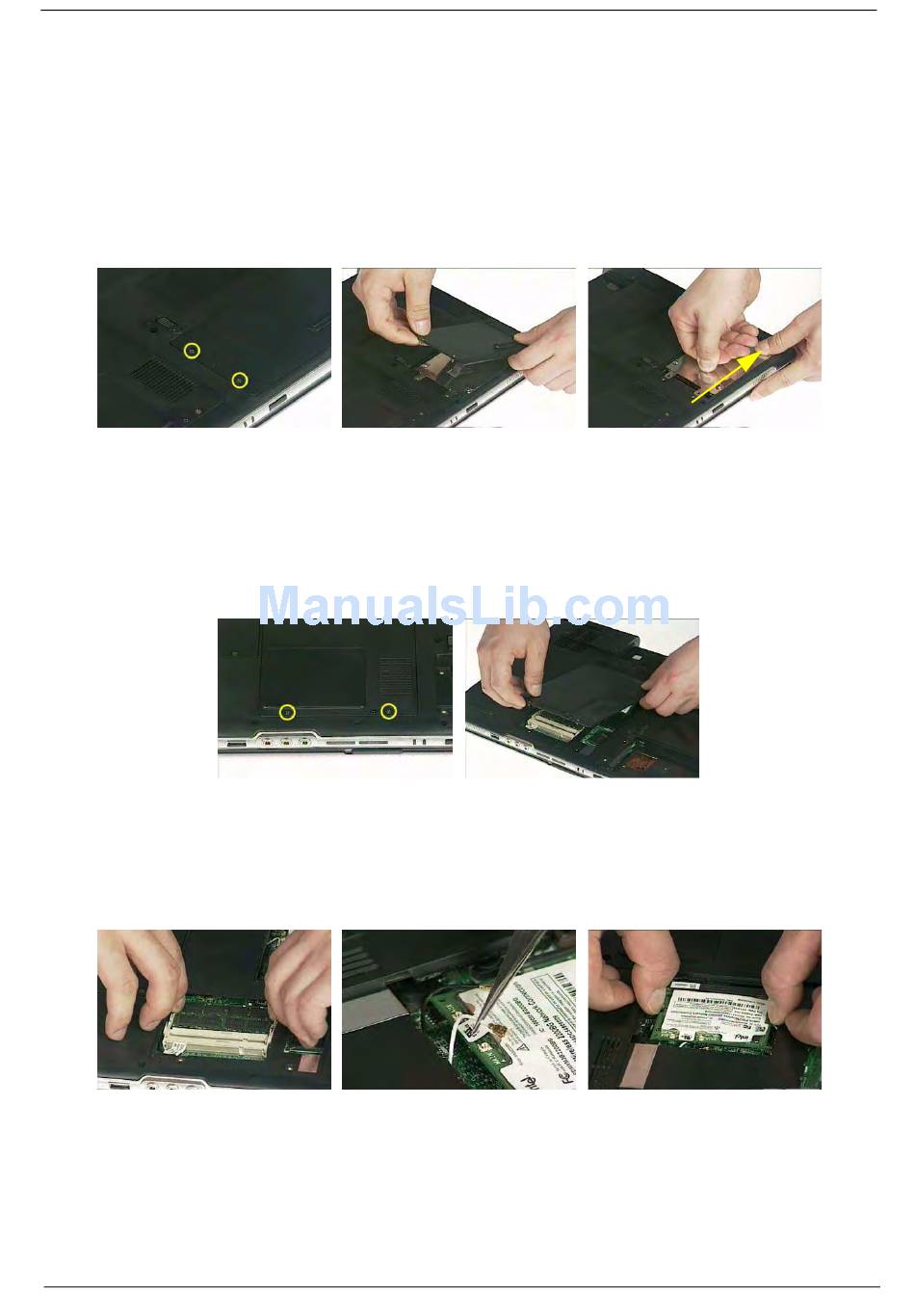

Removing the HDD Module
1.
Remove the two screws holding the HDD cover.
2.
Remove the HDD cover.
3.
Detach the HDD module then remove it.
Removing the Memory and the Wireless LAN Card
1.
Remove the two screws that secure the RAM/Wireless cover.
2.
Remove the RAM/Wireless cover.
3.
Pop up the memory then remove it.
4.
Disconnect the auxiliary and the main wireless antennae.
5.
Pop the wireless LAN card then remove it.
.
Removing the Thermal Module and CPU
1.
Remove the two screws holding the IO bezel.
2.
Then remove the IO bezel.
3.
Remove the two screws that secure the heatsink cover.
Chapter 3
51
