Hussmann Chino Entyce TY3 Installation & Operation Manual

Island case
Hide thumbs Also See for Entyce TY3:
Table of Contents

Advertisement

Quick Links

Download this manual

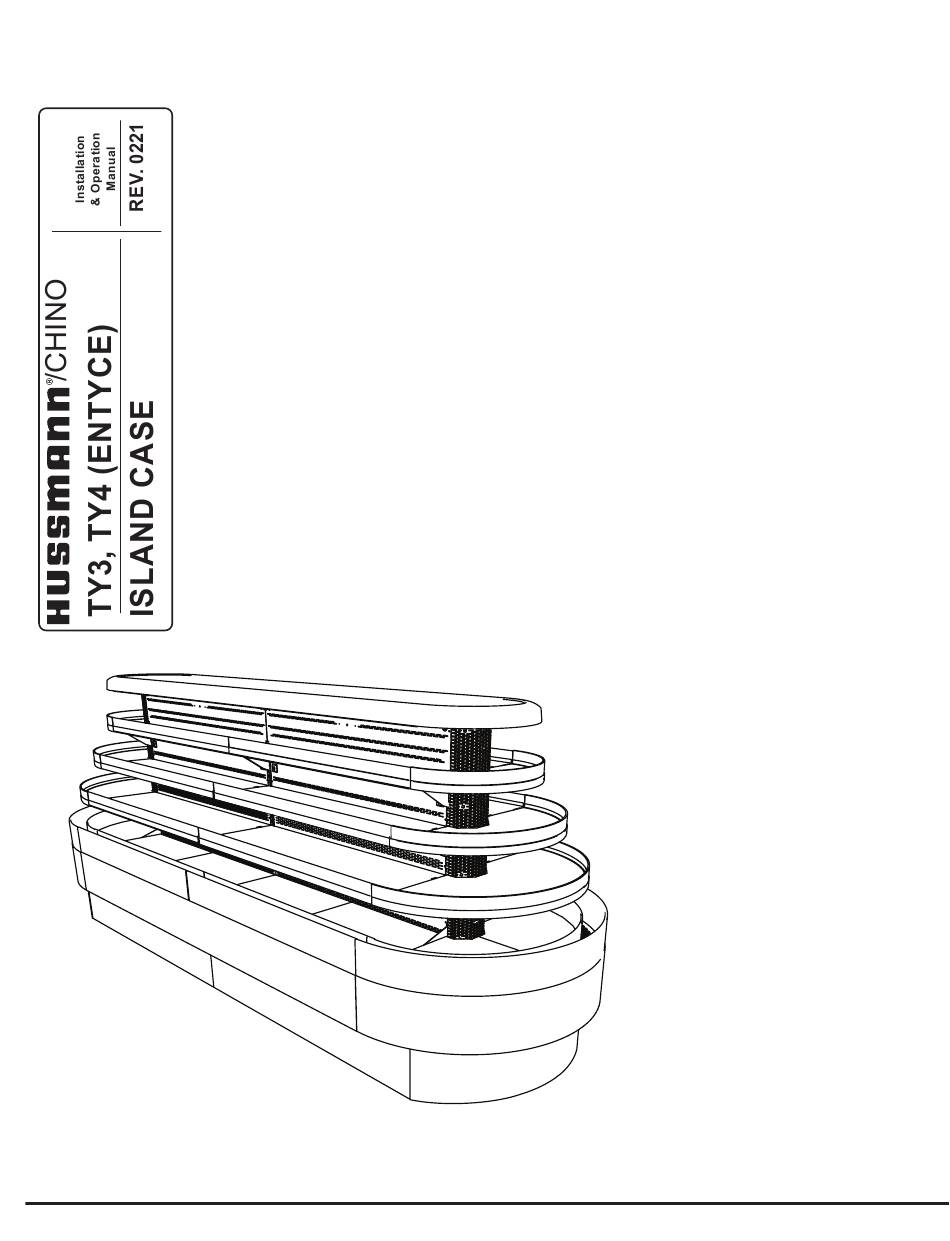

TY3, TY4
(ENTYCE)
ISLAND CASE
INSTALLATION & OPERATION GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Entyce TY3 and is the answer not in the manual?

Questions and answers

Related Manuals for Hussmann Chino Entyce TY3

Summary of Contents for Hussmann Chino Entyce TY3

  • Page 1 TY3, TY4 (ENTYCE) ISLAND CASE INSTALLATION & OPERATION GUIDE...

  • Page 2: Table Of Contents

    Table of Contents Warning General Information Cut and Plan Views Installation Plumbing Refrigeration Piping Sump Pump Configuration Specifications Electrical Wiring Diagrams Index Wiring Diagrams User Information Troubleshooting Appendix...
  • Page 3 1. Do Not Push, Pull, Adjust, or Manipulate the TY case by any glass component. • Doing so will result in severe damage to such components • Glass breakage may result in serious injury 2. Never stand on the TY Top, Deck, or any Shelves for any reason. •...

  • Page 4: Warning

    Warning Minimum Clearances for TY cases are to be followed as instructed for proper placement inside store locations. - A minimum clearance of 15’ from door opening must be maintained in order for case to remain in optimal performance. - Side clearances are to be a minimum of 8’ when placed next to a solid wall. - Height clearance measured from floor follows as a minimum of 10’...

  • Page 5: General Information

    Shortages: Check your shipment for any possible shortages of material. If a shortage should exist and is found to be the responsibility of Hussmann Chino, notify Hussmann Chino. If such a shortage involves the carrier, notify the carrier immediately, and request an inspection. Hussmann Chino will acknowledge shortages within ten days from receipt of equipment.

  • Page 6: Cut And Plan Views

    Cut and Plan Views TY3-4 TY4-4 4' wide Merchandiser 4' wide Merchandiser (572) (572) (203) (203) (619) (254) (254) (873) (594) (1461) 1/8(410) (305) (1461) TY3-4 1/8(410) (889) TY3-4S TY4-4 (508) (683) (635) Self Contained (429) (508) Option (254) (1026) (127) (1026) (127)
  • Page 7 TY-4 TY3-6X E - Flat End Merchandiser 4' wide Flat End Merchandiser (case length) base panels base rails drains centered to straight side Drain (524) “B” 3/8 (314) “A” Drain 1/2 (38) 1/2 (114) Refrig (234) Elec (1254) (114) (234) (397) Elec Refrig...

  • Page 8: Installation

    Installation TY Lifting and Transport Instructions 5. The TY merchandiser can be raised at one 1. The Entyce can be lifted by a forklift at typical end underneath the deck with a forklift to al- lifting points. low the placement of rollers or dollies. Lift Zones 6.
  • Page 9 Installation Location The refrigerated merchandisers have been designed for use only in air conditioned stores where temperature and humidity are maintained at or 75°F and 55% relative humidity or below 80°F and 55% relative humidity. DO NOT allow air conditioning, electric fans, ovens, open doors or windows (etc.) to create air currents around the merchandiser, as this It is the contractor’s responsibility to install will impair its correct operation.

  • Page 10: Plumbing

    Plumbing Waste Outlet and P-TRAP 3. Always provide as much down hill slope (“fall”) as pos- The waste outlet is located in front and center of the case sible; 1/8” per foot is the preferred minimum. PVC pipe, on both sides which allows for suitable access to each drain when used, must be supported to maintain the 1/8”...

  • Page 11: Refrigeration Piping

    Refrigeration Piping The standard refrigerant will be R-404 unless otherwise Refrigerant lines should be sized as shown on the refrigeration specified on the customer order. Check the serial plate on legend furnished by the store. Install P-TRAPS (oil traps) at the case for information.

  • Page 12: Sump Pump Configuration

    Sump Pump Configuration Connecting Sump Lines For Entyce cases with a Sump Pump Configuration connect liquid line, suction line, electrical, and drain line to top case stub-ups (outlets). Note: Isolate Drain line from Suction line either by seperating the lines or insulating the suction line. Liquid Line 1/2”...
  • Page 13 Sealing Sump Lines For Entyce cases with a Sump Pump Configuration connect liquid line, suction line, electrical, and drain line to top case stub-ups (outlets). Note: Example below demonstrates the proper method of sealing refrigeration and electrical access points. En sure tight seal to eliminate any air penetration.

  • Page 14: Specifications

    Specifications SELF-SERVICE DELI REVISION DATE 02/06/17 HUSSMANN - TY1-6 I-ISLAND (CHINO) REFRIGERATION DATA: CAPACITY *** EST. TEMPERATURE (ºF) GLYCOL (20°F VELOCITY (BTU/HR) TOTAL REFG. INLET, 6° RISE) CASE DISCHARGE (FT/MIN) CHRG. CASE LENGTHS RATING CONDITION EVAPORATOR CASE USAGE LENGTHS AIR ** (°F) 404A AHRI AHRI...
  • Page 15 SELF SERVICE MULTI-DECK HOT CASE HUSSMANN - TY3-4X ELECTRICAL DATA: TOTAL 208 VOLT AMPS AMPS AMPS WIRES VOLTS WATTS * MODELS LEVELS TY3-4X4C-H 5128 14.4 14.4 13.9 TY3-4X4E-H 4563 13.7 13.7 10.6 TY3-4X5E-H 5764 17.5 17.5 13.0 LEGEND N/A - NOT AVAILABLE TBD - TO BE DETERMINED...
  • Page 16 SELF-SERVICE DELI REVISION DATE 02/06/17 HUSSMANN - TY3-4 I-ISLAND, E-END, REMOTE (CHINO) REFRIGERATION DATA: CAPACITY *** EST. 20°F GLYCOL TEMPERATURE (ºF) VELOCITY (BTU/HR) REFG. CASE 6° RISE RATING DISCHARGE (FT/MIN) CASE LENGTHS EVAPORATOR CASE USAGE LENGTHS CHRG. CONDITION AIR ** (°F) (LBS) AHRI AHRI...
  • Page 17 SELF-SERVICE DELI CHEESE REVISION DATE 03/21/17 HUSSMANN - TY3-5 I-ISLAND (CHINO) REFRIGERATION DATA: CAPACITY *** EST. TEMPERATURE (ºF) 20°F GLYCOL VELOCITY (BTU/HR) REFG. 6° RISE CASE DISCHARGE (FT/MIN) CASE LENGTHS RATING CONDITION EVAPORATOR CASE USAGE LENGTHS CHRG. AIR ** (°F) (LBS) AHRI AHRI...
  • Page 18 SELF-SERVICE DELI / PRODUCE REVISION DATE 06/07/18 HUSSMANN - TY3-6 I-ISLAND, E-END, C-CENTER (CHINO) REFRIGERATION DATA: CAPACITY *** EST. TEMPERATURE (ºF) GLYCOL (20°F VELOCITY (BTU/HR/FT) REFG. INLET, 6° RISE CASE DISCHARGE AIR (FT/MIN) CHRG. CASE LENGTHS RATING CONDITION EVAPORATOR CASE USAGE LENGTHS ** (°F) 404a...
  • Page 19 SELF-SERVICE DELI TYPE I REVISION DATE 08/26/19 HUSSMANN - TY4-4 I-ISLAND, E-END (CHINO) REFRIGERATION DATA: CAPACITY *** EST. TEMPERATURE (ºF) 20°F GLYCOL VELOCITY (BTU/HR/FT) REFG. 6° RISE CASE RATING DISCHARGE (FT/MIN) CASE LENGTHS EVAPORATOR CASE USAGE LENGTHS CHRG. CONDITION AIR ** (°F) (LBS) AHRI AHRI...
  • Page 20 SELF-SERVICE DELI CHEESE REVISION DATE 6/20/2018 HUSSMANN - TY4-5 I-ISLAND (CHINO) REFRIGERATION DATA: CAPACITY *** EST. TEMPERATURE (ºF) GLYCOL (20°F VELOCITY (BTU/HR) REFG. CASE INLET, 6° RISE) RATING DISCHARGE (FT/MIN) CHRG. CASE LENGTHS EVAPORATOR CASE USAGE LENGTHS CONDITION AIR ** (°F) 404A AHRI AHRI...
  • Page 21 SELF-SERVICE DELI CHEESE REVISION DATE 12/22/16 HUSSMANN - TY4-6 I-ISLAND, E-END, C-CENTER (CHINO) REFRIGERATION DATA: CAPACITY *** EST. TEMPERATURE (ºF) GLYCOL (20°F VELOCITY (BTU/HR) REFG. INLET, 6° RISE) CASE RATING DISCHARGE (FT/MIN) CHRG. CASE LENGTHS EVAPORATOR LENGTHS CASE USAGE CONDITION AIR ** (°F) 404A (LBS)

  • Page 22: Electrical

    Electrical Field Wiring and Serial Plate Amperage Field Wiring must be sized for component amperes printed on the serial plate. Actual ampere draw may be less than specified. Field wiring from the refrigeration control panel to the merchandisers is required for refrigeration thermostats.

  • Page 24: Wiring Diagrams

    Wiring Diagrams...

  • Page 40: User Information

    User Information Stocking Improper temperature and lighting will cause serious to degraded product appearance and significantly shortening product loss. Discoloration, dehydration and spoilage can be product shelf life. controlled with proper use of the equipment and handling of Soap and hot water are not enough to kill this bacteria. product.

  • Page 41: Troubleshooting

    Troubleshooting Troubleshooting Guide Problem Possible Cause Possible Solution Case temperature is Ambient conditions may Check case position in store. Is the case located near an too warm. be affecting the case open door, window, electric fan or air conditioning vent that operation.
  • Page 42 Troubleshooting Problem Possible Cause Possible Solution Water has pooled Case drain is clogged. Clear drain. under case. PVC drains under case Repair as needed. may have a leak. Case tub has unsealed Seal as needed. opening. If the case is in a line- Install case to case joint and seal as needed.

  • Page 43: Appendix

    Appendix A. - Temperature Guidelines 1.3 A clogged waste outlet blocks refrigeration. The The refrigerators should be operated according to the installer is responsible for the proper installation of the manufacturer’s published engineering specifications system which dispenses condensate waste through for entering air temperatures for specific equipment an air gap into the building indirect waste system.
  • Page 44 10. Are the coils of the refrigerator iced up? NOTE: Public Health will use the temperature of the product in determining if the refrigerator will be allowed to display 11. Is the store ambient over 75°F, 55% RH as set forth in potentially hazardous food.
  • Page 45 1.3 The best preservation is achieved by following these rules: a) Buy quality products. b) Receive perishables from transit equipment at the ideal temperature for the particular product. c) Expedite perishables to the store’s storage equip- ment to avoid unnecessary warm-up and prolonged temperature recovery.
  • Page 46 August 31, 2018 This warning does not mean that Hussmann products will cause cancer or reproductive harm, or is in violation of any product-safety standards or requirements. As clarified by the California State government, Proposition 65 can be considered more of a ‘right to know’...
  • Page 47 Service Record Last service date: _______________ __________________________________________________________________________________________________ _______________ __________________________________________________________________________________________________ _______________ __________________________________________________________________________________________________ _______________ __________________________________________________________________________________________________ _______________ __________________________________________________________________________________________________ _______________ __________________________________________________________________________________________________ _______________ __________________________________________________________________________________________________ /Chino The MODEL NAME and SERIAL NUMBER is required in order to provide you with the correct parts and information for your particular unit. Additional copies of this publication may be obtained by contacting: They can be found on a small metal plate on the unit.
