Summary of Contents for DuroStar DUAL FUEL DS4400EHF

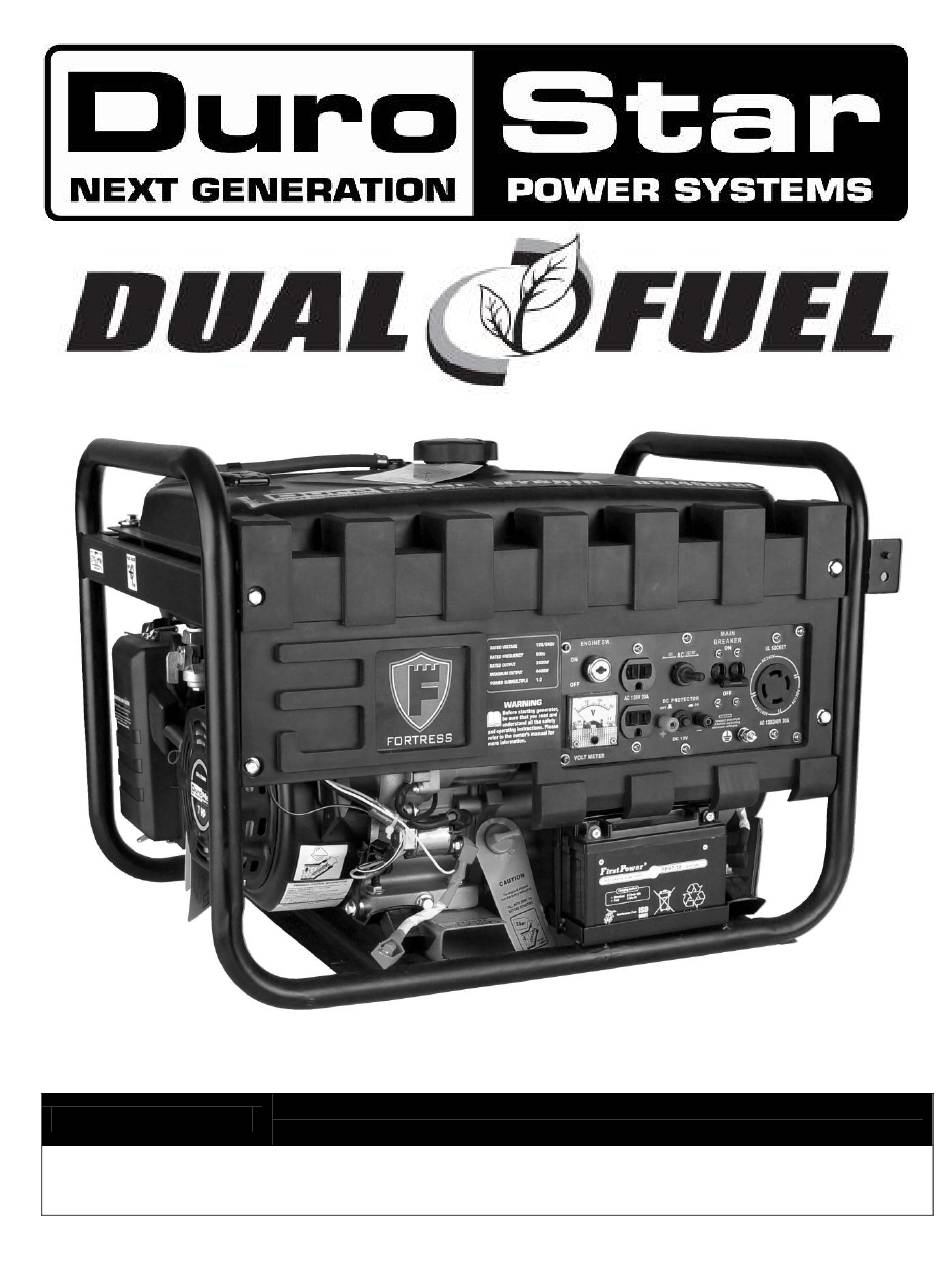

- Page 1 DS4400EHF OWNER’S MANUAL Product Information, Application, Service Info & Warranty Product Support Questions Please email us at support@duromaxgenerators.com or call (800) 629-3325 Monday – Friday 6:00 am – 6:00 pm (PST)
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS FEATURES SAFETY INFORMATION 4 - 6 COMPONENT IDENTIFICATION 7 - 9 PREPARING THE GENERATOR 9 - 12 STARTING THE GENERATOR GASOLINE STARTING THE GENERATOR PROPANE USING THE GENERATOR 15 - 18 WATTAGE REFERENCE CHART MAINTENANCE Service Schedule Checking the Oil... -
Page 3: Features
FEATURES Dual Fuel Option, LPG or Gasoline. Durable 7.0 HP, Air Cooled Overhead Valve Engine. Heavy Duty Steel Frame with Four Point Fully Isolated Motor Mounts for Smooth and Quiet Operation. Wheel and Handle Kit for Easy Transporting. Full Power Panel with Engine Shutoff Switch, Volt Meter, Circuit Breaker, and Power Outlets. -
Page 4: Safety Information
GENERAL SAFETY PROCEDURES Please familiarize yourself with the following safety symbols and words: The safety alert symbol is used with one of the safety words (DANGER, CAUTION, or WARNING) to alert you of hazards. Please pay attention to these hazard notices both in this manual and on the generator. - Page 5 GENERAL SAFETY PROCEDURES (Continued) WARNING: This generator produces a powerful voltage, which can result in electrocution. ALWAYS ground the generator before using it (see the "Grounding the Generator” portion of the "PREPARlNG THE GENERATOR FOR USE section). Generator should only be plugged into electrical devices, either directly or with an extension cord.
- Page 6 GENERAL SAFETY PROCEDURES (Continued) In addition to the above safety notices, please familiarize yourself with the safety and hazard markings on the generator.
-
Page 7: Component Identification
PACKAGE CONTENTS Your generator comes with the items listed below. Please check to see that all of the following items are included with your generator. Screw driver Spanner Spark plug wrench... - Page 8 GENERATOR COMPONENTS Please familiarize yourself with the locations and functions of the various components and controls of your generator. 1. Air Cleaner - a removable, cleanable, oiled, sponge-like element that cleans the air going into the engine. 2. Choke Lever - Allows the airflow into the carburetor to be restricted to assist in starting the engine.
- Page 9 13. Oil Fill and Dipstick - Use to add or check the oil. 14. Engine Switch – 3 Position Switch to “Start”, “Run”, or turn “Off” the generator. 15. Recoil Start – Easy Pull Recoil Start to start the engine without the electric start. GENERATOR COMPONENTS (Continued) 16.
-
Page 10: Preparing The Generator
PREPARING THE GENERATOR FOR USE (Continued) Figure 2 – Unscrewing the Oil Cap Figure 3 – Adding Oil To add Oil, follow these steps: 1. Make sure the generator is on a level surface. 2. Unscrew the oil filler/dipstick cap from the engine as shown in figure 2. 3. - Page 11 PREPARING THE GENERATOR FOR USE (Continued) IMPORTANT: Never use an oil/gasoline mixture. Never use old gas. Avoid getting dirt or water in the fuel tank. Gas can age in the tank and make it hard to start up the generator in the future. Never store generator for extended periods of time with fuel in the tank.
- Page 12 Subsequent Use of the Generator If this is not your first time using the generator there are still steps you should take to prepare it for operation. IMPORTANT: At this point you should be familiar with the procedures described in the first portion of this section entitled "Using the Generator for the First Time."...
-
Page 13: Starting The Generator Gasoline
Starting the Generator: Gasoline CAUTION: LPG must be shut off when using gasoline! Gasoline must be shut off when using LPG! Disconnect all electrical loads from the generator before attempting to start! 1. Make sure that the AC circuit breaker is in the OFF position. The generator may be hard to start if a load is connected. -
Page 14: Starting The Generator Propane
Starting the Generator: Propane CAUTION: LPG must be shut off when using gasoline! Gasoline must be shut off when using LPG! Disconnect all electrical loads from the generator before attempting to start! 1. Make sure that the AC circuit breaker is in the OFF position. The generator may be hard to start if a load is connected. -
Page 15: Using The Generator
Starting the Generator: Propane (Continued) WARNING: WHEN USING THE GENERATOR WITH LPG MAKE SURE THERE IS NO POSSIBLE IGNITION SOURCE CLOSE TO THE GENERATOR. 1. Before using, make sure all of the LPG connectors and hoses are well connected and sealed. -
Page 16: Wattage Reference Chart
Using the Generator (Continued) Once you have found the rated wattage requirement of each electrical device, add these numbers to find the total rated wattage you wish to draw from the generator. If this number exceeds the rated wattage of the generator, DO NOT connect all these devices. Select a combination of electrical devices, which has a total rated wattage lower than or equal to the rated wattage of the generator. - Page 17 Connecting a Load to the Generator NOTE: Be sure to attach devices to the correct receptacle (outlet). 120v devices can be directly connected to the 120v ONLY receptacles. 120v devices can be connected to the 120/240v receptacle using an appropriate adapter.
- Page 18 Choosing the Right Power Cord Long or thin cords can drain the power provided to an electrical device by the generator. When using such cords, allow for a slightly higher rated wattage requirement for the electrical device. See Figure 12 for recommended cords based on the power requirement of the electrical device.
-
Page 19: Service Schedule
MAINTENANCE AND CARE The Importance of Maintenance Proper routine maintenance of your generator is essential for safe, economical, and trouble-free operation. It will also help reduce air pollution. Warning Improper maintenance, or failure to correct a problem before operation, can cause a malfunction in which you can be seriously injured or killed. -
Page 20: Checking The Oil
Checking the Oil The generator is equipped with an automatic shutoff to protect it from running on low oil. Nonetheless, you should check the oil level of the generator before each use to ensure that the generator crankcase has a sufficient amount. To check the oil level: 1. -
Page 21: Changing The Oil
Changing the Oil It is only necessary to drain the oil from the crankcase, other than for regular oil changes, if it has become contaminated with water or dirt. In this case, you can drain the oil from the generator according to the following steps: 1. -
Page 22: Air Cleaner Maintenance
Air Cleaner Maintenance Routine maintenance of the air cleaner helps maintain proper airflow to the carburetor. Occasionally check that the air cleaner is free of excessive dirt. 1. Unhinge the clasps at the top and bottom of the air cleaner cover (see figure 18). -
Page 23: Spark Plug Maintenance
Spark Plug Maintenance The spark plug is important for proper engine operation. A good spark plug should be intact, free of deposits, and properly gapped. To inspect your spark plug: 1. Pull on the spark plug cap to remove it. 2. -
Page 24: Storage And Transportation
Storage and Transportation CAUTION: Never place any type of storage cover on the generator while it is still hot. When transporting your generator: Empty the gas tank (see "Emptying the Gas Tank" in the "Maintenance" section). Disconnect the spark plug. Do not obstruct any ventilation openings. -
Page 25: Generator Specifications
Generator Specifications AC Rated Wattage 3500W AC Surge Wattage 4400W AC Rated Voltage 120/240V AC Rated Frequency 60 Hz AC Phase Single DC Voltage DC Amperage 8.3A Length 23.2 Dimensions (in.) Width Height Engine Type 4-Stroke OHV Forced-Air Ignition System Non-Contact Transistor Displacement 210cc... -
Page 26: Troubleshooting
Troubleshooting Problem Cause Solution Engine Switch is "Off" Set Engine Switch to "Run" Fuel Valve is "Closed" Turn Fuel Valve to "Open" Choke is open. Close the Choke Engine is out of fuel. Add Fuel Engine will not start Fuel is old or Change Fuel contaminated. -
Page 27: Wheel Kit Assembly
Wheel Kit Assembly The generator includes a wheel kit for easy transportation. To install the wheel kit: 1. Please the generator on a flat, even surface. Temporarily place blocks under the generator to easy assembly. NOTE: DO NOT flip the generator upside down to install the wheel kit. 2. -
Page 28: Changing/Inspecting The Carbon Brush
Changing/Inspecting the Carbon Brushes Remove the 2 bolts on the generator cover. Remove the bolt holding the carbon brush. Remove the 2 wires from the AVR on the Install a new carbon brush with bolt. carbon brush. Insert and connect the 2 wires from the Replace the back cover of the generator and AVR, be sure to connect + and –... -
Page 29: Changing/Inspecting The Avr
Changing/Inspecting the AVR Remove the 2 bolts on the Remove the 2 bolts holding Disconnect the wire clip. generator cover. the AVR. Remove the 2 wires from the Install the new AVR with the 2 Reconnect the wire clip. AVR on the carbon brush. bolts. -
Page 30: Maintenance Log
Maintenance Log MODEL: DS4400EHF Date Generator Hrs. Maintenance Performed... -
Page 31: Wiring Diagram
Wiring Diagram... -
Page 32: Parts Lists
Engine Parts... - Page 33 Engine Parts...
- Page 34 Other Generator Parts...
- Page 35 Other Generator Parts...
- Page 36 Product Product Information, Application, Service Info & Warranty Support Questions Please email us at support@duromaxgenerators.com or call (800) 629-3325 Monday – Friday 6:00 am – 6:00 pm (PST)
