We do not recommend sustained operation at these maximum power levels. Infinity continually strives to update and improve existing products, as well as create new ones. The specifications and details in this manual and related Infinity publications are therefore subject to...

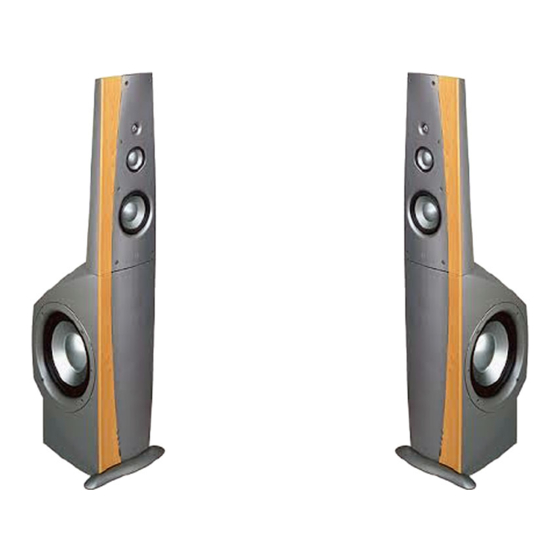

INTERMEZZO 4.1t Detailed Specifications LINE VOLTAGE Yes/No Hi/Lo Line Nom. Unit Notes US 120vac/60Hz Yes 108-132 Vrms Normal Operation EU 230vac/50 – 60Hz Yes 207-264 Vrms Normal operation, MOMS required Parameter Specification Unit QA Test Conditions Notes Limits Amp Section...
Page 5
INTERMEZZO 4.1t Detailed Specifications (cont.) Features Main Power On/Off Switch rocker -- functional Locate at amp plate High-Level High-Pass Switch push button -- functional Locate at amp plate Single pole, rated 10A @120V/240V, or more Low-Pass Filter Switch 3-pos switch --...
INTERMEZZO 4.1t Controls and Connections Rear Panel Front Panel – LOW- LOW- INPUTS LEVEL LEVEL INPUT OUTPUT ® INTERMEZZO 4.1t BASS MODE AC FUSE 6A 250V HIGH-PASS FILTER POWER CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN 120V – 60HZ 6A...
Page 7
If none of these system configurations seem to 2-Channel system with separate preamplifier and power amplifier match yours, consult your dealer or Infinity customer service for direction on how best to hook up your ® Dolby Pro Logic with THX, Dolby Digital, system.
Page 8
INTERMEZZO 4.1t Controls and Connections (cont.) (ONE CHANNEL SHOWN) SURROUND RECEIVER FRONT SPEAKER SUBWOOFER (LFE) – OUTPUTS OUTPUT Method 3a – LOW- LOW- INPUTS LEVEL LEVEL INPUT OUTPUT TO SECOND 4.1t Y-Connector ® INTERMEZZO 4.1t BASS MODE RED = AC FUSE...
Page 9
RISK OF ELECTRIC SHOCK DO NOT OPEN 120V – 60HZ 6A Final Positioning After correctly connecting the Intermezzo 4.1t and verifying that both the subwoofer and main section portions are playing, it is time to optimize the system for your particular listening room.
INTERMEZZO 4.1t Operation The operation of the Intermezzo 4.1t loudspeaker system, and the proper settings for the Room Adaptive Bass Optimization System, ™ or R.A.B.O.S., ™ is thoroughly covered in the Owner’s Guide, part# 336205-001. For service purposes, the R.A.B.O.S. system is canceled when all three front panel controls (F) (L) (W) are turned fully CW.
INTERMEZZO 4.1t IM 4.1t ADJUST BIAS PROCEDURE (Mandatory when any output MOSFET transistors Q305, 310, 320, 321, 306, 307, 311, 312 are replaced) 1. Amplifier should be unplugged and OFF. 2. Remove Amp assembly from cabinet; remove rear plastic guard, and detach entire assembly from black plastic cup containing the controls.
INTERMEZZO 4.1t Test Setup and Procedure – AC VOLT LOW- LOW- INPUTS LEVEL LEVEL METER (10V) INPUT OUTPUT SIGNAL ® INTERMEZZO 4.1t GENERATOR INTERMEZZO 4.1t BASS MODE UNDER TEST AC FUSE 6A 250V HIGH-PASS FILTER AMPLIFIER POWER CAUTION OUTPUT FROM GENERATOR/AMPLIFIER...
Screws Only Titanium (2) Remove These Grille Cups and Screws Only TO SERVICE THE INTERMEZZO 4.1t 1. Remove the grilles and side panels. (ROTATED 2. Extract (20) of the rubber grille retainers and (2) of the titanium retainers 90° CCW) as shown in the illustration;...
INTERMEZZO 4.1t Packaging Parts List Outer Carton 336491-001 End Pad (Right, top right) 336215-001 End Pad (Left, top right) 336216-001 End Pad (Right, top left) 336215-002 End Pad (Left, top left) 336226-002 End Pad (Right, bottom right) 336215-003 End Pad...
All Infinity Service Centers Model: Intermezzo 4.1t Subject: Distortion at Low Volume Levels In the event you receive an Intermezzo 4.1t with the complaint “there is distortion at low volume levels, particularly when higher frequencies are present”, perform the following procedure: Synopsis: Remove three components and re-wire them in a similar circuit on the opposite side of the Feature PCB.
Page 19
INTERMEZZO 4.1t 11) After silicon sealer dries, reassemble feature PCB replacing all connectors and switch assembly. Replace faceplate and all connectors; install amplifier back into the IM4.1t enclosure. Replace woofer. 12) Test the unit. Model Serial number (120v) Status Action...
Service Bulletin Service Bulletin INF2001-04 Rev2 – May 2005 Warranty labor rate: MINOR repair All Infinity Service Centers Model: Interlude and Intermezzo IL50, IL60, IL100s, IL120s, IM1.2s, IM4.1t Subject: No Output In the event you receive an Interlude or Intermezzo loudspeaker with the complaint: “There is no output, and the LED on the volume control does not light, red or green”, check the item listed below:...
Page 21
9) If it is 25 volts or greater, turn the amplifier OFF, disconnect from the power source, and replace: IL120S, IL60: Q504,Q507 IRF640 on the Power Supply PCB, Infinity part# QM0015. IL50, IL100s: Q1 IRF540 on the Power Supply PCB, Infinity part# QM0020.
Page 34
INTERMEZZO 4.1t Electrical Parts List (cont.) Part# Reference Designator Qty. Description FS0027 FUSE, 6A 250V 1.25X.25 GLASS HN0003 NUT, HEX NYLON #6-32 L302 ON THE LINEAR BOARD HN0006 NUT, HEX KEP #6-32 ZNP 1PC FOR BRIDGE HEATSINK; 4PC FOR THE PRIMARY AND DIODE HEATSINK;...
Page 35
INTERMEZZO 4.1t Electrical Parts List (cont.) Part# Reference Designator Qty. Description JC0182 CNCTR, 2PIN FEM/2XFEM FASTON TO LIVE AND NEUTRAL FROM SWITCH TO THE EMI BOARD JC0192 CNCTR, FEM-MAL HARN 2P 20" #16 CONNECT TO FO101(.250) TO FO103(.205) ON FEATURE BOARD JC0193 CNCTR, FEM-MAL HARN 2P 49"/30"...
