TKP-7500 I

Installing the TKP-7500

The TKP-7500 is wall-mountable and fits easily into a dual-gang
opening. Prior to installation, make sure power is available at the
preferred location.
Power can be supplied to the TKP-7500 through an Ethernet cable
connected to a PoE (power over ethernet), in either of the following
ways:
Router/Switch
Injector
Power over Ethernet or PoE technology describes a system to pass
electrical power safely, along with data, on Ethernet cabling. The
IEEE standard for PoE requires Category 5 cable or higher for high
power levels.

Installation

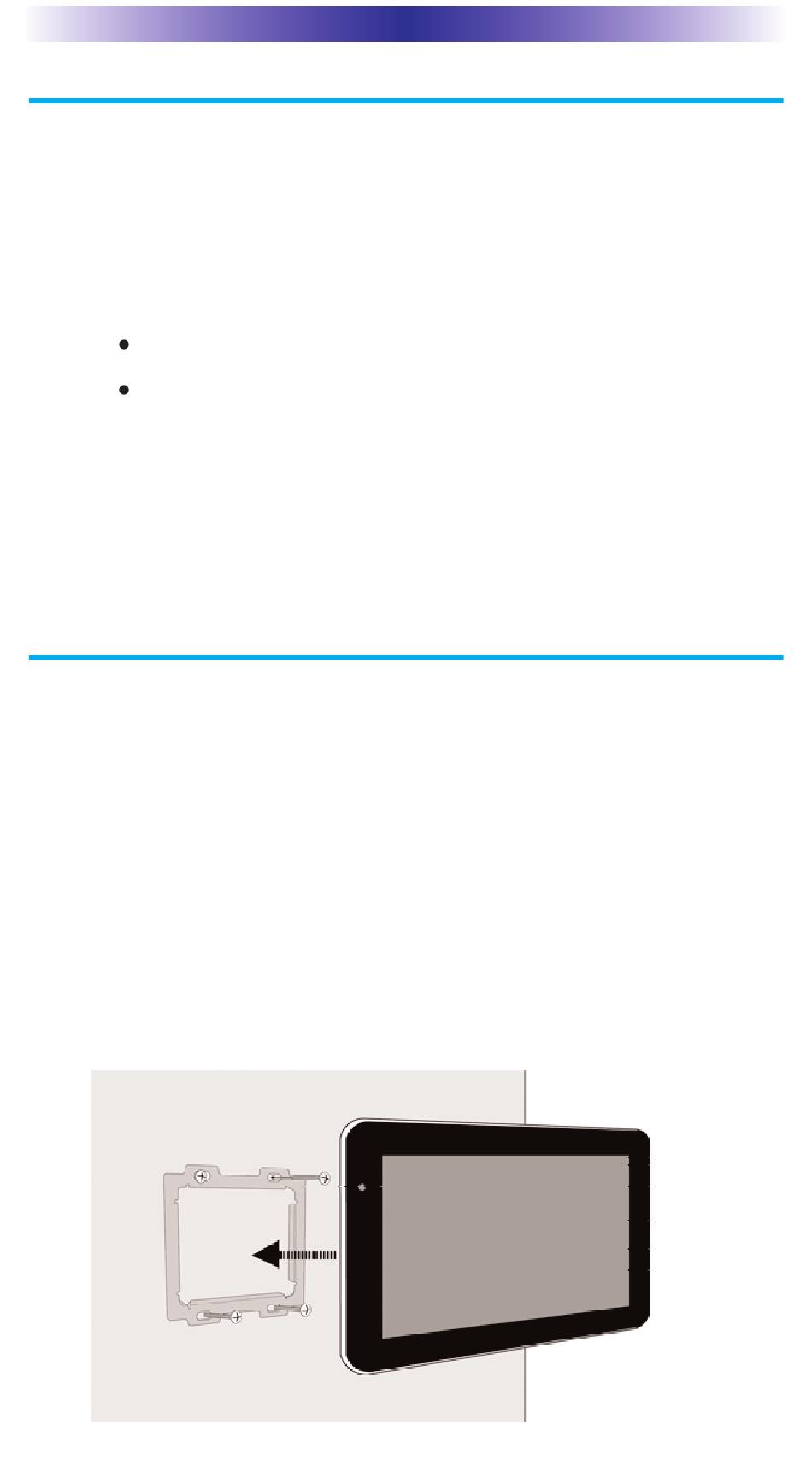

Follow the diagram below for installation:
1. Make sure the dual-gang opening is fitted with a standard
two-gang trim box (available from the local electrical
supplier/store)
2. Connect the Ethernet cable to the rear of the supplied TKP-7500
wall-plate.
3. Mount the wall-plate to the two-gang retro-box
4. The TKP-7500 easily snaps into place to the wall-plate.
