TR3450AE (v2)
OWNER'S MANUAL
TERMS OF USE
INSTALLER TERMS OF USE
Automotive Data Solutions Inc. ("ADS") products are strictly intended for installation by Certified Technicians
who are employed by a registered business specialized in the installation of automotive aftermarket electronics
products. Prior to beginning installation of an ADS product in a vehicle, it is the Certified Technician's
responsibility to review the most current Product Guide, Install Guide and vehicle-specific notes available in
Weblink®. ADS is not responsible for any damages whatsoever, including but not limited to any consequential
damages, incidental damages, damages for loss of time, loss of earnings, loss of profit, commercial loss, loss of
economic opportunity and the like that may or may not have resulted from the use, misuse, improper
installation or operation of its products. Purchasers sole contractual remedy is refund of the purchase price of
the ADS product(s). ADS reserves itself the right to suspend any Weblink® account without notice and decline
to offer technical support to non-Certified Technicians, non-compliant Certified Technicians or end users.
END USER TERMS OF USE
ADS products are designed to remote start vehicles from a distance. In order to ensure your iDatastart system
meets all safety regulations and operates as intended by the manufacturer, please follow the usage
recommendations below:
• DO NOT use this product for any purpose other than its intended usage.
• DO NOT remote start a vehicle in an indoor or enclosed area (i.e. garage). Exhaust fumes are extremely
dangerous and can cause personal injury or death. Install carbon monoxide detectors in every living area that
can be exposed to vehicle exhaust fumes.
• DO NOT remote start a vehicle while it is being serviced. Follow the Valet Mode procedure as outlined in your
Owner's Manual.
• DO NOT remote start a vehicle in gear.
• DO NOT remote start a vehicle with the key in the ignition.
• DO NOT remote start a vehicle left unattended with open windows, unlocked doors or open convertible top.
• DO NOT allow children handle or operate long range remotes.
• ALWAYS engage your emergency brake prior to exiting your vehicle. This may limit motion if the vehicle is
accidentally started in gear.
• AVOID remote starting your vehicle while passengers or pets are on board. This may increase the risk of
2022-01-25 © Automotive Data Solutions Inc. 1/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iDatastart TR3450AE and is the answer not in the manual?

Questions and answers

Summary of Contents for Automotive Data Solutions iDatastart TR3450AE

  • Page 1 TERMS OF USE INSTALLER TERMS OF USE Automotive Data Solutions Inc. (“ADS”) products are strictly intended for installation by Certified Technicians who are employed by a registered business specialized in the installation of automotive aftermarket electronics products. Prior to beginning installation of an ADS product in a vehicle, it is the Certified Technician’s responsibility to review the most current Product Guide, Install Guide and vehicle-specific notes available in...

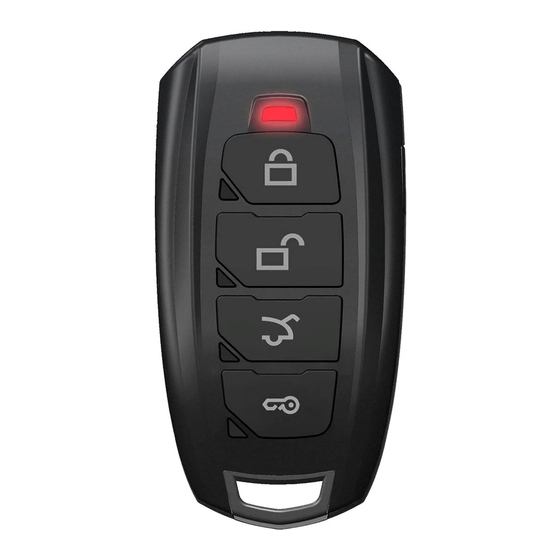

  • Page 2: Remote Overview

    1-Way / Half-Mile* Range upgrade options FLEX 2W or 2WX Transmit confirmation (TX) Red Top LED Receive confirmation (RX) — Batteries required 1 x CR2450 Avg. battery Life 15-20 months Warranty 1 year 2022-01-25 © Automotive Data Solutions Inc. 2/17...
  • Page 3 2-Way / Half-Mile* Range upgrade options FLEX 2WX Transmit confirmation (TX) Yellow Top LED Receive confirmation (RX) Yellow Button LED + Chime Batteries required 1 x CR2450 Avg. battery Life 10-15 months Warranty 1 year 2022-01-25 © Automotive Data Solutions Inc. 3/17...
  • Page 4 NOTES: 1. All functions must be enabled by an Authorized Dealer during installation to be functional on remote 2. Non-highlighted icons = Press & release button 2022-01-25 © Automotive Data Solutions Inc. 4/17...
  • Page 5 2 chimes + 2 flashes QUERY* COMMAND Query* BUTTON Queries vehicle and vehicle battery voltage and DESCRIPTION interior temperature. PANIC* COMMAND Panic* BUTTON DESCRIPTION Triggers the panic siren. CONFIRMATION 1 chime + 1 flash 2022-01-25 © Automotive Data Solutions Inc. 5/17...
  • Page 6 AUX 1 COMMAND AUX 1 BUTTON DESCRIPTION To be completed by Authorized Dealer if applicable AUX 2 COMMAND AUX 2 BUTTON DESCRIPTION To be completed by Authorized Dealer if applicable AUX 3 2022-01-25 © Automotive Data Solutions Inc. 6/17...
  • Page 7 (*). SILENT LOCK* COMMAND Silent Lock* BUTTON DESCRIPTION Disables the vehicle’s horn and alarm siren. SILENT UNLOCK* COMMAND Silent Unlock* BUTTON DESCRIPTION Disables the vehicle’s horn and alarm siren. VALET MODE ON/OFF 2022-01-25 © Automotive Data Solutions Inc. 7/17...
  • Page 8 •1 chime ON CONFIRMATION •2 chimes OFF IGNITION LOCK ON/OFF COMMAND Ignition Lock ON/OFF BUTTON DESCRIPTION Automatically locks doors when engine is running. •1 chime ON CONFIRMATION •2 chimes OFF PASSIVE LOCK ARM ON/OFF 2022-01-25 © Automotive Data Solutions Inc. 8/17...
  • Page 9 2, 3 or 4 hours (programmable) or from a temperature sensor sold separately. •1 chime ON CONFIRMATION •2 chimes OFF LOCK REMOTE COMMAND Lock Remote BUTTON DESCRIPTION Disables all functions on your remote. CONFIRMATION 1 chime + 1 flash UNLOCK REMOTE ON/OFF 2022-01-25 © Automotive Data Solutions Inc. 9/17...
  • Page 10: Programming A New Remote

    3. A maximum of 4 remotes can be programmed to your iDatastart system. REPLACING REMOTE BATTERIES Follow the steps below to replace the batteries in your iDatastart remotes: 1. Unscrew the rear cover of the remote. 2022-01-25 © Automotive Data Solutions Inc. 10/17...
  • Page 11: Adjusting Engine Runtime Settings

    ‘runtime’ setting. The default runtime is 15 minutes but it can also be programmed for 3, 5, 10, 25, 30 or 35 minutes. If you wish to change your remote start runtime setting, contact your iDatastart Authorized Dealer. KEY TAKEOVER FOLLOWING REMOTE START 2022-01-25 © Automotive Data Solutions Inc. 11/17...
  • Page 12 Cycle ignition OFF/ON 2x rapidly, then press brake 3x. FUNCTION # OF PARKING LIGHT FLASHES Valet Mode ON Valet Mode OFF With iDatastart Remote: Turn ignition ON, then press FUNCTION # OF PARKING LIGHT FLASHES Valet Mode ON Valet Mode OFF 2022-01-25 © Automotive Data Solutions Inc. 12/17...
  • Page 13: Remote Start Troubleshooting

    Contact Authorized Dealer 3 + 13 Bypass error Contact Authorized Dealer 3 + 14 No Pitstop or Takeover available Contact Authorized Dealer 3 + 15 Module overheat protection Contact Authorized Dealer VEHICLE SHUTDOWN TROUBLESHOOTING 2022-01-25 © Automotive Data Solutions Inc. 13/17...
  • Page 14: Limited Lifetime Warranty

    Module overheat protection Contact Authorized Dealer LIMITED LIFETIME WARRANTY Automotive Data Solutions Inc. (“ADS”) warrants to the original purchaser of the iDatastart product that the following components product shall be free of defects in material and workmanship under normal use and circumstances: Control module and installation harnesses For as long as the original purchaser owns the vehicle in which it was originally installed.
  • Page 15: Fcc Statement

    • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 2022-01-25 © Automotive Data Solutions Inc. 15/17...
  • Page 16: Sar Information Statement

    The highest SAR value for this model REMOTE CAR STARTER (TWO WAY) when tested for use at the extremity is 0.030W/Kg. While there may be differences between the SAR levels of various REMOTE CAR STARTER (TWO WAY) and at 2022-01-25 © Automotive Data Solutions Inc. 16/17...
  • Page 17 This device complies with FCC and ISED 10-g extremity SAR requirements when the device is used at 0 mm separation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2022-01-25 © Automotive Data Solutions Inc. 17/17...
