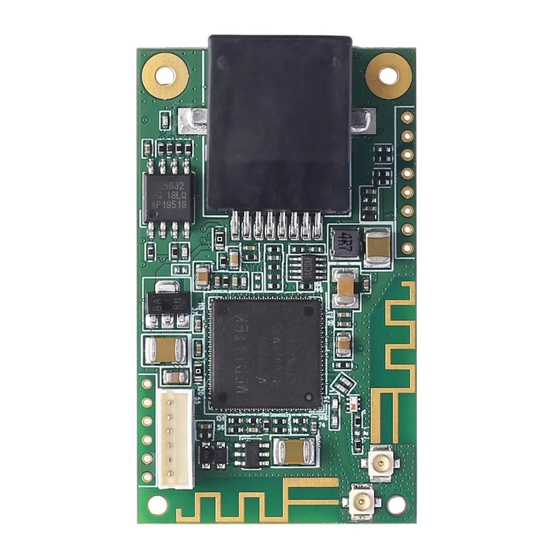

- Page 1 VONETS——VM300-L/VM300-H Mini WiFi Module VM300-L/VM300-H WiFi Module Quick Setting Guide...
- Page 2 Can’t do commodity distribution for any commercial or profitable purposes by any ways (electricity, mechanical, photoprint, record or other methods). VONETS is the registered trademark of Shenzhen HouTian Network Communication Technology Co., Ltd. The other all trademarks or registered trademarks mentioned in this documents are belong to the individual owners.
-
Page 3: Chapter 1 Bridge+Repeater Mode Configuration
VONETS——VM300-L/VM300-H Mini WiFi Module Chapter 1 Bridge+Repeater Mode Configuration Instruction 1.1 Device Connection Power on VM300-L/VM300-H by 5V/1A power supply, then connect to PC, there are two connection ways as below: A. Computer is wired connected to LAN port of VM300-L/VM300-H; （Recommend Method）... - Page 4 The option “The configuration parameters of WiFi repeater security is synchronized with source hotspot” is default ticked, it means the SSID of VONETS repeater is associated with the SSID of the source hotspot, and the WiFi password is the same as the password of the source hotspot;...
- Page 5 VONETS——VM300-L/VM300-H Mini WiFi Module Detection and SSA Signal strength alarm threshold,these options here can be kept unchanged, for instructions on this option, go to www.vonets.com and download the “V Series WiFi Bridge Advanced Features Instruction”; 5. Click “Reboot”, VM300-L/VM300-H will connect to the configured WiFi hotspot...
- Page 6 1.3 AP Application Configuration VM300-L/VM300-H can be configured as an AP application. The wireless terminal device can connect to VM300-L/VM300-H hotspot to connect to the network; however, it is best to change its WiFi name and password for network security.
- Page 7 5. Reboot device, jump to “System Settings”---- “Reboot Device”, click “Reboot”, when it is finished, all revised options will take effort. Remark 2: When VM300-L/VM300-H connect to external network, its IP address will be changed. At this time, when log in configured page, we suggest you enter configured domain...
-
Page 8: Chapter 2 Router Mode Configuration Instruction
VONETS——VM300-L/VM300-H Mini WiFi Module name: http://vonets.cfg. Or in Windows command window, enter the command: ping vonets.cfg, to get the IP address of the device, then log in configuration page by this IP address. Chapter 2 Router Mode Configuration Instruction 2.1 Change device mode 1. - Page 9 3. Enter User name and Password in login page (both are“admin” ), click“Login”button to enter configured page; 4. In “Operating Mode”, change Device mode to “Router” mode, click “Apply” button; 5. Reboot device: go to “System Settings”-- “Reboot Device”, click “Reboot” button, VM300-L/VM300-H will automatically switch to router mode.
-
Page 10: Wan Port Setting
VONETS——VM300-L/VM300-H Mini WiFi Module 2.2 WAN port setting 2.2.1 WAN/LAN exchange In routing mode, the Ethernet port of VM300-L/VM300-H is divided into a WAN port and a LAN port, and WAN/LAN can be interchanged. 2.2.2 WAN Port connection method By setting the WAN port of the router, you can change the network connection type... - Page 11 ISP (Internet Service Provider) to provide Internet account and password. WiFi: WAN port connection type is selected as “WiFi”, VM300-L/VM300-H uses a built-in WiFi network card (used to connect to the source hotspot) as a WAN port, and all Ethernet ports as LAN ports, while providing WiFi hotspot functions.
- Page 12 VONETS——VM300-L/VM300-H Mini WiFi Module 2.2.5 WAN port wireless connect network---- WiFi 1. In “WAN Settings”, select “Basic Settings”, change Connection type to “WiFi”, then click “Scan Hotspots” to enter the scanning hotspot list. 2. Choose the source hotspots, click “Next”;...
- Page 13 The option “The configuration parameters of WiFi repeater security is synchronized with source hotspot” is default ticked, it means the SSID of VONETS repeater is associated with the SSID of the source hotspot, and the WiFi password is the same as the password of the source hotspot;...
- Page 14 WiFi status light will flash quickly;(Please refer to Remark 1 for the description of the LED light.) Remark 3: After VM300-L/VM300-H sets the WAN port to access the WiFi hotspot in the routing mode, its LAN port IP is still 192.168.254.254, and the terminal device also obtains the IP address of the same network segment, can login configuration page by 192.168.254.254 or http://vonets.cfg.
- Page 15 VONETS——VM300-L/VM300-H Mini WiFi Module 2.3 Set WiFi hotspot parameters 1. Revise WiFi name: Jump to“WiFi Settings” ----“Basic Settings” , enter new WiFi name in “General Hotspot SSID”, click “Apply”; 2. Revise WiFi password, in “ WiFi Settings ” ---- “ WiFi Security ” , enter new WiFi password in “Pass Phrase”, click “Apply”;...
- Page 16 VONETS——VM300-L/VM300-H Mini WiFi Module...
-
Page 17: Appendix Frequently Asked Questions
How to restore the factory default parameters of the VM300-L/VM300-H? VM300-L/VM300-H restore to the factory method: press and hold the Reset button for 5 seconds and then release it, the blue indicator light will flash a few times, and then... - Page 18 WEB page, or after log in the WEB it shows error? Reason 1. The users don’t use the browser recommended by VONETS(IE,Google Chrome, Safari, the mobile phone browser); Reason 2. The smart phone or PC installed the firewall, the security level is set too high, caused the above problem.
