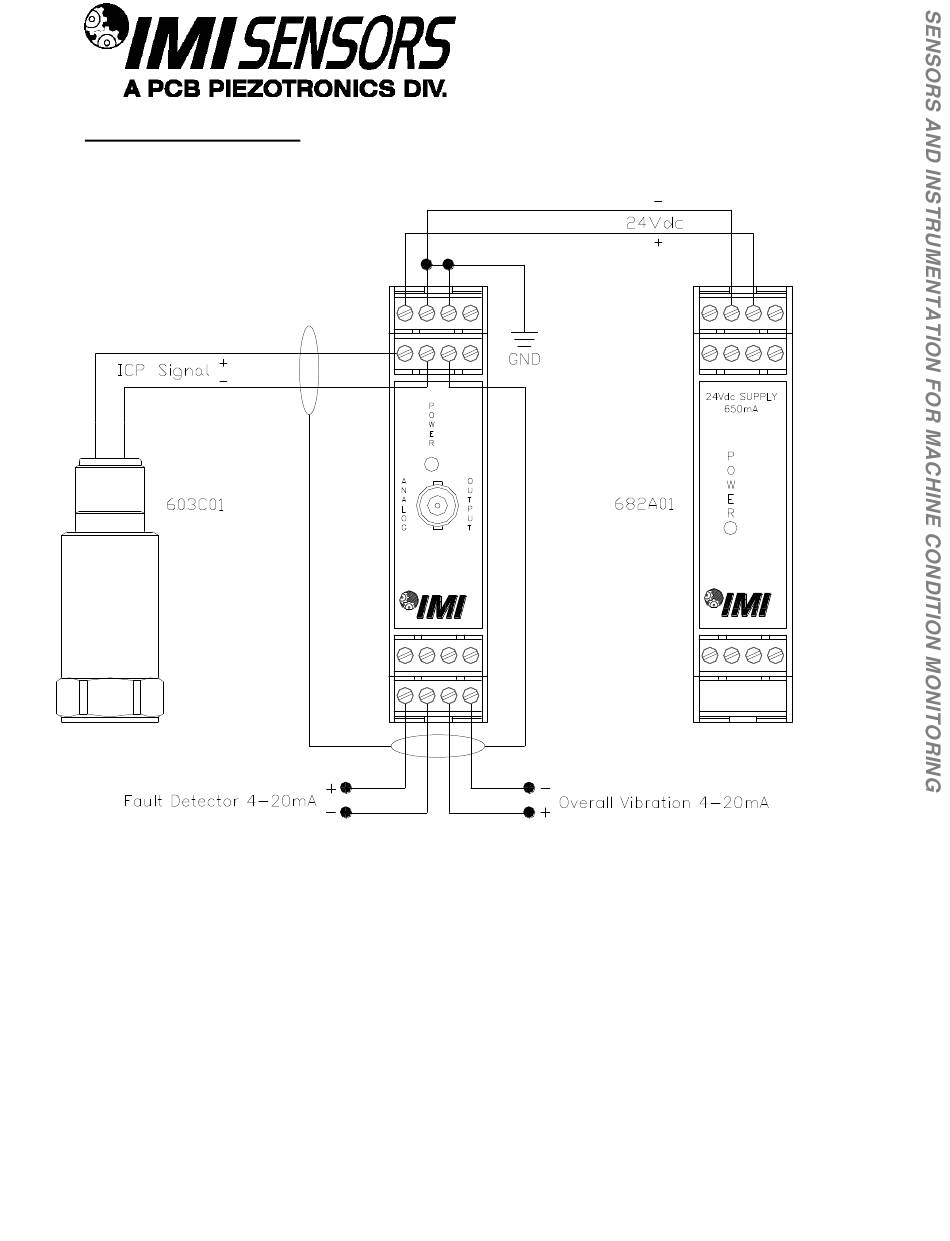

Typical Wiring Diagram
Note: If using the 682A01, mount the 682C05 to the left side of the power supply (as shown) with a recommended
minimum separation distance of 4" where applicable.
PAGE 7
