INSTALLATION, OPERATING
and
SERVICE MANUAL

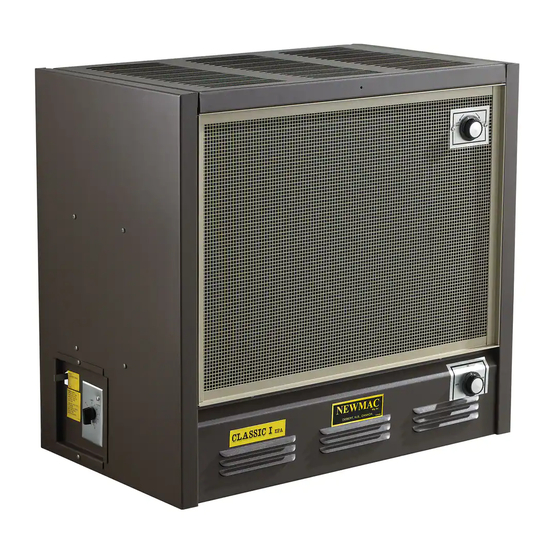

STATUS EPA, CLASSIC I EPA, CLASSIC II EPA WOODSTOVE
MODELS NS220E, NC100E & NCM120E
THE INSTALLATION OF THE UNIT SHALL BE IN ACCORDANCE WITH THE
REGULATIONS OF THE AUTHORITIES HAVING JURISDICTION.
HEAD OFFICE
MARKETING / PRODUCTION
WAREHOUSE
Newmac Mfg. Inc.
Newmac Mfg. Inc.
DEBERT AIR INDUSTRIAL PARK,
430 SPRINGBANK AVE., SOUTH
208 LANCASTER CRESCENT
WOODSTOCK, ONTARIO
P.O. BOX 9, DEBERT
N4V 1B2
NOVA SCOTIA, BOM 1G0
PHONE: 519-539-6147
PHONE: 902-662-3840
FAX:
519-539-0048
FAX:
902-662-2581
EMAIL:
newmac@newmacfurnaces.com
HOMEPAGE: newmacfurnaces.com
NOTICE TO HOMEOWNER:
READ AND SAVE THESE INSTRUCTIONS
156156
2210243 FEBRUARY 2012
Subject to change without notice
Printed:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Newmac NS220E
Summary of Contents for Newmac NS220E
- Page 1 INSTALLATION, OPERATING SERVICE MANUAL STATUS EPA, CLASSIC I EPA, CLASSIC II EPA WOODSTOVE MODELS NS220E, NC100E & NCM120E THE INSTALLATION OF THE UNIT SHALL BE IN ACCORDANCE WITH THE REGULATIONS OF THE AUTHORITIES HAVING JURISDICTION. HEAD OFFICE MARKETING / PRODUCTION WAREHOUSE Newmac Mfg.
-
Page 2: Installation Requirements
The Newmac NS220E (Status EPA ), NC100E (Classic I EPA) and NCM120E (Classic II EPA) are listed for USA and Canada under Solid-Fuel Space/Room Heater Standards UL1482, Underwriter’s Laboratories, and ULC S627, Underwriter’s Laboratories of Canada, by the Canadian Standards Association, a Nationally Recognized Testing Laboratory (NRTL/C). -
Page 3: Clearances To Combustibles - Floor Protection
(Canada). Do not obstruct the space beneath the stove. WARNING: Maintain minimum specified clearances to combustible materials. Do not place fuel (wood) within specified clearances or within space required for charging and/or ash removal. CLEARANCE TO COMBUSTIBLES, WALLS AND CEILING - NS220E Newmac Status EPA... - Page 4 CLEARANCE TO COMBUSTIBLES, WALLS AND CEILING – NC100E Newmac Classic I EPA Chimney Connector Type, genre de raccord de cheminée Single Wall Approved for clearance of 9” or less paroi simple Approuvé pour espacement de 9 po (225mm) ou moins 18”...
-
Page 5: Reduced Clearances
REDUCED CLEARANCES Approved double-wall chimney connector and/or approved non-combustible protection over combustible surfaces may permit the heater to be installed closer to combustible surfaces than the standard clearances to combustibles. Clearances may only be reduced by means approved by the regulatory authority. To reduce clearances to combustible materials, specified forms of wall protection must be installed. - Page 6 THERMOSTAT AND TIMER OPERATING INSTRUCTIONS...
- Page 7 As required by the installation codes, provide air for combustion from the outside into the room where the heater is located. For model NS220E (Newmac Status EPA)and NC100E (Newmac Classic I EPA), if the intake is not in the same room, the air must have free access to the room.
- Page 8 The crimped end of the chimney connector fits inside the heater flue collar. Additional pipe and elbow should be installed with CRIMPED END TOWARD THE HEATER. This will let condensation in the flue to run back into the heater. Chimney connectors must be sealed with furnace cement when installed in a mobile home. REDUCING EXCESSIVE DRAFT Where permitted by the regulatory authority a hand operated flue pipe key-damper may be installed.
- Page 9 CONNECTION TO A FACTORY BUILT CHIMNEY The room heater may be connected to a listed factory–built chimney which complies with the requirements of UL 103HT (USA) or CAN/ULC S629 (Canada). Check with your local regulatory authority for specific requirements. Follow the chimney manufacturer’s instructions when installing a factory-built chimney.
-
Page 10: Outside Combustion Air
If in doubt, it is advisable to provide additional air. For outside combustion air make-up, Newmac recommends that an opening, of 12 sq. inches (78 sq. cm.) free area be provided to the room in which the heater is installed. If the air is ducted from outside, a 4 inch round duct (to a maximum of 50 equivalent feet or 15m) should provide sufficient combustion air. - Page 11 POSSIBLE FLUE OR CHIMNEY DEFECTS From the foregoing basic principles for the regulation of chimney flues, it will be seen that unsatisfactory stove operation may be the result of any of the following possible chimney flue defects: Insufficient height. Surrounding nearby objects throwing air currents down the chimney. Flues enlarged or contracted at some point.
- Page 12 40% greatly reducing the amount of wood required for a heating season (easily up to 1/3 less wood). SECONDARY AIR TIMER (SAT) located on the left side of the NC100E and NCM120E, and on the back of the NS220E EPA. NEVER ATTEMPT TO BURN YOUR STOVE WITH THE TIMER KNOB SET IN THE OFF POSITION. THIS CLOSES OFF THE SECONDARY AIR AND YOUR STOVE WILL BURN DIRTY AND PRODUCE CREOSOTE.
- Page 13 This heater is designed for Thermostatic and Burn Rate Dial operation. THERMOSTAT ADJUSTMENT DIAL- NS 220E Newmac Status EPA, NC100E Classic I EPA and NCM120 Classic II The adjustment plate in the thermostat may be set to change the burn rate. Open to increase and close to decrease burn rate.
-
Page 14: Disposal Of Ashes
Check for air leaks in chimney. Any air leaks existing between the top of the chimney vent and the heater may cause back-puffing. Here is the reason: NEWMAC wood-fired heaters are designed to operate on an airtight principle, when the combustion air damper has closed, which it does intermittently because it is controlled by the bimetal thermostat, the heater has to breathe throughout the hole in this damper plate. - Page 15 The NC100E Newmac Classic I EPA and the NCM120E Classic II EPA room heater must be connected to a chimney complying with the requirements for Type HT chimneys in the Standard for Chimneys, Factory-Built, Residential Type and Building Heating Appliance UL103 (USA), or CAN/ULC S629, 650C Factory Built Chimneys (Canada).
- Page 16 Mark center point where the chimney goes through the ceiling and roof. On same center outline square X = 12” x 12” (305mm x 305mm) – USA, or 14” x 14” (355mm x 355mm) – Canada framing opening as required by approved chimney support. Check to make sure no roof joist is in the way. Should there be one, move Heater to the left or right so that it lines up with the newly located center point/frame opening.
-
Page 17: Roof Pitch
Optional seal/caulk with non-combustible Mobile Home silicone sealant Heater Stove Board Floor Bracket Vapour Barrier Floor Joist Insulation Outside Air Duct Screened End INSTALLATION OF OUTSIDE AIR DUCT AS SEEN FROM SIDE Place heater in position. Be sure to lift heater in front and carefully slide over air duct. 10. -
Page 18: Roof Flashing
b. Slide a Roof Flashing suitable to your roof slope over the chimney. Place the top edge of flashing plate under the shingles. Tighten the roof-flashing band around the chimney. NOTE: At the top edge of the flashing plate, lift the shingles and nail the plate to the roof deck. Then cement shingles to plate with suitable waterproof mastic. -
Page 19: Creosote And The Need For Removal
USING HEATER FOR EMERGENCY COOKING This heater is designed so that the cabinet top can be lifted and cooking vessels set on top of the firebox for cooking and heating water. NOTE: This lift top feature is intended for emergency cooking only, such as when regular cooking facilities are temporarily out of service. - Page 20 LOADING DOOR ADJUSTMENT Should it be necessary to adjust or tighten the loading door (NS220E - Key 20, NC100E – Key 32, NCM120E-Key 32) remove bolts in door latch bracket (NS220E – Key 28, NC100E – Key 39, NCM120E-Key 39) place washers inside (between bracket and front) this will adjust latch bracket closer to front and tighten door seal.
- Page 21 CIRCULATING FAN MODEL NBK-100 Optional for NC100E (Newmac Classic I EPA) and NCM120E (Newmac Classic II EPA, Mobile) ONLY NO OTHER CIRCULATING FAN IS CERTIFIED FOR THESE HEATERS INSTALLATION: To install on heater, place outlet of fan box assembly into air duct located at bottom of rear panel.
- Page 22 Owner’s name and address Installer’s name, address, and phone number Serial Number Model Number Installation Date Newmac must issue a “Returned Goods Number” prior to acceptance of returned goods. Refer to your “Newmac Wood-stove Limited Warranty” for terms and conditions.
-
Page 23: Replacement Parts
REPLACEMENT PARTS List Part Numbers – Newmac Status EPA Model NS220E Wood Heater KEY NO. PART NO. DESCRIPTION 2140050 Draft Control Knob 2210322 High/Low Label 2160006 Cotter Pin 1/16 x ¾” 2220005 Compression Spring 3090468 Thermostat Stop 3090459 Thermostat Standoff... - Page 24 REPLACEMENT PARTS – NEWMAC STATUS EPA NS220E...
- Page 25 REPLACEMENT PARTS List Part Numbers – Newmac Classic I EPA Model NC100E Wood Heater KEY NO. PART NO. DESCRIPTION 2140050 Draft Control Knob 3010011 High/Low Label 2160006 Cotter Pin 1/16 x ¾” 2220005 Compression Spring 3090517 Thermostat Stop (2) 3090358...
- Page 26 REPLACEMENT PARTS – NEWMAC CLASSIC I EPA NC100E...
- Page 27 List Part Numbers – Newmac Classic II EPA Model NCM120E Wood Heater KEY NO. PART NO. DESCRIPTION 2140050 Draft Control Knob 3010011 High/Low Label 2160006 Cotter Pin 1/16 x ¾” 2220005 Compression Spring 3090517 Thermostat Stop (2) 3090358 Thermostat Standoff...
- Page 28 REPLACEMENT PARTS – NEWMAC CLASSIC II EPA NCM120E...
- Page 32 NEWMAC EPA WOOD-STOVE LIMITED WARRANTY Model: Serial No: Date of Installation: WARRANTY. Effective September, 2004, vendor warrants, upon and subject to the following terms and conditions, that, if items of the GOODS, identified above, manufactured by it and sold as new are found to be defective in workmanship or material prior to the end of the period (the "Vendor's Warranty Period"), which is five (5) years from date of installation, Vendor shall, within a reasonable...
