Page 2

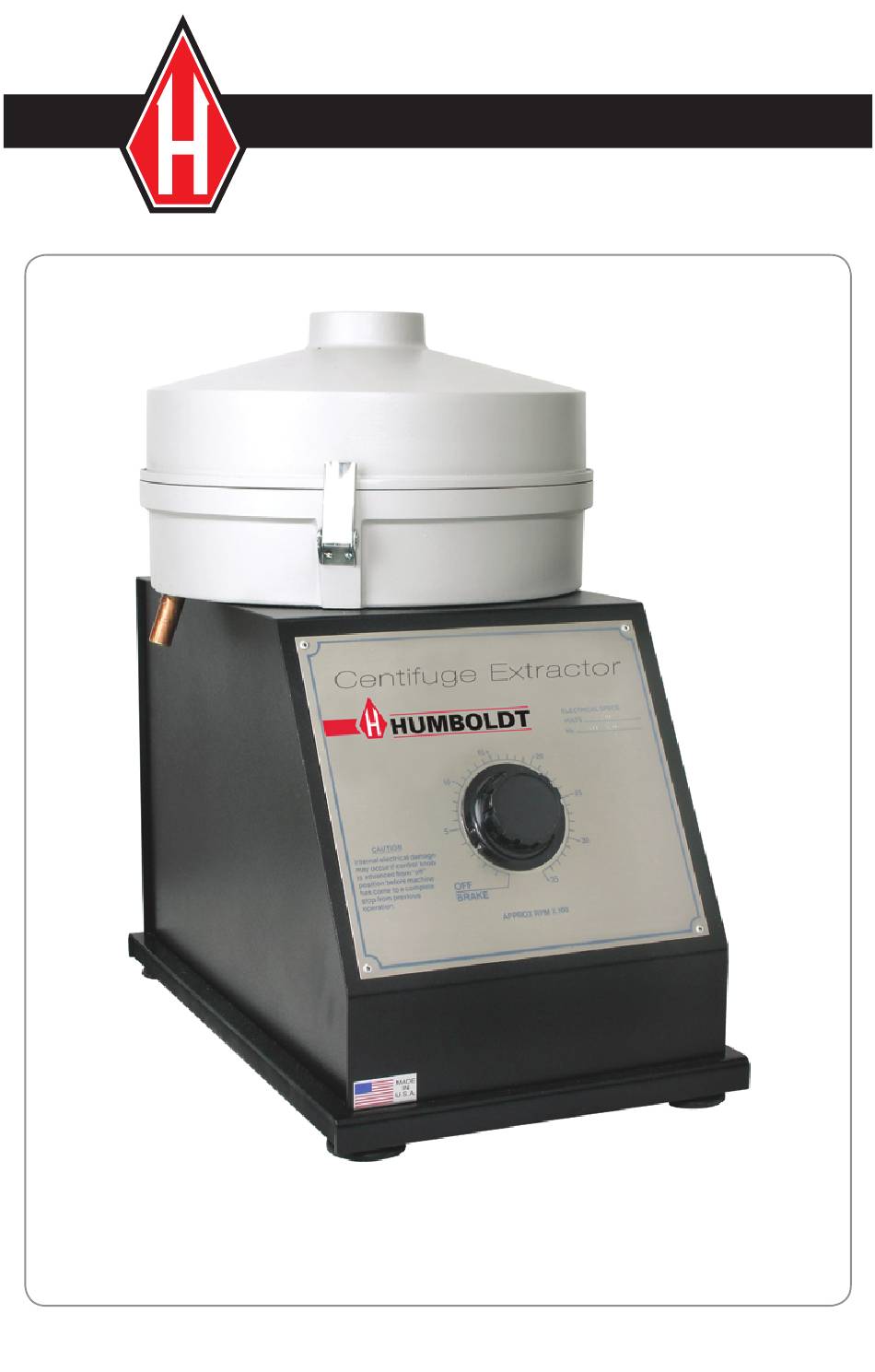

Product Description The Asphalt Centrifuge Extractor is designed for use in the separation of asphaltic mixtures to determine bitumen percentage. Models H-1451 & H-1474 series deluxe Asphalt Centrifuge Extractor available in either 1,500 or 3,000 grams capacity are designed to conform to explosion-proof standards for the safety of operating per- sonnel.
Page 3
8. Replace the housing cover and secure the clamps. 9. Place a collection beaker under the discharge pipe (#11) at the left of the bowl housing. 10. Pour no more than 450 cubic centimeters of trichloroethylene solvent into the filter cup of the upper housing cover (#10). Caution: Provide adequate ventilation when using solvents.
Page 4
Shipping 140 lbs. (63 kg.) Warranty Humboldt Mfg. Co. warrants its products to be free from defects in material or workmanship. The exclusive remedy for this warranty is Humboldt Mfg. Co., factory replacement of any part or parts of such product, for the warranty of this product please refer to Humboldt Mfg.
