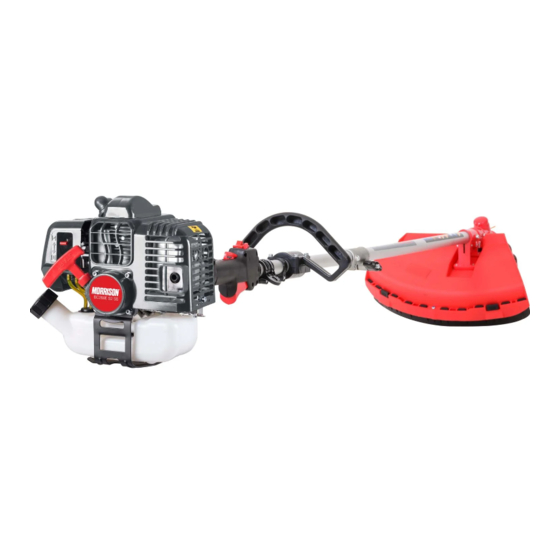

MORRISON COMBINATION UNIT
Owner's Manual
Important
Please read these instructions carefully before assembly, to reduce risk of fire, burn hazard or other injury.
Keep these instructions in a safe place for future use.
This manual covers the Morrison BC 260 SST, BC 260E SST Combination Unit and attachments.
Includes engines 1E34F and 1E34F-2E
www.morrisonoutdoor.com
Part N
: 555732.G.3
o

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CG-260AF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Morrison CG-260AF

Summary of Contents for Morrison CG-260AF

  • Page 1 Please read these instructions carefully before assembly, to reduce risk of fire, burn hazard or other injury. Keep these instructions in a safe place for future use. This manual covers the Morrison BC 260 SST, BC 260E SST Combination Unit and attachments. Includes engines 1E34F and 1E34F-2E www.morrisonoutdoor.com...

  • Page 2: About This Manual

    Sections Meaning of Pictographs Technical Data - Brushcutter Brushcutter Hedge Trimmer CG-260AF/ CG260AF-E/ Model DANGER - WARNING - CAUTION Pruning Saw BC 260 SST BC 260E SST Edger Unit without cutting attachment, empty tank 4.04kg 5.9kg Mases Never attempt to mount a saw blade on Line Trimmer &...

  • Page 3: Safety Instructions

    7. Monitor the weather Names of Parts (with solid blade attached) Safety Instructions WARNING 1. About This Manual CAUTION Do not operate the machine under any of the following circumstances: • When the ground is slippery or you cannot maintain a stable posture for any reason.

  • Page 4: Ensuring Safe Operation

    11. Fuel Handling Precautions be a “hazard area.” Nylon trimmer • If someone approaches the hazard area, immediately shut off The nylon trimmer is suitable for lawn-mowing or DANGER 7. Safety Precautions the engine. A running machine can eject debris or gravel at a brushcutting in locations with obstacles such as trees, speed that can cause death or severe injury.

  • Page 5: Fuel And Oil

    Blade NOTICE WARNING • The cutting attachments of the brushcutter rotate Pour the engine oil into a mixing vessel. Add gasoline The blade fitted to the guard is sharp and can cause injury, always counterclockwise. Cut a 1.5-meter arc from right to left. Within and mix thoroughly.

  • Page 6: Starting And Stopping The Engine

    the cords should stick out 15 cm each side, If the engine has been running and is still warm, move the Pull the cords to free them from the notches, refit the spool choke lever to the open position. cover. Press the priming bulb under the carburettor repeatedly until excess fuel can be seen returning to the tank through the clear Never use cutting device other than those supplied by the...

  • Page 7: Inspection And Maintenance

    releasing the handle can cause the cutting blade or nylon trimmer to Inspection and Maintenance kick, possibly resulting in injury. • Before starting the engine, put on the harness correctly, IMPORTANT attach the brushcutter to the harness, and stand in the correct After every use, check that all nuts, bolts and screws are securely brushcutter holding stance.

  • Page 8: Long Term Storage

    Inspecting the cutting blade Check that the cutting blade (N) as been correctly installed and Lightly wipe the external surface of the engine with cloth. Then, Long-term Storage When the cutting edge becomes dull, the cutting blade will fail to that the blade clamping nut is not loose.
  • Page 9 Adnormal noise or vibration occurs Typical cause Solution • Blade or nylon trimmer is improperly installed. • Check the cutting blade or nylon trimmer and reinstall if • Cutting attachment guard or handle is improperly necessary. • installed. • Check the cutting attachment guard or handle and •...

  • Page 10: Meanings Of Pictographs

    Sections Contents Technical Data - Hedge Trimmer Brushcutter Meaning of pictographs Hedge Trimmer Technical Data Model CG-260AF HTA 390 Pruning Saw Names of Parts Mases Unit with specified cutting attachment, empty tank 6.48kg Edger Safety Instructions Double reciprocating Type blade...

  • Page 11: Names Of Parts

    of vision is limited and it is difficult to gain a clear view of the Names of Parts Safety Instructions working area. • During rainstorms, thunderstorms, in strong or galeforce winds, or in any other adverse weather in which use of this device 1.
  • Page 12 10. Exhaust Gas Precautions 13. Limit your worktime 7. Safety Precautions Ensuring Safe Operation DANGER WARNING • Do not operate the machine for more than 2 hours a day. • Rest for 10 to 20 minutes after every 30 to 40 minutes of CAUTION operation.Continuing to operate the machine without a To ensure safety, strictly observe the following instructions.
  • Page 13 with the locating hole (4) in the drive harness. The hedge trimmer will fall, and the cutting blades can Assembly Wearing the Harness • shaft, when this has happened it will not be possible to twist cause death or severe injury while still running. the drive shaft.
  • Page 14 10. Adjusting the gap of the cutting blades Loosen the lock nut (O) (M6). Lightly wipe the external surface of the engine with cloth. Then, Long term storage Four screws secure the lower cutting blade to the upper blade. Tighten the screw (P) until no gap is present between the upper store the machine in a dry dust-free location where no open fire Adjust these screws to create sufficient gap between the upper and and lower blades.
  • Page 15 Troubleshooting This troubleshooting section describes possible causes and remedies for problems you might encounter during operation of the machine. If a problem persists after you have attempted the solutions recommended in this section, contact your dealer for technical assistance. Do not attempt to disassemble the machine.
  • Page 16 Sections Contents Technical Data - Pruner Saw Brushcutter Meaning of pictographs Hedge Trimmer Technical Data Mases Unit with specified cutting attachment, empty tank 5.74kg Pruning Saw Names of Parts Type Pruner Saw Edger Safety Instructions Overall length (715mm pruning saw & 330 saw) 1045mm Cultivator Ensuing Safe Operation...
  • Page 17 • At night, in heavy fog, or at any other times where your field Names of Parts Safety Instructions of vision is limited and it is difficult to gain a clear view of the working area. • During rainstorms, thunderstorms, in strong or galeforce winds, 1.
  • Page 18 10. Exhaust Gas Precautions 13. Limit your worktime 7. Preparing for work Ensuring Safe Operation Gain experience at first by cutting small twigs and branches. DANGER WARNING • Do not operate the machine for more than 2 hours a day. 8.
  • Page 19 • 9. Cutting pattern To cut a thick branch exceeding 10 cm in diameter, do the Install the guide bar and the saw chain on the gearbox as Chain Oil • following: (Fig.3-5) follows: (Fig 18) Fill the chain oil tank 2 with low viscosity chain oil or 10W30 Lightly press the upper side of the guide bar Guide bar (Fig 22.)
  • Page 20 Bar And Chain Maintenance (1) Depth gauge set tool harness. The hedge trimmer will fall, and the cutting blades can Wearing the Harness (2) File shoulder round cause death or severe injury while still running. • Dismount the guide bar and (3) Depth gauge standard check the oiling port for (4) Cutter length...
  • Page 21 Inspection timing - Before and after operation Inspection and Maintenance Inspection & Maintenance Checklist Cleaning the chain oil discharge xport, guide bar, and drive Checkpoints Before and after Every 20 Hours Every 50 Hours sprocket cover operation of operation of operation Loose screws, nuts and These areas can easily become clogged with chain oil and wood ○...
  • Page 22 Troubleshooting This troubleshooting section describes possible causes and remedies for problems you might encounter during operation of the machine. If a problem persists after you have attempted the solutions recommended in this section, contact your dealer for technical assistance. Do not attempt to disassemble the machine.
  • Page 23 Sections Contents Technical Data - Edger Brushcutter Meaning of pictographs Hedge Trimmer Technical Data Masses Unity with specified cutting attachment, empty tank 5.96kg Pruning Saw Names of Parts Type Edger Edger Safety Instructions Overall length (length to angle transmission) 720mm Cultivator Ensuing Safe Operation Effective cut depth...
  • Page 24 of vision is limited and it is difficult to gain a clear view of the Names of Parts Safety Instructions working area. • During rainstorms, thunderstorms, in strong or galeforce winds, or in any other adverse weather in which use of this device 1.
  • Page 25 10. Exhaust Gas Precautions Gain experience at first by walking with the unit in the OFF position CAUTION to gain balance control. DANGER 7. Safety Precautions • Hold the machine securely with both hands. Grip the control handle with your right hand; hold the grip with your left hand. •...
  • Page 26 Quick-release mechanism Troubleshooting WARNING • In an emergency, release the throttle trigger and shut off the engine. Support the machine with your left hand and operate This troubleshooting section describes possible causes and remedies for problems you might encounter during operation of the machine. the quick-release mechanism.
  • Page 27 Sections Contents Technical Data - Cultivator Brushcutter Meaning of pictographs Hedge Trimmer Technical Data Masses Unit with specified cutting attachment, empty tank 8.7kg Pruning Saw Names of Parts Type 2 x double blades Edger Safety Instructions Overall length (length to gearbox) 610mm Cultivator Ensuing Safe Operation...
  • Page 28 • At night, in heavy fog, or at any other times where your field Names of Parts Safety Instructions of vision is limited and it is difficult to gain a clear view of the working area. • During rainstorms, thunderstorms, in strong or galeforce winds, 1.
  • Page 29 10. Exhaust Gas Precautions 15. Avoiding Burns Operation Assembly The tilling width of the cultivator is approximately 300mm. Place DANGER CAUTION cultivator in area to be tilled, hold unit firmly with left hand on front grip and right hand on rear grip and gradually engage throttle trigger.
  • Page 30 harness. The hedge trimmer will fall, and the cutting blades can Wearing the Harness Inspection & Maintenance Checklist cause death or severe injury while still running. NOTE Checkpoints Before and after Every 30 Hours The harness has a quick-release mechanism that allows operation of operation you to immediately release the machine from the harness...
  • Page 31 Troubleshooting This troubleshooting section describes possible causes and remedies for problems you might encounter during operation of the machine. If a problem persists after you have attempted the solutions recommended in this section, contact your dealer for technical assistance. Do not attempt to disassemble the machine.
  • Page 33 Morrison, a division of Masport Limited 1-37 Mt Wellington Highway, Panmure Auckland 1060 New Zealand P: 0800 627 767 Masport Australia Pty Limited 27 Commercial Drive Dandenong South, VIC 3175 Australia P: 1300 366 225 Copyright Morrison ©...
