6000counts
Automatic Scanning
Digital Multimeter User's Manual
Index
1、Overview..........................................................................................................................................1
2、Safety Precautions...............................................................................................................................1
3、Characteristics....................................................................................................................................1
4、Operation panel instructions....................................................................................................................3
5、Automatic boot...................................................................................................................................7
6、Troubleshooting..................................................................................................................................7
Advertisement
Table of Contents
Related Manuals for NOYAFA 6000counts
Summary of Contents for NOYAFA 6000counts
-
Page 1: Table Of Contents
6000counts Automatic Scanning Digital Multimeter User's Manual Index 1、Overview………………………………………………………………………………………………………………………...1 2、Safety Precautions……………………………………………………………………………………………………………….1 3、Characteristics…………………………………………………………………………………………………………………...1 4、Operation panel instructions……………………………………………………………………………………………………..3 5、Automatic boot…………………………………………………………………………………………………………………..7 6、Troubleshooting………………………………………………………………………………………………………………….7... -
Page 2: 1、Overview
一、 The 6000counts is a pocket-sized 3 5/6-digit RMS auto-scanning digital meter that does not require a dial to select a function. The meter will automatically recognize and measure based on the input voltage/current/resistance/current. It has stable performance, high precision, high reliability, clear reading and overload protection. - Page 3 6000counts Intelligent scanning digital multimeter 2. Technical characteristics 2-1. Accuracy (reading data of a%+ least significant digits), guaranteed accuracy environment temperature: (23 5)℃, Relative humidity <75%, ± ± calibration guarantee period from the date of manufacture for one year. 2-2. Performance (Note "▲" indicates that the table has this function)
-
Page 4: 4、Operation Panel Instructions

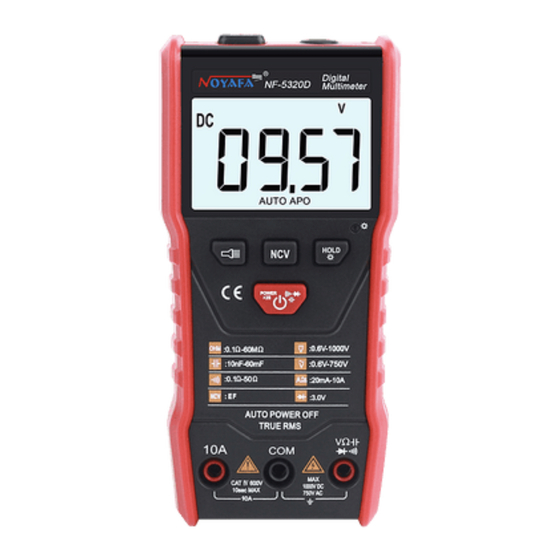

6000counts Intelligent scanning digital multimeter 四．Operation panel instructions 1. Product model label position; 2. LCD display; 3. Flashlight trigger button; 4. NCV measurement button, long press NCV button to measure electric field induction signal; 5. HOLD is the data hold button, long press for 2 seconds for the flashlight;... - Page 5 6000counts Intelligent scanning digital multimeter 3．Technical Specifications 2-3-1．DC voltage / AC voltage automatic scanning test (DCV / ACV) Accuracy 6000counts Resolution Range DC/AC6V 0.001V DC/AC60V 0.01V ±（0.5%+3） DC/AC600V 0.1V DC1000V/AC750V ±（0.8%+10） Input impedance: 10MΩ; Overload protection: 1000V DC or 750V AC peak.
- Page 6 6000counts Intelligent scanning digital multimeter 3. If the measured resistance at both ends of the test leads is less than 50Ω, the beep will emit a continuous sound, which requires a fast buzzer measurement. Press the power button to enter the buzzer for quick measurement.
- Page 7 6000counts Intelligent scanning digital multimeter measurement in the second cycle, and select the corresponding function measurement according to the measurement requirements. When measuring the capacitance, the size of the measured capacitance will automatically select different ranges, and the measured value will be displayed on the LCD.
-
Page 8: 5、Automatic Boot
6000counts Intelligent scanning digital multimeter 2. The front end of the meter has NCV test points. As long as the point is close to the AC voltage, the buzzer will emit different continuations according to the different strengths of the signals. At the same time, the LCD will display different number of segments according to the strength of the signal.
