6000counts

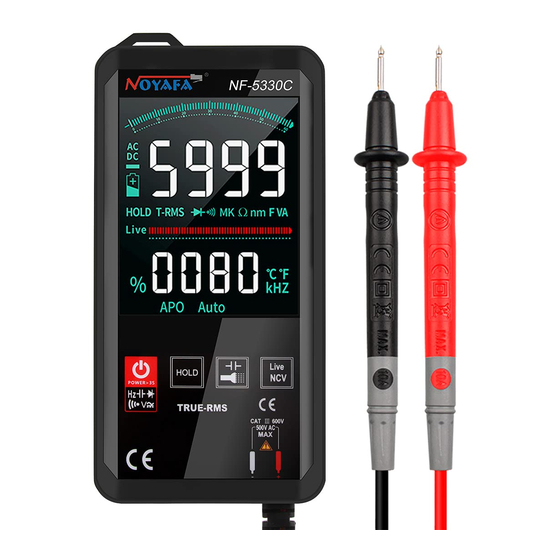

Operation Manual of Pocket Type Intelligent Scanning Digital
Multimeter
Index
1. Overview.........................................................................................................................................1
2. Safety precautions...............................................................................................................................1
3. Characteristics....................................................................................................................................1
4. Operation panel instructions..................................................................................................................3
5. Technical Specifications.........................................................................................................................4
6. Automatic switch machine.....................................................................................................................8
7. Troubleshooting...................................................................................................................................8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NOYAFA 6000Counts
Summary of Contents for NOYAFA 6000Counts
-
Page 1: Table Of Contents
6000counts Operation Manual of Pocket Type Intelligent Scanning Digital Multimeter Index 1. Overview………………………………………………………………………………………………………………………..1 2. Safety precautions……………………………………………………………………………………………………………….1 3. Characteristics…………………………………………………………………………………………………………………...1 4. Operation panel instructions……………………………………………………………………………………………………3 5. Technical Specifications……………………………………………………………………………….…………...……..4 6. Automatic switch machine………………………………………………………………………………….…………...……..8 7. Troubleshooting………………………………………………………………………………………....…………….8... -
Page 2: Overview
1. Overview 6000counts is a pocket type 3 5 / 6-digit pocket type real effective value intelligent scanning digital instrument; the series is triple display: main display, secondary display, analog bar. Except for the display frequency of AC voltage measurement sub display, other function sub display is normal temperature. - Page 3 6000Counts Pocket Type Intelligent Scanning Digital Multimeter 1-9. Power: AAA 2* 1.5V battery; 1-10. Volume (size): 139×68×18mm (L×W×H); 1-11. Weight：about 175g（including 1.5V battery）; 1-12. Attachment: One instruction manual, one certificate, one outer packaging box, one pair of test leads, two AAA1.5V batteries.
-
Page 4: Operation Panel Instructions
6000Counts Pocket Type Intelligent Scanning Digital Multimeter 4. Operation panel instructions 1. Simulation bar; 2. LCD display; 3. Live wire simulation indication; 4. Normal temperature display status; 5. Quick selection of capacitor/flashlight key; 6. Data lock key; 7. Power on and off for more than 3 seconds; short trigger for AC voltage/ DC voltage / diode / buzzer / capacitor switching, so as to cycle;... -
Page 5: Technical Specifications
6000Counts Pocket Type Intelligent Scanning Digital Multimeter 5．Technical Specifications 1．DC voltage / AC voltage automatic scanning test (DCV / ACV) Accuracy 6000counts Resolution Range DC/AC6V 0.001V DC/AC60V 0.01V ±（0.8%+5） DC/AC600V 0.1V DC1000/AC750V ±（0.8%+10） Input impedance: 10MΩ; overload protection: 1000V DC or 750V AC peak.ture Validity Measurement: frequency response 50Hz-1kHz;... - Page 6 6000Counts Pocket Type Intelligent Scanning Digital Multimeter POWER 3S > 600kΩ 100Ω 6MΩ 1kΩ 60MΩ 10kΩ ±（2.5%+3） Input impedance: 10MΩ; overload protection: 1000V DC or 750V AC peak. The specific operations are as follows: 2-1. The boot display is in the automatic scan status "AUTO".
- Page 7 6000Counts Pocket Type Intelligent Scanning Digital Multimeter 4. Capacitance(C) Accuracy 6000counts Resolution Range 10nF 10pF 100nF 100pF ±（3.5%+20） 10uF 10nF 100uF 100nF 10mF 10uF 60mF 100uF ±（5%+3） Overload protection: 1000V DC, 750V AC peak. 4-1. The boot display is in the automatic scan status "AUTO".
- Page 8 6000Counts Pocket Type Intelligent Scanning Digital Multimeter 5. NCV measurement; The operation is as follows: 5-1. Press and hold the “NCV/LIVE” button; enter the EF measurement. 5-2. The front end of the meter has NCV test points. As long as the point is close to the AC voltage, the buzzer will emit different continuations according to the different strength of the signal, and the LCD will also display according to the strength of the signal.
-
Page 9: Automatic Switch Machine
6000Counts Pocket Type Intelligent Scanning Digital Multimeter 3) When measuring high voltage circuits, special care should be taken to avoid electric shock; 4) It is forbidden to input voltage values exceeding 250V DC or AC peak to avoid damage to the meter.
