ESP-12F User Manual

Package information and OEM installation method

3.
The external size of theESP-12F WiFi module is 16mm*17mm*3mm, as is illustrated in Figure 4 below:
Length
16mm

Package information

3.1.

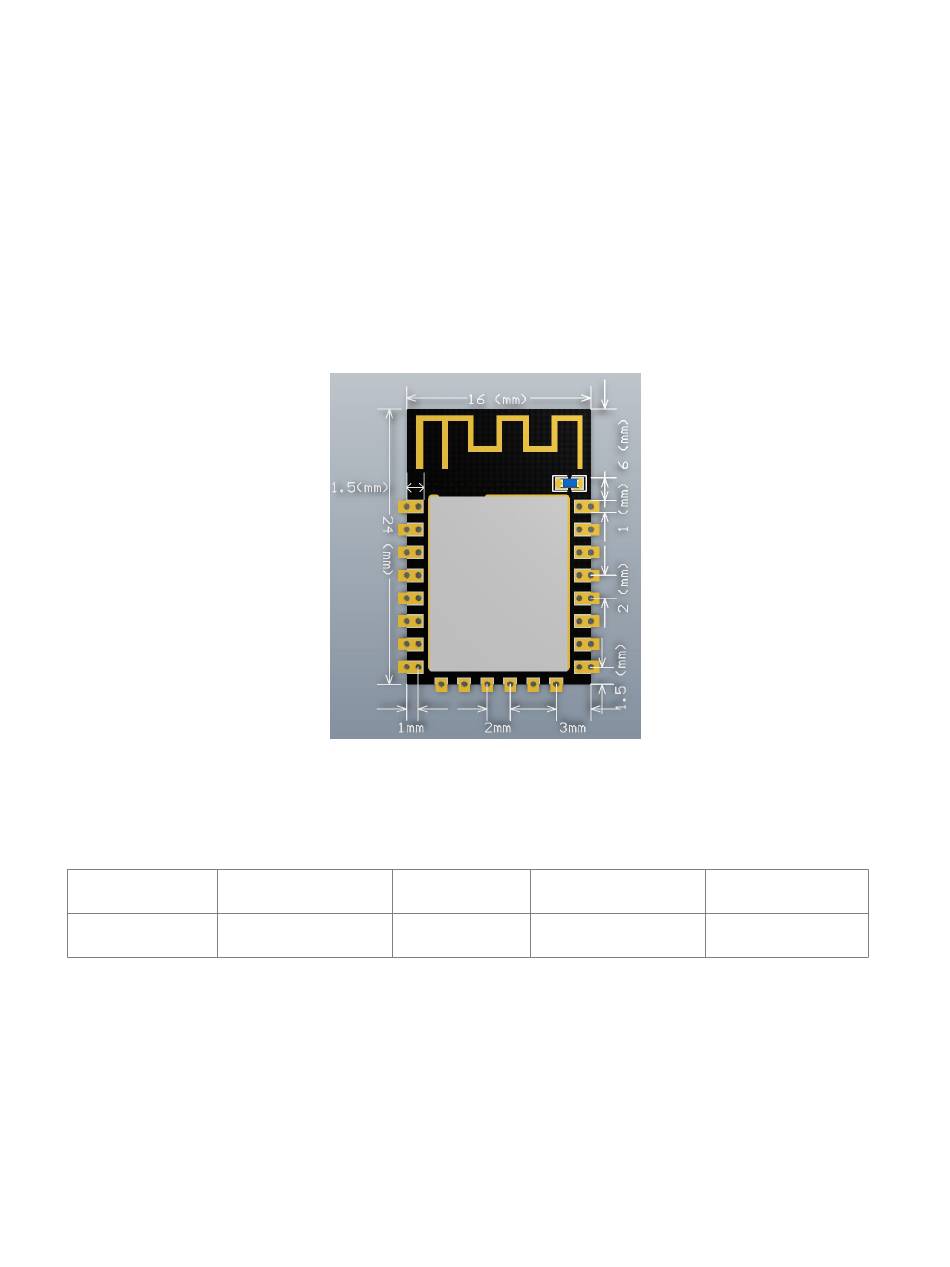

ESP-12F use a half hole patch package, Module PCB Footprint shown in the following figure:
Shenzhen Ai-Thinker Technology Co., Ltd
Figure 4 Dimensions of ESP-12F WiFi Module
Table 5 Dimensions of ESP-12F WiFi Module
width Height
24mm 3 mm
Figure 5 Module PCB Footprint
PAD Size(Bottom)
1 mm x 1.2 mm
http://www.ai-thinker.com
Pin Pitch
2mm
9
