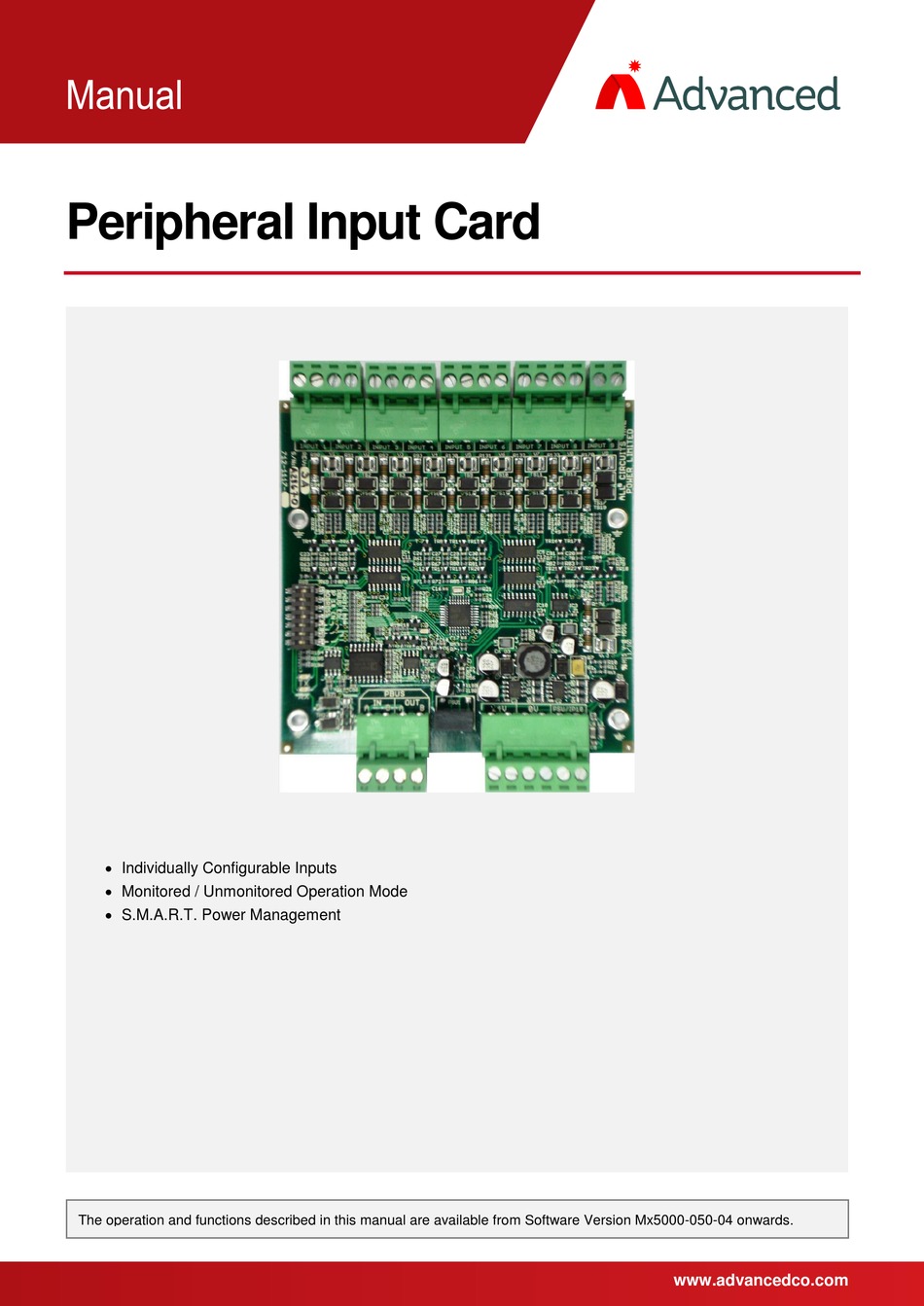

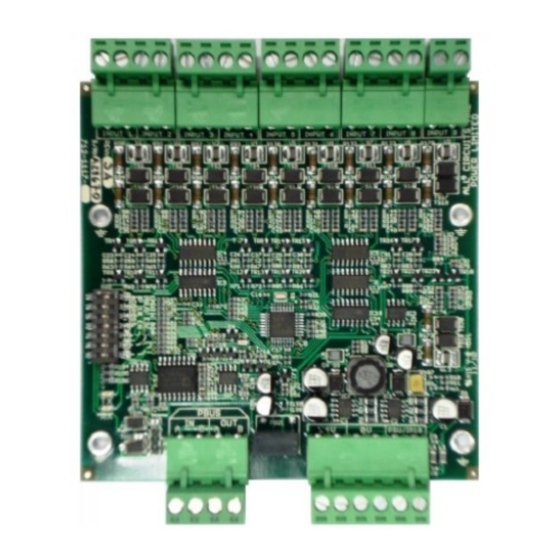

- Page 1 Peripheral Input Card Individually Configurable Inputs Monitored / Unmonitored Operation Mode S.M.A.R.T. Power Management The operation and functions described in this manual are available from Software Version Mx5000-050-04 onwards. www.advancedco.com...
- Page 2 Specifications: Models, Sales Order Parts: Mxp-537 Peripheral Input Card Applications / Limitations: Volt free Inputs. Power Supply must be local to the card. Earth Monitoring circuit must be disabled if operating on the same ground plane as the Fire Panel...
-
Page 3: Table Of Contents
Table of Contents Page INTRODUCTION............................. 4 GENERAL INSTALLATION & OPERATION ....................4 ..........................4 ODULE VERVIEW ..........................5 ASIC ONFIGURATION 2.2.1 PSU Mon / Input 10 ..........................5 2.2.2 Disabling PSU Mon / Input 10 ......................5 .......................... 6 IRING ONFIGURATION 2.3.1 Supply Wiring ............................. -
Page 4: Introduction
(configured via the PC Configuration Tool). If monitoring of very fast input pulses is required (< 0.5s) the Mxp-537 can be coupled with the Mxp-053, Latch- Stretch Input Module, for a fast and reliable solution that can detect input pulses down to 200ms. -
Page 5: Basic Configuration
Each card connected to the 485 Communication Line must have its own address. This address should be set so that it matches the corresponding card within the Advanced PC Config Tool design. Move the “Earth Monitor” DIP switch to the ON position to enable local earth monitoring. -
Page 6: Wiring Configuration
+ - + - + - + - + - + - + - + - + - + - + - + - + - + - Mxp-537 Peripheral Input Card Mxp-537 Peripheral Input Card Mxp-537 Peripheral Input Card 24V GND 24V GND... -
Page 7: Comms Wiring
The Mxp-053 is an optional module that provides Latch/ Stretch functionality for fast inputs (> 200ms). It also provides Input Isolation. The MXP-053 Should be located local to the MXP-537. The MXP-537 Input should be configured as unmonitored. Refer to Product Documentation for further details. -
Page 8: Card Configuration Setup
3 Card Configuration Setup Adding a Card to the Design Expand the Panel (in the “Site List”) and select the “Peripheral Bus” node; this will bring up a list of available cards that can be connected to the peripheral bus in the “Device Selector”. Select the 10 Way Input Monitor and add it to the design. -
Page 9: General Notes
4 General Notes The DC power to the Mxp-537 card must always be local to the card. If a mixed peripheral bus is in use, where multiple peripherals of different families share the same remote power supply, earth monitoring should be performed by the Mxp-537 unless otherwise indicated. - Page 10 This page is intentionally left blank. www.advancedco.com...
- Page 11 USER NOTES www.advancedco.com...
- Page 12 Doc Number: 680-189 Revision: Advanced Electronics Ltd Moorland Way, Cramlington, Northumberland, NE23 1WE UK First Issued: 2013-mm-dd Tel: +44 (0)1670 707 111 Fax: +44 (0)1670 707 222 Email: sales@advancedco.com Web: www.advancedco.com www.advancedco.com...
