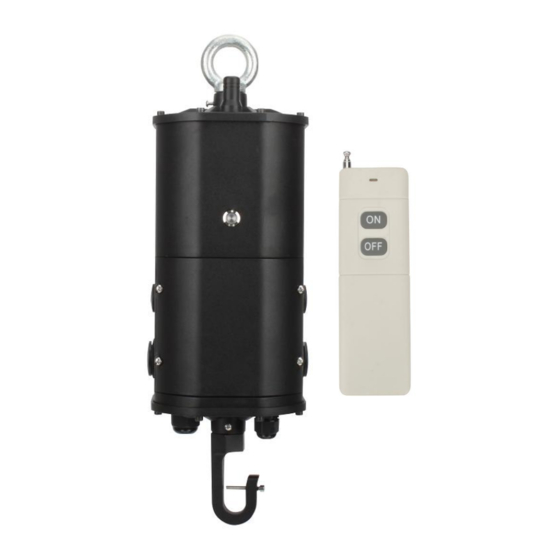

TGS WP-EWG-040U Installation And Operation Instructions Manual

TGS WP-EWG-040U Installation And Operation Instructions Manual

Hide thumbs Also See for WP-EWG-040U:

Advertisement

IMPORTANT SAFEGUARDS

When using electrical equipment and this lighting device
basic safety precaution should be followed at all times
including but not limited to the following:
PLEASE READ CAREFULLY AND FOLLOW ALL
INSTRUCTIONS FOR YOUR OWN SAFETY
WARNING: AC power must be off before proceeding with assembly or installation of emergency driver.
IMPORTANT: For use with non-dimming LED fixtures up to 40W. For use with LED fixtures(MAX 300W)
that utilize 0-10V dimming that are above 40W, but this inverter will be limited to 40W(Including driver).
IMPORTANT: An un-switched AC power source of 100Vac to 277Vac is required.
CAUTION: Make sure all electrical connections conform to the National Electrical Code and all
applicable local regulations.
CAUTION: Do not let power supply cords touch hot surfaces.
CAUTION: Do not mount near gas or electric heaters.
CAUTION: Use with grounded, UL Listed, dry or damp or wet location rated fixtures.
CAUTION: The equipment is intended for ordinary locations and for permanent installation into one or
more Listed emergency luminaires.
CAUTION: Battery is rechargeable LiFePO4 type and must be recycled or disposed of properly.
Do not use this emergency driver with accessory equipment other than recommended by manufacturer;
failure to follow this may cause an unsafe condition. Servicing should only be performed by qualified
service personnel. Do not use this emergency driver for other than intended use. Not suitable for high-risk
task area lighting. Equipment should be mounted in locations and at heights where it will not readily be
subjected to tampering by unauthorized personnel.
IMPORTANT: Indicator (LED light) illuminated indicates battery in charge mode when AC power is
applied. It is recommended and required by applicable code to test emergency LED Driver to ensure
proper function of the system; push the test switch every thirty (30) days to ensure the emergency driver
is functioning by illuminating the light source. Conduct a ninety (90) minutes discharge test one (1) time
per year; LED light source should be illuminated for a minimum of ninety (90) minutes .
TESTING SYSTEM: The emergency battery requires a charge minimum of one (1) hour before testing
the circuit. A full charge requires twenty four (24 Hours) .
SAVE THESE INSTRUCTIONS
Installation And Operation Instructions
WP-EWG-040U
Risk of Elect ric Shock
Disconnect power at fuse or
circuit breaker before installing
or servicing

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP-EWG-040U and is the answer not in the manual?

Questions and answers

Summary of Contents for TGS WP-EWG-040U

  • Page 1 WP-EWG-040U Installation And Operation Instructions IMPORTANT SAFEGUARDS Risk of Elect ric Shock When using electrical equipment and this lighting device Disconnect power at fuse or basic safety precaution should be followed at all times circuit breaker before installing or servicing...
  • Page 2 Make sure that the luminaire used meets the voltage and current requirements in the Product Information List and the illumination requirements in NFPA101. Ensure there will be sufficient light output in the end application. Estimate the egress lighting illumination levels by doing the following: a.
  • Page 3 Self-Diagnostic Test System In the normal charging mode, the system performs a monthly self-diagnostic test every 30 days, the system switches to the emergency mode for 30S, and automatically switches back to the normal charging mode after 30S. In the normal charging mode, the system switches to the emergency mode every 360 days (after 11 Months self-diagnostic test) and works until the end of discharge.
  • Page 4 Wiring Diagram and Dimensions unit: Inch Dimmer Sensor Indicator Test Switch WP-EWG-040U Emergency LED DRIVER LED Driver LED+ LED- 1.18 LED ARRAY 4.91 2*1/2NPT 2*Φ1.26 2*Φ1.26 2* 1/2 NPT 2*Φ1.57 2*Φ0.87 2* 3/4 NPT 2*1/4NPT...
  • Page 5 INSTALL STEPS Step #1 Disconnect AC Power From Fixture > Disconnect all power sources to the lighting fixture and ensure they are locked out during installation or maintenance. > The AC driver must be sourced from the backup inverter. > Select a suitable location for the backup inverter and install such that its output leads can connect to the input leads of the AC driver.
  • Page 6 Illustration 1...
