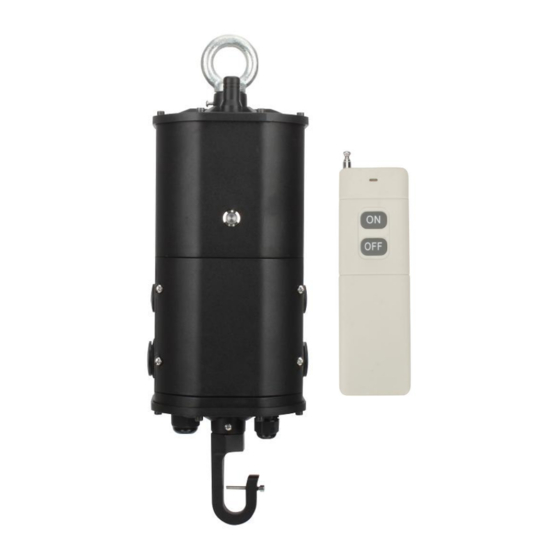

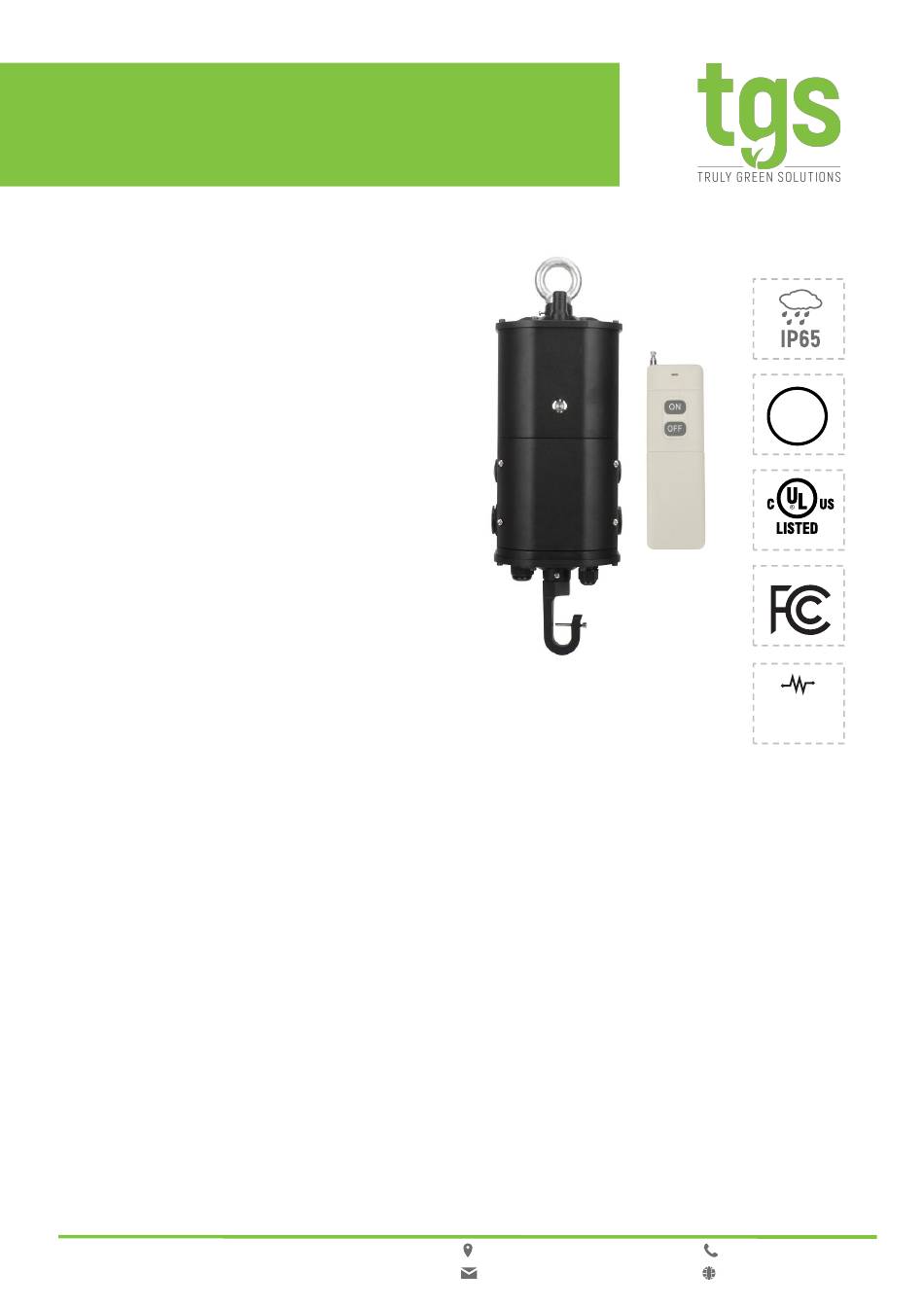

EMERGENCY INVERTER
WP-EWG-040U | for LED High Bay Lights
General Description
EWG 40W, listed for field and factory
installation, provides constant power
output to the load during emergency
mode operation. They maintain
illumination in the emergency mode for a
minimum of 90 minutes. It is an ideal
emergency solution for UFO LED
highbay lights.
Features and Benefits
• Constant power output
• Universal input range
• Integrated junction box design
• Field and factory installation
• IP65 for dry, damp and wet location
• 40W & 90mins durable emergency
operating time
• Surge L-N:3KV; L&N-PE:3KV
• Protection: Over-Voltage ,Short-Circuit,
Over-Load, Open-Circuit
1
• LiFePO4 safety batteries
• Link to the input of LED drivers
• High PF even during charging
• Safety rope prevent from dropping while
installation
• Remoted test by handhold controller
• Self-diagnostic every month and year
• RoHS compliant
• 5 years warranty
:9601 Variel Ave. Chatsworth, CA 91311
:info@trulygreensolu�ons.com
BC
Self
Diagnostic
:818-206-4404
:www.trulygreensolu�ons.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP-EWG-040U and is the answer not in the manual?

Questions and answers

Related Manuals for TGS WP-EWG-040U

Summary of Contents for TGS WP-EWG-040U

  • Page 1 EMERGENCY INVERTER WP-EWG-040U | for LED High Bay Lights General Description EWG 40W, listed for field and factory installation, provides constant power output to the load during emergency mode operation. They maintain illumination in the emergency mode for a minimum of 90 minutes. It is an ideal emergency solution for UFO LED highbay lights.

  • Page 2: Ordering Information

    Ordering Information Model Output Voltage Related Output Power Battery Capacity Emergency Time WP-EWG-040U 120-200 Vdc 40 W 96 WH 90 mins Input Characteristics Parameter Min. Typical Max. Remarks Rated Input Voltage (Vac) Input Voltage Range (Vac) Input Frequency Range (Hz) 50/60 Max.

  • Page 3: Protection Characteristics

    Battery Characteristics Name Parameter Battery Type LiFePO4 Battery Capacity 6000mAh/16V 96WH Charging Time (H) 24 Hours Max. Charging Interval (M) 12 Months Protection Characteristics Typica Parameter Status Min. Max. Remarks Over-Voltage Protection (V) ● Short-Circuit Protection (mA) Power Off ● Open-Circuit Protection (mA) Abnormal Indicator Light ●...

  • Page 4: Other Characteristics

    Other Characteristics Parameter Min. Typical Max. Condition Lifetime (H) 50000 277Vac, Ta 25℃ MTBF (H) 200000 (MIL-HDBK-217F) Max. Installation Height (m) Weight (g) 3550 3700 3850 Dimension (Inch) L4.92*W4.92*H11.22 Excluding the ring and hook Remarks: If not specified, all the above parameters are measured in the full load state of the product at Ta 25℃ Safety Regulation Approval Certificate...

  • Page 5: Electromagnetic Compatibility

    Electromagnetic Compatibility EMI/EMS Items Standards Judgement Basis Conduction CE FCC Part 15 Class B Radiation RE FCC Part 15 Class B Harmonic Wave IEC/EN 61000-3-2 Class C Surge UL924 L-N :3KV/2Ω，L&N-PE:3KV/2Ω Ring-wave ANSI C62.41 2.5KV/2Ω Safety Test Projects Safety Test Technical Requirements Condition Input-Ground...
  • Page 6 Structure UL1015 18AWG Green 152mm INPUT OUTPUT AC-N UL1015 18AWG White 152mm AC-L Un-Switch UL1015 18AWG Black 152mm AC-L Output AC-N AC-L Wall-Switch UL1015 18AWG White in Black 152mm AC-L Un-Switch AC-N Output AC-L Output UL1015 18AWG Blown 152mm DIMMING AC-L Wall Emergency AC-N Output...

  • Page 7: Diagnostic System

    Indicator Parameter Remarks Green Normal On Normal Abnormal, check if battery voltage is too low , Light Off short circuit in LED luminaire Green Flash (1s on, 1s off, cycling) Abnormal, faulty battery connection Green Flash (0.5s on, 5s off, cycling) Normal, Working in Emergency Mode Abnormal, check if self-diagnostic discharging Green Slow Flash (5s on, 5s off, cycling)

  • Page 8: Wiring Diagram

    Wiring Diagram LED+ Purple(Dimmer +) DIM+ Dimmer Yellow Sensor Grey(Dimmer -) DIM- White(Common) Wall Switch Black/White Driver N Blue Black(Un-Switch Hot) Brown Driver L Green(Earth) LED- Indicator & Test Switch Installation Guideline ① Hanging ring bolt ② Thread mounted hole ③...

  • Page 9: Remote Controller

    Installation Guideline Step One – Power Off • disconnect the power connection of the UFO lamp • Step Two - Install LED Emergency Driver 1. Take the LED emergency driver from packaging box, open the integrated junction box cover ⑤, unscrew the waterproof plugs, and install them into position ⑦...

  • Page 10: Fuse Replacement

    Fuse Replacement • Fuse specifications Time Lag Axial fuse(Glass Body or Ceramic Body) Φ5 * 20mm, 10A/300V • Purpose Open: Counterclockwise To ensure the safety of products, the blown fuse must be connected to the UFO lamp fire wire (normal lighting switch control wire, black-into-white wire)If short circuit happen on luminaires, or short- circuiting during wiring accidently, that may damage the fuse.
  • Page 11 Accessories Referred Quantit Name Remarks Photo M12 Hanging Ring Bolt M12 Hanging Hook Bolt CM-221-2P Terminals CM-221-3P Terminals 6#-32*1/4 Screws 6#-32*5/8 Screws G(PF) ¼ Cable Grand Cord Grip G(PF) ½ Cable Grand Cord Grip Installation Manual Book Stainless Steel Safety Rope For optional Remote Controller For optional...
  • Page 12 Shipment • It is suitable for transportation by car, boat and airplane. • During transportation, it should be sheltered, sun-proof, and civilized loading and unloading Storage • Product storage should comply with GB 3873-83. • If storage period >1 year, products should be re-examined RoHS •...

  • Page 13: Important Safeguards

    IMPORTANT SAFE GUARDS When using electrical equipment and this lighting device basic safety precaution should be followed at all times including but not limited to the following: PLEASE READ CAREFULLY AND FOLLOW ALL INSTRUCTIONS FOR YOUR OWN SAFETY WARNING: AC power must be off before proceeding with assembly or installation of emergency driver. IMPORTANT: For use with non-dimming LED fixtures up to 40W.
