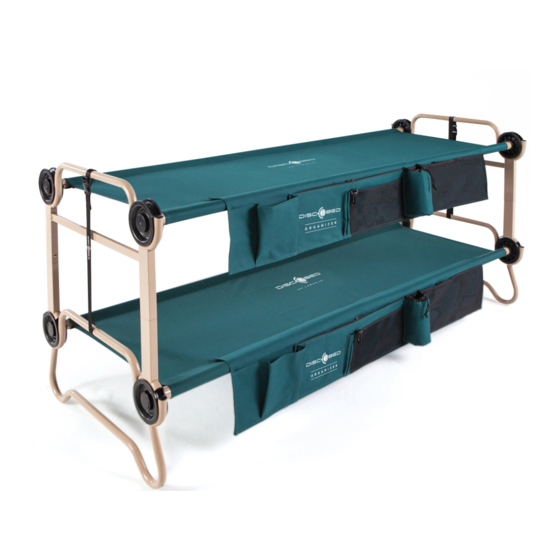

DISCOBED Disc-O-Bed Large Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Instructions
Instructions de montage
discobed.com
AI30001BO

Advertisement

loading
Need help?

Need help?

Do you have a question about the Disc-O-Bed Large and is the answer not in the manual?

Questions and answers

NK
July 15, 2025

このベッドを大量に保有している。 マニュアルを日本語に翻訳して印刷したい。 方法を教えてください。

0

Subscribe to Our Youtube Channel

Related Manuals for DISCOBED Disc-O-Bed Large

Summary of Contents for DISCOBED Disc-O-Bed Large

  • Page 1 Assembly Instructions Instructions de montage discobed.com AI30001BO...
  • Page 2 à danser, etc. Before building scan QR code Scannez le Code QR avant le montage or visit http://www.discobed.com/v/c/ and watch assembly video Ou visitez http://www.discobed.com/v/c et regardez la vidéo le montage...
  • Page 3 PARTS PIÈCES 2x Sleeping Mats 2x Matelas 4x Stack Adapters 4x Adaptateurs pour superposition 2x Straight End Frames 2x Cadres droits 2x Locking Straps 2x Sangles de vérouillage 8x Discs 8x Disques 2x Rounded End Frames 2x Cadres d’extrémité arrondis 4x Straight Side Rails / 4x Barres latérales droites 8x Swaged Side Rails / 8x Barres latérales embouties 4x Foot Plugs...
  • Page 5 Rounded Frame Assembly Instructions Instructions de montage des cadres arrondis discobed.com...
  • Page 6 STEP 1. SECURING DISC TO SWAGED SIDE RAIL ÉTAPE 1. FIXEZ LE DISQUE À LA BARRE LATÉRALE EMBOUTIE 1.1. Holding swaged rail, press pin (A) down and hold. 1.1. Tenez la barre emboutie et maintenez la tige (A) enfoncée. 1.2. Line up pin (B) with hole in disc, insert rail into disc. Let pin (A) go. 1.2.
  • Page 7 STEP 2. CONNECTING SWAGED SIDE RAIL TO STRAIGHT SIDE RAIL ÉTAPE 2. RACCORDEZ LA BARRE LATÉRALE EMBOUTIE À LA BARRE LATÉRALE DROITE 2.1. Attach a swaged side rail (completed in step 1) to a straight rail. 2.1. Attachez une barre latérale emboutie (voir étape 1) à une barre droite. Make sure they slide into one another completely.
  • Page 8 STEP 4. SECURING EACH DISC INTO THE END FRAME ÉTAPE 4. FIXEZ CHAQUE DISQUE DANS LE CADRE DE LIT 4.1. Make sure pin (A) is visible, is not covered by the sleeping mat and is facing inwards. Check all four bed posts (see diag.
  • Page 9 THE ASSEMBLY OF YOUR DISC-O-BED® L/XL ROUND FRAME SINGLE COT IS NOW COMPLETE. LE MONTAGE DE VOTRE DISC-O-BED® L/XL À CADRES ARRONDIS EST MAINTENANT TERMINÉ. STEP 5. STRAIGHT FRAME ASSEMBLY ÉTAPE 5. MONTAGE DES CADRES DROITS 5.1. Follow steps 1 - 4 to complete the assembly of the straight frame single cot. 5.1.
  • Page 11 Bunk Assembly Instructions Instructions de montage pour les lits superposés discobed.com...
  • Page 12 STEP 1. REMOVE FOOT PLUGS ÉTAPE 1. RETIREZ LES BOUCHONS DE PIED. 1.1. Remove the 4 foot plugs from the straight bed end frame. 1.1. Retirez les 4 bouchons de pied du cadre d’extrémité droit. STEP 2. ATTACH STACK ADAPTERS TO STRAIGHT LEG BED END FRAME ÉTAPE 2.
  • Page 13 STEP 3. STACK STRAIGHT END FRAME ONTO ROUNDED END FRAME ÉTAPE 3. SUPERPOSEZ LE CADRE D’EXTRÉMITÉ DROIT SUR LE CADRE D’EXTRÉMITÉ ARRONDI 3.1. Place straight end frame (fitted with stack adapters completed in step 2) onto rounded end frame. 3.1. Placez le cadre d’extrémité droit (avec les adaptateurs tel qu’expliqué à l’étape 2) sur le cadre d’extrémité arrondi. STEP 4.
  • Page 14 STEP 5. ATTACHING LOCKING STRAP ÉTAPE 5. ATTACHEZ LES SANGLES DE VÉROUILLAGE. 5.1. Feed locking strap through bed end frames and lock each buckle (1 and 2) onto the end frames. 5.2. Pull down on strap in order to secure bunk in position and ensure there is no movement. 5.3.
  • Page 15 Bench Setup La Conversion du banc discobed.com...
  • Page 16 STEP 1. SETTING UP BACK REST ÉTAPE 1. POSITIONNEMENT DU DOSSIER 1.1. Lift discs 1 and 2 out of bed end frame of top cot. 1.1. Soulevez les disques 1 et 2 du cadre d’extrémité du lit inférieur. 1.2. Place discs 1 and 2 on bed end rail of bottom cot. 1.2.
  • Page 17 1.3 Let disc rest between bed end rail and stack adapter. The disc should not be able to roll forward. 1.3 Les disques doivent être posés entre la barre du cadre d’extrémité et l’adaptateur de superposition. Les disques ne devraient pas rouler vers l’avant. YOU HAVE NOW SUCCESSFULLY COMPLETED THE ASSEMBLY OF YOUR DISC-O-BED®...
  • Page 18 IMPORTANT TO NOTE WHEN CONVERTING YOUR DISC-O-BED® L/XL BENCH BACK TO A BUNK CONFIGURATION Make sure pin (A) is facing inwards and not covered by sleeping mat. NOTEZ BIEN LORS DE LA RECONVERSION DE VOTRE BANC DISC-O-BED® L/XL EN LITS SUPERPOSÉS Assurez-vous que la tige (A) soit tournée vers l’intérieur et non couverte par le matelas.
  • Page 19 Side Organizer Assembly Instructions (Optional accessory - may not come standard with your Disc-O-Bed® L/XL) Instructions de montage de l’accessoire du rangement latéral (Accessoire en option - ne vient pas de norme avec votre Disc-O-Bed® L/XL) discobed.com...
  • Page 20 STEP 1. SETTING UP SIDE-ORGANIZER ÉTAPE 1. MONTEZ VOTRE ACCESSOIRE DE RANGEMENT LATÉRAL...
  • Page 21 Package Instructions Instructions pour le rangement L Rounded and straight frame / Cadre large arrondi et cadre droit XL Rounded and straight frame / Cadre extra-large arrondi et cadre droit...
  • Page 22 5 POINT CHECK LIST Make sure that these simple checks are followed PRIOR TO EACH use of your Disc-O-Bed® L/XL. 1. The pin (B) is securely locked in to the disc. STEP 1 page 5. 2. Side rails fit into one another completely. Should feel smooth to the touch. STEP 3 page 6. 3.

  • Page 23: Limited Warranty

    We hope that you are completely satisfied with our product and it is exactly what you expected. Should you have any questions, comments or concerns, please don’t hesitate to contact us via:- Toll Free: +1 800.613.0910 Monday – Friday 8:30 to 5:00pm (EST) cs@discobed.com OR info@discobed.com www.discobed.com Like us on FB http://www.facebook.com/discobedworldwide All returns of defective items shall be made to the following address: Disc-O-Bed®...

  • Page 24: Important Safety Warning

    If you have any questions, comments or concerns, please don’t hesitate to contact us: Disc-O-Bed® Retail, Inc. 2408 Tech Center Pkwy STE 100, Lawrenceville, GA 30043 USA Toll Free: +1 800.613.0910 Monday – Friday 8:30 to 5:00pm (EST) cs@discobed.com www.discobed.com IMPORTANT - AVERTISSEMENT DE SÉCURITÉ...

This manual is also suitable for:

Disc-o-bed extra large
