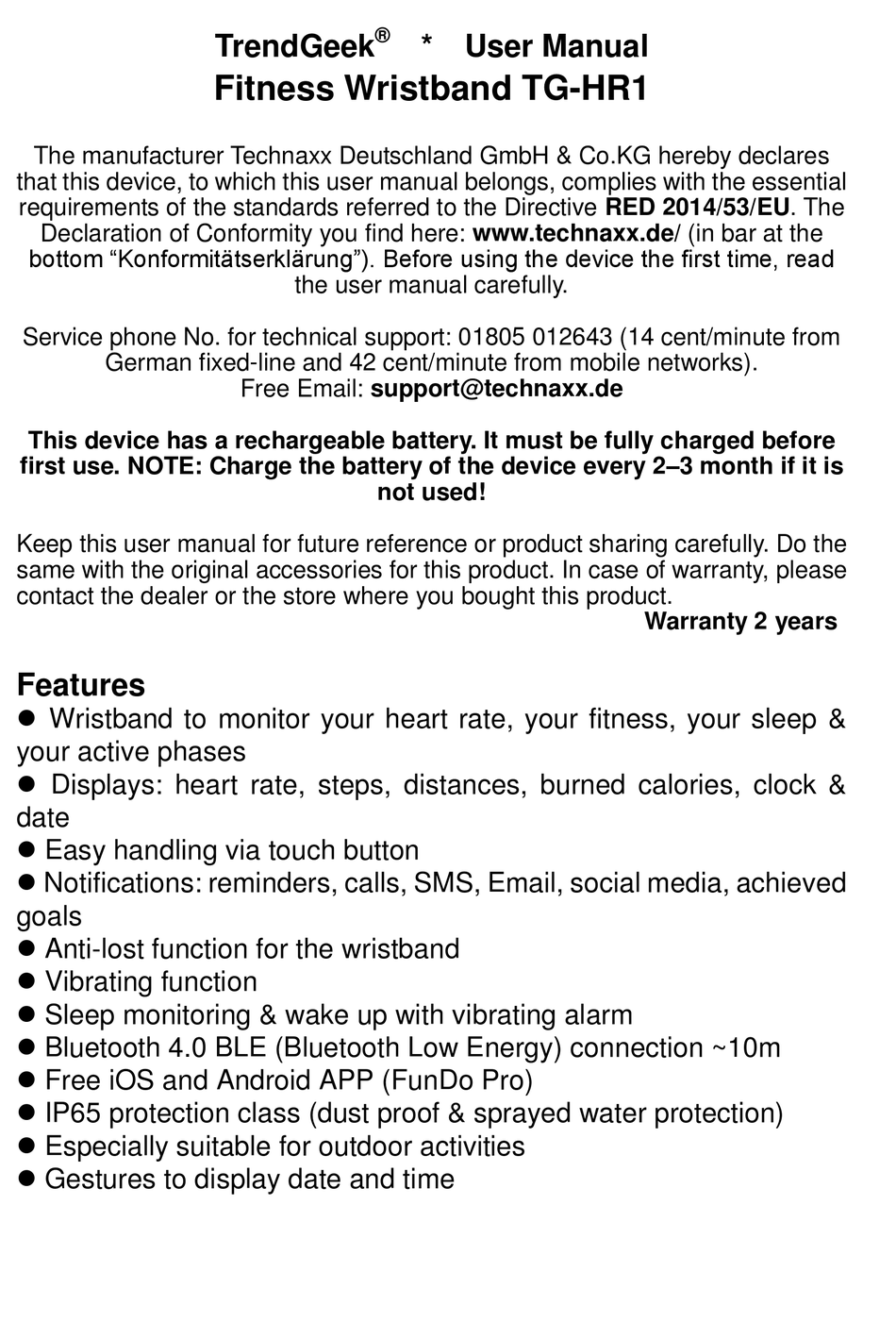

TrendGeek
* User Manual
Fitness Wristband TG-HR1
The manufacturer Technaxx Deutschland GmbH & Co.KG hereby declares
that this device, to which this user manual belongs, complies with the essential
requirements of the standards referred to the Directive RED 2014/53/EU. The
Declaration of Conformity you find here: www.technaxx.de/ (in bar at the
bottom "Konformitätserklärung"). Before using the device the first time, read
the user manual carefully.
Service phone No. for technical support: 01805 012643 (14 cent/minute from
German fixed-line and 42 cent/minute from mobile networks).
Free Email: support@technaxx.de
This device has a rechargeable battery. It must be fully charged before
first use. NOTE: Charge the battery of the device every 2–3 month if it is
not used!
Keep this user manual for future reference or product sharing carefully. Do the
same with the original accessories for this product. In case of warranty, please
contact the dealer or the store where you bought this product.
Warranty 2 years
Features
 Wristband to monitor your heart rate, your fitness, your sleep &
your active phases
 Displays: heart rate, steps, distances, burned calories, clock &
date
 Easy handling via touch button
 Notifications: reminders, calls, SMS, Email, social media, achieved
goals
 Anti-lost function for the wristband
 Vibrating function
 Sleep monitoring & wake up with vibrating alarm
 Bluetooth 4.0 BLE (Bluetooth Low Energy) connection ~10m
 Free iOS and Android APP (FunDo Pro)
 IP65 protection class (dust proof & sprayed water protection)
 Especially suitable for outdoor activities
 Gestures to display date and time

Advertisement

loading

Summary of Contents for Technaxx TrendGeek TG-HR1

  • Page 1 Directive RED 2014/53/EU. The Declaration of Conformity you find here: www.technaxx.de/ (in bar at the bottom “Konformitätserklärung”). Before using the device the first time, read the user manual carefully.
  • Page 2 Technical specifications 0.42” OLED display (72x40pixel) Display Processor BK3431Q Heart rate sensor LST1303 Protection class IP65 Bluetooth / Distance Version 4.0 BLE / ~10m BT transmitting frequency 2.4GHz BT max. radiated output power 2.5mW Built-in rechargeable 50mAh Power supply Lithium-ion battery 3,7V ~1 hour (use the enclosed USB cable with Charging time an USB charging adapter)
  • Page 3 Low battery Charging Full 2. Install FunDo Pro APP on your Smartphone Search for „FunDo Pro“ APP in Play Store/APP Store or scan the following QR code for the installation. APP Icon Android 3. Connect the bracelet with the FunDo Pro APP Wait until the bracelet is fully charged.
  • Page 4 Press „Add device“ under „More“ and search for “TG-HR1”. Choose “TG-HR1” from the list and you are ready. Now the bracelet is connected with your Smartphone and the APP. Android Android 4. Start using When the bracelet is connected to the APP successfully, it will be synchronizing the time.
  • Page 5 5. Functions Note: The following settings and the order of the settings can differ under iOS and Android!  Set personal information: sex, height, weight, birthday  Shows the current progress, your best scores, the averages and last week’s scores. ...
  • Page 6  Sedentariness Alert: Set the period and the time you want to be reminded to move.  Reminder Mode: Set screen backlight On / Vibration / Backlight & Vibration.  Alarm Clock: Once the alarm is set, its icon will be animated, the screen backlight is on and vibrates several times.
  • Page 7 Cleaning: Protect device from contamination and pollution. Avoid using rough, coarse-grained materials solvents/aggressive cleaner. Wipe cleaned device accurately. Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr. 105, 60388 Frankfurt a.M., Germany...
