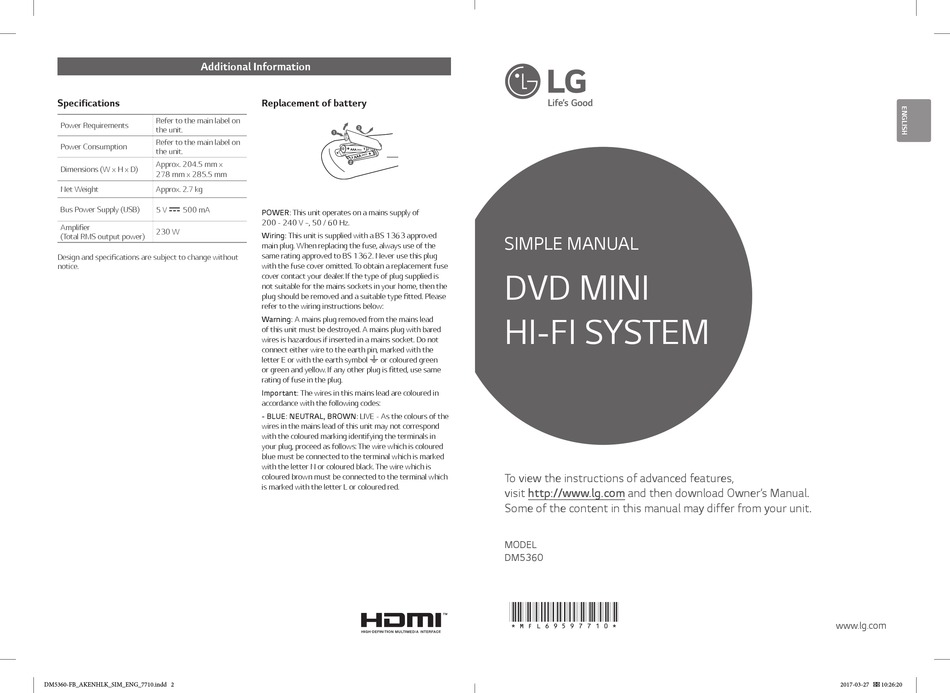

LG DM5360 Simple Manual

Additional Information
Specifications
Refer to the main label on
Power Requirements
the unit.
Refer to the main label on
Power Consumption
the unit.
Approx. 204.5 mm x
Dimensions (W x H x D)
278 mm x 285.5 mm
Net Weight Approx. 2.7 kg
Bus Power Supply (USB) 5 V 0 500 mA
Amplifier
230 W
(Total RMS output power)
Design and specifications are subject to change without
notice.
DM5360-FB_AKENHLK_SIM_ENG_7710.indd 2
Replacement of battery
POWER: This unit operates on a mains supply of
200 - 240 V ~, 50 / 60 Hz.
Wiring: This unit is supplied with a BS 1363 approved
main plug. When replacing the fuse, always use of the
same rating approved to BS 1362. Never use this plug
with the fuse cover omitted. To obtain a replacement fuse
cover contact your dealer. If the type of plug supplied is
not suitable for the mains sockets in your home, then the
plug should be removed and a suitable type fitted. Please
refer to the wiring instructions below:
Warning: A mains plug removed from the mains lead
of this unit must be destroyed. A mains plug with bared
wires is hazardous if inserted in a mains socket. Do not
connect either wire to the earth pin, marked with the
letter E or with the earth symbol 6 or coloured green
or green and yellow. If any other plug is fitted, use same
rating of fuse in the plug.
Important: The wires in this mains lead are coloured in
accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the colours of the
wires in the mains lead of this unit may not correspond
with the coloured marking identifying the terminals in
your plug, proceed as follows: The wire which is coloured
blue must be connected to the terminal which is marked
with the letter N or coloured black. The wire which is
coloured brown must be connected to the terminal which
is marked with the letter L or coloured red.
SIMPLE MANUAL
DVD MINI
HI-FI SYSTEM
To view the instructions of advanced features,
visit http://www.lg.com and then download Owner's Manual.
Some of the content in this manual may differ from your unit.
MODEL
DM5360
*MFL69597710*
www.lg.com
2017-03-27 10:26:20
