Free Standing Direct Vent Gas Stove (Field Convertible to Vented Stove)
Model Numbers: FDV451N, FDV451NE, FDV451NE2, FDV451LP, FDV451LPE, FDV451LPE2, MQFDV453N,
MQFDV453NE, MQFDV453NE2, MQFDV453LP, MQFDV453LPE, MQFDV453LPE2
Certified to: ANSI Z21.88-2017 • CSA 2.33-2017 Vented Gas Fireplace Heaters, CSA 2.17-2017
Installation Instructions
FDV451 & MQFDV453
This appliance may be installed in an
aftermarket permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local
codes.
This appliance is only for use with the
type of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases, unless a certified kit is
used.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for future
reference.
VANTGE
A Division of R-Co. Inc.
2340 Logan Avenue
Winnipeg, Manitoba, Canada R2R 2V3
Ph: (204) 632-1962
Printed in Canada June 20, 2019
Part # 451-MAN17
MQFDV453
Advertisement
Table of Contents
Related Manuals for Kingsman Fireplaces FDV451N
Summary of Contents for Kingsman Fireplaces FDV451N

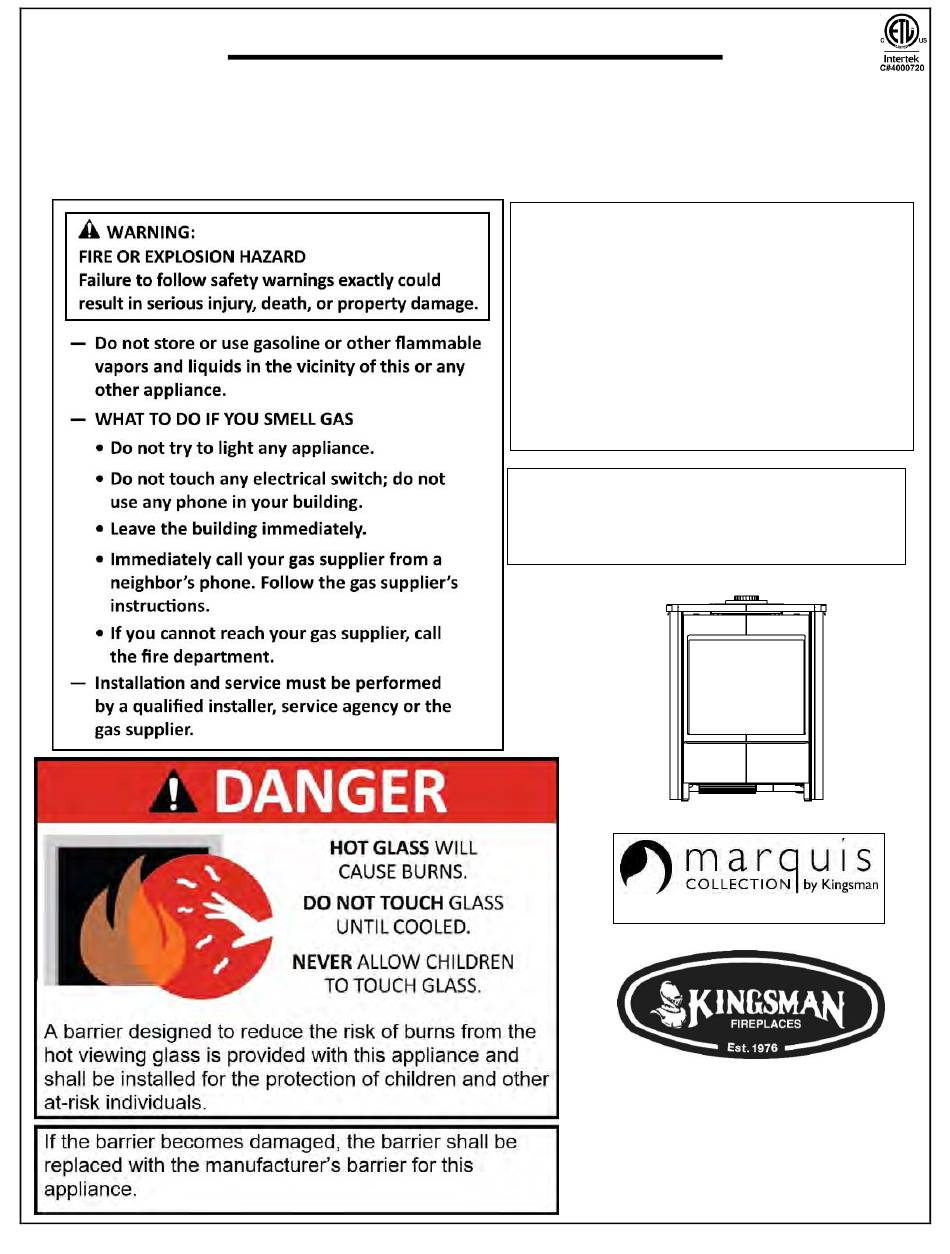

- Page 1 FDV451 & MQFDV453 Free Standing Direct Vent Gas Stove (Field Convertible to Vented Stove) Model Numbers: FDV451N, FDV451NE, FDV451NE2, FDV451LP, FDV451LPE, FDV451LPE2, MQFDV453N, MQFDV453NE, MQFDV453NE2, MQFDV453LP, MQFDV453LPE, MQFDV453LPE2 Certified to: ANSI Z21.88-2017 • CSA 2.33-2017 Vented Gas Fireplace Heaters, CSA 2.17-2017...
-
Page 2: Table Of Contents
Table of Contents INFORMATION Table of Contents…………………………………………………………………………………………………………... Pre-installation Questions and Answers / Operating Instructions................... Warnings, Installations, and Operations……………………………………………………………………………………….. Installation Requirements for the Commonwealth of Massachusetts / Carbon Monoxide (CO) Detector...... Fireplace Installations in Covered Outdoor Locations....................Mobile Home/Manufactured Housing Installation…………………………………………………………………………….. FDV451 / MQFDV453 INSTALLATION Locating Your Appliance / Fireplace Dimensions……………………………………………………………………………... - Page 3 Configuration 3: Remote ON/OFF, Variable HI/LO, and Fan………………………………………………………………... Electronic Ignition Lighting Instructions………………………………………………………………………………………… PROFLAME 2 IPI SYSTEM Proflame 2- Parts List- Basic System, Parts List, Configuration GTMFL............... Proflame 2 Remote Control............................Cold Climates – CPI Setting - Proflame 2 Remote Control.................... Remote Flame Control, Room Thermostat........................
-
Page 4: Pre-Installation Questions And Answers / Operating Instructions
Pre-installation Questions and Answers About curing of the paint Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure when heat is applied to the appliance as it is first used. -
Page 5: Warnings, Installations, And Operations
Warnings, Installations and Operations - Installation Regulations This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the current CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the United States. This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes, with the current CSA C22.1 Canadian Electrical Code or with the National Electrical Code;... -
Page 6: Installation Requirements For The Commonwealth Of Massachusetts / Carbon Monoxide (Co) Detector
Installation Requirements for the Commonwealth of Massachusetts In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the Commonwealth. When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO detector per the requirements listed below. -
Page 7: Fireplace Installations In Covered Outdoor Locations
Fireplace Installations in Covered Outdoor Locations – FOR BASIC MILLIVOLT UNITS ONLY- NO FAN – NO LIGHTS- CAUTION – Installation of an indoor gas fireplace with an outdoor exposure is not covered under the (ANSI Z21.88 – CSA 2.22 or ANSI Z21.50 – CSA 2.33) standard(s) used to certify the indoor gas-fired fireplace. The Intertek safety certification will not apply to this installation method. -
Page 8: Mobile Home/Manufactured Housing Installation
Mobile Home/Manufactured Housing Installation This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in Canada. -
Page 9: Locating Your Appliance / Fireplace Dimensions
FDV451 / MQFDV453 Dimensions FRONT RIGHT SIDE (MQFDV453 Shown) FDV451 / MQFDV453 Locating Your Appliance / Clearance To Combustibles The unit should be placed on a hard, stable surface. The appliance may be installed directly on carpeting, tile or other combustible material with no additional floor protection being required. -
Page 10: Gas Line Installation
Do not use open flame must be listed and approved by the state of for leak testing. Massachusetts. This is in reference to the state of Massachusetts state code CMR238. Gas Specifications MODELS FDV451N FDV451LP MQFDV453N MQFDV453LP FDV451NE FDV451LPE MQFDV453NE... -
Page 11: Fan Installation
Fan Installation F450FK FDV451 / MQFDV453 ⚠ WARNING Electrical Grounding Instructions This appliance is equipped with a three prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this. -
Page 12: Split Receptacle- Switch Control Outside Of Fireplace
Fan Speed Control Outside of Fireplace If you plan to locate the variable speed control switch for the fan outside of the fireplace and you require a constant source of AC power inside the unit for another accessory such as lights or an IPI valve system, follow one of the procedures below. -
Page 13: Door And Glass Information
Door and Glass Information FDV451 / MQFDV453 Glass Cleaning It will be necessary to clean the glass periodically. During startup, condensation, which is normal, forms on the inside of the glass, and causes dust, lint etc. to cling to the glass surface. Also, initial paint curing can deposit a slight film on the glass. -
Page 14: Fdv451 / Mqfdv453 Glass Front Door Removal / Installation
FDV451 / MQFDV453 Glass Front Door Removal / Installation To Remove Door: Using supplied latch tool, pull top latches forward and up to release from door. Swing door down and pull away from appliance to release. To Install Door: Engage door in lower latches at an angle of between 5 and 10 degrees below horizontal. FIREBOX FACE GLASS DOOR FRAME... -
Page 15: Mq453 Glass Side Door Removal / Installation
MQFDV453 Glass Side Door Removal / Installation ⚠WARNING: Wait until unit is COMPLETELY cool before touching glass or attempting to install or remove Glass Door. To Remove Door: Remove [4] KEPS nuts with a 7/16” wrench. NOTE: Do not overtighten nuts, as gasket or glass may be damaged To Replace Door: Place Glass Side Door over studs. -
Page 16: Important Information For Door Fronts, Vent Lids, And Side Doors
⚠ IMPORTANT INFORMATION FOR DOOR FRONTS, VENT LIDS, AND SIDE DOORS WARNING: SIDE DOOR PANEL GETS EXTREMELY HOT! DO NOT OPEN SIDE DOOR PANEL UNTIL UNIT IS COMPLETELY COOL. INSTALLATION NOTES: Cotton gloves must be worn to protect the finish during installation and handling. ... -
Page 17: F450F Front Door Kit -Door Face With Safety Screen And Vent Lid
FDV451 / MQFDV453 -F450F Door Front Kit- Kit contains: [1] Door Face with safety screen, [2] DT Screws, [1] Vent Lid. ⚠WARNING: Wait until unit is COMPLETELY cool before touching glass or attempting to install or remove Front Face. MOUNT HOLE SAFETY BARRIER SCREEN MOUNT HOOK 1. -
Page 18: Vent Lid Installation
FDV451 / FDV453 Vent Lid Installation VENT LID MUST BE IN PLACE BEFORE VENTING IS CONNECTED. Notch Mount Tab To install Vent Lid: Place Vent Lid onto fireplace and center over flue. Mount Tabs will engage with notches inside recess on appliance top. ... -
Page 19: F451Sd / Mq453Sd Side Door Kits
F451SD / MQ453SD -Side Door Kits- Kit contains: [1] Pair of Side Door Panels with safety screens, [4] DT Screws. ⚠ WARNING: Wait until unit is COMPLETELY cool before touching glass or attempting to install or remove Side Panel. SAFETY SCREEN BARRIER HINGES HINGE MOUNT LOCATIONS MAGNETS... -
Page 20: Fdv453 Side Door Panel Screen Removal
FDV453 Side Door Panel Screen Removal Step One: Using a 1/4” Hex driver, remove the [Qty 8] DT Screws on the inside of the Side Door Panel. Set the Outer Door Panel aside. Step Two: Using an R1 Robertson or Phillips screw driver, remove the [Qty 4] #6 Black Screws holding the screen in place. -
Page 21: F451Rl / F453Rl Brick Liner Installation
F451RL / F453RL – Brick Liner Installation / Removal ⚠ WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. F451RL: [1] Back Liner, [2] Side Liners F453RL: [1] Back Liner only GRATE... -
Page 22: Brick Clip Update For F451Rl Side Brick And F451Pl Porcelain Liners
Brick Clip Update for FDV451 Side Brick Liners If the Serial Number of the Appliance is above #_1325_ For FDV451 Units: The left and right side Brick Clips are fixed in the Firebox. Side Brick Slide Clips upward when installing Left and Right Side Panel. -
Page 23: F451Pl / F453Pl Porcelain Liner Installation
F451PL / MQ453PL – Porcelain Liner Installation / Removal ⚠ WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. F451PL: [1] Back Liner, [2] Side Liners MQ453PL: [1] Back Liner only ________________________________________... -
Page 24: 51Uhs Box / Component Locations
FDV451 / MQFDV453 51UHS Box INCLUDED WITH BASE MODEL (MILLIVOLT) UNITS. The 51-UHS Box is designed for millivolt and IPI units for in-unit installation of the Remote Receiver, Fan Control Module, and the IPI Module. 51-UHS Box can be inserted & removed from beneath fireplace through Side panel opening. NOTE: When using a remote control, the 51-UHS Box must be used. -
Page 25: Proflame 2 Box / Component Locations
FDV451 / MQFDV453 Proflame 2 Box The Proflame2 IFC (Integrated Fireplace Control) board is a device that allows the automatic ignition and pilot flame supervision, to command the functions of a hearth appliance. Refer to Proflame 2 Section for more information. Right Left Side Panel Side Panel... -
Page 26: F45Lg Log Grate Installation
F45LG Log Grate Installation FDV451 / MQFDV453 Contents of Kit: [1] Horizontal Grate Bar with Andiron, [1] Andiron Step 1: Slide loose Andiron onto Grate Bar. Step 2: Insert Andirons into slots in False Bottom. SLOTS... -
Page 27: Logf451 Oak Log Set
LOGF451 – Oak Log Set ⚠ WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. NOTE: Lava Rock, 350 Embers, and Vermiculite are packaged with fireplace. Can be used with Optional F45LG Grate Bar. -
Page 28: Logf452 Oak Log Set
3: Place LOG 3 and LOG 4 as shown below. 4: Place LOG 5 and LOG 6 as shown below. LOG 4 LOG 3 LOG 6 LOG 5 5: Place 350 Embers and Vermiculite in areas shown below. LOGF451 Oak Logset LOGF451 Oak Logset with optional F45LG Grate Bar. - Page 29 MQLOGF452 – Oak Log Set ⚠ WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. NOTE: Lava Rock, 350 Embers, and Vermiculite are supplied with fireplace. Can be used with Optional F45LG Grate Bar.
- Page 30 3: Place LOG 4 and LOG 5 as shown below. 4: Place LOG 6 and LOG 7 as shown below. LOG 5 LOG 4 LOG 7 LOG 6 5: Place LOG 2 and LOG 3 as shown below. 6: Place 350 Embers and Vermiculite in areas shown below.
-
Page 31: Mq453Log Driftwood Log Set
MQLOGF453 – Driftwood Log Set ⚠ WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. NOTE: Lava Rock and 350 Embers supplied with fireplace. Can be used with Optional F45LG Grate Bar. - Page 32 3: Place LOG 3 as shown below. 4: Place LOG 4 behind LOG 2 on the right side. LOG 4 LOG 2 LOG 3 5: Place LOG 5 as shown below. 6: Place 350 Embers and Vermiculite in areas shown below.
-
Page 33: Rbcb1 Cannonballs
RBCB1 -Cannonballs- Installation Instructions FDV451 / MQFDV453 Assorted size and colors. Place randomly as desired inside fireplace. -MUST BE USED WITH 15LBS OF GLASS MEDIA- Can be used with MQ Glass, MQ Ember, and / or Lava Rock. Do not place Cannonballs directly on burner ports. If sooting occurs change position of or remove affected objects. -
Page 34: Mq Dealer Accessories
MQ Dealer Accessories for FDV451 / MQFDV453 The following Accessories are available through MQ Dealers only. GLASS (MQG5W, MQG5C, MQG5A, MQG5B, MQG5ZG) ACCESSORY ITEM DESCRIPTION If you wish to use this media evenly spread the glass embers onto the false bottom and burner. -
Page 35: Mq Stone Decorative Stone Set
MQ Stone Decorative Stone Set MQ Stone can be placed on or around Burner. Lava Rock (Supplied with Base MQ EMBER (shown) can be placed on Burner. Unit). Do not place on Burner. MQ Glass can be placed on Burner and Glass Tray. ... -
Page 36: Millivolt System, Lighting, And Burner Control
Millivolt System, Lighting, and Burner Control FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. BEFORE LIGHTING This appliance has a pilot which must be lighted by hand. When ... -
Page 37: Annual Inspection List For Determining Safe Operation Of A Direct Vent Gas Fireplace
Annual Inspection List for Determining Safe Operation of a Direct Vent Gas Fireplace Refer to this checklist for proper maintenance, safe use, and operation. See each section for more specific information. 1. Inspect and operate all pressure relief mechanisms (i.e., relief dampers, spring loaded door latches) installed on your appliance to verify relief mechanisms are free from obstruction to operate. -
Page 38: Burner System Maintenance
Burner System Maintenance FDV451 / MQFDV453 It is recommended to annually inspect and clean the Burner System to prevent malfunction and / or sooting. This operation should be performed by your dealer or a qualified technician. -CAUTION- Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all electrical connections to the appliance. -
Page 39: Restrictor Baffle Setting For Gas Conversions
Restrictor Baffle Setting for Gas Conversions FDV451 / MQFDV453 The Restrictor Baffle must be set correctly in order for the appliance to function properly. NG Setting Tabs flat Restrictor Baffle Located in top of firebox at the front. LP Setting Tabs bent down 90°... -
Page 40: Gas Conversion- Part A
FDV451 / MQFDV453 Gas Conversion Part A Models: FDV451N, FDV451NE, FDV451NE2, FDV451LP, FDV451LPE, FDV451LPE2, MQFDV453N, MQFDV453NE, MQFDV453NE2, MQFDV453LP, MQFDV453LPE, MQFDV453LPE2 Kit Number Description Pilot Orifice Burner Orifice Brass Nipple Air Shutter Hi/Lo Regulator Brass (1000-255) Propane 450DV-CKLP 1001-P167SI 1000-253 Fully Open... -
Page 41: Gas Conversion Kit For Top Convertible Pilot- Part B
Gas Conversion for Top Convertible Pilot – Part B (series 0190XYZ) Instructions for converting SIT 190 series pilot burner injector from NG to PROPANE and from PROPANE to NG only. This information should be considered as supplemental to the Appliance Manufacturer's Instructions. -
Page 42: Gas Conversion For Modulator- Part C
Gas Conversion for Modulator – PART C... -
Page 43: Burner Removal
FDV451 / MQFDV453 Burner Removal 1. Remove [2] DT Screws behind Grate and lift False Bottom 2. Loosen Burner Hold Downs. Assembly out of firebox. 3. Slide H Burner to the left. 4. Remove Burner. 5. To remove entire Burner Pan, remove [16] DT Screws around perimeter of pan. -⚠... -
Page 44: Ipi Electronic Ignition System
IPI Electronic Ignition System Overview The IPI system is an advanced burner controller that Cover provides you with the option of having either a Standing- Pilot, or an intermittent igniting system. This alternating Backup mode is controlled by the CPI/IPI Switch (Continuous Pilot Battery Ignition/Intermittent Pilot Ignition) located on the IPI System Pack... -
Page 45: Remote Control Operation
-Remote Control Operation- The Proflame GTM is configured to control the on/off main burner operation, its flame levels, and provides on/off and Smart thermostatic control of the appliance. Transmitter Remote Receiver Transmitter Room Thermostat ( Transmitter Operation) The Transmitter is powered by 3 AAA type batteries. A Mode The Remote Control can operate as a room thermostat. -
Page 46: Ipi Electronic Ignition Parts List - Standard System
IPI Electronic Ignition Parts List – Standard System ITEM NO. PART NO. DESCRIPTION 1006-P002si Valve IPI Hi/Lo NG 1006-P003si Valve IPI Hi/Lo LP *1002-P047si Pilot Assembly-LP -24” Wire *1002-P033si Pilot Assembly-NG -24” Wire 1002-P017si Spark Electrode (with wire) *1002-P119si Spark Electrode (with wire- 35” Length) 1002-P903si Electrode Flame Sensor *1002-P910si... -
Page 47: Configuration 1: Basic Manual Hi / Lo And Manual Off
Configuration #1: Basic manual HI/LO and manual ON/OFF capabilities. -
Page 48: Configuration 2: Remote On / Off And Manual Hi / Lo
Receiver Module .584.523/521/221 1001-P221SI Receiver Module .584.523/521/221 1001-P221SI... -
Page 49: Operating The Receiver Without Batteries For Gt / Egt / Gtm / Egtm Remote Controls
Operating the Receiver Without Batteries For GT / EGT / GTM / EGTM Remote Controls -Wiring Harness P/N 1002-P906si required for both IPI & Millivolt systems. -Millivolt Systems will also require Power Adapter P/N 1002-P850si. The Remote Receiver & IPI or Millivolt system can be powered by the AC Adapter. This is advantageous if you do not want to use batteries. -
Page 50: Configuration 3: Remote On/Off, Variable Hi/Lo, And Fan
Configuration #3: Remote ON/OFF, variable HI/LO, and fan capabilities. Refer to the fan installation/removal section for fan installation. -
Page 51: Electronic Ignition Lighting Instructions
Electronic Ignition Lighting Instructions If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Always light the pilot whether for the first time or if the gas supply has ran out with the glass door opened or removed. FOR YOUR SAFETY READ BEFORE LIGHTING: A. -
Page 52: Proflame 2- Parts List- Basic System, Parts List, Configuration Gtmfl
Proflame 2- Parts List- Basic System, Parts List, Configuration GTMFL ITEM PART DESCRIPTION NUMBER 1005-P001si IPI Valve NG with Stepper Motor 885.001 1005-P002si IPI Valve LP with Stepper Motor 885.001 1006-P002si IPI Valve NG Hi / Lo 1006-P003si IPI Valve LP Hi / Lo 1002-P033si Pilot NG IPI 199.059 1005-P325si... -
Page 53: Proflame 2 Remote Control
Proflame 2 IFC Module and Remote Control LCD Display ON / OFF Key Thermostat Key Batteries UP / DOWN Arrow Key Mode Key IFC Module Button Within 10 seconds press the button again until Pairing Remote Control: you hear it beep. ... -
Page 54: Cold Climates - Cpi Setting - Proflame 2 Remote Control
Cold Climates – CPI Setting - Proflame 2 Remote Control Use the CPI setting during cold weather, otherwise the fireplace may have a hard time starting up and establishing a flame. The CPI (Continuous Pilot Ignition) setting will keep the firebox and fireplace exhaust vent warm during cold weather. When the firebox and exhaust vent are warm, exhaust gasses will readily flow out of the firebox. -
Page 55: Remote Flame Control, Room Thermostat
Proflame 2 Remote Control... -
Page 56: Smart Thermostat, Fan Speed Control, Remote Dimmer Control
Note: When Smart Thermostat is activated, manual flame height adjustment is disabled. Note: This function is only available in Room Thermostat or Smart Thermostat Control Mode. -
Page 58: Vent Terminal Clearances
Vent Terminal Clearances Clearances are to the edge of the terminal plate. Add 6-3/4” to clearances to arrive at centerline. Local codes or regulations may require different clearances. WARNING: A HORIZONTAL VENT CERTIFIED GUARD (SAFETY CAGE) IS AVAILABLE WHEN REQUIRED BY LOCAL CODES. Canadian installations US installations Clearance above grade, veranda,... -
Page 59: General Venting Information
FDV451 / MQFDV453 General Venting Information This gas appliance is approved to be vented either through the side wall or vertically through the roof. Only Kingsman Flex (Z-Flex) Venting Kits and components specifically approved and LABELED for this stove may be used. This appliance is also approved for use Simpson-Duravent Direct Vent system (Model DV-GS Series), BDM Pro Form Direct Vent, Ameri-Vent Direct Vent Pipe System, ICC Excel Direct, Metal Fab Sure-Seal DV and Selkirk Direct Temp. -
Page 60: Venting Routes And Components
FDV451 / MQFDV453 Venting Routes and Components Since it is very important that the vent system maintain its balance between the combustion air intake and the flue gas exhaust, certain limitations as to vent configurations apply and must be adhered to. See venting chart for total horizontal and vertical runs For every 90°... -
Page 61: Venting Table
FDV451 / MQFDV453 Venting Table IMPORTANT: ALWAYS LOCATE THE STOVE IN SUCH A WAY AS TO MINIMIZE THE NUMBER OF OFFSETS AND/OR HORIZONTAL RUNS. A 1/4” VERTICAL RISE IS REQUIRED FOR EVERY 12” OF HORIZONTAL RUN. The following table shows the relationship between vertical and horizontal vent lengths and will help you to determine the correct vent lengths for optimum stove performance. -
Page 62: Horizontal Vent Installation
FDV451 / MQFDV453 Horizontal Vent Installation Silicone and Screw Wall Thimble or Clamp Decorative Cover 1” minimum 1” top of horizontal vent 2” top of 90° elbow Trim Ring Caulk Silicone and Screw All other existing pipes 1” clearance. (Both Sides) May be installed or Clamp Support Straps required to maintain... -
Page 63: Z47St24 / Z47St36 Horizontal Snorkel Terminations
Z47ST24 / Z47ST36 Horizontal Snorkel Terminations Two snorkel terminations are available if a vertical rise is necessary on the exterior side of a building: Z47ST24 (24” Tall, 14-1/2” Center to Center) Z47ST36 (36” Tall, 26-1/2” Center to Center) Follow standard horizontal venting installation procedures. If the Snorkel Termination is to be located below grade, a codes. -
Page 64: Vertical Vent Installation
FDV451 / MQFDV453 Vertical Vent Installation Framing Detail Attic Insulation Shield Fire Stop Using Flex Bends Use roof support and rigid pipe at roof level. Flex pipe is not permitted within roof support. When penetrating the roof a rigid galvanized pipe must be used. Attach flex pipe to the rigid pipe with high temperature sealant, secure with four screws assuring the flex pipe and rigid pipe are secured. - Page 65 FDV451 / MQFDV453 Vertical Vent Installation FDVVSK: Vertical Vent Starter Kit Clearance to perpendicular wall 24 inches 12” Rule Starter Kit contains: Attic Insulation Shield, Decorative Ceiling Trim Ring, (60 cm). (Recommended to prevent re- Level Black Band, brass Band, Roof Support, Spacer Springs (6), Mill Pac. circulation of exhaust products.
-
Page 66: Vertical Venting Above 12 Feet
Vertical Venting above 12 Feet FDV451 MQFDV453 Air Restrictor When vertical venting will be 12 feet or higher, use the Air Restrictor provided. To use Air Restrictor, simply insert behind False Bottom as shown. -
Page 67: F35Bvc B-Vent Converter - Installation
F35BVC B-Vent Converter - Installation Parts List: This component will allow a direct vent fireplace to be vented like a B Vent fireplace. - [1] B-Vent Converter FOR QUALIFIED INSTALLERS ONLY. - [3] DT Screws MUST BE INSTALLED VERTICALLY AS SHOWN. - [1] Wire Retainer FOLLOW ALL LOCAL CODES. - Page 68 F35BVC Venting Information FDV451 / FDV453 -QUALIFIED INSTALLERS ONLY- THIS B-VENT CONVERTER MUST BE INSTALLED VERTICALLY AS SHOWN. A CHIMNEY VENTING THIS STOVE SHALL NOT VENT ANY OTHER APPLIANCE. -FOLLOW ALL LOCAL CODES- This appliance may be vented in various A B-Vent liquid fuel gas chimney or 4”...
-
Page 69: Fdv451 / Mqfdv453 Parts List
Valve, On/Off Switch, 4/7” Flue 34,500 BTU NG, 31,000 BTU (Thermostat/Modulating - NG) Propane Remote Control IPI EGTMRCP Fireplace Part Numbers (Thermostat/Modulating - LP) FDV451N Free Standing Direct Vent Stove, Millivolt - Remote Control IPI EGTFRCN Natural Gas (Thermostat/Modulating/Fan - NG) FDV451NE... - Page 70 -MQFDV453 MARQUIS STOVE- GTMRCN Remote Control Millivolt – Thermostat/Modulating - NG VANTAGE FREE STANDING DIRECT VENT GAS GTMRCP Remote Control Millivolt – STOVE – BAY VIEW Thermostat/Modulating - LP Listed for USA/Canada as a Vented Gas Fireplace Heater, GTFRCN Remote Control Millivolt – Dual Burner, Ceramic Glass, Glowing Embers, Hi/Lo SIT Thermostat/Modulating/Fan - NG Valve, On/Off Switch, 4/7”...
- Page 71 Vertical Vent Starter Kit - (Direct Vent COMMON PARTS FDVVSK Stoves) Starter Kit Contains: Valve System Parts / Millivolt Attic Insulation Shield, Fire Stop, Ceiling Trim 1000-P136WR Generator / Thermopile Plate, Black Trim Ring (2), Roof Support, 1001-P069SI Electrode Sparker 915.069 TC SIT Spacer Springs(6), Mill Pac 1001-P216SI Thermocouple 290.216 TC SIT...
-
Page 72: Troubleshooting The Gas Control System
Troubleshooting the Gas Control System ⚠ WARNING BEFORE DOING ANY GAS CONTROL SERVICE WORK, REMOVE THE GLASS FRONT. NOTE: Before troubleshooting the gas control system, be sure external gas shut off is in the "On" position. Problem Possible Causes Corrective Action Spark igniter will not Defective or misaligned Check for spark at electrode and pilot: if no spark and electrode wire is... -
Page 73: Limited Lifetime Warranty
This Limited Lifetime Warranty applies only while the unit remains at the site of the original installation and only if the unit is installed inside the continental United States, Alaska, Hawaii, and Canada. The warranty applies only if the unit is installed and operated in accordance with the printed instructions and in compliance with applicable installation and building codes and good trade practices.
