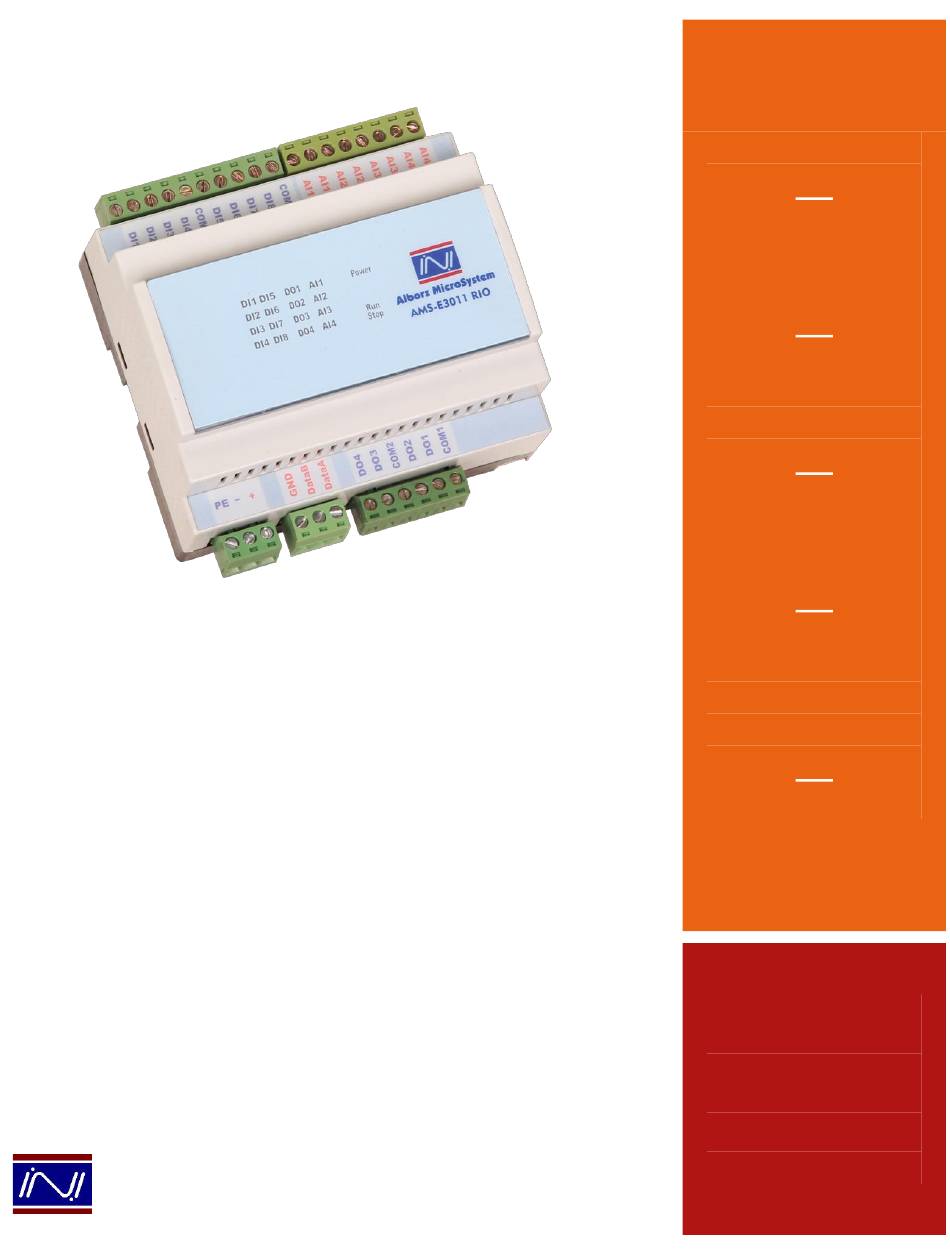

- Page 1 Alborz Micro System Industrial Control & Monitoring Power Distribution Panel Wireless Radio Modem Telemetry Control Alborz Data Acquisition & Transmission MicroSystem AMS-RE3011 RIO Remote IO Module User’s Manual Technical Support and Contact Information: alborzmicrosystem.com...
- Page 2 AMS reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time.
-
Page 3: Table Of Contents
AMS-E3011 RIO User’s Manual Table of Contents 1. Introduction 1.1. Overview 1.2. Package check list 1.3. Product Key Features 1.4. Specification 1.5. Hardware Block Diagram 1.6. Physical Dimensions 1.7. Appearance 1.8. LED Indicators 2. Initial Setup 2.1. Appearance 2.2. DIN-Rail Installation 2.3. - Page 4 AMS-E3011 RIO User’s Manual...
-
Page 5: Overview
RTU100, IDL1000, MDL2000, AMS-R3000 and AMS-R4000, which they are designed and developed for specific applications in the SCADA systems. In this document, we focus on the features and capabilities of the AMS-E3011 Remote IO and how you can be benefited from these features in your SCADA project. -
Page 6: Product Key Features
Watchdog Timer 1.4. Specification The AMS-E3011 RIO is a remote IO expansion module with a low power consumption feature which is offered for using in SCADA systems with limited number of Input/output. It can connect to any RTU or PLC through RS485, RS232 or CAN bus with the standard Modbus communication protocol. - Page 7 AMS-E3011 RIO User’s Manual Technical Specification Power Supply and Consumption External Power +9-36 VDC *(18-75 VDC available as a request) Power Consumption 1.5 W max Digital Input 8 Ch (+15~30VDC) Isolation 2.5KV RMS *(8 Ch (+40~55VDC) available as a request)
-
Page 8: Hardware Block Diagram
AMS-E3011 RIO User’s Manual 1.5. Hardware block diagram: The following figure shows the AMS-E3011 block diagram with all features. Figure 1, AMS-E3011 Block Diagram... -
Page 9: Physical Dimensions
AMS-E3011 RIO User’s Manual 1.6. Physical Dimensions... -
Page 10: Appearance
AMS-E3011 RIO User’s Manual 1.7. Appearance The following figure depict AMS-R3011 RIO controller in the Isometric View. -
Page 11: Led Indicators
AMS-E3011 RIO User’s Manual 1.8. LED Indicators There are 19 LEDs on the AMS-E3011 RIO in order to show the module status. System LED Color Function Description POWER Green Light on, Device powered Blue Blinking, Communicate with master ERROR... - Page 12 AMS-E3011 RIO User’s Manual...
-
Page 13: Din-Rail Installation
AMS-E3011 RIO User’s Manual 2.1. DIN-Rail Installation For DIN-Rail installation, simply perform the following steps to put the device on the DIN-Rail: Insert the top of the DIN-Rail bracket into the top of the DIN-Rail. Rotate the top of the module downwards until the bracket snaps into the DIN-Rail. -
Page 14: Wall-Mounted Installation
AMS-E3011 RIO User’s Manual After performing these steps, installation is completed. 2.2. Wall-mounted Installation For wall-mounted installation, users can fix the device on the wall with 2 screws as shown below. -
Page 15: Device Address And Baud Rate Setting
AMS-E3011 RIO User’s Manual 2.3. Device Address and Baud Rate Setting The address and baud rate of the device can be selected as follow: 1. Open the top glass cover of the device with a screwdriver as shown below: 2. As you can see, two DIP-Switches with 4 positions are located in the left side of the device. -
Page 16: Modbus Register Map
921.6 k 2.4. Modbus Register Map The AMS-E3011 RIO module supports multiple Modbus function code includes function code 02 for reading Input Status (DI), function code 04 for reading input registers (AI, DI with flag and Counters), function code 05/15 for writing Single/Multiple coils (DO), function code 06/16 for writing Single/Multiple of the chattering filter parameters. - Page 17 AMS-E3011 RIO User’s Manual Function Address Type Description Binary Digital Input 1 Binary Digital Input 2 Binary Digital Input 3 Read Input Status Binary Digital Input 4 (Function Code=02) Binary Digital Input 5 Binary Digital Input 6 Binary Digital Input 7...
- Page 18 AMS-E3011 RIO User’s Manual...
-
Page 19: Power Supply
AMS-E3011 RIO User’s Manual 3.1. Power Supply AMS-E3011 RIO supports main input voltage with ranging from 9 VDC to 36 VDC. Users can choose a standard 12 VDC or a 24 VDC for power supply. ATTENTION This product is intended to be supplied by a standard power supply with output marked “LPS”... - Page 20 The wiring of the analog Inputs as shown below: It should be noted that, AMS-E3011 RIO supports both of the current input mode and voltage input mode. The device has two DIP-Switches with 4 positions in the bottom side in order to change between these modes. Use a small screwdriver in order to change DIP-Switch states as following figure.
-
Page 21: Digital Input
Current Current Mode Mode Mode Mode 3.3. Digital Input AMS-E3011 RIO is equipped with eight channels of the unipolar digital input with the following specifications: Digital Input Specifications Parameters Value Inputs per Module 8 channels Input Type Dry contact (Sink) -
Page 22: Digital Output
The following diagram shows terminal wiring. The pin “COM1” is a common return for first 4 channel (DI1~DI4) and the pin “COM2” is a common return for second 4 channel (DI5~DI8). 3.4. Digital Output AMS-E3011 RIO is equipped with four channels dry contact relay output with the following specifications: Digital Output Specifications Parameters... -
Page 23: Serial Ports
3.5. Serial Port AMS-E3011 RIO is equipped with one RS485 serial port and can be communicate to any RTU or PLC through standard Modbus protocol. Use a twisted pair cable with 120Ω termination resistors in order to wire the... - Page 24 Copyright © 2017 AMS Co. AMS reserves the right to make changes to specifications of products described at any time without notice and without obligation to notify any person of such changes. Weight and dimensions are approximate. AMS Series’ are either trademarks or registered trademarks of AMS. Other names or products not mentioned may be registered trademarks or trademarks of the company.
