Analog way Control Box3 Quick Start Manual

QUICK START GUIDE
Control Box
3
For LivePremier™ and Midra™ 4K
Thank you for choosing Analog Way
control your live events using the Control Box³ with the LivePremier™ series and the Midra™ 4K series.
WHAT'S IN THE BOX
• 1 x SB124T-3 Control Box³
• 1 x Carrying case
• 1 x Quick start guide*
* User Manuals and Quick Start Guides are also available on

OVERVIEW

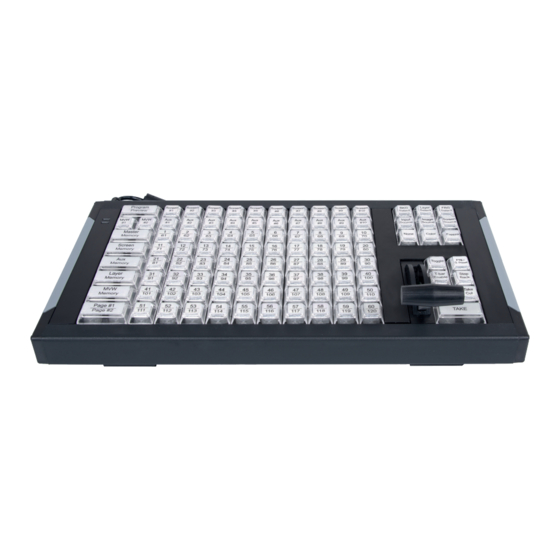

The Control Box is designed to operate your LivePremier™ series or Midra™ 4K series with ease and comfort using
3
105 physical key buttons and a T-Bar for smooth manual transitions.
The Control Box can be used via direct connection on the device USB port (one USB controller maximum).
3
With the software AW Shotbox Control, it can also be used when connected to a computer on the same network
as the LivePremier™ or Midra™ 4K device.
Note: One computer with AW Shotbox Control can only support one USB controller. One device supports up to 3
USB controllers connected via different computers + 1 USB controller connected on the device USB port.

SYSTEM REQUIREMENTS FOR AW SHOTBOX CONTROL

Windows: Microsoft® Windows® 10 or above, 100 MB of available hard-disk space for installation
LAN connection
macOS: macOS X v10.15 or above, 100 MB of available hard-disk space for installation.
LAN connection
- LivePremier™ firmware version 2.2 or above.
- Midra™ 4K firmware version 1.3 or above.
- Ref. SB124T-3
and the Control Box³. By following these simple steps, you will be able to easily
Go on our website to register your product(s)
Register
and be notified about new firmware versions:
your product
http://bit.ly/AW-Register
www.analogway.com
