QUICK START GUIDE

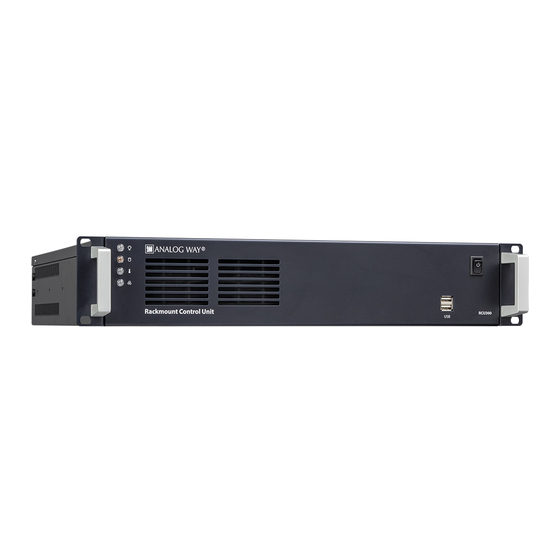

Rackmount Control Unit – Ref. RCU300
Thank you for choosing Analog Way and the Rackmount Control Unit. By following these
simple steps, you will be able to install and use your RCU device.
RCU is a rack mountable master control unit that combine and control multiple Analog Way
LiveCore
image processors to create a large-scale system solution for video wall applications
TM
that require a large amount of inputs, outputs and layers.
WHAT'S IN THE BOX
•
1x Rackmount Remote Control Unit
•
2x Power Supply cords
•
1x RJ45 Ethernet cable
•
1x Rack rail kit
•
1x Screw kit
•
1x Quick Start Guide
•
1x Safety instruction
*
Quick Start Guide is available on
PANEL DESCRIPTION
LEDs (see Section below)
Double Power Supplies
*
www.analogway.com
FRONT PANEL
Connection panel
REAR PANEL
Go to our website to register your
product(s) and be notified about
new firmware updates:
http://bit.ly/AW-Register
Startup/Shutdown
2 USB ports
USB Ports
Advertisement
Related Manuals for Analog way Rackmount Control Unit
Summary of Contents for Analog way Rackmount Control Unit
- Page 1 QUICK START GUIDE Rackmount Control Unit – Ref. RCU300 Thank you for choosing Analog Way and the Rackmount Control Unit. By following these simple steps, you will be able to install and use your RCU device. RCU is a rack mountable master control unit that combine and control multiple Analog Way...
- Page 2 SET UP THE RCU Step 1 Take the inner member (smaller slide channel) apart by sharply pulling the front activating release latch forward. Step 2 Each slide is pre-attached with front and rear adjustable brackets. Loosen the nuts on the both brackets, and decide the proper setback distance to the opening, then tighten the nuts on the front brackets.
- Page 3 Step 7 Pick up the RCU and insert it with inner slide member into the intermediate member. The RCU will be locked when it reaches the fully open position, then pull forward on the front activating release latch in order to push the RCU all the way inward till the closed positon.
-
Page 4: Specifications
SPECIFICATIONS Dimensions (in Rack Units - RU) Noise (@1,6m height) 2RU Front: 54 DBa@1m Rear: 56 DBa@1m Dimensions (without rack ears and rear rack mount) Thermal dissipation W 16.77’’ x H 3.46’’ x D 20.0’’ 392 BTU/hr ... -
Page 5: Contact Information
See below for contact details. CONTACT INFORMATION Asia Pacific Europe, Middle East & Africa The Americas Analog Way SAS - Headquarters Analog Way Inc. Analog Way Pte Ltd Tel.: +33 (0)1 81 89 08 60 Tel.: +1 212 269 1902 Tel.: +65 6292 5800...
