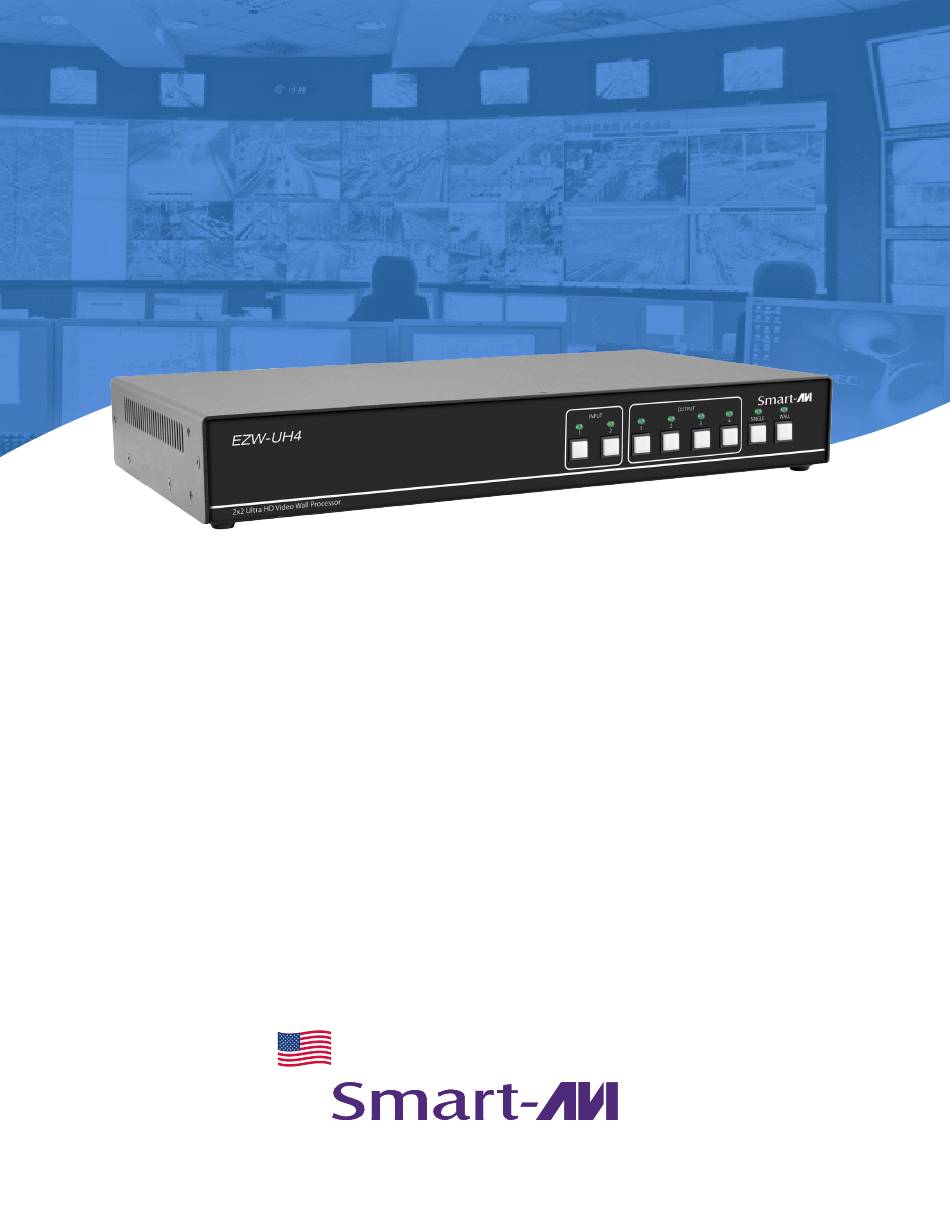

- Page 1 EZW-UH4 Ultra 2x2 HD Video Wall Processor USER MANUAL Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
• Support multi-resolution up to 3840 x 2160 @ 60 Hz video output for video wall • Support 2 channels HDMI loop out • Support RS-232 and TCP/IP control What’s in the box? PART NO. Q-TY DESCRIPTION EZW-UH4-S Ultra HD Video Wall Processor PS12VDC3A Power Adapter User Manual Ultra HD Video Wall Processor... -
Page 4: Technical Specifications
Technical Specifications VIDEO & AUDIO HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2/1.4 Input Video Formats 3840 x 2160p @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz Audio Format 2.0 channel, 5.1 channel, LPCM, Dolby, AC3, DTS CONTROL RS-232 Baud rate: 115200, data bit: 8, Stop bit: 1, no parity OTHER ESD Protection Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) -
Page 5: Operation Controls And Functions
Operation Controls and Functions FRONT PANEL # NAME DESCRIPTION Input Buttons Port input selection Output Buttons Port output selection Mode Buttons Mode selection SELECTING INDIVIDUAL MONITOR DESCRIPTION Input 1 -> Output 1 - 4 -> SINGLE Display Input 1 on selected Output Input 2 ->... -
Page 6: Remote Control
REMOTE CONTROL The EZW-UH4 supports IR control to manage inputs and video wall settings. Using the included remote, the instructions are as follows: SELECTING INDIVIDUAL DESCRIPTION MONITOR 1 -> Input 1 - 4 -> OK Display Input 1 on Output 1-4 2 ->... -
Page 7: Rs232 Control
RS232 CONTROL The EZW-UH4 can be controlled via RS232 to manage input and video wall settings. Once connected to a PC, launch your preferred RS232 console. The baud rate connection will need to be set as 115200 bps. If the RS232 connection is established before booting up the device, the UI should display the... - Page 8 RS232 CONTROL (continued) All menu commands must be sent with “/ /” followed by the appropriate command. HOTKEY DESCRIPTION Display Help menu Change audio to Input 1 or Input 2 //A1 or //A2 Reboot the device Sets all Outputs to Input 1 or Input 2 //OA1 or //OA2 Enables HDCP content //HDCP...
-
Page 9: Network Control
NETWORK CONTROL The EZW-UH4 can also be controlled via IP to manage input and video wall settings. To find the IP, visit our website at https:/ /smartavi.com/helpful-links/. Download and open the IP-Finder 2 software. Once launched, click on “Search Device”. This will display the device under Device IP. Use the IP displayed on your IP-Finder 2 on your preferred web browser. - Page 10 NETWORK CONTROL (continued) The EZW-UH4 will have several pages of navigation: Matrix Switch, TV Wall, and Settings. The default landing page will display the Matrix Switch page. TV Wall can be navigated by click on “TV Wall” on the top right side. Settings can be opened on the top left side with the triple lines in the purple box.
- Page 11 NETWORK CONTROL (continued) The TV Wall page can be used to stitch the video outputs to create video walls within a 2X2 dimension. This includes 1X2, 2X1, or 2X2. Simply click on the desired input, draw over the grid area and click save selection.
- Page 12 NETWORK CONTROL (continued) The Configuration page allows for the EZW-UH4 to update its method for receiving its IP. The IP can be set as DHCP (default) or as Static. The login credentials can also be modified on this page as well.
-
Page 13: Safety Instruction
safety instruction To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. 1. Do not operate either of this product outside the specified temperature and humidity range given in the above specifications. -
Page 14: Troubleshooting
Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. • Replace the power supply. No Video •... -
Page 15: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. - Page 16 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
