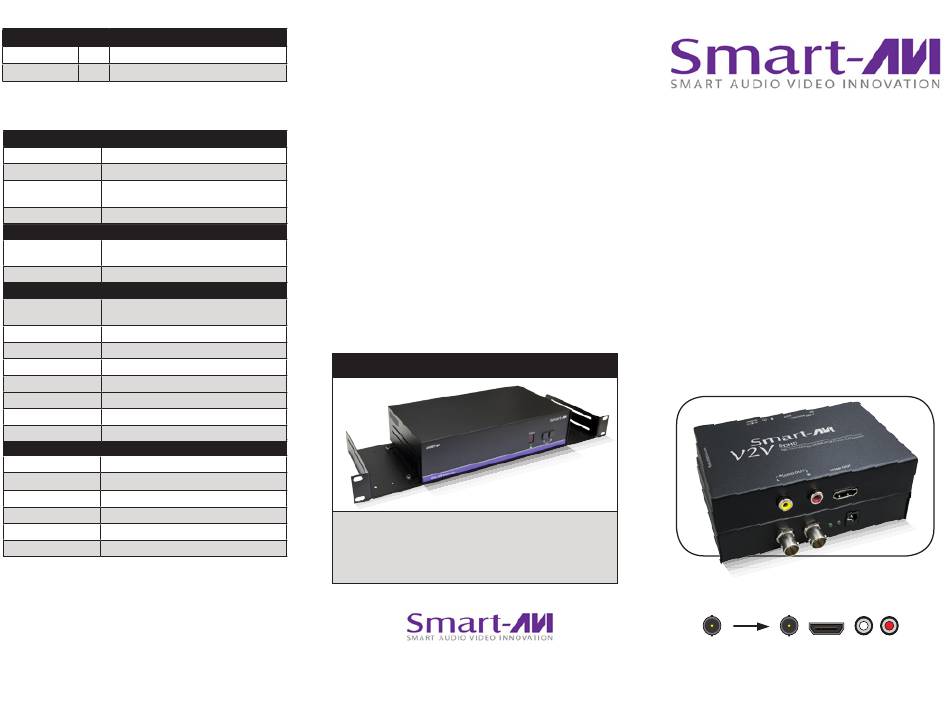

What's in the Box?
PART NO.
QTY
DESCRIPTION
V2V-SDHD
1
HD-SDI/SDI to HDMI and Audio Converter.
PS5VDC2A
1
5 Volt 2 Amp Power Supply
Technical Specifications
HD-SDI/SDI VIDEO
Format
SMPTE-259/292/296 Compliant
Input Interface
BNC
Resolution
525i, 625i, 720p 50/59.94/60, 1080i
50/59.94/60
Output Interface
BNC Loopback Equalized
AUDIO
Signal Type
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-
AC3/DSD
Output Interface
2-Channel RCA R/L Analog
HDMI VIDEO
Format
HDMI 1.3b [Deep Color, xvYcc color space
supported]
DVI Compliance
Single-link DVI-D 1.1
HDCP Compliance
1.0/1.1
Video Bandwidth
Single-link 340MHz [10.2Gbps]
Resolution
480i,480p,720i,720p,1080i,1080p
Output Interface
(1) HDMI[7.1ch audio & video]
Connector
Type A[19-pin female]
Maximum Distance
25 ft.
OTHER
Power
External 100-240 VAC/5VDC2A @10W
Dimensions
5 in W x 1 in H x 3.375 in D
Weight
0.5 lb
Operating Temp.
0-55 °C (32-131°F)
Storage Temp.
-20-85 °C (-4-185 °F)
Humidity
Up to 95%
© Copyright 2012 SmartAVI, All Rights Reserved
NOTICE
T h e i n f o r m a t i o n c o n t a i n e d i n t h i s d o c u m e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
Rack Mountable Option
Our SmartRack is the perfect solution to allow
virtually all SmartAVI devices to be custom mounted
in a standard 19" server rack. The SmartRack is fully
adjustable and can secure/organize several devices.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
V2V
FAMILY
Installation
Manual
V2V- S DHD
HD-SDI/SDI to HDMI and Audio
Converter
www.smartavi.com
