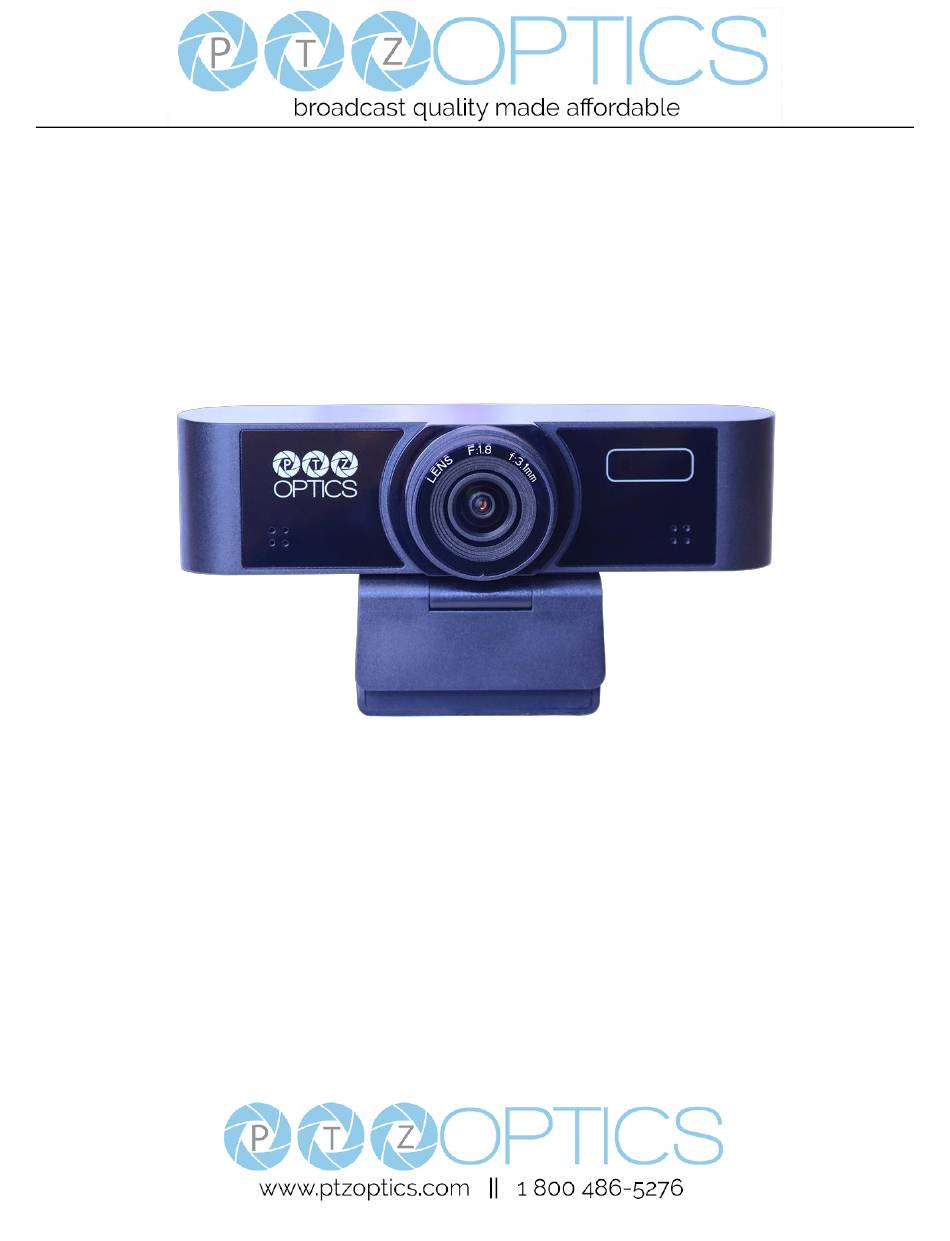

- Page 1 PTZOptics Webcam User Manual Model No: PT-WEBCAM-80 V1.2 (English) Please check PTZOPTICS.com for the most up to date version of this document Rev 1.2 9/20...
- Page 2 Preface Thank you for using the PTZOptics Webcam. This manual introduces the function, installation and operation of the camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product can only be used in the specified conditions in order to avoid any damage to the camera: •...
-
Page 3: Table Of Contents
Table of Contents Supplied Accessories ··································································································· 3 Notes ······················································································································ 3 Quick Start ··············································································································· 4 Features ··················································································································· 4 Product Specifications ·································································································· 5 Main Unit ················································································································· 6 Menu Settings ············································································································ 8 Maintenance and Troubleshooting ··················································································· 11 Page ii of 11 Rev 1.2 9/20... -
Page 4: Supplied Accessories
Supplied Accessories When you unpack your camera, check that all the supplied accessories are included: ⚫ Camera ........1 ⚫ Quick Start Guide ....1 Notes ⚫ Electrical Safety Installation and operation must be in accordance with national and local electric safety standards. ⚫... -
Page 5: Quick Start
Quick Start Start by connecting the USB 2.0 cable to your Mac or PC to power on and use the camera. To access and control the On Screen Display Menu of the camera, use the OSD Menu tool available at ptzoptics.com/downloads. Features 1. -
Page 6: Product Specifications
Product Specifications Model PT-WEBCAM-80 Type PTZOptics Webcam Camera 1080p-30/25, 720p-30/25, 960x540p-30/25, 640x360p-30/25 Video System 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps Sensor 1/2.7", CMOS, Effective Pixel: 2.07M Scanning Mode Progressive Lens F=3.5mm, F1.8 ~ F2.8 Minimal Illumination 0.5 Lux @ (F1.8, AGC ON) -
Page 7: Main Unit
Main Unit 1. Wide Angle Camera lens 2. Microphone Array 3. Bracket with damper 4. Attached USB 2.0 cable 5. 1/4-20 mount (underneath) Page 6 of 11 Rev 1.2 9/20... - Page 8 Dimensional Drawings (mm) Page 7 of 11 Rev 1.2 9/20...
-
Page 9: Menu Settings
Menu Settings Mode: Exposure mode, optional items: Full Auto, WDR, 1. MENU Shutter Priority, Bright, Manual To access the OSD Menu of the Webcam, you will first ExpCompMode: Exposure compensation mode, optional need to download the PTZOptics Webcam OSD items: On, Off (Effective only in Auto mode). application from ptzoptics.com/downloads. - Page 10 3. COLOR 4. IMAGE Move the main menu cursor to [COLOR], and press [OK] Move the cursor to the Image item in the main menu and button enter the color page, as shown in the following press [OK] button, [IMAGE] menu appears, as shown in figure.
- Page 11 Language: Optional items: English, Chinese 5. NOISE REDUCTION EPTZ: Electronic Pan/Tilt/Zoom. Optional items: On, Move the main menu cursor to [NOISE REDUCTION], and press [OK] button enter the noise reduction page, as shown in the following figure. Zoom Limit: Optional items: 1.5x, 2x, 3x, 4x, 8x NOISE REDUCTION 7.
-
Page 12: Maintenance And Troubleshooting
Maintenance and Troubleshooting Camera Maintenance ⚫ If the camera will not be used for a long time, please disconnect from PC. ⚫ Use a soft cloth or lotion-free tissue to clean the camera body. ⚫ Use a soft dry lint-free cloth to clean the lens. If the camera is very dirty, clean it with a diluted neutral detergent. Do not use any type of solvent or harsh detergent, which may damage the surface.
