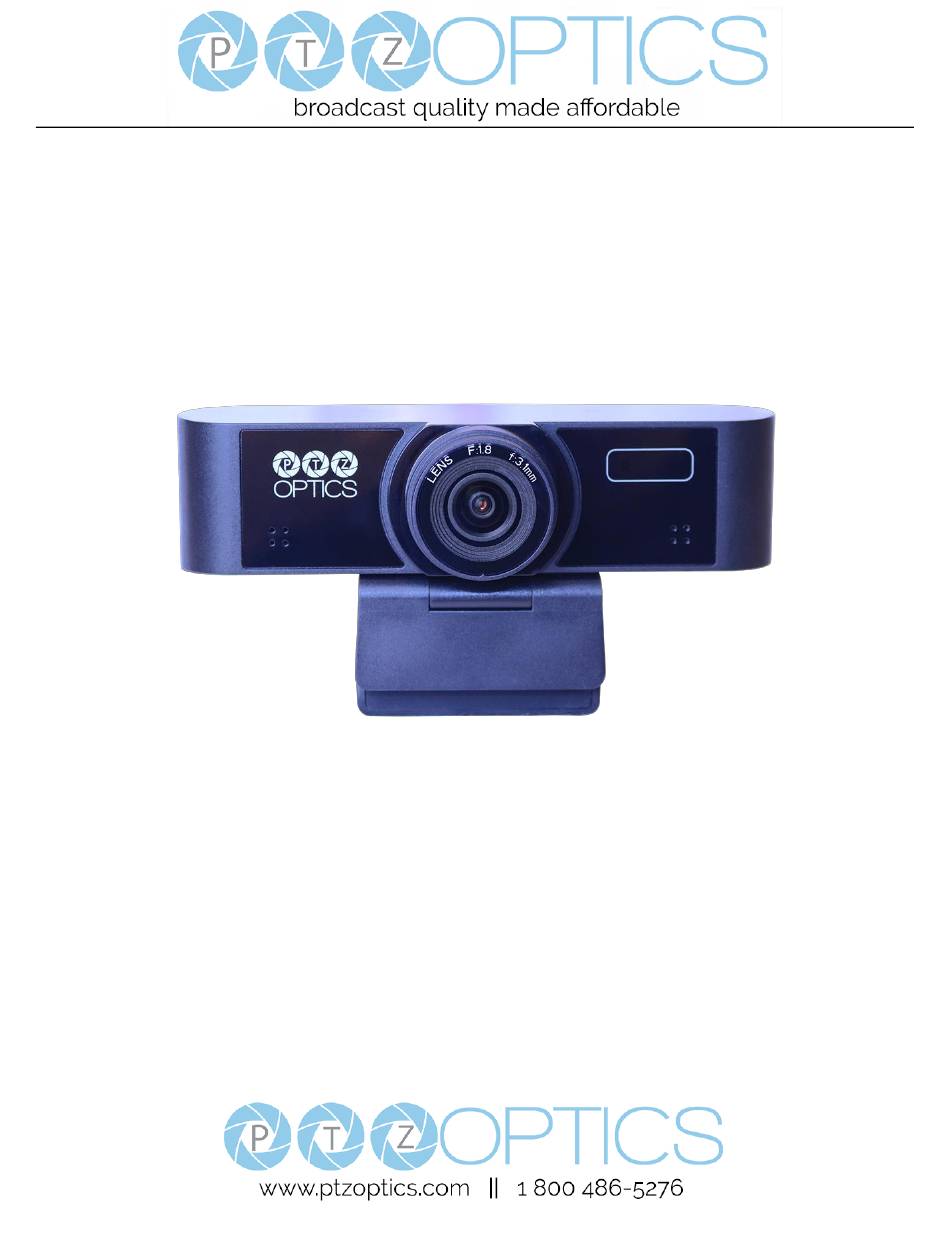

- Page 1 PTZOptics Webcam User Manual Model Nos: PT-WEBCAM-84 V1.0 (English) Please check PTZOPTICS.com for the most up to date version of this document Rev 1.0 5/19...
- Page 2 Preface Thank you for using the PTZOptics Webcam. This manual introduces the function, installation and operation of the camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product can only be used in the specified conditions in order to avoid any damage to the camera: •...
-
Page 3: Table Of Contents
Table of Contents Supplied Accessories ··································································································· 1 Notes ······················································································································ 1 Quick Start ··············································································································· 2 Features ··················································································································· 2 Product Specifications ·································································································· 3 Main Unit ················································································································· 6 Menu Settings ············································································································ 7 Maintenance and Troubleshooting ··················································································· 11 Page ii of 12 Rev 1.0 5/19... -
Page 4: Supplied Accessories
Supplied Accessories When you unpack your camera, check that all the supplied accessories are included: ⚫ Camera ........1 ⚫ User Manual ......1 Notes ⚫ Electrical Safety Installation and operation must be in accordance with national and local electric safety standards. ⚫... -
Page 5: Quick Start
Quick Start Please check that all connections are correct before powering on the camera. Features 1. Supports up to 1080p-30/25 fps with an ultra-wide 84°field of view. 2. Plug and play USB 2.0 video & audio connectivity. 3. Built in microphone array with unique noise reduction algorithm to accurately present your voice up to 15 feet away. 4. -
Page 6: Product Specifications
Product Specifications Model PT-WEBCAM-84 Type PTZOptics Webcam Camera 1080p-30/25, 720p-30/25, 960x540p-30/25, 640x360p-30/25 Video System 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps Sensor 1/2.7", CMOS, Effective Pixel: 2.07M Scanning Mode Progressive Lens F=3.5mm, F1.8 ~ F2.8 Minimal Illumination 0.05 Lux @ (F1.8, AGC ON) -
Page 7: Main Unit
Main Unit 1. Wide Angle Camera lens 2. Microphone Array 3. Bracket with damper 4. Attached USB 2.0 cable 5. 1/4-20 mount (underneath) Page 6 of 12 Rev 1.0 5/19... - Page 8 Dimensional Drawings (mm) Page 7 of 12 Rev 1.0 5/19...
-
Page 9: Menu Settings
Menu Settings Mode: Exposure mode, optional items: Full Auto, WDR, 1. MENU Shutter Priority, Bright, Manual To access the OSD Menu of the Webcam, you will first ExpCompMode: Exposure compensation mode, optional need to download the PTZOptics Webcam OSD items: On, Off (Effective only in Auto mode). application from ptzoptics.com/downloads. - Page 10 3. COLOR 4. IMAGE Move the main menu cursor to [COLOR], and press [OK] Move the cursor to the Image item in the main menu and button enter the color page, as shown in the following press [OK] button, [IMAGE] menu appears, as shown in figure.
- Page 11 7. RESTORE DEFAULT 5. NOISE REDUCTION Move the main menu cursor to [RESTORE DEFAULT], Move the main menu cursor to [NOISE REDUCTION], and press [HOME] key enter the restore default page, as and press [OK] button enter the noise reduction page, as shown in the following figure.
-
Page 12: Maintenance And Troubleshooting
Maintenance and Troubleshooting Camera Maintenance ⚫ If the camera will not be used for a long time, please disconnect from PC. ⚫ Use a soft cloth or lotion-free tissue to clean the camera body. ⚫ Use a soft dry lint-free cloth to clean the lens. If the camera is very dirty, clean it with a diluted neutral detergent. Do not use any type of solvent or harsh detergent, which may damage the surface.
