Atomic AF6 Release Notes

This firmware and editor have been tested rigorously both internally and by our
beta team. As always, however, it is HIGHLY recommended that you back up
your presets/settings before proceeding. In the unlikely event that something
goes wrong during the update and your presets are comprised you'll be very
happy that you did. Regardless of whether your updating or not, backing up
your unit is good practice and should be done when significant changes have
been made.
Updating to the latest firmware version is easy. Just follow these steps:
BE SURE TO USE A PROPER POWER SUPPLY! Not doing so could damage
•
your AmpliFIRE during the update process. Use the factory power supply
or a power supply that meets these specifications: 9 or 12 volt power
supply (DC or AC, either polarity), 1A minimum . Accepts a standard 2 .1mm
coaxial plug (either polarity).
• Delete or move any older versions of editor to another location to avoid
confusion.
• Download and unzip the latest Mac or PC editor from the "Support &
Downloads" tab of Atomic's website to a convenient location
• Connect AmpliFIRE to computer via USB
• Open editor and let it sync with the device
• Select "Update Firmware" under the "File" tab (the most current firmware
is build into the latest editor)
• Follow on screen instructions
NOTE: If after updating the firmware the contrast of the LCD display on the
AmpliFire is difficult to read, click on the GLOBAL tab of the editor application. In
the bottom, right corner you will find the CONTRAST parameter. Set the value to
LEVEL 4 or whatever allows you to view the display properly.

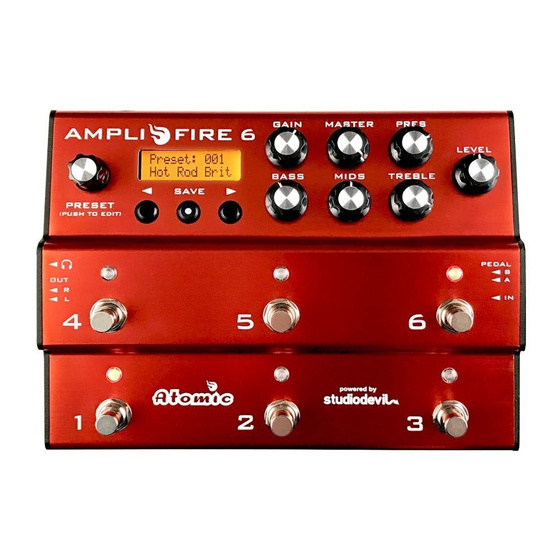

AmpliFIRE 6.0
Release Notes
for
AmpliFIRE, AF6 & AF12
