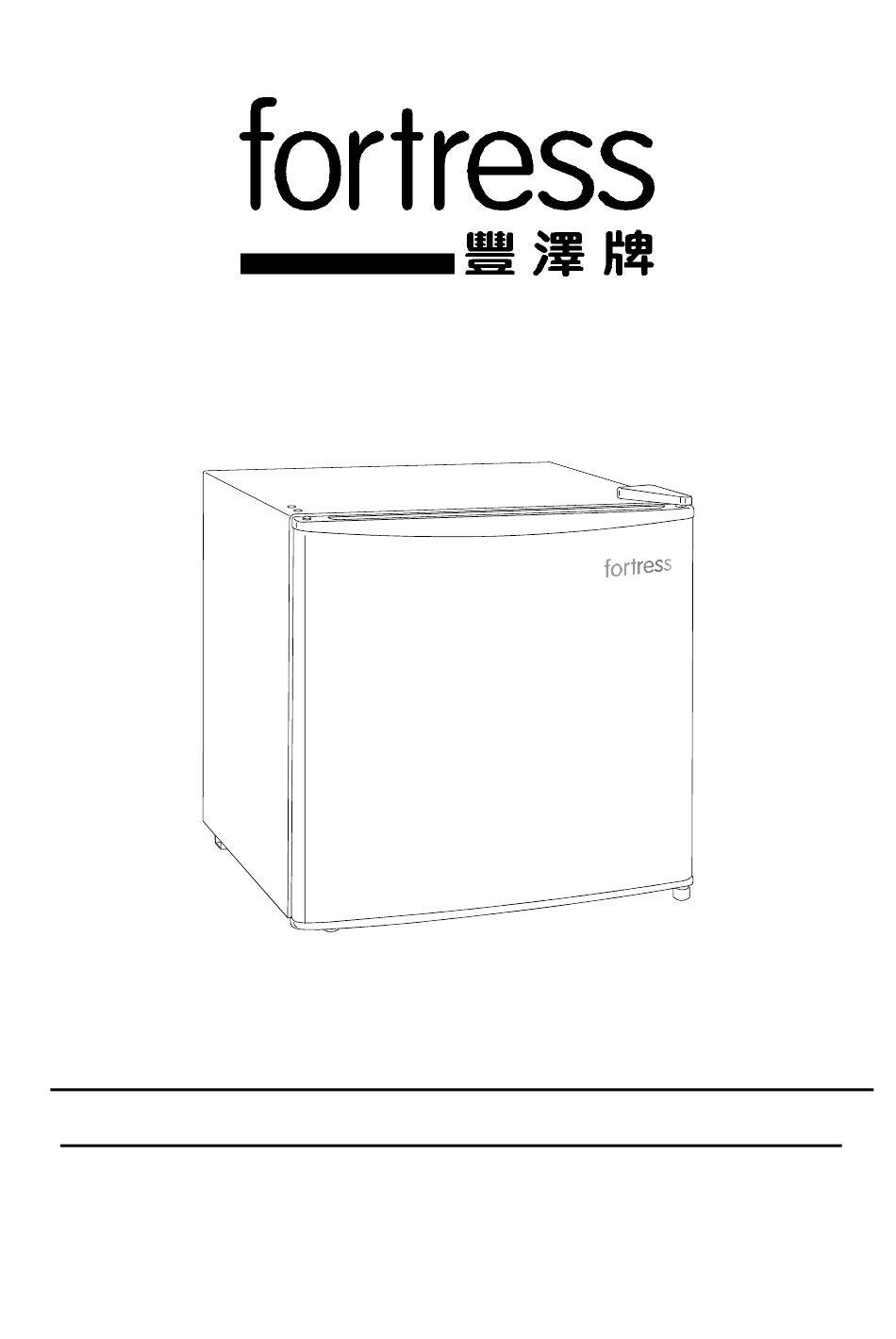

- Page 1 Refrigerator User Manual Model No.: FDG045M15 *Before operating the appliance, please read this manual and all the safety instructions thoroughly and retain it for future reference.
-
Page 2: Table Of Contents
CONTENT PAGE SAFETY INSTRUCTION INSTALLATION INSTRUCTION PARTS DESCRIPTION OPERATION INSTRUCTION MAINTENANCE INSTRUCTION TROUBLESHOOTING SPECIFICATION WARRANTY CAUTION Contact the authorized service technician for repair or maintenance of the appliance. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 3: Safety Instruction
SAFETY INSTRUCTION To avoid electric shock, fire or injury, please read the user manual carefully before using the appliance and keep it for future reference. This appliance is for household use only. Please use suitable power source. (Please refer to SPECIFICATION) Never immerse the appliance in water or other liquids. - Page 4 It is better not to place heavy pointed or corrosive objects on the refrigerator. Open the doors as less as possible during power supply breakdown. The refrigerator should be placed with good ventilation and at least a 10 cm clearance should be kept between the upper, the backside, the left and the right side of the refrigerator with walls or anything.
-
Page 5: Installation Instruction
INSTALLATION INSTRUCTION Installing and removing the accessories To remove the shelf: Grip the shelf, then lift it straight upward. To reinstall, reverse the procedure. To dismantle the flexible door rail: Pull out the tray first then draw the pedestal of the door rail outward. -
Page 6: Parts Description
PARTS DESCRIPTION Freezer Chamber Adjustable Feet Temperature Control Knob Ice Cube Box Refrigerating Chamber Drip Tray Guard Glass Shelves Plug The sample cutline is a representation of this series of refrigerator, which has similar structure and different capacity. -
Page 7: Operation Instruction
OPERATION INSTRUCTION Ice Making Procedure Take the ice cube box out of the freezer. Pour cool water into the ice cube box until the water level reaches the water line, then put the ice cube box back into the freezer chamber. Turn over the ice cube box and pour the ice cubes into another vessel after the ice is frozen. -
Page 8: Maintenance Instruction
Defrosting Too much frost will diminish the cooling effect. The freezing unit should be defrosted whenever frost builds up to 7mm. Defrosting Steps Clear up the refrigerator and set the temperature control knob to OFF; then unplug the refrigerator. Open the door of the refrigerator and wait until the frost melts naturally. -
Page 9: Troubleshooting
TROUBLESHOOTING The following situations are not malfunction: The sides of refrigerator will be heat up while the condenser is working, but this will not influence the cooling performance. As the temperature of the compartment will be high when the refrigerator is just started, it will take a span of time to decrease the temperature. -
Page 10: Specification
SPECIFICATION Model No. FDG045M15 Rated Voltage/Frequency 220-240V~/50Hz Rated Current (A) Climate Class Refrigerant R600a, 16g Storage Volume (L) Net Weight (kg) Gross Weight (kg) 18.5 Product Dimensions (mm) (WxDxH) 472x450x492... -
Page 11: Warranty
WARRANTY The product has 3 years warranty from the date of purchase. The warranty shall not apply: A. to any product subjected to misuse, alteration, act of God, improper handling, improper transport, improper testing or unauthorized repair; to cosmetic problems or defects which result from normal wear and tear under ordinary use yet not affecting the performance or use of the product;...
