Summary of Contents for FEIYUTECH AK Series
- Page 1 AK Series Brushless Follow Focus Instructions Guilin Feiyu Technology Incorporated Company U s e r M a n u a l V 1 . 0...
-
Page 2: Table Of Contents
Catalogue www.feiyu-tech.com Product Overview Configuration List Instruction 1.Installation 2.LED status 3.Function Button 4.Using our gimbal to control the follow focus 5.Calibration Route calibration Start point calibration Quit the start point/route calibration 6.Auto focus Auto focus setting Last configuration setting 7.Follow focus Sleep mode /Start and Reset 8.Motor calibration... -
Page 3: Product Overview

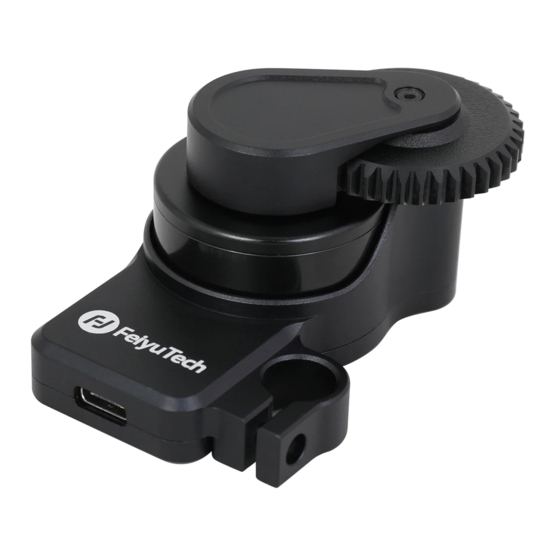

Product Overview 1.Lens gear ring 6.LED light 2.Aluminium tube 7.Function Button 3.Hexagonal screw 8.Fixed screws 4.Focus follow gear 9.Fixed bracket 5.Follow Focus II 10. USB data cable Configuration List Hexagonal screw Follow focus Lens gear ring USB cable Hex key Aluminium tube Fixed bracket www.feiyu-tech.cn... -
Page 4: Instruction
③Slide the follow focus on the aluminum tube and lock it with the knob. Adjust the postion of the follow focus so the gears are properly engaged, than tighten the knob with hand. ④Conncet the USB cable to the AK series gimbal USB port and the installation is complete. LED status... -
Page 5: Using Our Gimbal To Control The Follow Focus
Using gimbal to control the follow focus (1)After installing the follow focus, please select the ‘Scroll Setting’ ‒ ‘Camera ctrl’ ‒ ‘AKFII’ . Sensitivity 灵敏设置 WL W/T&F/F Payload Capture Setting Mode Camera ctrl A K F I Rotation Auto Time Rotation A K F I I Scroll... -
Page 6: Start Point Calibration
Start point calibration Double tap the function button Start point calibration After doing the route calibration, if the starting point of the follow focus device does not correspond to the near focus of the camera, or the lens position is moved during shutdown, re-calibration is needed. (1) Double tap the function button, to enter the start point calibration mode(blue light flashes now). -
Page 7: Last Configuration Setting
Last configuration setting When you have used auto-focus at least one time, you can use the function of "use last config", click on "Scroll Setting" - "Auto-focus" - "use last config" on the display of the gimabl. After the countdown is complete, the last auto-focus configuration will be appllied . - Page 8 firmware and use the corresponding user manual. You can get the latest user manual from the official website: www.feiyu-tech.com FeiyuTech reserves the right to amend this manual and the terms and conditions of use the gimbal at any time.
