Summary of Contents for FEIYUTECH WG2X
- Page 1 3-Axis Wearable Gimbal for Action Camera Instructions Guilin Feiyu Technology Incorporated Company U s e r M a n u a l V 1 . 0...
-
Page 2: Table Of Contents
Catalogue www.feiyu-tech.com 1. WG2X Overview 2. Quick Start Guide 3. Function operation Working Mode Function Button - operation Mode Button - operation Shutter Button - operation 4. Advanced Operation Manual Lock Auto-rotation Mode App - Download and Connecting Connect the camera... -
Page 3: Wg2X Overview

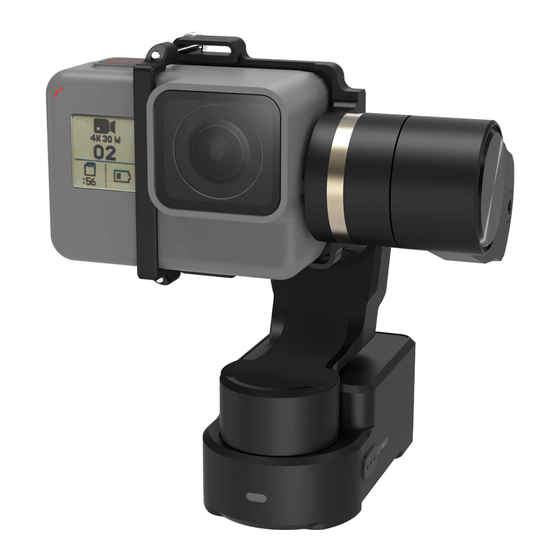

1. WG2X Overview Mounting Plate Cross Arm Knob Ring Fixing Bar Roll Axis Thumb Screw Tilt Axis Vertical Arm Micro USB Port Charging /WiFi indicator light Pan Axis Shutter Button Mode Mode Indicator Light Function Button Button ON / OFF... - Page 4 Introduction of Display and Buttons Shutter Button Mode Button Single click Photo Capturing / Video Recording Long time press Turn on / Turn off the WiFi Single click Photo Mode / Recording Mode Triple click Reset Mode Indicator Light Charging /WiFi indicator light Power on Green indicator light is It has the highest priority during charging, the red...
-
Page 5: Quick Start Guide
2. Quick Start Guide Charging Mount the Camera Please fully charge the battery before Put the camera on mounting plate,then TIPS power on the gimbal for the first time. tighten the camera with retainer bar(or session mount) and screw. Charging with Micro USB cable as shown below. -
Page 6: Function Operation
3. Operation Working Mode Panning Mode （Default mode） The roll and tilt direction are fixed, and the camera moves according to the left-right movements of the user's hand. Follow Mode The roll direction is fixed, and the camera moves according to the left-right movements, up-down movements of the user's hand. -
Page 7: Mode Button - Operation
Mode Button - operation Long time press Turn on / Turn off the WiFi Single click Photo Mode / Recording Mode Mode Button Triple click Reset Shutter Button - operation After connecting the gimbal to camera via Feiyu On App, single click it to control the recording of the camera. -
Page 8: Auto-Rotation Mode
*When the gimbal is placed in front, it cannot enter the auto-rotation mode. The WG2X gimbal can easily create constant speed movements in the auto-rotation mode. This mode can be used for recording both regular video and motion time-lapse photography. -
Page 9: App - Download And Connecting
App - Download and Connecting * Requires iOS 9.0 or later, Android 5.0 or later Download and Install Feiyu ON App. iOS Version Android Version Or search and download the "Feiyu ON" App on the following application platform: Google play App Store Connecting App Turn on the Bluetooth and run the App on smartphone, follow on the instructions to connect smartphone to gimbal... -
Page 10: Connect The Camera
Connecting to Camera WG2X gimbal can connect to the camera by Feiyu ON App. Operations available after connecting to the camera: 按键 操作 实现功能 Mode Button Single click Single click to switch between the photo mode and video mode Shutter Button... -
Page 11: Gimbal Initialization
Gimbal Initialization You can initialize your gimbal when: （1） camera is not balance （2） If not use for a long period of time （3） In case of extreme temperature variations Adjusting Steps Click the function button for 5 consecutive times, and the motor will stop working. -
Page 12: Parameters
Specifications 61.1～78.1mm 89.3mm 40mm Parameters Product Name WG2X 3-Axis Wearable Gimbal for Action Camera 360° Tilt Axis Mechanical Movement Range Roll Axis Mechanical Movement Range 310° ( Structure range ) 70° ( Limit angle after camera mounted ) 360° Pan Axis Mechanical Movement Range 2.5 Hours... - Page 13 firmware and use the corresponding user manual. You can get the latest user manual from the official website: www.feiyu-tech.com FeiyuTech reserves the right to amend this manual and the terms and conditions of use the gimbal at any time.
