Bush Hog Front-Push Loaders 1846QT Specifications

Bush Hog
®

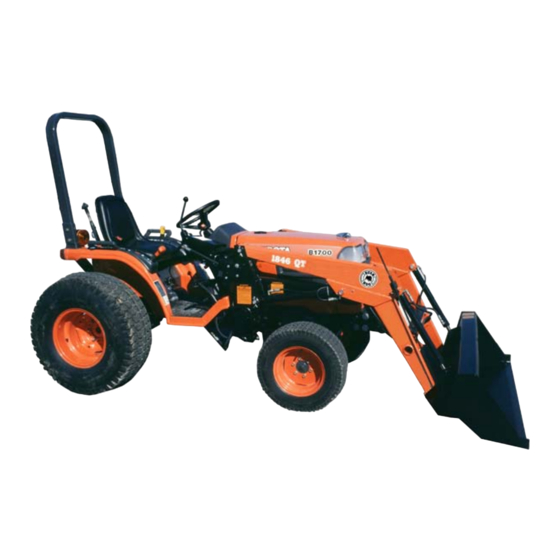

1846QT Quick Attach Front-Push Loaders
Pin-On Attachment System
BUSH HOG TOUGH FeATUreS
®
TOUGH Boxed Boom Design
TOUGH Large Diameter Cross Tubes
TOUGH robotic Welds
TOUGH High Strength Chrome Plated
Cylinder rods
TOUGH Bush Hog Made Buckets
TOUGH Powder Coat Paint
MODeL Specifications Based on 1997 ASAE STANDARDS
Tractor PTO HP range
2WD/FWA
Maximum Lift Height - Measured at Pivot Pin
Maximum Lift Height - Under Level Bucket
Maximum Dump Angle
Digging Depth
Lift Capacity to Maximum Height - At Pivot Pin
Lift Capacity to Maximum Height - 19.5 inches Forward of Pivot Pin
Lift Capacity to 59 inch Height - At Pivot Pin
Lift Capacity to 59 inch Height - 19.5 inches Forward of Pivot Pin
Breakout Force - At Pivot Pin
Breakout Force - 19.5 inches - Forward of Pivot Pin
rollback Force at Maximum Height - 19.5 inches Forward of Pivot Pin
rollback Force at 59 inch Height - 19.5 inchesForward of Pivot Pin
rollback Force at Ground Level - 19.5 inches Forward of Pivot Pin
raising Time (Ground Level to Full Height)
Lowering Time (Full Height to Ground Level)
Bucket Dumping Time (Full Rollback to Full Dump)
Bucket rollback Time (Full Dump to Full Rollback)
Hydraulics Two 1.5 inch Bore, 15.0 inch Stroke Double Acting Bucket Cylinders and Two 1.5 inch Bore, 15.0 inch Stroke Double Acting Lift Cylinders
Specifications Based on Tractor System of
Pin-On Buckets
Options
Warranty
FeATUreS
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
TOUGH
Forklift Attachment (36 inch tines), Bucket Level Indicator, and Grill Guards
1846QT
12 - 25
2WD/FWA
76 inches
71 inches
50°
2.5 inches
725 lbs
515 lbs
800 lbs
595 lbs
1340 lbs
960 lbs
1155 lbs
1330 lbs
1055 lbs
3.5 seconds
2 seconds
3.5 seconds
2 seconds
1875 PSI hyd. Pressure & 4 GPM pump capacity
Available in 42, 48 and 60 inch widths
1 year limited warranty
Available in major tractor colors
