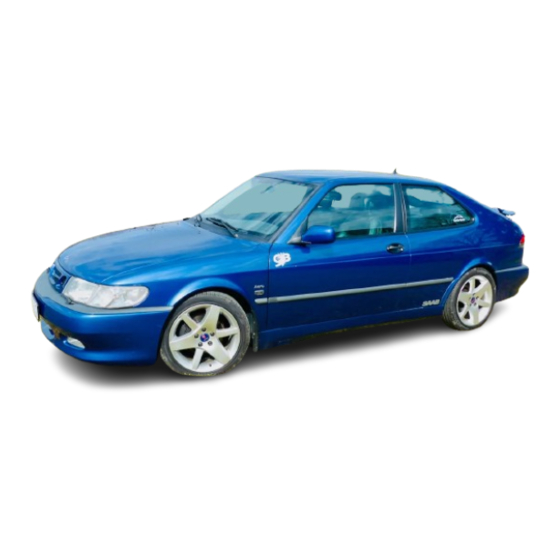

Saab 2000 9-3 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
©
Saab Automobile AB 1999
Service Readiness, Saab Automobile AB, Trollhättan, Sweden
Printed in Sweden
Instruments and controls
Saab 9-3 Audio System
Interior equipment, trunk
Maintenance and owner assistance
Owner's Manual
Saab 9-3 M2000
Safety
Security
Convertible
Starting and driving
Car care
Technical data
Index
1
11
29
41
53
89
111
133
167
211
219
233

Advertisement

Table of Contents
loading

Related Manuals for Saab 2000 9-3

Summary of Contents for Saab 2000 9-3

  • Page 1 © Saab Automobile AB 1999 Service Readiness, Saab Automobile AB, Trollhättan, Sweden Printed in Sweden Owner’s Manual Saab 9-3 M2000 Instruments and controls Saab 9-3 Audio System Interior equipment, trunk Starting and driving Maintenance and owner assistance Technical data Safety...
  • Page 2 NOTE texts warn of potential damage to the car if the recommendations are not followed. Since the policy at Saab is one of continual improvement, we retain the right to incorpo- rate modifications and to alter specifications during production without prior notice.

  • Page 3: Table Of Contents

    Fuel gauge __________________ 61 Temperature gauge ____________ 60 Ashtrays ___________________ 123 Cigarette lighter ______________ 123 Trip computer (Saab Information Display, SID) __ 62 Night panel __________________ 63 Clock ____________________ 64, 70 Washers and wipers ______ 74 Rear-window wiper _______ 75...
  • Page 4 Exterior Sunroof _______________ 120 Convertible _____________ 42 Washing the car ________ 201 Waxing and polishing ____ 202 Touching-up of paintwork _ 202 Anticorrosion treatment ___ 203 Service program ________ 215 Taillights ______________ 183 Stop lights _____________ 183 Light switches ___________ 71 Changing bulbs _________ 181 Towing ________________ 160 Towrope attachment eyes _ 160...
  • Page 5 Interior Power steering _________ 226 Steering-wheel adjustment 118 Airbag _________________ 22 Seat adjustment ________ 112 Safety belts _____________ 12 Seat heating ___________ 118 Rear seat _____________ 125 Folding down the rear seat Child seats _____________ 18 Upholstery: cleaning _____ 200 Internal rearview mirror ________ 124 Door mirrors ________________ 124 Vanity mirror ________________ 122...
  • Page 6 Engine bay: turbo Warning labels ___________ 7 V.I.N. number __________ 229 Engine number _________ 229 Gearbox number ________ 229 Color coding ___________ 229 Ignition system _________ 225 Drive belt ______________ 179 Alternator _____________ 179 Spark plugs ____________ 225 Catalytic converter ______ 137 Simple fault tracing (A/C, ACC) ____________ 207 Turbo-compressor ________ 60...

  • Page 7: Warning Labels

    The A/C system complies with SAE J639. Refrigerant: 770 g of R134a. Compressor oil: 150 cc PAG Oil SP-10, or SAAB oil 4759106 SP-10. • AVOID SPARKS, AVOID OPEN FLAMES, NO SMOKING • KEEP OUT OF REACH OF CHILDREN • SEE MANUAL •...
  • Page 8 • Sit as far back as possible from the air bag. • ALWAYS use SEAT BELT and CHILD RESTRAINTS Wheel changing: Intended for the Saab 9-5 and 9-3. Use the jack only on firm, level ground. Use blocks. Max. jack load: 2200 lbs. (1000 kg). For further information, see the manual.
  • Page 9 Failure to do so may cause personal injury. Do not raise or lower top with passengers in the rear seat. Personal injury may result from head contact with top. Soft top, Saab 9-3 Convertible Push the handle in before driving away. There would otherwise be a risk of injury.
  • Page 11 Safety Safety belts... Child safety... Airbag (Supplemental Restraint System "SRS")

  • Page 12: Safety Belts

    Check that the tongue of the belt lock engages properly. The A-pillar area (area beside the wind- shield) and the headlining of your Saab contain padding designed to reduce head injuries (3 or 5-door only). No modifica- tions to these areas should be made unless done so by your authorized Saab dealer.
  • Page 13 If the car is involved in a collision, the safety belts, belt pretensioners and other components must be inspected by an authorized Saab dealer and replaced as necessary. Never make any alterations or repairs to the safety belt yourself but visit an author- ized Saab dealer.
  • Page 14 Safety • Children who have grown out of a child seat should be restrained by the car’s standard three-point belts. Make sure that the shoulder belt is not in contact with the neck or throat. If it is, a booster seat/cush- ion may be necessary.
  • Page 15 The belt guide on the door pillar Belt guide The belt guide on the door pillar can be set to five different heights. Set the guide as high as possible without causing the belt to chafe against the throat. In the case of a short person the guide can be lowered until the belt comes about an inch (a few centimetres) from the throat but still provides safe restraint.
  • Page 16 Safety Safety belts, rear seat (the central head restraint is an accessory) Safety belts, rear seat Three-point safety belts are provided for all three rear-seat passengers (2 for Convert- ible model). Fasten the belts by pulling the belt across you and inserting the tongue into the buckle. Check that it is securely fastened.
  • Page 17 WARNING Safety belts are designed to bear upon the bony structure of the body, and should be worn low across the front of the pelvis or the pelvis, chest and shoulders, as applicable; wearing the lap section of the belt across the abdominal area must be avoided.

  • Page 18: Child Seats

    Safety Child safety WARNING • Children must always be suitably restrained in the car. • NEVER put a child seat in the front. • Children 12 and under can be killed by the airbag. • The BACK SEAT is the SAFEST place for children.
  • Page 19 Child tether anchorages Child restraints with a tether strap must be anchored according to law. WARNING Child tether anchorages are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used for: •...
  • Page 20 Safety Integrated booster seat (accessory) Integrated booster seats are available as part of the rear seat backrest. This child restraint is designed for use by children who weigh between 33 and 80 lbs. (15 and 36 kg) and are between 38 and 54 inches (970 and 1370 mm) in height.
  • Page 21 Folding booster seat a Pull the upper part of the release strap out and fold up the seat itself. Make sure that it is locked firmly in its folded-up position. b Press the booster seat’s headrest all the way down. c Press in the latches on the car’s regular head restraint.

  • Page 22: Airbag

    Safety Airbag (Supplemental Restraint System "SRS") WARNING To reduce risk of injury: • Always wear your safety belt. • Always adjust your seat so that you are as far back as possible but still able to reach the steering wheel and controls comfortably.
  • Page 23 Saab dealer. The warning light could signify that the airbags may not inflate in a crash, or they could...
  • Page 24 Safety Front passenger seat WARNING Never secure a rear-facing child seat in the right front seat of a car equipped with a passenger airbag. Inflation of the airbag in the event of an accident could seriously injure or kill a child. The airbags are interconnected and have a common warning light, AIR BAG.
  • Page 25 Recline the seat back to increase the dis- tance between you and the airbag. For short drivers, special accessory pedal extensions are available through your Saab dealer. Airbags inflate extremely rapidly and with great force - to be fast enough to protect an adult in the seat.
  • Page 26 You should therefore take the car to an authorized Saab dealer as soon as possible. WARNING When an airbag is inflated there is dust in the air.
  • Page 27 • Improvement of the anticorrosion treatment of the doors should only be carried out by an authorized Saab dealer. Otherwise there is a risk that the side impact sensor and the mois- ture barrier in the door could be dam- aged.
  • Page 28 Safety...
  • Page 29 Security Security Doors... Central locking ... Car alarm ...

  • Page 30: Central Locking

    It is possible to have up to four at one time that are coded for your car. If one is lost, contact your authorized Saab dealer to obtain a replacement. If an additional remote or key is to be added, all of the orig-...

  • Page 31: Interior Locking Buttons

    Locking / unlocking by remote control 1 To lock 2 To unlock Electronic starting interlock (immobilizer) Each time the key is removed from the igni- tion, the electronic starting interlock is acti- vated and the car is thus immobilized, see also page 36.
  • Page 32 Security Switch for operation of central locking The central locking can also be operated from inside the car by means of the switch on the center console (except on Convertibles). • To lock all doors: press the symbol side of the switch once.

  • Page 33: Trunk Lock

    Battery type: Panasonic CR 2032, 3V lith- ium. Avoid putting fingerprints on the flat sides of the battery. Dispose of the old battery properly when you buy a new one. These batteries contain substances that are environmentally hazardous. Child safety lock catch 1 Engaged 2 Disengaged Child safety locks...
  • Page 34 • With the switch on the center con- sole (except on Convertible models). • With the key in the driver’s door. Certain central lock-system func- tions can be reprogrammed by an authorized Saab dealer See page 231.

  • Page 35: Car Alarm (Anti-Theft Alarm)

    The car alarm may not have been activated and you should get in touch with an authorized Saab dealer. Be sure everyone using the car is familiar with how both the car alarm and the locking system work.
  • Page 36 In this case, you can still start the car if you turn the ignition key to ON and press one of the buttons on the remote control. Take the car to an authorized Saab dealer to have the system checked. The LED on the top of the dash dou-...
  • Page 37 Alarm signals When the car alarm is armed, it will be trig- gered if any door, the trunk lid or hood, is opened, or if a window is broken. The alarm will also be triggered if an attempt is made to bypass or short-circuit the igni- tion switch, or to disconnect the battery.
  • Page 38 Alarm signals may differ between model variants for different coun- tries. Some of the car-alarm functions can be reprogrammed – con- sult your Saab dealer for further details (see page 231).
  • Page 39 Security Reason/action Probably a faulty sensor or siren. Have the car checked by an autho- rized Saab dealer. Fault in key transmitter or in igni- tion-switch receiver. Turn ignition switch to ON and press one of the buttons on the remote control. Start the engine.
  • Page 40 Security This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) must accept any interference received, including interference that may cause undesired oper- ation.

  • Page 41: Convertible

    Convertible Convertible General safety instruc- tions ... Folding the soft top ... Raising the soft top ... Manual raising of the soft top ... Fault messages in SID... Central operation of the windows, 9-3 Convertible Trunk, 9-3 Convertible ... Cleaning the soft top, 9-3 Convertible ...

  • Page 42: Convertible

    This applies to carwashes that use mechanical feelers bearing against the body. We advise against washing a Saab 9-3 Con- vertible in automatic carwashes. • Note that certain automatic car washes can cause water to leak in places that nor- mally would not leak.

  • Page 43: Folding The Soft Top

    Folding the soft top Before operating the soft top, read through the section ” General safety instructions” on page 42. WARNING • Do not touch the hinges or struts of the soft top during folding, because of the pinch hazard. •...
  • Page 44 Convertible Switch for operating the soft top 1 Lowering 2 Raising 3 Slide the ROOF button backwards until the soft top is completely folded away, the tonneau cover is closed and the SID has given an OK signal (beep). Slide the ROOF button backwards a second time to lower the windows.

  • Page 45: Raising The Soft Top

    The front-edge locking of the tonneau cover Raising the soft top WARNING • Do not touch the hinges or struts of the soft top during rasing the top, because of the danger of being injured. • Do not operate the soft top with pas- sengers in the rear seat or bystanders right next to the car, because of the risk of head injuries.

  • Page 46: Manual Raising Of The Soft Top

    Convertible 4 Raise the side windows by sliding the ROOF button forward a second time. Alternatively, use the central operating switch for the side windows. 5 Check that there are no fault messages on the SID; see page 48. Manual raising of the soft top WARNING Manual operation of the soft top must be...
  • Page 47 18 Take the tool out. The soft top system must be checked and repaired by an authorized Saab dealer as quickly as possible.

  • Page 48: Fault Messages In Sid

    Convertible Fault messages in SID The following CHECK messages are included in the soft top system and can be displayed on the SID together with a beep. SID displays Cause CHECK SOFT • The soft top storage bag is hooked up. •...

  • Page 49: Central Operation Of The Windows, 9-3 Convertible

    The following fuses should be checked if the soft top cannot be operated and no fault messages are shown by the SID: • MAXI-fuse 5 in the engine bay, see page 188. • 7, 14, 21 and 23 in the fuse panel on the end of the instrument panel, see page 189.

  • Page 50: Trunk, 9-3 Convertible

    Convertible Suspending top bag Trunk, 9-3 Convertible Hooking up top storage bag More space in the trunk can be obtained by lifting the top storage bag up by the straps under it and hooking them in the eyelets at the top of the bag. The top storage bag can only be hooked up in this way when the top is raised.

  • Page 51: Cleaning The Soft Top

    This applies to washes that have mechani- cal feelers in contact with the body- work. We advise against washing a Saab 9-3 Convertible in automatic car washes. • Park in the shade if possible. Long standing in strong sunlight can affect the color and material of the soft top.

  • Page 52: Interior Lighting

    Convertible Use mild soap, lukewarm water and a sponge for washing. Rinse the top thoroughly with plain water to get rid of all the soap. Flush the cleaning agent off the bodywork as well, since it can cause discoloration if it is left to dry on the paintwork.
  • Page 53 Instruments and controls Warning and indicator lights ... Instruments ... Trip computer SID... Switches ... Wipers and washers ... Manual climate-control system... Automatic climate control (ACC) ...

  • Page 54: Warning And Indicator Lights

    Instruments and controls Main instrument panel Main instrument panel 1 Tachometer 2 Indicator and warning lights 3 Speedometer 4 Indicator and warning lights 5 Pressure gauge 6 Fuel gauge (tank volume: 17 gallons (64 litres) 7 Engine temperature gauge 8 Trip meter reset button 9 Odometer and trip meter Warning and indicator lights...

  • Page 55: Instruments And Controls

    WARNING Never drive the car when these warning lights are on. Danger of brake failure! Have the brake system checked at once by an authorized Saab dealer. Instruments and controls Parking brake warning light The light will show when the parking brake is on (see page 151.)
  • Page 56 Now check the level again. If the level is still normal, you may drive the car, with considerable cau- tion, to the nearest authorized Saab dealer to have the brake system checked. WARNING • If the ABS is inoperative, there is a...
  • Page 57 While your car may be able to be driven with the CHECK ENGINE indicator light illuminated (limp-home mode), you are advised to have your car serviced at an authorized Saab dealer as soon as possible. Continued driving without this problem being corrected might cause serious fur- ther damage to your car and create unsafe driving conditions.
  • Page 58 Even if the fault persists, it is still possible in most cases to drive the car (see page 144). Have the automatic transmission checked by an authorized Saab dealer as soon as possible. NOTE If the control module has actuated the...

  • Page 59: Instruments

    Instruments Tachometer The tachometer indicates the engine speed in thousands of revolutions per minute. The needle may be allowed to enter the broken red zone on the dial only for an instant. A safety cut-out function (in the fuel system) prevents the engine speed exceeding approximately 6,200 rpm (2.0 Turbo) and 6,400 rpm (2.3 Turbo).

  • Page 60: Temperature Gauge

    Instruments and controls Temperature gauge The temperature gauge shows the temper- ature of the coolant. The needle should be in the middle of the scale when the engine is at normal operating temperature. If the needle enters the red zone, the warning light will come on and an alarm chime will sound.

  • Page 61: Fuel Gauge

    2.5 gal. (10 liters), a warning light on the main instrument panel will come on (see page 56). Use the Saab Information display (SID) to check the approximate distance that can be travelled on the remaining fuel (see page 62).

  • Page 62: Trip Computer Sid

    Instruments and controls Trip computer SID (Saab Information Display) The car is equipped with SID (Saab Information Display). This instrument con- tains a varying number of functions depend- ing on the standard of equipment and the model variant. SID 2 displays CHECK messages and has four trip-computer functions.

  • Page 63: Night Panel

    365 days have elapsed since the last service. The message should be cleared at the time of that service (see the Saab Warranties & Service Record Booklet). If you have carried out the service yourself, you can clear the message by pressing CLEAR once.

  • Page 64: Clock

    Instruments and controls • If the speed of the car exceeds 84 mph (135 km/h), the entire speedometer will be illuminated. • In cars with automatic transmission, if the selector lever is moved from D to position 3, 2 or 1, the selector indication on the main instrument panel will be illuminated.
  • Page 65 Average fuel consumption since function last reset. SPD Ø Average speed since function last reset. SID 3 (SCC, Saab Car Computer) Outside temperature (Frost warning) Regardless of what function you have selected, SID automatically switches to the outside-temperature function when the tem- perature is between 26°...
  • Page 66 Instruments and controls Setting the date 1 Use to select TEMP/DATE. 2 Press the SET button for at least one second (year starts to flash and a chime sounds). 3 Set the year using 4 Touch SET. 5 Set the month in the same way. 6 Touch SET.
  • Page 67 Using DIST as a trip meter If no value has been set for the DIST func- tion, DIST will now function as a trip meter (indicated by an arrow on the far right of the display). Press CLR to reset the trip meter. Under 1000 miles the distance will be shown in increments of 0.1 miles, there-after, the reading will change in incre-...
  • Page 68 365 days have elapsed since the last service. The message should be cleared at the time of that service (see the Saab Warranties & Service Record Booklet). If you have carried out the service yourself, you can clear the message by pressing CLR once.
  • Page 69 Night panel To improve night-driving conditions inside the car, the Night Panel mode can be selected. In this mode, the amount of infor- mation displayed is reduced, and only the most important instruments and displays will be illuminated. When the Night Panel button is pressed, only the speedometer will be illuminated (up to the 87-mph or 140-km/h graduation), all the other instruments illumination will be...

  • Page 70: Clock

    Instruments and controls Selecting units and language 1 Press the CLR and SET buttons at the same time for 4 seconds until an audible signal sounds. 2 Press to select the required units. 3 Touch SET. 4 Press to select the required language.

  • Page 71: High/Low Beam

    Switches Daytime running lights The parking lights and daytime running lights come on automatically when the igni- tion switch is in the ON position. Note to owners in the U.S.: If you do not want Daytime Running Lights, this feature can be disconnected: switch off the engine and remove fuse No.

  • Page 72: High/Low Beam Control Stalk Turn Signal & Lane Change Indicators

    Instruments and controls Courtesy Headlamp Feature A delay function allows the headlights to remain on low beam for about 30 seconds after the driver’s door has been closed. To activate this function, switch off the igni- tion, remove the key, open the driver’s door and pull the high/low beam control stalk towards the steering wheel like you are flashing the high beam, see page 71.

  • Page 73: Rear Fog Light

    When the fog light is next needed, it will have to be switched on manually again. Your Saab is equipped with one rear fog light and this is located on the driver´s side in the rear tail- light housing.

  • Page 74: Wipers And Washers

    Instruments and controls Instrument lighting The brightness of the instrument lighting can be varied by means of the dimmer switch adjacent to the headlight switch, the ignition switch shall be in position ON. (See also Night panel on page 69). In daylight or other equally bright light, the instrument and switch illumination is auto- matically extinguished.

  • Page 75: Rear-Window Wiper

    Control for setting wiper delay 1 Long delay 2 Short delay Rear-window wiper Rear-window washing and wiping are car- ried out using the same stalk switch as for washing and wiping the windshield and headlights. This stalk has two additional switches, ON/OFF The ON position gives intermittent wiping.

  • Page 76: Manual Climate-Control System

    Instruments and controls Manual climate-control system The air is drawn in through an intake at the bottom edge of the windshield. It passes through an efficient filter before being routed through the climate-control system and into the cabin. The cabin discharge vent is located on the right behind the rear bumper.
  • Page 77 Defroster Floor inc. rear side windows Panel incl. rear center vent As the winter comfort setting we recommend that the distribution knob be turned two steps to the left from the Defroster position. Instruments and controls Settings for various weather conditions Winter - defroster Winter - comfort...
  • Page 78 Instruments and controls Air vent at rear side window Air conditioning (A/C) The air conditioning is combined with the conventional climate-control system and is switched on by pressing the button, provided that the fan control is in position 1-4. The incoming air is treated in three stages: first it passes through a filter;...
  • Page 79 Electrically heated rear window/external mirrors The button is located on the climate-control panel. An LED in the button is lit as long as heating is on. Switch off the heating as soon as the rear window is clear. It will go off automatically after about 10 minutes.

  • Page 80: Automatic Climate Control

    Instruments and controls Automatic climate control (ACC) The air is drawn in through an intake at the bottom edge of the windshield. It passes through an efficient filter before being routed through the climate-control system and into the cabin. The cabin discharge vent is located on the right behind the rear bumper.
  • Page 81 1 Sun sensor 2 Interior-temperature sensor The system uses five sensors: • Outside-air temperature. • Cabin-air temperature. • Sun sensor. • Blended-air temperature (located in the heater unit). • Coolant temperature. The sun sensor is centrally located on the dashboard panel between the defroster nozzles.
  • Page 82 Instruments and controls Functions The function you have manually selected will be locked in, while other functions remain automatic. Temperature maintenance, except in positions HI and LO, is, there- fore always automatic. The active function is shown in the display. A manual selection is cancelled by pressing AUTO or by repeated pressing of the button used to make the manual choice.
  • Page 83 Button Display One touch: When Defroster is manually selected you will get demisting of all windows (the air flow to the rear side windows will be shut off) by high fan speed. Air will be routed to the defroster noz- zles.
  • Page 84 Instruments and controls Button Display Press simulta- neously Panel - floor (front and rear) and center rear vent Electrically heated rear window/elec- trically heated door mirrors are con- trolled automatically, though they can also be programmed for manual control; see ”Programming II”, page 87.
  • Page 85 Starting in cold weather: The automatic climate control system selects the defroster position, max. heating and low fan speed to begin with. As the engine temperature rises, the fan speed is increased and air is routed towards the floor. As the temperature inside the car nears the selected value, both the fan speed and the heat will be decreased to a level determined by the system.
  • Page 86 Instruments and controls Calibration If the battery has been disconnected or has run flat, the system will recalibrate automatically. Manual calibration: 1 Start the engine. 2 Press at the same time. The ACC display flashes once to indicate that calibration and self-testing have started. During calibration the display indicates the figure 0 or the fault codes (01-23) that have been found.
  • Page 87 Programming II It is also possible to customize the ACC system to adapt to driving and weather conditions. Function Operation in AUTO mode after Programming II The A/C compressor is not switched on until the out- side temperature goes above +55°F (+13°C). –...
  • Page 88 All manual selections are possible with the exception of electric rear window. Saab recommends leaving the ACC setting on ECON when the soft top is folded down to improve fuel economy and unnecessary running of the A/C compressor.
  • Page 89 Saab 9-3 Audio System Saab 9-3 Audio System Quick guide to the Saab 9-3 Audio System ... Sound controls... Radio ... Cassette player ... CD player ... CD changer... 101 General functions ... 104 Steering-wheel controls .. 105 Security lock... 105 Technical data ...

  • Page 90: Audio System

    Saab 9-3 Audio System Saab 9-3 Audio System The Saab 9-3 Audio System comes in two levels, Premium and Prestige. They are specially adapted to the cabin space in the Saab 9-3. The Saab 9-3 Audio System consists of a main unit with a radio and a cassette player.

  • Page 91: Quick Guide To The Saab

    Quick guide to the Saab 9-3 Audio System Radio, see page 94 To switch the system ON, press the volume but- PUSH PULL ton. The last settings used will be activated. If the Audio System is switched on when the igni-...
  • Page 92 Saab 9-3 Audio System Cassette player. See page 96 Touch: choice of play when another sound source is active. TAPE Changing cassette side. Take out the cassette. Touch: music search. Touch and hold: fast wind. SEEK Touch centrally on SEEK: Blank-skip off/on, see page 97.

  • Page 93: Sound Controls

    BAS - Bass TRE - Treble FAD - Fader The fader control adjusts the balance between the front and rear sets of speakers. The Bass, Treble and Fader controls must be pressed first to release them. Saab 9-3 Audio System...

  • Page 94: Radio

    Saab 9-3 Audio System Radio Press the RADIO/BAND button (3) to switch to the radio when another source is active. Preset station buttons (1) Press once (release within a second) to select a preset station, e.g. The small figure on the far right of the dis- play is the number of the preset button selected.
  • Page 95 CD and RADIO mode. If the radio is unable to find a sufficiently strong station to lock onto, the unit will con- tinue to search and the display will indicate "NO WB". Saab 9-3 Audio System...

  • Page 96: Cassette Player

    Saab 9-3 Audio System Cassette player Before playing a tape, make sure that the label is secure and that the cassette is not warped, otherwise the cassette can become jammed in the deck. The cassette player senses automatically whether the tape is normal or metal (Type I or Type II).
  • Page 97 Press and hold SEEK briefly to switch to music search. Fast rewind (<< WIND) is performed in the same way as fast forward. Saab 9-3 Audio System Auto music search (Blank skip) To switch the Blank-skip function ON/OFF, press and hold SEEK (mid-segment).
  • Page 98 Always keep cassettes in their boxes when not in use. If a cassette should become jammed in the deck, seek help from an authorized Saab dealer.

  • Page 99: Cd Player

    To change to the preceding track, touch SEEK twice. Saab 9-3 Audio System Rapid play (passage search) When << SEEK or SEEK >> is pressed and held, rapid play will be initiated, with the time and track showing on the display, e.g.:...
  • Page 100 Saab 9-3 Audio System Fast track changes Touch SEEK (mid-segment) to switch between the CD PLAY and CD TRACK modes. The CD PLAY and CD TRACK modes change the function of << SEEK and SEEK >>. The selected mode will also be active the next time the system is switched on.

  • Page 101: Cd Changer

    If there is no magazine in the CD changer, the following will appear on the display: Saab 9-3 Audio System If the magazine in the CD changer is empty, the following will appear on the display:...
  • Page 102 Saab 9-3 Audio System If the CD changer is activated immediately after a magazine has been loaded, the fol- lowing will appear on the display: The CD number will change as each CD is played. After a magazine has been loaded, play-...
  • Page 103 CD TRACK Pressing and holding << SEEK or SEEK >> acti- vates track changes. Saab 9-3 Audio System Random playback (RDM) (3) Press and hold the CD/RDM button to select/deselect random playback of the CDs in the magazine. When this function is selected, RDM will appear at the bottom of the display.

  • Page 104: General Functions

    Saab 9-3 Audio System General functions WARNING These functions should only be carried out when the car is stationary. Volume-preset mode To select the volume-preset mode, press and hold the WB button at the same time as you switch the Audio System on.

  • Page 105: Steering-Wheel Controls

    If a CD changer is to be installed or if you wish to move the main audio-system module and/or CD changer to another car (Saab 9-3), you must consult an authorized Saab dealer so that the modules can be given the correct security codes.

  • Page 106: Technical Data

    Crossover frequency _____________ • These specifications comply with the new IHF Standard AM 10 kHz • Since the policy at Saab is one of continual improvement, we retain the right to alter specifications and design without prior notice. WB 50 kHz •...
  • Page 107 Antenna The antenna of the Audio System is motor- ized. Saab 9-3 Viggen Coupé and 5-door: The antenna is located on the roof. NOTE Remove the antenna if you wash the car in a car wash, to avoid it being damaged.
  • Page 108 Saab 9-3 Audio System Cross-modulation When the radio is tuned to a weak transmit- ter in the vicinity of a stronger one, the car’s antennas will receive signals from both. Such interference is apparent when the unwanted broadcast can be heard faintly in the background.

  • Page 109: Installation Of Car Phone

    No modifications to these areas should be made unless done by your authorized Saab dealer. Provision has been made on certain vari- ants of the Saab 9-3 for the installation of a hands-free car phone. Installation must be done by an authorized Saab dealer.

  • Page 110: Fault Codes

    Mobile phones and communications radios that are not supplied as standard equipment by Saab can interfere with the car’s electri- cal system and cause misleading fault codes to be generated. WARNING Always consult an authorized Saab dealer for installation guidance.
  • Page 111 Interior equipment, trunk Interior equipment, trunk Seats ... Steering-wheel adjust- ment ... Electrical windows... Sunroof (option)... Interior lighting... Cup holder ... Ashtrays (accessory)... Glove compartment ... Rear-view mirrors ... Trunk, Coupé and 5-door Tools and spare wheel ... Manually opening the fuel filler door ...

  • Page 112: Seats

    Interior equipment, trunk Seats The following seat adjustments can be made to achieve a comfortable driving position: • Height (driver´s seat). • Legroom. • Backrest rake angle. • Lumbar support. • Head-restraint height. We recommend that adjustments to the driver’s seat be performed in the following order: 1 Height.
  • Page 113 Adjusting the backrest 1 Catch, backrest (Coupé and Convertible versions) Backrest rake angle To find the most comfortable position, turn the knob to provide stepless adjustment of the backrest. WARNING The backrest should be upright during driving, so that the safety belt, airbag and backrest can provide optimum protection in the event of emergency braking or a collision.
  • Page 114 Interior equipment, trunk Head restraint The front seats in the Saab 9-3 are equipped with Saab Active Head Restraints (SAHRs). These reduce the risk of whiplash injury if the car is hit from behind at low speeds. In the event of a rear-end collision, the body is forced back against the backrest.
  • Page 115 Manually adjustable front seats with ”Easy Entry” function, Coupé and Convertible versions Manual seats have a feature called ”Easy Entry”, which facilitates movement to and from the rear seat. Activate ”Easy Entry” as follows: 1 Raise the release lever and hold it in its uppermost position until the backrest is tipped forward.
  • Page 116 Interior equipment, trunk Electrically adjustable front seats (certain variants) Both seats can be operated from outside when one of the front doors is opened, to improve access to the car. For safety reasons, if the door is closed, the seat can only be adjusted when the ignition is ON.
  • Page 117 Backrest rake angle Push the rear lever forward or rearward to adjust the rake angle of the backrest. Memory function (certain variants) In some variants the electrically adjustable driver’s seat has a memory function. Three different settings can be programmed. 1 Make the desired adjustments to the seat setting.

  • Page 118: Steering-Wheel Adjustment

    Interior equipment, trunk Electrically heated front seats (option on some model vari- ants/markets) Both front seats incorporate heating for the seat cushion and backrest. It is switched on and off using the buttons on the instrument panel. The heating is thermostatically controlled. It comes on when the temperature of the seat cushion goes below 79°F (26°C) and turns off when it reaches 97°F (36°C).

  • Page 119: Electrical Windows

    Electrical windows WARNING • Bear in mind the pinch hazard when the side windows are being raised. Make sure that all passengers keep their heads, hands and fingers clear of the window openings before you begin raising the windows. • Always remove the ignition key when leaving the car to avoid the danger of injury arising from unattended children operating the windows.

  • Page 120: Sunroof

    Interior equipment, trunk Sunroof (option) The sunroof is operated electrically using the ROOF control on the center console. The sunroof can be opened completely or partially. As soon as you release the control the sunroof stops. 1 If you wish to open the sunroof all the way from the closed position, proceed as follows: •...

  • Page 121: Interior Lighting

    1 Interior lighting is off 2 Lighting comes on when a door is opened 3 Interior lighting on continuously Interior lighting The interior lighting consists of one dome light in the front and one in the back. The switch for the interior lighting is on the over- head panel next to the rearview mirror.

  • Page 122: Cup Holder

    Interior equipment, trunk Sun visor with vanity mirror Cup holder in the center console Cup holder There are two cupholders, one in the fascia under the SID unit and one in the cen- ter-console compartment between the front seats on certain models. Next to the cup holder between the front seats is a coin tray.

  • Page 123: Ashtrays (Accessory)

    Front ashtray Ashtrays (accessory) The car is equipped with two ashtrays. One is positioned low down on the dash and the other on the back of the center console. Open the front ashtray by lightly pressing on the front. Remove it by depressing the catch on the underside.

  • Page 124: Rear-View Mirrors

    Interior equipment, trunk Rear-view mirror 1 Day position 2 Night position Rear-view mirrors The rear-view mirror has day/night positions that can be selected by means of a knob beneath the mirror. Adjust the mirror for best vision in the day position and pull the tab on the bottom of the mirror toward you for the night position.

  • Page 125: Trunk Lid Lock

    Trunk, Coupé and 5-door WARNING When the back seat has been put back in place, make certain that the belt beam is locked firmly on both sides (the red warning tabs must go down). This is vital since the upper anchorages for the safety belts are located in the belt beam.
  • Page 126 Interior equipment, trunk 4 Lower the entire backrest cushion by pulling this same handle (item 3) forward. At the same time, pivot the beam backwards. IMPORTANT: When you replace the belt beam using the handle (item 3), you must verify that it is properly locked and that the two red "warning tabs"...
  • Page 127 To provide more flexibility, the rear seat is divided so that you can lower the narrower (right) part separately. 1 Tilt the seat cushion forward by pulling the loop located between the backrest and the seat cushion. 2 Stand the seat cushion on end behind the front seats. 3 Release the right backrest cushion by means of the latch on the belt beam’s right side just behind the head restraint.

  • Page 128: Trunk

    Interior equipment, trunk Removing the parcel shelf 1 Open the trunk lid. 2 Unhook the rubber ties. 3 Lift the rear parcel shelf and pull it away from the guide pins in the front edge of the shelf support. Load opening (trunk pass through) A load opening is provided in the backrest so that you can carry long narrow objects.
  • Page 129 Tie downs Four tie downs for securing the load are fitted inside the trunk. Place the load as far in as possible. Trunk lighting To the left in the trunk is a light which goes on and off when the trunk lid is opened and closed.

  • Page 130: Spare Wheel

    Interior equipment, trunk Tools and spare wheel The tool kit and compact spare wheel are kept beneath the carpeting in the trunk. Rear spoiler, Saab 9-3 Viggen Coupé and 5-door WARNING Saab 9-3 Viggen Coupé and 5-door: Avoid placing your hands on the upper...

  • Page 131: Manually Opening The Fuel Filler Door

    Manually opening the fuel filler door Coupé and 5-door models If the fuel filler door (which is controlled by the central locking system) does not unlock, proceed as follows. Check fuse 20. If it is blown or its replace- ment blows, you can release the lock motor from the door as follows: 1 Use a sharp knife to release the pre-cut rectangle on the right in the upholstery in...
  • Page 132 Interior equipment, trunk...
  • Page 133 Starting and driving Ignition switch ... Starting the engine... Important considerations for driving... Engine Break-in Period... Gear changing ... Manual transmission ... Automatic transmission . Cruise Control ... Braking ... Parking ... Economical motoring ... Starting and driving Driving in cold weather ... 154 Driving in hot weather ...

  • Page 134: Ignition Switch

    Starting and driving Ignition switch The single lock used for both the ignition and gear/selector lever is in the center con- sole located between the front seats. Before you can remove the key, the car must be in reverse gear (manual gearbox cars) or the Parking (P) position (cars with automatic transmission).

  • Page 135: Starting The Engine

    • Start the engine. Try the other key. If it works, the trouble is in the first key. Call on an authorized Saab dealer for inspection and correction. Starting the engine WARNING • Carbon monoxide (CO) is a colorless, odorless, poisonous gas.

  • Page 136: Important Considerations For Driving

    Important considerations for driving The engine-management system in the Saab 9-3 is called Saab Trionic T7. The system manages the ignition, fuel injection and turbo boost pressure. The Trionic T7 system developed by Saab is an intelligent engine-management system designed to achieve optimum drive- ability under differing driving conditions.

  • Page 137: Catalytic Converter

    Saab 9-3 Viggen: The Saab 9-3 Viggen has a high-performance engine which means that a certain amount of care should be exercised, in particular when accelerating in the lower gears. This is especially important when the road surface is slippery to avoid...

  • Page 138: Fuel Filler Door

    Starting and driving Stop jump-starting if the engine fails to start immediately. NOTE If the car runs out of fuel, it is possible for air to get into the fuel system. If this happens, the catalytic converter may overheat and be damaged. •...
  • Page 139 The gasoline must be allowed room for expansion especially during hot weather. Recommended fuel: The engine in your Saab 9-3 is designed to operate on unleaded gasoline that has an octane rating of: • AON 90 (minimum 87) for 185 hp engines.

  • Page 140: Engine Break-In Period

    Engine malfunction (CHECK ENGINE) lamp , thus indicating a fault that must be checked by your Saab dealer, see page 57. NOTE: always observe the following two measures: • Make sure that the fuel filler cap is screwed on correctly before the engine is started.

  • Page 141: Gear Changing

    Gear changing Manual transmission To start the engine the clutch pedal must be fully depressed. The gear positions are marked on the gear lever. Before reverse (R) can be engaged, you must lift the ring underneath the gear-lever knob. To change gear, fully depress the clutch pedal and then release it smoothly.
  • Page 142 Starting and driving Selector lever 1 Catch 2 Button for SPORT position 3 Button for WINTER position The electronic control module for the auto- matic transmission receives information on engine torque and road speed. It also con- trols the hydraulic pressure in the transmis- sion to ensure that gear changing is as smooth as possible.
  • Page 143 If the problem was cured by changing the fuse or battery, you do not have to contact a Saab dealer. If the fuse blows again as soon as the Shift Lock feature is activated you should contact your Saab dealer.
  • Page 144 Select one of the positions 1, 2 or 3. A high outside temperature or a defective oil cooler can also cause the oil temperature to increase. Contact an authorized Saab work- shop, see also page 156. Driving in hilly country with a heavy...
  • Page 145 Selector positions To shift out of the P position you must depress the brake pedal and the ignition must be ON. The parking position (P) must only be selected when the car is at a complete standstill. The selec- tor lever is locked and the transmission is mechanically immobilized.
  • Page 146 Starting and driving Position 1 should be used when maximum engine-braking is required on steep downhill slopes and to avoid frequent gear-changing on steep climbs. Do not move the selector to position 1 at speeds in excess of 30 mph (50 km/h). If the gear selector lever is moved from position D to 1, a change-down to 3rd gear will occur at about 110 mph (180 km/h).
  • Page 147 The SPORT and WINTER modes To select Sport mode, press the ”S” button on the selector lever when the selector lever is in position N, D, 3, 2 or 1. In this mode, gear changes will take place at higher engine speeds than in Normal mode, in other words, the transmission will shift up later and shift down earlier for the same throttle (accel- erator) position.

  • Page 148: Cruise Control

    Starting and driving Cruise Control WARNING • Do not use the Cruise-control system on wet or icy roads, in dense traffic or on winding roads • To prevent the system being activated inadvertently, set the control to OFF when you do not want to use the system The system is operated by means of the controls on the stalk switch:...

  • Page 149: Brakes And Braking

    New pads should be installed without delay. Brake pads should only be replaced by an authorized Saab dealer. To ensure optimum brake performance, it is recommended that you use only Saab original brake pads.
  • Page 150 Starting and driving ABS brakes WARNING • The additional safety afforded by the ABS system is not designed to allow drivers to drive faster but to make normal driving safer. • To stop as quickly as possible, without loss of directional stability, whether the road surface is dry, wet or slippery, press the brake pedal down hard without letting up (do not pump the...

  • Page 151: Parking

    • Lock the car. Starting and driving NOTE Saab 9-3 Viggen: The body design together with the relatively low ground clearance of the car means that great care must be taken during parking to avoid damage to the under part of the...
  • Page 152 Starting and driving 1 Pointing downhill and 2 Pointing uphill and against the curb against the curb – Turn the wheels into the – Turn the wheels away curb and edge the car for- from the curb and edge the ward until the wheels touch car back until the wheels the curb.

  • Page 153: Fuel Economy

    Economical motoring Factors affecting fuel consumption Fuel consumption is greatly affected by the general driving conditions, the way in which the car is driven and at what speeds, the weather, the state of the road, the condition of the car, etc. Breaking-in Fuel consumption may be somewhat higher during the break-in period (the first 3,000–...

  • Page 154: Driving In Cold Weather

    Increased consumption can indicate that something is wrong and that the car needs to be checked by an authorized Saab dealer. Practical tests on the roads have demon- strated that substantial savings in fuel con- sumption can be made if the above advice is heeded.
  • Page 155 Studded tires are not allowed in some countries. If winter tires are installed, the same type must be installed on all wheels. Your Saab dealer will be pleased to advise you on the best tires for your car. Remember that tires age. It may therefore...

  • Page 156: Towing A Trailer

    Use only the electrical trailer hitch socket provided in the trailer hitch kit. Saab recommends: • Use a Saab original hitch kit attachment which is designed and tested by Saab. • Consult your Saab dealer as regards the right hitch kit for your car.
  • Page 157 NOTE Saab 9-3 Viggen cannot be equipped with a trailer hitch because of the design of the body and chassis. Trailer weight Maximum recommended trailer weights for different gradients, for best comfort and driveability for manual and automatic cars, are shown in the drawing.

  • Page 158: Driving With A Roof Rack Load

    220 lbs (100 kg). Note that the roof load is included in the car’s maximum permissible load (see page 221). Strong, sturdy roof carriers designed spe- cially for the car are available from your Saab dealer. Always secure the roof load safely.
  • Page 159 Installing the roof carriers (acces- sory) The carrier feet are marked with a top view of the car and an arrow indicating their positions. 1 Slip the plastic cover onto the adjustable foot of the carrier (the foot with a knob for tightening) to protect the paintwork during assembly.

  • Page 160: Towing

    Starting and driving Driving with a load The driving characteristics of the car are affected by the way it is loaded. • Place heavy loads as far forward and as low as possible in the trunk. • Secure the load to the tie downs, see page 129.
  • Page 161 Rear towing eye Front towing eye, Saab 9-3 Viggen Saab 9-3 Viggen The front towing eye is stored in a storage bag beside the spare wheel. Remove the plastic cover with a screwdriver from the car’s toolkit, and screw in the towing eye.

  • Page 162: Jump Starting

    ”Jump starting”. Jump starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your Saab. Follow the steps below to do it safely. WARNING Batteries can cause injury. They can be dangerous because: •...
  • Page 163 NOTE Ignoring these steps could result in costly damage to your vehicle that would not be covered by your warranty. Trying to start your car by pushing or pull- ing it could damage your vehicle, even if you have a manual transmission. If you have an automatic transmission, your vehicle cannot be started by pushing or pulling it.
  • Page 164 You can suffer burns or be blinded. Use a flashlight if you need more light. Be sure the battery has enough water. The battery installed in your new Saab has filler caps. Be sure the right amount of water is there. Add distilled or boiled water if the level is too low.

  • Page 165: Driving Considerations With Compact Spare Wheel/Tire Fitted

    For long trips Before starting off on a long journey, it is advisable to have your car inspected over by your Saab dealer. Obtain a few important items to take along on your journey such as spare bulbs, wiper blades, fuses, a Poly-Vee-belt and the like.

  • Page 166: Driving With The Trunk Lid Open

    Starting and driving Driving with the trunk lid open Avoid driving with the trunk lid partly or fully open, since exhaust fumes can be drawn into the cabin. If you must drive with the trunk lid open, all windows and the sunroof (if fitted) must be closed and the cabin fan on at its highest speed setting.

  • Page 167: Car Care

    Car care Hood release handle ... Engine ... Engine bay ... Engine oil ... Transmission fluid ... Coolant ... Brake- clutch fluid and brake pads ... Power steering ... Battery ... Drive belt... Wipers and washers ... Wiper blades ... Changing bulbs ...

  • Page 168: Hood Release Handle

    Car care Hood release handle The handle of the hood lock is located on the left under the instrument panel. Open the hood in the following way: 1 Pull the release handle. 2 The hood moves to the half-locked posi- tion and is stopped by a safety catch at the front edge.

  • Page 169: Engine Bay

    Engine bay Car care 1 Engine-oil dipstick 2 Brake-fluid reservoir 3 Power-steering fluid reservoir 4 Fuse box 5 Coolant reservoir 6 MAXI fuses 7 Washer-fluid reservoir 8 Battery 9 Ignition discharge module 10 Drive belt 11 Air filter...

  • Page 170: Emission Control Systems

    Car care Engine families Saab cars imported into the United States and Canada meet all applicable emission control standards. The engine family and appropriate tune-up specifications are iden- tified on a label affixed to the left front inner fender. These engine families meet applicable EPA...
  • Page 171 ENGINE light in the main instrument illu- minates, the Trionic ECM has detected a problem. The car will continue to operate, but performance may be diminished. You should have your car checked by a Saab dealer as soon as possible. ORVR (Onboard Refueling Vapor Recovery)

  • Page 172: Engine Oil

    Car care Engine oil Checking the fluid level Regularly check the oil level in the engine. Do this with the car standing on level ground with the engine warm, 2-5 minutes after it has been turned off. Take the dipstick out and wipe it off with a clean rag before carry- ing out the check.

  • Page 173: Manual Transmission

    Dexron III (synthetic fluid) auto- matic transmission fluid can be used. If so, the car should be taken to an authorized Saab dealer as soon as possible to have the reason for low fluid level corrected and orig- inal fluid installed.

  • Page 174: Coolant

    -58 F (-50°C). The corrosion-inhibiting properties of the coolant deteriorate over time, but coolant approved by Saab can be used for year-round protection. Change the coolant as specified in the service program (page 215) and use only coolant approved by Saab –...
  • Page 175 • The cooling system is pressurized – hot coolant and vapor can escape when the filler cap is released. Changing the coolant (Usually carried out as part of the Saab original service by an authorized Saab dealer) 1 If the engine is hot, loosen the expan- sion-tank filler cap a little to release the pressure.

  • Page 176: Brake- Clutch Fluid And Brake Pads

    Check that there are no leaks in the brake system. Changing of the brake fluid should be carried out by an authorized Saab dealer. The vehicle´s regular braking system is adjusted automatically, but the parking brake has to be adjusted manually. This...

  • Page 177: Power Steering

    Power steering Check the level of the power-steering fluid in the reservoir regularly, in accordance with the service program. The wheels should point forward during the check. Clean around the cap before it is unscrewed. Unscrew the cap and wipe the dipstick. To check the fluid level, first screw the cap on fully again and then remove.
  • Page 178 Car care Correct fluid level in the battery The charge level should be checked with a battery-acid tester. The specific gravity of the acid in a fully charged battery should be 1.28. A specific gravity of 1.18 roughly indi- cates a 50% charge. NOTE A discharged battery can freeze and frac- ture.

  • Page 179: Drive Belt

    We recommend Saab washer fluid for cleaning. If poor wiper performance is experienced, clean the windshield with Saab washer fluid. This is particularly important if the car has been through an automatic car wash, as this sometimes leave a wax coating on the wind- shield.

  • Page 180: Headlamp Wipers

    LEVEL LOW" appears there is about 1.5 quarter (1.4 litres) left. Fill with quality washer fluid, available from your Saab dealer and follow the instructions on the package to reduce the risk of freez- ing. If the reservoir is run dry and the car has a...

  • Page 181: Changing Bulbs

    Changing bulbs WARNING Before changing a bulb in the engine bay, switch off the engine to avoid the danger of fingers and hands being injured by moving parts. The radiator fan can cut in even when the engine is switched off. NOTE Switch off the ignition before changing a bulb, to avoid possible short-circuiting.
  • Page 182 Car care 1 Retaining screw 2 Turn signal bulb Front turn signal bulb To change the bulb, the complete lamp unit has to be removed. 1 Loosen the screw (1). There is no need to remove it completely. 2 Carefully remove the complete lamp unit. 3 Grasp the two plastic tabs and turn the bulb holder counterclock- wise.

  • Page 183: Direction Indicators

    Front fog lights and cornering lights 1 Front fog light 2 Cornering light Front fog light / cornering lights 1 Slightly turn the bulb holder counter- clockwise. 2 Unplug the connector. 3 Remove the bulb. WARNING Never crawl under a car that is supported only by a jack use axle stands;...
  • Page 184 Car care Reversing lights and rear fog light 1 Open the hatch on the inside of the trunk. 2 Press down the plastic tab that secures the bulb holder. 3 Carefully pull the entire bulb holder out of the lamp unit. Replace the dead bulb. 4 When refitting the bulb holder, fit it in first at the lower edge.
  • Page 185 Replace the bulb holder in its bracket and refit the entire lamp unit. Other lighting If any other bulbs need changing, you are advised to take the car to an authorized Saab dealer.
  • Page 186 Car care Bulb table No. Wattage Cap 60/55 P 43t-38 Headlight P 14.5s Front fog light W 2 x 4.6d Ashtray; cigarette lighter; warning light for safety belts BA 15s Rear fog light; reversing light 21/5 BAY 15d Stop/taillight PY 21 yel BAU 15s Direction indicator, front/rear Reading lamps, rear (Coupé...

  • Page 187: Fuses

    To avoid the risk of short-circuiting and/or fire breaking out in the electrical system, the following advice should be heeded: • Always consult an authorized Saab dealer before modifying or adding any electrical equipment. Failure to do so can result in the electrical system being damaged.
  • Page 188 If a fault occurs in any of these components, diagnostic faults codes are set in the rele- vant control module, which enhances fault diagnosis at the Saab dealer. The scan tool connector for fault diagnosis is located under the instrument panel on the...
  • Page 189 Fuse holder on the end of the instrument panel Fuses No. Amp Function – – Stop lights, trailer Cabin fan, ACC Electrically heated rear window and rear-view mir- rors Direction indicators Cabin fan, A/C Trunk light; switch illumination; electrically powered radio antenna Electrically operated front seat, right 2 3 4 5 6...
  • Page 190 Car care No. Amp Function Manual A/C; soft top (Convertible) Cruise Control; direction indicators Soft top (Convertible); telephone 7.5 Radio Central locking 30 Control module, engine management system; igni- tion cassette High beam flash; ACC Engine management system Right parking light; number-plate lighting Left parking light Reversing light;...

  • Page 191: Relays

    Fuses and relays Fuse panel in engine bay Function Horn Front fog lights Radiator fan, low speed Vacuum pump A/C-compressor Left low beam Right low beam Left high beam Right high beam 7.5 Headlight wipers – – – Extra lights 7.5 APC Extra heater;...

  • Page 192: Tires & Rims

    Alternative wheels and tires If you wish to fit other tires or wheels than those supplied with the car, consult your Saab dealer first as to the possibilities avail- able. Wheels/tires combinations that are not approved by Saab can negatively affect the car´s directional stability, steering and brak-...
  • Page 193 Your Saab dealer can advise you of to the correct size tire for your car (if different from the original size) and also supply Saab approved winter tires pre-mounted on steel or alloy rims. Tire quality grading (cars sold in U.S.)
  • Page 194 Car care Uniform Tire Quality Grading (US) Quality grades can be found where applica- ble on the tire sidewall between tread shoul- der and maximum section width. For exam- ple: Treadwear 200 Traction AA Temperature A Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course.

  • Page 195: Compact Spare Wheel

    Date code Date code Tires should be regarded as perishable goods. As the tires age, the rubber becomes progressively harder, and the roadholding ability of the tires diminishes. This is partic- ularly true on winter tires. Tires now have a date-code marking for the year of manufacture.

  • Page 196: Changing A Wheel

    Car care Spare wheel (under the carpet in the trunk), Saab 9-3 Viggen When changing a wheel, take the tool kit out first, then the spare wheel. NOTE To avoid damaging a punctured alloy wheel this can be placed outside up in the spare-wheel well but only while driving to the closest workshop.
  • Page 197 1 Put the car in 1st gear (automatic trans- mission: move selector to the P position) and apply the parking brake. Saab 9-3 Viggen: The front and rear jacking points are located behind covers that must be removed. 2 Wind the jack up to a suitable height before placing it under the recess in the sill.
  • Page 198 Car care Position for jack, Saab 9-3 Viggen 8 Lower the car and tighten the wheel bolts to the correct torque in the sequence shown (opposite pairs). Tightening torque: Light-alloy wheels: 80 ft.lbs (110 Nm). Steel wheels: 80 ft.lbs (110 Nm).

  • Page 199: Safety Belts

    Removing the wheel cover Tightening sequence, wheel bolts Flat spotting All tires get hot, especially on long journeys or when the car is driven hard. After the car has been parked with hot tires and the tires have cooled down, a flat spot can form in the tire, where it is in contact with the ground.

  • Page 200: Upholstery And Trim

    Car care Upholstery and trim To remove fluff or hairs from the seat uphol- stery or headlining, use a moist, lint-free cloth or a special lint remover (brush or roller). Remove any dirty marks using a cloth moistened with lukewarm soapy water.

  • Page 201: Washing The Car

    Do not use gasoline as a cleaning agent or solvent when carrying out repairs or mainte- nance. Saab recommends the use of envi- ronmentally safe degreasing agents. Washing Wash the car frequently. When the car is new, wash the bodywork by hand, using just cold water –...

  • Page 202: Waxing And Polishing

    • Fixed antennas must be removed when going through an automatic car wash. • Saab 9-3 Viggen, Coupé and 5-door: If you wash the car in an auto- matic car wash, you must first remove the roof-mounted antenna, otherwise it will be damaged.

  • Page 203: Anticorrosion Treatment

    Two-coat enamel As the name implies, two-coat enamel is applied in two operations. The first coat, the base color, contains the pigment, metal flakes and binder. The second coat consists of a clear enamel, which provides the final gloss for the paintwork and protects the base from moisture and environmental con- taminants.
  • Page 204 Car care Drainage holes in doors What causes rust? Steel body panels of automobiles are sub- ject to rusting whenever air and moisture manage to penetrate the protective finish. Body panels may rust through if the process is unchecked. Rusting can occur wherever water is trapped or where the car’s panels are continuously damp.

  • Page 205: Recovery And/Or Recycling Of Automotive Materials

    While the Saab 9-3 was still at the draw- ing-board stage, Saab engineers were giving serious consideration to how the maximum quantity of materials could be reclaimed from the car on its eventual scrapping.
  • Page 206 Car care 1 A-pillar trim: PP, PP/EPDM. 2 Windshield trim: PP, PP/EPD. 3 Seals: EPDM. 4 Rear-window casing PUR. 5 Trim panel ABS. 6 C/D-pillar trim PP. 7 Rear light cluster: PMMA. 8 Corner filler panel PPO/PA. 9 Rear bumper Expanded PP core PP/EPDM sheathing.

  • Page 207: Air Conditioning (A/C System)

    • All repairs and adjustments on the A/C system must be carried out by a Saab dealer authorized for this kind of work. • Never mix R134a and R12 refriger- ants.

  • Page 208: Headlight Aiming

    If you believe your headlights need to be re-aimed, we recommend that you take it to your Saab dealer for service. However, it is possible for you to re-aim your headlights as described in the following procedure.
  • Page 209 Open the hood and locate the vertical aim level (B) that you can see through the top of the headlight lens. If you find that the headlight needs adjust- ment follow these steps: 1 Locate the vertical aiming device (A) located behind and below the outer headlight assembly.
  • Page 210 Car care...
  • Page 211 Maintenance and owner assistance Maintenance and owner assistance Maintenance schedule... Owner assistance ... Reporting Safety Defects (U.S.A.) ... Reporting Safety Defects to the Canadian govern- ment ... Saab Original Service Program M2000 USA, Canada, (9-3 Models) ...

  • Page 212: Maintenance Schedule

    Maintenance schedule The Maintenance Schedule prescribes a service program to the purchaser/operator of a Saab that is reasonable and necessary to ensure the proper emission control sys- tems function, safety and reliability of the Saab automobile in normal use. Additional...

  • Page 213: Owner Assistance

    1-800-955-9007. In Canada, please call the Saab Customer Assistance Centre at 1-800-263-1999. A list of authorized Saab sales and service dealers is available for those planning to travel in the United States and Canada. Canadian or U.S. travelers may call the Customer Assistance Center in the country in which they are traveling.

  • Page 214: Reporting Safety Defects (U.s.a.)

    Sections may be ordered individually. Con- sult your Saab dealer for prices and for a list- ing of available sections for your model. Reporting Safety Defects (U.S.A.)

  • Page 215: Service Program

    E Spark plugs E Crankcase ventilation and vacuum lines * These are the minimum required Emission Control System maintenance steps. Saab urges that all recommended maintenance procedures be performed according to this program. (a.) Engine oil and filter should be changed at least once a year. Intermediate oil and filter changes (halfway between indicated intervals) suggested for cars primarily used for driving in dense city traffic or for repeated short trip operation without sufficient warm up.
  • Page 216 R Manual gearbox; oil level R Outer and inner driver joint boots * These are the minimum required Emission Control System maintenance steps. Saab urges that all recommended maintenance procedures be performed according to this program. (b.) Change automatic transmission fluid at more frequent intervals (30,000; 90,000 miles, etc.) if car is driven in dense city traffic where the outside tem- perature regularly reaches 90°F or higher, if car is used in a mountainous/high altitude area or for trailer towing.
  • Page 217 Service Intervals ** Miles = U.S. Cars Kilometers = Canadian Cars Chassis R Ball joint clearance, outer and inner steering joints and rubber boots R Front suspension, rear axle mountings; retighten R Shock absorbers and bushes; tightness and condition R Tire pressure, tread depth and wear (c.) R Rotate tires, front to rear R Brake pads and discs;...
  • Page 218 Maintenance and owner assistance Service Intervals ** Miles = U.S. Cars Kilometers = Canadian Cars Chassis (cont.) R Toe-in R Cabin air filter R Door hinges, stops and locks R Removable towbar R Airbag system, SRS warning lamp, visual inspection R Safety belts;...

  • Page 219: Technical Data

    Technical data Technical data General particulars ... Engine ... Engine oil... Engine variants ... Electrical system... Drive belts... Manual transmission ... Automatic transmission .. Suspension... Steering... Brake system... Rims and tires ... Plates and labels...

  • Page 220: Maximum Loads

    Technical data General particulars Overall length, with bumper(s): Coupé/5-door/Convertible____________ 182.3" (4629 mm) Viggen __________________________ 182.7” (4639 mm) Overall width, including door mirrors _____ 76.2" (1936 mm) Maximum height ____________________ 56.2" (1428 mm) Maximum height when the soft top is being operated (Convertible) ______________ Wheelbase ________________________ 102.6"...
  • Page 221 Weight ready for driving (i.e. with full fuel tank, washer- fluid reservoir, standard tools and spare wheel) Coupé ___________________________ 2990-3170 lbs. Viggen, Coupé ____________________ 3090-3160 lbs. 5-door ___________________________ 3030-3220 lbs. Viggen, 5-door ____________________ 3140-3210 lbs. Convertible _______________________ 3130-3260 lbs. Viggen, Convertible ________________ 3220-3230 lbs. Gross vehicle weight (GVW) Coupé___________________________ Viggen, Coupé...
  • Page 222 Recommended towbar-ball load ______ Maximum towing speed, trailer with brakes __________________________ The above max. weights and speed limit are those which Saab Automobile AB permits. Note that the national rules may set lim- its to permitted weights and speed; see also page 156.

  • Page 223: Engine

    For example, a grade designation could be ACEA A2/B2 or ACEA A3/B3. To afford Saab engines the best protection, with regard to lubri- cation, the ability to dissolve residues and the neutralization of combustion products, we recommend the following oil grades: •...

  • Page 224: Fuel Grade

    10W meets certain viscosity requirements at -4°F (-20°C), while the 30 fulfills requirements at a temperature of 212°F (100°C). Basic recommendations for Saab engines: • SAE 10W-30 or 10W-40. SAE 5W-30 can also be recommended but in which case the oil must be semi of fully-synthetic and fulfil ACEA grade require- ments A3/B3.

  • Page 225: Engine Variants

    Engine variants 2.0 Turbo 185 hp, manual transmission Rating, EEC at 5500 rpm ____________ Max. torque (man.), EEC at 2100 rpm __ Compression ratio _________________ 2.0 Turbo 185 hp, automatic transmission Rating, EEC at 5750 rpm ____________ Max. torque EEC at 1900 rpm ________ Compression ratio _________________ 2.0 Turbo 205 hp, manual transmission Rating, EEC, at 5500 rpm____________...

  • Page 226: Manual Transmission

    Technical data Manual transmission Type _____________________________ 5-speed, fully Oil type (for topping-up) ______________ Saab synthetic man- Oil capacity ________________________ 1.8 qts. (1.8 l) Speed (mph/km/h) at 1000 rpm in 5th gear 26/42 Automatic transmission Type _____________________________ Electronically con- Gear selector positions ______________ P R N D 3 2 1 Oil quantity, total ____________________ 7.4 qts.

  • Page 227: Brake System

    Brake system Footbrake (ABS) ___________________ Hydraulic disc Parking brake ______________________ Acts on rear wheels Brake fluid ________________________ DOT 4 Disc diameter: front, Coupé/5-door/Convertible _______ 11.4" (288 mm) front, Viggen ______________________ 12.0” (306 mm) rear ____________________________ 11.3" (286 mm) Total friction area of brake pads: front, Coupé/5-door/Convertible _______ 34.4 in²...
  • Page 228 6.5 x 15________195/60 R15 (not Viggen) 6.5 x 16________205/50 R16 or 205/50 R16 M+S Max. speed is 30 mph (50 km/h). Consult your authorized Saab dealer of approved snow chains. NOTE Coupé/5-door/Convertible: Bigger rims than 16” must not be used. The offset of the rims must not exceed 49 mm.

  • Page 229: Plates And Labels

    Plates and labels In contacts with your Saab dealer it may sometimes be necessary to quote the car’s chassis, engine and gearbox numbers. 1 Modification identity plate (in the spare wheel compartment). On certain model variants, the plate is located on the right-hand door pillar.
  • Page 230 Y = Northern Europe ____________ 2 - Country _______ S = Sweden 3 - Manufacturer ___ 3 = Saab Automobile AB 4 - Product line ____ D = 9-3 5 - Model series ___ D = 9-3 S with driver’s and passenger’s airbag...
  • Page 231 Several of the systems in your Saab car may be adjusted to better fit your individual needs Some functions are governed by legal requirements and cannot therefore be reprogrammed. Consult an authorized Saab dealer for fur- ther information. Car alarm/central locking system: •...
  • Page 232 • Fan speed. • Air distribution. See “Programming I” on page 86 and “Pro- gramming II” on page 87. Saab 9-3 Audio System: The following functions can be adjusted by the driver (see page 104): • Maximum starting volume (when the radio is switched on).
  • Page 233 Index A/C system, fault diagnosis _______ 207 A/C system, maintenance _________ 207 ACC __________________________ 80 ACC, useful tips _________________ 88 Adjustment, steering wheel ________ 118 Air conditioning (A/C), fault diagnosis and maintenance __ 207 Airbag _________________________ 22 Alarm _________________________ 35 Alarm functions __________________ 38 Alarm signals ___________________ 38 Anticorrosion treatment ___________ 203...
  • Page 234 Index Electrical window _______________ 119 Electrically adjustable seats _______ 116 Electrically heated front seats ______ 118 Electrically heated rear seat _______ 118 Electrically heated rear window _____ 79 Electronic starting interlock _________ 31 Emergency opening, fuel filler door _ 131 Emergency operation of the soft top, Convertible ____________________ 46 Emergency operation of the sunroof _ 120...
  • Page 235 Manual climate-control system ______ 76 Manual raising of the soft top, Convertible ____________________ 46 Manually opening the fuel filler door, Convertible ____________________ 52 Manually opening the fuel filler door, Coupé and 5-door ______________ 131 Maxi fuses _____________________ 188 Memory, driver’s seat ____________ 117 Motoring abroad ________________ 165 Night Panel _____________________ 69 Odometer ______________________ 59...
  • Page 236 Index Temperature gauge ______________ 60 Textile carpeting, cleaning ________ 200 Through-load hatch ______________ 128 Tie-down eyes _________________ 129 Tipping the rear seat _____________ 125 Tire pressures __________________ 192 Tires and wheels, sizes __________ 227 Tools _________________________ 130 Touching up paintwork ___________ 202 Towing a caravan or trailer ________ 156 Towing the car _________________ 160 Trailer hitch load ________________ 158...
