Summary of Contents for Oldsmobile 2003 Silhouette

Page 2: Table Of Contents
The 2003 Oldsmobile Silhouette Owner Seats and Restraint Systems Front Seats Rear Seats Safety Belts Child Restraints Air Bag Systems Restraint System Check Features and Controls ... Keys Doors and Locks Windows Theft-Deterrent Systems Starting and Operating Your Vehicle Mirrors...
Page 3: Canadian Owners
For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for Oldsmobile Division whenever it appears in this manual. Please keep this manual in your vehicle, so it will be there if you ever need it when you’re on the road.
Page 4: Safety Warnings And Symbols
Safety Warnings and Symbols You will find a number of safety cautions in this book. We use a box and the word CAUTION to tell you about things that could hurt you if you were to ignore the warning. These mean there is something that could hurt you or other people.
Page 5: Vehicle Damage Warnings
Vehicle Damage Warnings Also, in this book you will find these notices: Notice: These mean there is something that could damage your vehicle. A notice will tell you about something that can damage your vehicle. Many times, this damage would not be covered by your warranty, and it could be costly.
Page 6 'hese are some examples of vehicle symbols you may find on your vehicle: LATCH BOTH LAP AND CAUTION SHOULDER BELTS TO POSSIBLE PROTECT OCCUPANT INJURY TWIST BELT WHEN ATACHING PROTECT EYES BY FASTEN SHIELDING SEAT BELTS CAUSTIC MOVE SEAT BATTERY FULLY 4CID COULD REARWARD+...
Page 8: Seats And Restraint Systems
Front Seats Manual Seats Six-Way Power Seats ... Eight-Way Power Seats Heated Seats ... Reclining Seatbacks Head Restraints Rear Seats ... Rear Seat Operation ... Flip and Fold Feature ... Split Bench Seats ... Captain Chairs ... Stowable Seat ... Safety Belts ...
Page 9: Front Seats
Front Seats Manual Seats Use the lever located on the front of the seat to adjust the seat forward or rearward. Pull up the lever to unlock the seat. Slide the seat to where you want it and release the lever. 1 -2 You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle...
Page 10: Six-Way Power Seats
Six-Way Power Seats The six-way power seat control outboard side of the Move the front of the control up or down to adjust the front portion of the cushion up or down. Move the rear of the control up or down to adjust the rear portion of the cushion up or down.
Page 11: Heated Seats
Heated Seats Your vehicle may have this feature. If it does, the heated seat switches are located in the instrument panel switchbank. This feature will heat the lower cushions and lower back of the driver’s and front passenger’s seats for added comfort.
Page 12 But don’t have a seatback reclined if is moving. Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this. The shoulder belt can’t do its job because it won’t be against your body.
Page 13: Head Restraints
Head Restraints 1 -6 Adjust your head restraint so that the top of the restraint is closest to the top of your head. This position reduces the chance of a neck injury in a crash. Head restraints are fixed on some models and adjustable on others.
Page 14: Rear Seats
Rear Seats Rear Seat Operation The rear seats in your vehicle have levers and straps used to adjust, remove and reinstall the seats. By using the levers and straps, in the correct order, you can easily remove the seats from the vehicle. When you put the seats back in the vehicle, be sure to follow the label on the back of the seat for proper location.
Page 15: Split Bench Seats
To return the seat(s) to the normal position, do the following: 1. Push the seat back and firmly push the rear hooks onto the rear floor pins by pushing down on the rear of the seat. 2. Try to raise the seat to check that it is locked down. 3.
Page 16 Nylon Strap To fold the seatback forward, pull the nylon strap located on the rear of the seat or lift up on the recliner lever located on the front of the seatback. The seatback will lock into place. To raise a seatback, pull the nylon strap or lift the recliner lever while raising the seatback until it locks upright.
Page 17: Removing The Split Bench Seat
Removing the Split Bench Seat Make sure the seatback is in the upright position. 1. Lift the seatback recliner lever or pull the nylon strap on the back of the seat to fold the seatback forward. 2. From behind the bench seat, pull the nylon strap at the center of the base of the seat to release the rear latches from the floor pins.
Page 18: Replacing The Split Bench Seat
Replacing the Split Bench Seat If the seatback isn’t locked, forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure is locked. A seat that isn iocked into place properly can move around in a collision or sudden stop.
Page 19 3. If the front legs are not attached correctly, the rear legs will not attach to the rear set of floor pins. 1. Squeeze the angled bar toward the solid crossbar while placing the front hooks of the bench seat onto the front two floor pins.
Page 20: Captain Chairs
If the front latches are not attaching correctly, check that the seat is in the full rear position. Firmly push the rear hooks onto the rear floor pins by pushing down on the rear of the seat. Try to raise the seat to check that it is locked down. Lift thc scat5ack :ecli!?er !ever strap on the back of the seat and raise the...
Page 21: Folding Or Reclining The Seatbacks
Folding or Reclining the Seatbacks If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked. To recline the seatback, lift up on the recliner lever, located on the outboard side of the seat.
Page 22: Removing The Captain's Chairs
Removing the Captain’s Chairs 2. The seat can then be lifted off the front floor pins and removed from the vehicle. Pull the nylon strap behind the chair to release the rear hooks from the floor pins. 1-15...
Page 23: Replacing The Captain's Chairs
Replacing the Captain’s Chairs If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure is locked. A seal lat isn’t locked into place properly can move around in a collision or sudden stop.
Page 24 1. Hook the front latches over the front floor pins. 2. Push the rear of the seat down to lock the rear latches onto the rear set of floor pins. 3. Push and pull on the seat to be sure it attached.
Page 25: Stowable Seat
Stowable Seat Your vehicle may have a stowable seat. The stowable seat is a full bench seat and comes with the convenience center. See Convenience Center on page 2-60 for more information. The stowable seat can be removed and replaced, or with the seatback folded, it can lie flush with the convenience center.
Page 26: Removing The Stowable Seat
Removing the Stowable Seat 1. Remove the convenience center, if it is in the vehicle. See Convenience Center on page 2-60 for more information. off of the stowable seat. 2. Make sure all items are 3. If the seatback is down, put the seatback in its upright position before removing the seat.
Page 27 Replacing +he Stowable Seat If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked. A seat that isn’t ~ _ c k e d i n t o place properly can move around in a collision or sudden stop.
Page 28 The stowable seat has seat position labels, located on the back of the seat, showing where the seat must go. Follow the floor pin diagram. Use the front floor pins of the floor cups and the rear floor cups in the third row. The seat must be placed in the proper location for the legs to attach correctly.
Page 29: Safety Belts
Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. tells you some things you should not do with safety “-lts. Don’t let anyone ride where he or she can’t wear a safety belt properly.
Page 30: Why Safety Belts Work
In most states and in all Canadian provinces, the law says to wear safety belts. Here’s why: They work. You never know if you’ll be in a crash. If you do have a crash, you don’t know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up a person wouldn’t survive.
Page 32 The person keeps going until stopped by something. nr the instrument panel ... In a real vehicle, could be the windshield ... 1-25...
Page 33 or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense. 1-26 Air bags are in many vehicles today and will be in most of them in the future.
Page 34: How To Wear Safety Belts Properly
If I’m a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you’re in an accident even one that isn’t your fault your passengers can be hurt. Being a good driver doesn’t protect you from things beyond your control, such as bad drivers.
Page 35: Driver Position
Driver Position This part describes the driver’s restraint system. Lap-Shoulder Belt The driver has a lap-shoulder belt. Here’s how to wear it properly. 1. Close and lock the door. 2. Adjust the seat so you can sit up straight. To see how, see “Seats”...
Page 36 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt isn't long enough, see Safety Belt Extender on page 1-44. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 37: Shoulder Belt Height Adjuster
Shoulder Belt Height Adjuster Before you begin to drive, move the shoulder belt adjuster to the height that is right for you. 1-30 To move it down, push down on the button and move the height adjuster to the desired position. You can move the adjuster up just by pushing up on the shoulder belt guide.
Page 38 What’s wrong with this? The shoulder belt is too loose. It won’t give nearly as much protection this way. YOL ,an be se. sly hur, is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.
Page 40 What's wrong with this? The belt is over an armrest. You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied at the abdomen, not at the pelvic bones, and that could cause serious or fatal injuries.
Page 41 What’s wrong with this? The shoulder belt is worn under the arm. be worn over the shoulder at all times. 1 -34 You can be serious., injured if you wear shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 42 What's wrong with this? The belt is twisted across the body. You can be seriously injured by a twisted belt. In a crash, you wouldn't have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.
Page 43: Safety Belt Use During Pregnancy
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 44: Center Passenger Position
The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it’s more likely that the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly.
Page 45 When you sit in the center position of the bench seat, you have a lap safety belt, which has no retractor. To make the belt longer, tilt the latch plate and pull it along the belt. TO make the belt shorter, pull its free end as shown until the belt is snug.
Page 46: Rear Seat Outside Passenger Positions
Rear Seat Passengers It’s very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who aren’t safety belted can be thrown out of the vehicle in a crash.
Page 47 2. Push the latch plate into the buckle until it clicks. if the belt stops before it reaches In the third row, the buckle, tilt the latch plate and keep pulling until you can buckle it. Third Row Outside Passenger Position Pull up on the latch plate to make sure it is secure.
Page 48 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash this applies force to the strong pelvic bones. And you’d be less likely . - , ? - I io siicie ur-lcljer tile WIL.
Page 49: Rear Safety Belt Comfort Guides For Children And Small Adults
Rear Safety Belt Comfort Guides for Children and Small Adults Your vehicle may have rear shoulder belt comfort guides. This feature will provide added safety belt comfort for older children who have outgrown booster seats and for smaller adults. When installed on a shoulder belt, the comfort guide better positions the belt away from the neck and head.
Page 51: Safety Belt Pretensioners
4. Buckle, position and release the safety belt as described in Rear Seat Passengers on page 1-39. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guides, squeeze the belt edges together so that you can take them out of the guides.
Page 52: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. If you have the choice, a child should sit next to a window so the child can wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. What is the proper way to wear safety belts? If possible, an older child should wear a lap-shoulder belt and get the additional restraint...
Page 53 Never do this. Here two children are wearing the same belt. The belt can’t properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. 1 -46 What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt...
Page 54 Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 55: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 56 For example, in a crast only 25 mph (40 km/h), a 12-lb. (5.5 kg) baby will suddenly become a 240-lb. (1 10 kg) force on a person’s arms. A baby should be secured in an appropriate restraint. Children who are up against, or very close to, any air bag when it inflates can be seriously injured or killed.
Page 57 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 58: Child Restraint Systems
The body structure of a young child is , , i t e unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 59 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. 1 -52 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
Page 60 A booster seat (F-G) is a child restraint designed to improve the fit of the vehicle's safety belt system. Some booster seats have a shoulder belt positioner, hirvh-hgok QnrJ cnrnn hnnctnr c n d c h a \ r n "...
Page 61: Where To Put The Restraint
When choosing a child restraint, be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets federal motor vehicle safety standards. Then follow the instructions for the restraint. You may find these instructions on the restraint itself or in a booklet, or both.
Page 62: Top Strap
Top Strap Some child restraints have a top strap, or "top tether". It can help restrain the child restraint during a collision. For it to work, a top strap must be properly anchored to the vehicle. Some top strap-equipped child restraints are designed for use with or without the top strap being anchored.
Page 63: Top Strap Anchor Location
Don’t use a child restraint that requires a top strap in the right front passenger’s position because there’s no place to anchor the top strap. Anchor the top strap to one of the following anchor points. Be sure to use an anchor point located on the same side of the vehicle as the seating position where the child restraint will be placed.
Page 64 Third Row (50/50) An anchor bar for a top strap is located at the rear of the seat cushion for each second and third row outboard coQtinn nncitinn y v u l r l " . vuuIll1y Third Row (Stowable Seat) The anchor bar for the stowable bench seat is located on the passenger's side of the crossbar.
Page 65: Lower Anchorages And Top Tethers For Children (Latch System)
Lower Anchorages and Top Tethers for Children (LATCH System) Your vehicle has the LATCH system. You'll find anchors (A) in both second row captain's chairs. To assist you in locating the lower anchors for this child restraint system, each seating position with the LATCH system will have latches between the seatback and cushion.
Page 66 With this system, use the LATCH system instead of the vehicle’s safety belts to secure a child restraint. If a LAT4-type child restraint isn’t attached to its anchorage points, the restraint won’t be able to protect a child sitting there. In a crash, the child could be seriously injured or killed.
Page 67: Securing A Child Restraint Designed For The Latch System
Securing a Child Restraint Designed for the LATCH System 1. Find the anchors for the seating position you want to use, where the bottom of the seatback meets the back of the seat cushion. 2. Put the child restraint on the seat. 3.
Page 68 You’ll be using the lap-shoulder belt. See the earlier part about the top strap if the child restraint has one. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say.
Page 69 3. Buckle the belt. Make sure the release button is 4. Pull the rest of the shoulder belt all the way out of positioned so you would be able to unbuckle the the retractor to set the lock. safety belt quickly if you ever had to. 1-62...
Page 70 To tighten the belt, feed the shoulder belt back into the retractor while you push down on the child restraint. If you’re using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 71: Securing A Child Restraint In A Center Seat Position
Securing a Child Restraint in a Center Seat Position You’ll be using the lap belt. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. See the earlier part about the top strap if the child restraint has one.
Page 72 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 5. To tighten the belt, pull its free end while you push down on the child restraint. If you’re using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 73: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position Your vehicle has a front passenger air bag. Never put a rear facing child restraint in this seat. Here’s why: 1-66 A cl ...- be seriously injured or killed if the front passenger’s air bag inflates.
Page 74 3. Pick up the latch plate, and run the lap and shoulder portions of the vehicle's safety belt through or around the restraint. The child restraint instructions will show you how. 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 75 1 -68 6. To tighten the belt, feed the shoulder belt back into the retractor while you push down on the child restraint. You may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 76: Air Bag Systems
Air Bag Systems This part explains the frontal and side impact air bag systems. Your vehicle has four air bags a frontal air bag for the driver, another frontal air bag for the right front passenger, a side impact air bag for the driver, and another side impact air bag for the right front passenger.
Page 77 CAUTION: Both frontal and side impact air bags inflate with great force, faster than the blink of an If you’re too close to an inflating air would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position for air bag inflation before and during a crash.
Page 78: Where Are The Air Bags
Where Are the Air Bags? The driver's frontal air bag is in the middle of the . . * L - - l e*--":.-- 3lCCl V V I IGGI. The right front passenger's frontal air bag is in the instrument panel on the passenger's side. The driver's side impact air bag is in the side of the driver's seatback closest to the door.
Page 79 The right front passenger’s side impact air bag is in the side of the passenger’s seatback closest to the door. 1-72 If something is between an occupant and an air bag, the bag might not inflate properly or it might force the object into that person causing severe injury or even death.
Page 80: When Should An Air Bag Inflate
When Should an Air Bag Inflate? The driver’s and right front passenger’s frontal air bags are designed to inflate in moderate to severe frontal or near-frontal crashes. But they are designed to inflate only if the impact speed is above the system’s designed “threshold level.”...
Page 81: What Makes An Air Bag Inflate
What Makes an Air Bag Inflate? In an impact of sufficient severity, the air bag sensing system detects that the vehicle is in a crash. For both frontal and side impact air bags, the sensing system triggers a release of gas from the inflator, which inflates the air bag.
Page 82 When an air baa jnflates, there is dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so.
Page 83: Servicing Your Air Bag-Equipped Vehicle
Servicing Your Air Bag-Equipped Vehicle Air bags affect how your vehicle should be serviced. There are parts of the air bag systems in several places around your vehicle. Your dealer and the service manual have information about servicing your vehicle and the air bag systems.
Page 84: Restraint System Check
Restraint System Check Checking Your Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 85 If you’ve had a crash, do you need new belts or LATCH system parts? After a very minor collision, nothing may be necessary. But if the belts were stretched, as they would be if worn during a more severecrash, then you need new parts.
Page 86: Features And Controls
Section 2 Keys Remote Keyless Entry System Remote Keyless Entry System Operatior Doors and Locks Door Locks Power Door Locks Last Door Closed Locking Programmable Automatic Door Locks Lockout Protection Leaving Your Vehicle Dual Sliding Doors Power Sliding Door PSD) ..
Page 87 Section 2 Storage Areas ... Glove Box Cupholder(s) ... Compact Overhead Console ... Overhead Console Front Seat Storage Net ... Luggage Carrier Rear Storage Area ... Convenience Net Convenience Center ... Features and Controls 2.54 Vehicle Personalization ... 2.54 Entering Programming Mode ... 2.54 Delayed Illumination and 2.54...
Page 88: Keys
Keys...
Page 89 So be sure you have spare keys. If you ever do get locked out of your vehicle, call Oldsmobile Roadside Assistance. See Roadside Assistance Program on page 7-5 for more information. If your vehicle is equipped with the Onstar@ system...
Page 90: Remote Keyless Entry System
Remote Keyless Entry System If equipped, the keyless entry system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 91: Remote Keyless Entry System Operation
Remote Keyless Entry System Operation You can lock and unlock your doors and the liftgate from about 3 feet (1 m) up to 30 feet (9 m) away using the remote keyless entry transmitter supplied with your vehicle. UNLOCK: When you press UNLOCK on the remote keyless entry transmitter, only the driver’s door will unlock.
Page 92: Remote Alarm
Remote Alarm When you press the button with the horn symbol on the remote keyless entry transmitter, the parking lamps will flash and the horn will sound. This will allow you to attract attention, if needed. Press the panic button again to stop the alarm from sounding.
Page 93: Battery Replacement
Battery Replacement Under normal use, the battery in your remote keyless entry transmitter should last about three years. You can tell the battery is weak if the transmitter won’t work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it’s probably time to change the battery.
Page 94: Doors And Locks
Doors and Locks pAAu Locks U x k e d doors can b e angerous. Passengers especially children easily open the doors and fall out of a moving vehicle. When a door is locked, the handle won't open it. You increase the chance being thrown out of the vehicle in a crash if the doors aren't locked.
Page 95: Power Door Locks
From the inside, use the manual or power door locks. To unlock either front door from the inside, pull back on the manual lever. To lock either front door from the inside, push the manual lever forward. 2-1 0 Power Door Locks From the inside, press the front of the power door lock switch (on either front door) to unlock all doors and the liftgate.
Page 96: Last Door Closed Locking
You can lock all doors and the liftgate from the inside by pressing the rear of the power lock switch on either front door. With the content theft-deterrent system, the power door lock switch may cause the system to arm. See Content Theft-Deterrent on page 2-27 for more details.
Page 97: Programmable Automatic Door Locks
Programmable Automatic Door Locks All of the doors will lock automatically when you move your shift lever out of PARK (P). All doors will unlock automatically when the ignition is turned off while the shift lever is in PARK (P). If someone needs to get out while you are not in PARK (P), have that person use the manual lever or the power door lock switch.
Page 98: Lockout Protection
Lockout Protection The lockout protection feature makes it difficult for you to lock your keys in your vehicle. If the driver’s door is open while the keys are in the ignition, a chime will sound and you will not be able to use your power door lock switch to lock the vehicle.
Page 99: Sliding Door Lock
Sliding Door Lock If your vehicle is facing downward on a steep grade (15 percent or more), the door may not stay open and could slam shut, possibly injuring someone. To make sure the door does not slam shut be sure to hold open until everyone is clear of the door,'and only then allow...
Page 100: Sliding Door Security Lock
Lock either sliding door from inside the vehicle by moving the manual lever down. Unlock by moving the lever up. With the power door locks, the sliding door lock has a delay feature. See Power Door Locks Vehicle Personalization on page 2-62. Sliding Door Security Lock Your vehicle is equipped with a sliding door security lock that helps prevent young children or other...
Page 101: Canceling The Sliding Door Security Lock
If your vehicle has the power sliding door(s), you can override the security lock by pressing either power door lock switch when the power sliding door override switch(es) is turned off. When the power sliding door override switch(es) is turned on, the power sliding door(s) cannot be opened from the inside when the sliding door security lock is in use.
Page 102 To open or close the sliding door(s), press and release one of the following power door switches. Power Sliding Door Power Sliding Door If you have the one power sliding door, these switches are located in the overhead console switchbank. Pressing the part of the switch(es) with the don’t symbol turns the power to the sliding door(s) off.
Page 103 This switch is in front of the driver’s or the passenger’s side sliding door. The power sliding door override switch(es) will also stop the door(s) immediately, while the door(s) is opening or closing, when the override switch(es) is turned on. The power sliding door(s) will only open if the transaxle is in PARK (P).
Page 104 If an object obstructs the power sliding door(s) while it is closing, the door will automatically reverse to the open position, provided it meets sufficient resistance. Resistance must be as strong as the force of the closing door, or stronger. The force of the closing door increases significantly as the door approaches the iaichea...
Page 105 2-20 If your vehicle is facing c-- vnward on a steep grade (15 percent or more), the door may not stay open and could slam shut, possibly injuring someone. To make sure the door does not slam shut, turn on the power sliding door feature.
Page 106: Resetting The Power Sliding Door
Resetting the Power Sliding Door The power sliding door may operate incorrectly or not at all because of the following conditions: A low voltage or dead battery, disconnecting the battery, or if the instrument panel PWR/HEATED SEAT PSD fuse or the underhood fuse 8, 27 or 29 are removed or blown.
Page 107: Liftgate
Liftgate To unlock the liftgate from the outside, turn the key in the cylinder clockwise or use the remote keyless entry transmitter. To lock the liftgate using the key, turn the key counterclockwise. Open the liftgate using the handle located above the license plate.
Page 108 To close the liftgate, pull down on the handle, then firmly shut the liftgate. Don’t drive with the liftgate open, even slightly. See Engine Exhaust on page 2-43. A message in your instrument panel cluster will warn you if the liftgate not completely closed.
Page 109: Windows
indows Leaving children in a vehicle with the windows closed is dangerous. A child can be overcome by the extreme heat and can suffer permanent injuries or even death from heat stroke. Never leave a child alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 110: Power Windows
Power Windows The switches on the driver’s door armrest control the front windows when the ignition is in RUN, ACCESSORY or when Retained Accessory Power (RAP) is active. See “Retained Accessory Power (RAP)” ---- “--:a:--- ^ I _ . . A I - . - ulluw ryriilrurr r - u w w r r ~ pdye...
Page 111: Windows
Power Rear Quarter Windows Your vehicle may have power rear quarter windows. the overhead console switchbank, is used for opening and closing the power rear quarter windows. Press the textured part of the switch to open the windows; both windows will open. The windows will continue to open as long as the switch is pressed until they are fully opened.
Page 112: Theft-Deterrent Systems
Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal. Content Theft-Deterrent Your vehicle may have a theft-deterrent alarm system. A light located on top of your instrument panel (near the center of the vehicle, next to the windshield) will flash slowly to let you know that the system has been armed.
Page 113: Disarming With Your Key
Arming with the Remote Keyless Entry Transmitter Your alarm system will arm when you use your remote keyless entry transmitter to lock the doors, if the key is not in the ignition. The security light will turn on to let you know the system is arming.
Page 114: Pass-Key@ Ill
PASS-Key@ 111 Your PASS-Key@ Ill system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired...
Page 115: Pass-Key@ Ill Operation
PASS-Key@ 111 Operation Your vehicle is equipped with the PASS-Key@ Ill (Personalized Automotive Security System) theft-deterrent system. PASS-Key@ Ill is a passive theft deterrent system. This means you don’t have to do anything different to arm or disarm the system. It works when you insert or remove the key from the ignition.
Page 116 Canadian Owners: If you lose or damage your keys, only a GM dealer can service PASS-Key@ Ill to have new keys made. To program additional keys you will need two current driver’s keys (black in color). You must add a step to the following procedure. After Step 3 repeat Steps 1 through 3 with the second current driver’s key.
Page 117: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle doesn’t need an elaborate will perform better in the long run “break-in.” But if you follow these guidelines: Don’t drive at any one speed slow for the first 500 miles (805 km). Don’t make full-throttle starts.
Page 118: Retained Accessory Power (Rap)
B (LOCK): This is the only position from which you can remove the key. This position locks your ignition, steering wheel and transaxle. Notice: If your key seems stuck in LOCK and you can’t turn it, be sure you are using the correct key; if so, is it all the way in? If it is, then turn the steering wheel left and right while you turn the key hard.
Page 119: Starting Your Engine
Starting Your Engine Move your shift lever to PARK (P) or NEUTRAL (N). Your engine won’t start in any other position safety feature. To restart when you’re already moving, use NEUTRAL (N) only. Notice: Don’t try to shift to PARK vehicle is moving.
Page 120: To Use The Engine Coolant Heater
Engine Coolant Heater Your vehicle may have an engine coolant heater. In very cold weather, 0°F (-1 8°C) or colder, the engine coolant heater can help. You’ll get easier starting and better fuel economy during engine warm-up. Usually, the coolant h--+-r - h h m .I&...
Page 121: Automatic Transaxle Operation
Automatic Transaxle Operation Maximum engine speed is limited when you’re in PARK (P) or NEUTRAL (N), to protect driveline components from improper operation. There are several different positions for your shift lever PARK (P): This gear position locks your front wheels. It’s the best position to use when you start your engine because your vehicle can’t move easily.
Page 122 REVERSE (R): Use this gear to back up. Notice: Shifting to REVERSE (R) while your vehicle is moving forward could damage your transaxle. Shift to REVERSE (R) only after your vehicle is stopped. To rock your vehicle back and forth to get out of snow, ice or sand without damaging your transaxle, see If You Are Stuck: In Sand, Mud, Ice or Snow on page 4-30.
Page 123: Warm-Up Shift
Warm-up Shift Your vehicle has a computer controlled transaxle designed to warm up the engine faster when the outside temperature is 35°F (2°C) or colder. You may notice that the transaxle will shift at a higher vehicle speed until the engine is warmed up. This is a normal condition designed to provide heat to the passenger compartment and defrost the windows more quickly.
Page 124: Parking Brake
Parking Brake The parking brake is located on the driver’s side under the instrument panel. To set the parking brake, hold the regular brake pedal down with your right foot and push down on the parking brake pedal with your left foot. If the ignition is on, the brake system warning light will come on.
Page 125: Shifting Into Park (P)
Shifting Into Park (P) It can dangerou- get out of your veh if the shift lever is not fully in PARK (P) with the parking brake firmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 126: Leaving Your Vehicle With The Engine Running
Move the lever up as far as it will go. 3. Turn the ignition key to LOCK. 4. Remove the key and take it with you. If you can leave your vehicle with the ignition key in your hand. your vehicle is in PARK (PI. Leaving Your Vehicle With the Engine Running It can be dangerous...
Page 127: Torque Lock
Torque Lock If you are parking on a hill and you don’t shift your transaxle into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transaxle. You may find it difficult to pull the shift lever out of PARK (P).
Page 128: Parking Over Things That Burn
Parking Over Things That Burn Things that can burn could touch hot exhaust parts under your vehicle and ignite. Don’t park over papers, leaves, dry grass or other things. that burn. Engine E> aust Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you can’t see or smell.
Page 129: Engine Exhaust
Running Your Engine While You Are Parked It’s better not to park with the engine running. But if you ever have to, hpre are some things to know. Idling the engine with the climate co~,.,ol system off could allow dangerous exhaust into your vehicle.
Page 130: Mirrors
Mirrors Manual Rearview Mirror To reduce glare from lights behind you, pull the lever toward you (to the night position). To return the mirror to the day position, push the lever away from you. Outside Power Mirrors The control located on the driver’s door operates both outside rearview mirrors.
Page 131: Outside Convex Mirror
Outside Convex Mirror Your passenger’s side mirror is convex. A convex mirror’s surface is curved so you can see more from the driver’s seat. A convex mirror can make things (like other vehicles) look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on your right.
Page 132: Onstar@ System
Onstar@ System Onstar@ uses global positioning system (GPS) satellite technology, wireless communications, and call centers to provide you with a wide range of safety, security, information and convenience services. An Onstar@ subscription plan is included in the price of your vehicle. You can upgrade or extend your Onstar@ services to meet your needs.
Page 133: Onstar@ Personal Calling
Onstar@ Personal Calling With Onstar@ Personal Calling, you have a safer way to stay connected while driving. It’s a hands-free wireless phone that’s integrated into your vehicle. You can place calls nationwide using voice-activated dialing with no contracts, no roaming charges and no access fees. To find out more about Onstar@ Personal Calling, refer to the Onstar@ user’s guide in your vehicle’s glove box, or call Onstar@ at 1 -888-4-ONSTAR (1 -888-466-7827).
Page 134 an authorized service facility could void authorization to use this equipment. HomeLink, a combined universal transmitter and receiver, provides a way to replace up to three hand-held transmitters used to activate devices such as gate operators, garage door openers, entry door locks, security systems and home lighting.
Page 135: Programming The Homelink Transmitter
Programming the HomeLink Transmitter Do not use the HomeLink@ Transmitter with any garage door opener that does not have the “stop and reverse” feature. This includes any garage door opener model manufactured before April 1, 1982. Keep the original transmitter for use in other vehicles as well as for future HomeLink@ programming.
Page 136 5. Press and hold the newly-trained HomeLink@ button and observe the indicator light. If the indicator light stays on constantly, programming is complete and your device should activate when the HomeLink@ button is pressed and released. To program the remaining two HomeLink@ buttons, begin with Step 2 under “Programming HomeLink@.”...
Page 137: Gate Operator And Canadian Programming
Gate Operator and Canadian Programming Canadian radio-frequency laws require transmitter signals to “time out” or quit after several seconds of transmission. This may not be long enough for HomeLink@ to pick up the signal during programming. Similarly, some U.S. gate operators are manufactured to “time out”...
Page 138: Reprogramming A Single Homelink Button
Reprogramming a Single HomeLink@ Button To program a device to HomeLink@ using a HameLink@ button previously trained, follow these steps: 1. Press and hold the desired HomeLink@ button. Do not release the button. 2. The indicator light will begin to flash after 20 seconds.
Page 139: Storage Areas
Storage Areas Your vehicle's large carrying capacity can store many items. If you have the extended wheelbase version, you can carry things as large as a 4' x 8' piece of plywood. You can also use the floor pins that are used to attach the seats, to secure larger loads.
Page 140: Homelink@ Transmitter
Overhead Console Your vehicle may have this feature. The front overhead consoie has ianlps, a swi\iiici-,Gaiik, s k r s g ~ reaciirly compartments, Onstar@ System buttons, Driver Information Center (DIC) and HomeLink@ Transmitter buttons. For information on the features listed see each of them in the Index.
Page 141: Luggage Carrier
Luggage Carrier If you try to carry something on top of your vehicle that is longer or wider than the luggage carrier like paneling, plywood, a mattress and so forth the wind can catch it as you drive along. This can cause you to lose control.
Page 142 Notice: Loading cargo that weighs more than 150 Ibs. (68 kg) on the luggage carrier may damage your vehicle. When you carry cargo on the luggage carrier of a proper size and weight, put it on the slats, as far fowa as you can.
Page 143: Rear Storage Area
Your luggage carrier has release knobs set in the ends of each crossrail. Turn the release knob counterclockwise to unlock the crossrails. Slide the crossrails forward or back, as needed, to accommodate loads of various sizes. After repositioning the crossrails, be sure to tighten the release knobs by turning them clockwise.
Page 144: Convenience Net
Convenience Net Your vehicle may have a convenience net. The convenience net is designed to help keep small loads, like grocery bags, from falling over. Install the convenience net at the rear of your vehicle, inside the liftgate. To use the convenience net, do the following: 1.
Page 145: Replacing The Convenience Center
Convenience Center If a.., removable convenience item isn’t secured properly, it can move around in a collision or sudden stop. People in the vehicle could be injured. Be sure to secure any such item properly. Your vehicle may have a convenience center. It comes with the stowable seat.
Page 146 I ’ 4. Put the tray sill, located on the back of the convenience center, in the upright position. 5. Slide the convenience center in and align it so that the forks, located on the bottom rear of the convenience center, slide into the seat anchors. 6 .
Page 147: Vehicle Personalization
Vehicle Personalization Your vehicle’s locks and lighting systems can be programmed with several different features. The features you can program depend on the options that came with your vehicle. The following chart shows the features that can be programmed. To determine which features your vehicle is equipped with, follow the steps listed for entering the programming mode.
Page 148: Entering Programming Mode
Entering Programming Mode To program features, your vehicle must be in the programming mode. Follow these steps: 1. The content theft-deterrent system must be disarmed. See Content Theft-Deterrent on page 2-27. 2. Remove the BCM PRGRM fuse from the instrument panel fuse block, located to the right of the glove box.
Page 149: Automatic Door Locks
Before your vehicle was shipped from the factory, it was programmed in Mode 4. The mode to which the vehicle was programmed may have been changed since it left the factory. To determine the mode to which your vehicle is programmed or to program your vehicle to a different mode, do the following: 1.
Page 150: Last Door Locking And Lockout Deterrent
Before your vehicle was shipped from the factory, it was programmed in Mode 3. The mode to which the vehicle was programmed may have been changed since it left the factory. To determine the mode to which your vehicle is programmed or to program your vehicle to a different mode, do the following: 1.
Page 151: Remote Driver Unlock Control
Before your vehicle was shipped from the factory, it was programmed in Mode 4. The mode to which the vehicle was programmed may have been changed it left the factory. To determine the mode to which your vehicle is programmed or to program your vehicle to a different mode, do the following: 1.
Page 152: Remote Lock And Unlock Confirmation
Count the number of chimes you hear. The number of chimes indicates the vehicle's current programmed mode. (If you do not wish to the-current change mode, you can either exit the programming mode by following the instructions later in this section or program available on vehicle.) your...
Page 153 Mode Exterior Lamps Flash and Horn Sounds When you use the remote keyless entry transmitter to lock your vehicle, the horn will sound and your parking lamps will flash to let you know the command has been received. When you use the remote keyless entry transmitter to unlock your vehicle or operate your optional power sliding door(s), your parking lamps will flash to let you know the command has been received.
Page 154: Content Theft-Deterrent System
Content Theft-Deterrent System This feature allows you to turn the content theft-deterrent on and off. Programmable Modes Mode 1, Mode 2 and Mode 4: Feature on (If anyone opens a door or the liftgate while your content theft-deterrent system is armed, an alarm will sound and your parking lamps will flash for up to two minutes.) Mode Feature Off (Your content theft-deterrent...
Page 155: Arming And Disarming The Content Theft-Deterrent System
Arming and Disarming the Content Theft-Deterrent System To arm or disarm the content theft-deterrent system, the system must be turned on by using Modes 1, 2 or 4 listed previously. This feature allows you to customize the arming and disarming of the content-theft deterrent system. Programmable Modes Mode 1: Power Door Lock Switch Arming Off The system will arm when you lock the doors...
Page 156: Exiting Programming Mode
Before your vehicle was shipped from the factory, it was programmed in Mode 1. The mode to which the vehicle was programmed may have been changed since it left the factory. To determine the mode to which your vehicle is programmed or to program your vehicle to a different mode, do the following: 1.
Page 157: Memory Seat
Memory Seat If your vehicle has this feature, the controls are located to the left of the steering column and are used to program and recall the driver’s seat settings. Adjust the driver’s seat to the position you would like for driving.
Page 158: Instrument Panel
Section Instrument Panel Overview Hazard Warning Flashers Other Warning Devices Horn Tilt Wheel Turn SignaVMultifunction Lever Exterior Lamps Interior Lamps Switchbanks Instrument Panel Switchbank Overhead Console Switchbank ... Ultrasonic Rear Parking Assist (URPA) Accessory Power Outlets ... Climate Controls Climate Control System ... Dual Climate Control System ...
Page 159 Audio System(s) ... Setting the Time ... Radio with CD Radio with Cassette and CD Radio with Six-Disc CD Entertainment System ... Rear Seat Audio (RSA) (Without Entertainment System) Rear Seat Audio (RSA) (With Entertainment System) Instrument Panel 3.63 Theft-Deterrent Feature ... 3-63 Audio Steering Wheel Controls ...
Page 162 A. Side Outlets B. Front Outlets C. Turn SignaVMultifunction Lever D. Hazard Warning Flasher Switch E. Instrument Panel Cluster F. Center Outlets G. Audio System H. Side Outlets Exterior Lamps Control J. Hood Release K. Audio Steering Wheel Controls L. Horn M.
Page 163: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning flashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will flash on and off. Your hazard warning flashers button is located on top of the steering column.
Page 164: Tilt Wheel
Horn You can sound the horn by pressing the horn symbols on your steering wheel. Tilt Wheel A tilt wheel allows you to adjust the steering wheel before you drive. You can raise it to the highest level to give your legs more room when you exit and enter the vehicle.
Page 165: Turn And Lane-Change Signals
Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions. These positions allow you to signal a turn or a lane change. To signal a turn, move the lever all the way up or down.
Page 166: Flash-To-Pass
Flash-to-Pass When the headlamps are off, pull the lever toward you to momentarily switch on the high beams (to signal that you are going to pass). When you release the lever, off. they will turn Windshield Wipers To operate the windshield wipers turn the band marked WIPER, located on the multifunction lever.
Page 167: Cruise Control
Rear Window WasherNViper Your vehicle may have a rear window wiper. If it does, the rear window wiper switch is located in the instrument panel switchbank. Press the wiper symbol on the bottom of the switch to turn on the intermittent wiper. To turn off the wiper, gently press the top of the switch.
Page 168 Cruise control can be dangerous where you can’t drive safely at a steady speed. So, don’t use your cruise control on winding roads or in heavy traffic. Cruise control can be dangerous on slippery roads. On such roads, fast changes in tire traction can cause needless wheel spinning, and you could lose control.
Page 169: Resuming A Set Speed
Press the SET button at the end of the lever and release it. 4. Take your foot off the accelerator pedal. Resuming a Set Speed Suppose you set your cruise control at a desired speed and then you apply the brake. This, of course, shuts off the cruise control.
Page 170 Move the cruise switch from ON to R/A. Hold it there until you get up to the speed you want, and then release the switch. (To increase your speed in very small amounts, move the switch to R/A briefly and then release it.
Page 171: Exterior Lamps
Exterior Lamps The control to the left of the steering column operates the exterior lamps. 3-1 4 (Off/Auto): Turning the control to this setting will activate the automatic headlamp control when it is dark enough outside and turn off all of the lamps and lights during the day, except the Daytime Running Lamps (DRL).
Page 172: Daytime Running Lamps/Automatic Headlamp System
Daytime Running Lamps/Automatic Headlamp System Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day. DRL can be helpful in many different driving conditions, but they can be especially helpful in the short periods after dawn and before sunset.
Page 173: Fog Lamps
Fog Lamps Your vehicle may have fog lamps. If lamps switch is located in the instrument panel switchbank. Press the fog lamp symbol on the switch to turn on the lamps. 3-1 6 The indicator light will be lit when the fog lamps are on. Press the top part of the switch to turn them off.
Page 174: Interior Lamps Control
Interior Lamps Instrument Panel Brightness This feature controls the brightness of the instrument panel lights. The thumbwheel for this feature is located below the exterior lamps control. Turn the thumbwheel to the right to brighten the lights or to the left to dim them. Interior Lamps Control Turn the thumbwheel all the way to the right to turn on the interior lamps, if the interior lamps override switch...
Page 175: Entry Lighting
Entry Lighting With entry lighting, the interior of your vehicle is illuminated so that you can see inside before you enter your vehicle. The lamps will come on for 40 seconds if you unlock your door using your key or the remote keyless entry transmitter and the ignition is in LOCK or OFF.
Page 176: Exit Lighting
Exit Lighting With exit lighting, the interior lamps will come on for about 25 seconds whenever you remove the key from the ignition. If you turn the ignition key to RUN or ACCESSORY, the lamps will fade out. The lamps will also fade out if you lock the doors with the power door lock switch or the remote keyless entry transmitter.
Page 177: Rear Reading Lamps
Rear Reading Lamps There may be two reading lamps in the third row headliner. To turn on or off either reading lamp, press the lens of the lamp. There is also a reading lamp in the second row, integrated with the dome lamp. To turn on or off either reading lamp, press the button next to the lamp lens.
Page 178: Instrument Panel Switchbank
Switchbanks There are two sets of switchbanks located in the front of the vehicle. The switches will vary with the options that are your vehicle. Instrument Panel Switchbank This switchbank is located in the instrument panel below the comfort controls. The switchbank may include the rear fan knob, the rear window wiper/washer, the fog lamps, the traction control and the heated seats.
Page 179: Ultrasonic Rear Parking Assist (Urpa)
Ultrasonic Rear Parking Assist (URPA) The Ultrasonic Rear Parking Assist (URPA) system is designed to help you park, while the vehicle is in REVERSE (R). It operates only at very low speeds, less than 3 mph (5 km/h). URPA can help make parking easier and to help you avoid colliding with objects such as parked vehicles.
Page 180: How The System Works
How the System Works Unless disabled, the URPA will turn on automatically when the shift lever is moved into REVERSE (R). When the system turns on, the three lights on the display will illuminate for one and a half seconds to let you know that the system is working.
Page 181: Accessory Power Outlets
Accessory Power Outlets With accessory power outlets you can plug in electrical equipment such as a cellular telephone or CB radio. The front accessory power outlet is located below the cupholder drawer. Pull the cover down to use the accessory power outlet. When not in use, keep the cover on.
Page 182: Climate Control System
Climate Controls Climate Control System With this system you can control the heating, cooling and ventilation for your vehicle. Operation Turn the right knob clockwise or counterclockwise to direct the airflow inside of your vehicle. To change the current mode, select one of the following: (Vent): This mode directs air to the instrument panel outlets.
Page 183 (Outside Air): Press this button to turn the outside air mode on or off. When this mode is on, outside air will circulate throughout your vehicle. When this mode is on, an indicator light in the button will come on to let you know that The outside air mode can be used with all modes, but it cannot be used with the recirculation mode.
Page 184: Defogging And Defrosting
Defogging and Defrosting There are two modes to clear fog or frost from your windshield. Use the defog mode to clear the windows of fog or moisture and warm the passengers. Use the defrost mode to remove fog or frost from the windshield more quickly.
Page 185: Dual Climate Control System
Dual Climate Control System With this system you can control the heating, cooling and ventilation for your vehicle. Operation Turn the right knob clockwise or counterclockwise to direct the airflow inside of your vehicle. 3-28 To change the current mode, select one of the following: f;’...
Page 186 (Outside Air): Press this button to turn the outside air mode on or off. When this mode is on, outside air will circulate throughout your vehicle. When this mode is on, an indicator light in the button will come on to let you know that it is activated. The outside air mode can be used with all modes, but it cannot be used with the recirculation mode.
Page 187 Defogging and Defrosting There are two modes to clear fog or frost from your windshield. Use the defog mode to clear the windows of fog or moisture and warm the passengers. Use the defrost mode to remove fog or frost from the windshield more quickly.
Page 188: Outlet Adjustment
Outlet Adjustment Use the knob located in the center of the outlet, to change the direction of the air flow. Operation Tips Clear away any ice, snow or leaves from the air inlets on the hood that may block the flow of air into your vehicle.
Page 189: Rear Climate Control System (Without Entertainment System)
Rear Climate Control System (Without Entertainment System) Your vehicle may have a rear climate-control system that allows the driver to adjust the fan speed or a rear-seat passenger to set a separate temperature and adjust the fan speed, for the rear-seating area. This system works with the main climate-control system in your vehicle.
Page 190: Selecting The Fan Speed
Directing the Airflow To direct the airflow to the rear-seating area, use the right knob located on the main climate-control panel. Select vent or bi-level mode to direct air to the rear of the vehicle through the overhead outlets. Select floor, defog or defrost mode to direct air to the rear of the vehicle through the floor outlets.
Page 191: Rear Air Outlets
Rear Air Outlets To increase airflow through the rear floor outlets, place the left bucket seat in the second row in the forward position. For more information, see “Seats” in the Index. The outlet behind the left rear seat is the cold air return outlet.
Page 192 These controls are overhead, on the control panel located behind the front seats. A rear-seat passenger can use these controls to personally adjust the temperature and the fan speed for the rear-seating area. The fan knob located on the switchbank must be turned to R (Rear) to allow the rear-seat passengers to use the controls located on the control panel in the rear-seating area.
Page 193 Setting the Temperature If the driver is adjusting the temperature, do the following: To increase or decrease the temperature for the entire vehicle, use the temperature controls located on the main climate-control panel. If using the main climate-control panel, then the air-conditioning system must be on to direct cooled air to the rear of the vehicle.
Page 194: Passenger Compartment Air Filter
Passenger Compartment Air Filter Passenger compartment air, both outside and recirculated air, is routed through a passenger compartment filter. The filter removes certain contaminants from the air, including pollen and dust particles Reductions in airflow, which may occur more quickly in dusty areas, indicate that the filter needs to be replaced early.
Page 195 2. Then push the tab, located on the left of the inner access panel, to the right. 3-38 The first air filter will pull straight out. To remove the second, reach in and slide it toward the opening. Pull the second filter out. 4.
Page 196: Warning Lights, Gages And Indicators
Warning Lights, Gages and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before becomes serious enough to cause an expensive repair or replacement.
Page 197: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re going, how much fuel you’re using, and many other things you’ll need to drive safely and economically. The indicator warning lights and gages are explained on the following pages.
Page 198: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). Your vehicle has a tamper-resistant odometer.
Page 199: Retro-Active Reset
The trip odometers will continue to keep track of miles (kilometers) driven even if they are not currently displayed. To reset the odometer to zero (0), press and hold the tripheset button for at least 1.5 seconds, but less than three seconds. Only the trip odometer that is showing in the display will be reset.
Page 200: Airbag Readiness Light
Air Bag Readiness Light There is an air bag readiness light on the instrument panel, which shows the air bag symbol. The system checks the air bag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the air bag sensor, the air bag modules, the wiring and the diagnostic module.
Page 201: Brake System Warning Light
Brake System Warning Light When the ignition is on, the brake system warning light will come on when you set your parking brake. The light will stay on if your parking brake doesn’t release fully. If it stays on after your parking brake is fully released, it means you have a brake problem.
Page 202: Anti-Lock Brake System Warning Light
If the light is still on, have the vehicle towed for service. See Anti-Lock Brake System Warning Light on e 3-45 and Towing \’ rr Vehicle on page 4-32. Your brake system may not be working properly if the brake system warning light is on.
Page 203: Traction Control System (Tcs) Warning Light
Traction Control System (TCS) Warning Light TRAC United States Your vehicle may have a traction control system warning light. The traction control system warning light may come on for the following reasons: If you turn the system by pressing the TCS button located in the instrument panel switchbank the warning light will come on and stay on.
Page 204: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage \ [ - I / United States This gage shows the engine coolant temperature. If the gage pointer moves into the red area, your engine is too hot! It means that your engine coolant has overheated. If you have been operating your vehicle under normal drivinq conditions, vou should pull off the road, stop your vehicle and turn off the engine as soon as possible.
Page 205 The SERVICE ENGINE SOON or CHECK ENGINE light comes on to indicate that there is a problem and service is required. Malfunctions often will be indicated by the system before any problem is apparent. This may prevent more serious damage to your vehicle. This system is also designed to assist your service technician in correctly diagnosing any malfunction.
Page 206: If The Light Is Flashing
If the Light Is Flashing The following may prevent more serious damage to your vehicle: Reducing vehicle speed. Avoiding hard accelerations. Avoiding steep uphill grades. If you are towing a trailer, reduce the amount of cargo being hauled as soon as If the light stops flashing and remains on steady, see “If the Light On Steady”...
Page 207: Emissions Inspection And Maintenance Programs
Have you recently changed brands of fuel? If so, be sure to fuel your vehicle with quality fuel. See Gasoline Octane on page 5-5. Poor fuel quality will cause your engine not to run as efficiently as designed. You may notice this as stalling after start-up, stalling when you put the vehicle into gear, misfiring, hesitation on acceleration or stumbling on acceleration.
Page 208 Fuel Gage MESSAGE CENTER United States When the indicator nears empty, you still have a little fuel left, but you should get more soon. If your fuel is low, the warning message in the message center will come on. See Low Fuel Warning Message on page 3-49.
Page 209: Message Center
Message Center The message center is located in the instrument panel cluster. It gives you important safety and maintenance facts. Service Traction System Warning Message SERVICE TRACTION SYSTEM United States If your vehicle has the traction control system and this message is displayed when you’re driving, there may be a problem with your traction control system.
Page 210: Traction Active Message
Traction Active Message TRACTION ACTIVE States United If your vehicle has the traction control system, the TRACTION ACTIVE message will appear when the traction control system is limiting wheel spin. You may feel or hear the system working, but this is normal. Slippery road conditions may exist if this message appears, so adjust your driving accordingly.
Page 211: Charging System Indicator Message
Charging System Indicator Message The charging system battery symbol will come on in the message center when you turn on the ignition as a check to show you it is working. It will remain on as long as the engine is not running. It should go out once the engine is running.
Page 212: Low Engine Oil Level Message
L,n’ t keep driving i, .he oil pressure i , ,ow. If you do, your engine can become so hot that it catches fire. You or others could be burned. Check your oil as soon as possible and have your vehicle serviced. Notice: Damage to your engine from neglected problems can be costly and is not covered by your warranty.
Page 213: Change Engine Oil Message
Change Engine Oil Message CHANGE ENGINE United States If this message comes on and stays on after you started the engine, have the oil changed. For additional information on when to change the oil and resetting the system, see Engine Oil on page 5-14. 3-56 Power Sliding Door Warning Message...
Page 214: Door Ajar Warning Message
If you shift the transaxle out of PARK (P) while the power sliding door is open or in the process of closing, and the power sliding door is turned off, a buzzer will sound. This is a warning that the power sliding door is not completelv closed.
Page 215: Rear Hatch Ajar Warning Message
Rear Hatch Ajar Warning Message REAR HATCH AJAR United States This message will come on when the ignition is turned to RUN or START and the rear hatch is open. 3-58 PASS-Key@ 111 Security Message SECURITY Canada Canada States United If you are ever driving and this message comes on and stays on, you will be able to restart your engine if you turn it off.
Page 216: All-Wheel Drive Disable Warning Message
All-Wheel Drive Disable Warning Message DISABLE States United Your vehicle may have this message. If it does, it will come on when there is a spare tire on the vehicle, or when the anti-lock brake system warning light comes on, or when the rear differential fluid is overheating.
Page 217: Driver Information Center (Dic)
Driver Information Center (DIC) Your vehicle may have a DIC. If it does, the DIC will show information about the vehicle and the surroundings. 3-60 E/M (English/Metric Button): You can change the display to a metric or English reading at any time by pressing E/M.
Page 218: Compass Variance
Compass Variance Compass variance is the difference between magnetic north and geographic north. In some areas of the country, the difference is great enough to cause the compass to give false readings. If this occurs, the compass variance must be set. Setting the Variance \ ( ' 7 Turn the ignition on and cycle the DIC to the compass/...
Page 219: Manual Compass Calibration
Manual Compass Calibration If the compass appears erratic and the calibration symbol does not appear, you must manually put the compass into the calibration mode. Turn the ignition on and cycle the DIC to the compass/temperature mode. Press both the E/M and MODE buttons simultaneously for at least 10 seconds until the calibration symbol appears.
Page 220: Audio System(S)
Audio System(s) Notice: Before you add any sound equipment to your vehicle like a tape player, CB radio, mobile telephone or two-way radio be sure you can add what you want. If you can, it’s very important to do properly. Added sound equipment may interfere with the operation of your vehicle’s engine, Delphi Electronics radio or other systems, and even damage them.
Page 221: Radio With Cd
Radio with CD Playing the Radio PWR (Power): Press this knob to turn the system on and off. VOL (Volume): Turn the knob to increase or to decrease volume. 3-64 AUTO VOL (Automatic Volume): With automatic volume, your audio system adjusts automatically to make up for road and wind noise as you drive.
Page 222: Finding A Station
Finding a Station BAND: Press this button to switch between AM, FM1, or FM2. The display will show your selection. TUNE: Turn this knob to choose radio stations. SEEK : Press the right or the left arrow to seek to the next or to the previous station and stay there. The radio will seek only to stations that are in the selected band and only to those with a strong signal.
Page 223: Adjusting The Speakers (Balance/Fade)
Setting the Tone (Bassnreble) AUDIO: Push and release the AUDIO knob until BASS or TREB appears on the display. Turn the knob to increase or to decrease. The display will show the bass or the treble level. If a station is weak or noisy, you may want to decrease the treble.
Page 224: Using Rds
Using RDS Radio Data System (RDS): Your audio system is equipped with a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. Seek to stations broadcasting the selected type of programming, receive announcements concerning local and national emergencies, display messages from radio stations, and...
Page 225: Rds Messages
RDS Messages ALERT!: Alert warns of local or national emergencies. When an alert announcement comes on the current radio station, ALERT! will appear on the display. You will hear the announcement, even if the volume is muted or a compact disc is playing. If the compact disc player is playing, play will stop during the announcement.
Page 226: Radio Messages
Radio Messages CAL ERR (Calibration Error): This message is displayed when the radio has not been calibrated properly for the vehicle. You must return to the dealership for service. LOCKED: This message is displayed when the THEFTLOCK@ system has locked up. You must return to the dealership for service.
Page 227: Compact Disc Messages
: Press the left arrow to go to the start of SEEK the current or of the previous track. Press the right arrow to go to the start of the next track. If either of the arrows is held or pressed more than once, the player will continue moving backward or forward through the CD.
Page 228 Radio with tte and CD Playing the Radio PWR (Power): Press this knob to turn the system on and off. VOL (Volume): Turn the knob to increase or to decrease volume. AUTO VOL (Automatic Volume): With automatic volume, your audio system adjusts automatically to make up for road and wind noise as you drive.
Page 229 Finding a Station BAND: Press this button to switch between AM, FM, or FM2. The display will show your selection. TUNE: Turn this knob to choose radio stations. : Press the right or the left arrow to seek SEEK to the next or to the previous station and stay there. The radio will seek only to stations that are in the selected band and only to those with a strong signal.
Page 230 Setting the Tone (Bassnreble) AUDIO: Push and release the AUDIO knob until BASS or TREB appears on the display. Turn the knob to increase or to decrease. The display will show the bass or the treble level. If a station is weak or noisy, you may want to decrease the treble.
Page 231 Using RDS Radio Data System (RDS): Your audio system is equipped with a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. Seek to stations broadcasting the selected type of programming, receive announcements concerning local and national emergencies, display messages from radio stations, and...
Page 232 RDS Messages ALERT!: Alert warns of local or national emergencies. When an alert announcement comes on the current radio station, ALERT! will appear on the display. You will hear the announcement, even if the volume is muted or a cassette tape or compact disc is playing. If the cassette tape or compact disc player is playing, play will stop during the announcement.
Page 233: Playing A Cassette Tape
Radio Messages CAL ERR (Calibration Error): This message is displayed when the radio has not been calibrated properly for the vehicle. You must return to the dealership for service. LOCKED: This message is displayed when the THEFTLOCK@ system has locked up. You must return to the dealership for service.
Page 234: Cassette Tape Messages
FWD (Forward): Press this pushbutton to advance quickly. Press this pushbutton again to return to playing speed. The radio will play while the tape advances. The station frequency and FWD will appear on the display. You may select stations during forward operation by using TUNE, SEEK or PSCAN.
Page 235: Cd Adapter Kits
CD Adapter Kits It is possible to use a portable CD player adapter kit with your cassette tape player after disabling the tight/loose tape sensing feature on your tape player. To disable the feature, use the following steps: 1. Turn the ignition on. 2.
Page 236 6 RDM (Random): Press this pushbutton to hear the tracks in random, rather than sequential, order. RDM ON will appear on the display. RDM T and the track number will appear on the display when each track starts to play. Press it again to turn off random play. RDM OFF will appear on the display.
Page 237: Radio With Six-Disc Cd
Radio with Six-Disc CD Playing the Radio PWR (Power): Push this knob to turn the system on and off. VOL (Volume): Turn the knob to increase or to decrease volume. 3-80 AUTO VOL (Automatic Volume): Your system has a feature called automatic volume. With this feature, your audio system adjusts automatically to make up for road and wind noise as you drive.
Page 238 Finding a Station AM FM: Press this button to switch between AM, FM1 and FM2. The display will show your selection. TUNE: Turn this knob to select radio stations. SEEK >I : Press the right or the left arrow to go to the next or to the previous station and stay there.
Page 239 Setting the Tone (BasdTreble) AUDIO: Push the AUDIO knob until BASS, MID or TREB appears on the display. Turn the knob to increase or to decrease. If a station is weak or noisy, you may want to decrease the treble. To adjust bass, midrange or treble to the middle position, select BASS, MID or TREB and push and hold the AUDIO knob.
Page 240 Using RBS Your audio system is equipped with a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. Using this system, the radio can do the following: Seek to stations broadcasting the selected type of programming, receive announcements concerning local and national emergencies,...
Page 241: Setting Preset Ptys
SCAN: You can also scan through the channels within a category by performing the following: 1. Press the P-TYPE button. P-TYPE and the last selected PTY will be displayed on the screen. 2. Select a category by turning the P-TYPE knob. Once the desired category is displayed, press and hold either SCAN arrow, and the radio will begin scanning within your chosen category.
Page 242 RDS Messages ALERT!: Alert warns of local or national emergencies. When an alert announcement comes on the current radio station, ALERT! will appear on the display. You will hear the announcement, even if the volume is muted or a compact disc is playing. If the compact disc player is playing, play will stop during the announcement.
Page 243 Playing a Compact Disc If an error appears on the display, see “Compact Disc Messages” later in this section. LOAD CD Press the LOAD side of this button to load CDs into the compact disc player. This compact disc player will hold up to six discs. To insert one disc, do the following: 1.
Page 244 Playing a Specific Loaded Compact Disc For every CD loaded, a number will appear on the radio display. To play a specific CD, first press the CD AUX button to start playing a CD. Then press the numbered pushbutton that corresponds to the CD you want to play.
Page 245 RDM (Random): With random, you can listen to the tracks in random, rather than sequential, order, on one disc or on all of the discs. To use random, do one of the following: To play the tracks on the disc you are listening to in random order, press and hold RDM for more than two seconds.
Page 246: Using Song List Mode
Using Song List Mode The integrated six-disc CD changer has a feature called song list. This feature is capable of saving 20 track selections. To save tracks into the song list feature, perform the following steps: 1. Turn the disc player on and load it with at least one disc.
Page 247 To delete tracks from the song list, perform the following steps: 1. Turn the disc player on. 2. Press the SONG LIST button to turn song list on. S-LIST will appear on the display. 3. Press the SEEK SCAN arrows to select the desired track to be deleted.
Page 248: Entertainment System
Compact Disc Messages CHECK CD: If this message appears on the radio display, it could be due to one of the following reasons: You’re driving on a very rough road. When the road becomes smoother, the disc should play. The disc is dirty, scratched, wet or upside down. The air is very humid.
Page 249 Headphones The entertainment system includes dual channel, wireless headphones. The headphones have an ON/OFF switch, a channel A/B switch and a volume control. To use the headphones, turn the switch located on the left side to ON. An indicator light located on the right side will illuminate.
Page 250: Battery Replacement
Battery Replacement To change the batteries, do the following: 1. Slide open the battery door located on the left side of the headphones. 2. Rplace the two AAA batteries in the compartment. Make sure that they are installed correctly. 3. Sde the battery door shut. If the headphones are to be stored for time, remove the batteries and keep them in a cool, dry place.
Page 251: Video Screen
Video Screen The video screen is located in the overhead console. To use the video screen, do the following: 1 . Push forward on the release button and the screen will fold down. 2. Pull the screen toward you and adjust its position as desired.
Page 252: Ejecting A Disc
The entertainment system is only compatible with DVDs authorized for use in the United States and Canada. Regular audio CDs can also be played by the DVD player. Home recorded CDs (CDRs) may not play in this DVD player. Try the audio system CD player instead. DVD Player Buttons SOURCE: Press this button to switch the source for the entertainment system between the auxiliary device...
Page 253: Remote Control Buttons
Remote Control To use the remote control, aim it at the display above the video screen and press the desired button. Direct sunlight or very bright light may affect the ability of the entertainment system to receive signals from the remote control. Be sure the remote’s batteries are not discharged, as this will also affect the function of the remote control.
Page 254 Fwd/( Rev (Fast Forward/Reverse): right or left arrow once to fast forward or reverse the DVD. To resume play, press the button again or press the Play/Pause button. Pressing and holding an arrow will fast forward or fast reverse the DVD and play will resume when the arrow is released.
Page 255: Rear Seat Audio (Rsa) (Without Entertainment System)
Rear Seat Audio (RSA) (Without Entertainment System) This feature allows rear seat passengers to listen to and control any of the music sources: radio, cassette tapes and CDs. However, the rear seat passengers can only control the music sources that the front seat passengers are not listening to.
Page 256 AM FM: Press this button to switch between AM, FM1 and FM2. If the front passengers are already listening to the radio, the RSA controller will not switch between the bands and cannot change the frequency. Press this button to play a cassette tape or a compact disc when listening to the radio.
Page 257: Rear Seat Audio (Rsa) (With Entertainment System)
Rear Seat Audio (RSA) (With Entertainment System) This feature allows rear seat passengers to listen to and control any of the music sources: radio, cassette tapes and CDs. However, the rear seat passengers can only control the music sources that the front seat passengers are not listening to.
Page 258: Theft-Deterrent Feature
While listening to a cassette tape, press the right arrow to hear the next selection on the tape. Press the left arrow to go back to the previous selection. These arrows are inactive if the tape mode on the front radio is in use. While listening to a CD, press the right arrow to hear the next track on the CD.
Page 259: Audio Steering Wheel Controls
Audio Steering Wheel Controls If your vehicle has this feature, you can control certain radio functions using the buttons on your steering wheel. SEEK : Press the up or the down arrow to seek to the next or to the previous station. When playing a cassette tape or compact disc, press the up arrow to hear the next selection.
Page 260: Dvd Distortion
DVD Distortion You may experience video distortion when operating cellular phones, scanners, CB radios, Global Position Systems (GPS)*, two-way radios, mobile fax, or wal kie talkies. It may be necessary to turn off the DVD player when operating one of these devices in or near the vehicle. *Excludes the Onstar@ System.
Page 261: Care Of Your Cds And Dvds
The broken tape detection feature of your cassette tape player may identify the cleaning cassette as a damaged tape, in error. To prevent the cleaning cassette from being ejected, use the following steps: 1. Turn the ignition on. 2. Turn the radio off. 3.
Page 262: Cleaning Your Dvd Player
Cleaning Your DVD Player When cleaning the outside DVD cabinet face and buttons, use only a clean cloth dampened with clean water. Cleaning Video Screen When Cleaning the video Screen, Use Only dampened with clean water. Use care when touching or cleaning the screen, as damage may result. Fixed Mast Antenna The fixed mast antenna can withstand most car washes without being damaged.
Page 263 NOTES 3-1 06...
Page 264: Driving Your Vehicle
Section Your Driving. the Road. and Your Vehicle Defensive Driving Drunken Driving Control of a Vehicle Braking Traction Control System (TCS) All-Wheel Drive (AWD) System ... Steering Off-Road Recovery ... Passing Loss of Control ... Driving at Night Driving in Rain and on Wet Roads Driving Your Vehicle City Driving Freeway Driving...
Page 265: Your Driving. The Road. And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone page 1-22.
Page 266: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It’s the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: Judgment Muscular Coordination Vision...
Page 267 According to the American Medical Association, a 180 Ib (82 kg) person who drinks three 12 ounce (355 ml) bottles of beer in an hour will end up with a BAC of about 0.06 percent. The person would reach the same BAC by drinking three 4 ounce (120 ml) glasses of wine or three mixed drinks if each had 1 (45 ml) of a liquor like whiskey, gin or vodka.
Page 268 But the ability to drive is affected well below a BAC of 0.10 percent. Research shows that the driving skills of many people are impaired at a BAC approaching 0.05 percent, and that the effects are worse at night. All drivers are impaired at BAC levels above 0.05 percent.
Page 269: Control Of A Vehicle
Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering and the accelerator. All three systems have to do their work at the places where the tires meet the road. Sometimes, as when you’re driving on snow or ice, it’s easy to ask more of those control systems than the tires and road can provide.
Page 270: Anti-Lock Brake System (Abs)
Avoid needless heavy braking. Some people drive in spurts heavy acceleration followed by heavy braking rather than keeping pace with traffic. This is a mistake. Your brakes may not have time to cool between hard stops. Your brakes will wear out much faster if you do a lot of heavy braking.
Page 271 Let’s say the road is wet and you’re driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here’s what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each wheel.
Page 272: Using Anti-Lock
Remember: Anti-lock doesn’t change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you won’t have time to apply your brakes if that vehicle suddenly slows or stops.
Page 273: Traction Control System (Tcs)
Control Traction System (TCS) Your vehicle may have a traction control system that limits wheel spin. This is especially useful in slippery road conditions. The system operates only if it senses that one or both of the front wheels are spinning or beginning to lose traction.
Page 274: All-Wheel Drive (Awd) System
To turn the system off, press the TCS button located on the instrument panel switchbank. If the System is hliting wheel Spin when button, the traction active message the system will not turn off until there is no longer a current need to limit wheel spin.
Page 275: Steering
Steering Power Steering If you lose power steering assist because the engine stops or the system is not functioning, you can steer but it will take much more effort. Steering Tips Driving on Curves It’s important to take curves at a reasonable speed. A lot of the “driver lost control”...
Page 276: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and find a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 277: Off-Road Recovery
Off-Road Recovery You may find that your right wheels have dropped off the edge a road onto the shoulder while you’re driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 278 Do not get too close to the vehicle you want to pass while you’re awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you’re following a larger vehicle. Also, you won’t have adequate space if the vehicle ahead suddenly slows or stops.
Page 279: Loss Of Control
Loss of Control Let’s review what driving experts say about what happens when the three control systems (brakes, steering and acceleration) don’t have enough friction where the tires meet the road to do what the driver has asked. In any emergency, don’t give up. Keep trying to steer and constantly seek an escape route or area of less danger.
Page 280: Driving At Night
Driving at Night Night driving is more dangerous than day driving. One is that s s z e &j\,lers p h ! ! 2rf! alcohol or drugs, with night vision problems, or by fatigue. Here are some tips on night driving. Drive defensively.
Page 281: Driving In Rain And On Wet Roads
You can be temporarily blinded by approaching headlamps. It can take a second or two, or even several seconds, for your eyes to readjust to the dark. When you are faced with severe glare (as from a driver who doesn’t lower the high beams, or a vehicle with misaimed headlamps), slow down a little.
Page 282 The heavier the rain, the harder it windshield wiper blades are in good shape, a heavy rain can make it harder to see road signs and traffic signals, pavement markings, the edge of the road and even people walking. It’s wise to keep your wiping equipment in good shape and keep your windshield washer tank filled with washer fluid.
Page 283: Driving Through Deep Standing Water
Hydroplaning Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the water. This can happen if the road is wet enough and you’re going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road. Hydroplaning doesn’t happen often.
Page 284: City Driving
City Driving One of the biggest problems with city streets is the t’ll ~ n t n g thnm t v n # ; n I r r e n t - - _ I U I I I V U I I L V I L I U I I I C I L I I G l l l .
Page 285: Freeway Driving
Freeway Driving Mile for mile, freeways (also called thruways, parkways, expressways, turnpikes or superhighways) are the safest of all roads. But they have their own special rules. 4-22 The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 286: Before Leaving On A Long Trip
When you want to leave the freeway, move to the proper lane well in advance. If you miss your exit, do not, under any circumstances, stop and back up. Drive on to the next exit. The exit ramp can be curved, sometimes quite sharply. The exit speed is usually posted.
Page 287: Highway Hypnosis
Highway Hypnosis Is there actually such a condition as “highway hypnosis”? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 288 If you drive regularly in steep country, or if you’re planning to visit there, here are some tips that can make your trips safer and more enjoyable. Keep your vehicle in good shape. Check all fluid levels and also the brakes, tires, cooling system and transaxle.
Page 289: Winter Driving
Winter Driving Here are some tips for winter driving: Have your vehicle in good shape for winter. You may want to put winter emergency supplies in your vehicle. 4-26 Include an ice scraper, a small brush or broom, a supply of windshield washer fluid, a rag, some winter outer clothing, a small shovel, a flashlight, a red cloth and a couple of reflective warning triangles.
Page 290 What’s the worst time for this? “Wet ice.” Very cold snow or ice can be slick and hard to drive on. But wet ice can be even more trouble because it may offer thn in-& - 1 1 t v n n t i n n V n v m n - m I I U b L i U I I V I ( 5 1 1 .
Page 291: If You're Caught In A Blizzard
Remember, unless you have anti-lock, if you brake so hard that your wheels stop rolling, you’ll just slide. Brake so your wheels always keep rolling and you can still steer. Whatever your braking system, allow greater following distance on any slippery road. Watch for slippery spots.
Page 292 Here are some things to do to summon help and keep yourself and your passengers safe: Turn on your hazard flashers. Tie a red cloth to your vehicle to alert police that you’ve been stopped by the snow. Put on extra clothing or wrap a blanket around you. If you have no blankets or extra clothing, make body insulators from newspapers, burlap bags, rags, floor mats...
Page 293: If You Are Stuck: In Sand, Mud, Ice Or Snow
Run your engine only as long as you must. This saves fuel. When you run the engine, make it go a little faster than just idle. That is, push the accelerator slightly. This uses less fuel for the heat that you get and it keeps the battery charged.
Page 294: Rocking Your Vehicle To Get It Out
Notice: Spinning your wheels can destroy parts of your vehicle as well as the tires. If you spin the wheels too fast while shifting your transaxle back and forth, you can destroy your transaxle. See “Rocking Your Vehicle To Get For information about using tire chains on your vehicle, see Tire Chains on page 5-67.
Page 295: Towing
Towing Towing Your Vehicle Consult your dealer or a professional towing service if you need to have your disabled vehicle towed. See Roadside Assistance Program If you want to tow your vehicle behind another vehicle for recreational purposes (such as behind a motorhome), see ”Recreational Vehicle Towing”...
Page 296: Dinghy Towing
Dinghy Towing Your vehicle was not designed to be towed with all of its wheels on the ground. If you have a two-wheel-drive vehicle, it can be towed with two of its wheels on the ground. See “Dolly Towing” following. If you have an all-wheel-drive vehicle, cannot be towed with any of its wheels on the ground.
Page 297: Loading Your Vehicle
Loading Your Vehicle The CertificationDire label is found on the rear edge of the driver's door. The label shows the size of your original tires and the inflation pressures needed to obtain the gross weight capacity of your vehicle. This is called the Gross Vehicle Weight Rating (GVWR).
Page 298: Automatic Level Control
If you put things inside your vehicle tools, packages, or anything else as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they'll keep going. Things you put inside your vehicle can strike and injure people in a sudden stop or turn, or in a crash.
Page 299 T o w i v a Trailer = m m If you don’t use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well at all.
Page 300: If You Do Decide To Pull A Trailer
If You Do Decide To Pull A Trailer If you do, here are some important points: There are many different laws, including speed limit restrictions, having do with trailering. Make sure your rig will be legal, not only where you live but also where you’ll be driving.
Page 301: Weight Of The Trailer Tongue
And, it can also depend on any special equipment that you have on your vehicle. You can ask your dealer for our trailering information or advice, or you can write us at: Oldsmobile Customer Assistance P.O. Box 33171 Detroit, MI 48232-51 71 In Canada, write to:...
Page 302: Total Weight On Your Vehicle's Tires
If you’re using a weight-carrying or a weight-distributing hitch, the trailer tongue weight (A) should be 10 percent to 15 percent of the total loaded trailer weight (B). Do not exceed the maximum allowable tongue weight for your vehicle. After you’ve loaded your trailer, weigh the trailer and then the tongue, separately, to see if the weights are proper.
Page 303: Safety Chains
Safety Chains You should always attach chains between your vehicle and your trailer. Cross the safety chains under the tongue of the trailer to help prevent the tongue from contacting the road if it becomes separated from the hitch. Instructions about safety chains may be provided by the hitch manufacturer or by the trailer manufacturer.
Page 304: Following Distance
rowing a trailer requires a certain amount of experience. Before setting out for the open road, you’ll want to get to know your rig. Acquaint yourself with the feel of handling and braking with the added weight of the trailer. And always keep in mind that the vehicle you are driving is now a good deal longer and not nearly as responsive as your vehicle is by itself.
Page 305: Turn Signals When Towing A Trailer
Turn Signals When Towing a Trailer When you tow a trailer, your vehicle has to have extra wiring. The arrows on your instrument panel will flash whenever you signal a turn or lane change. Properly hooked up, the trailer lamps will also flash, telling other drivers you’re about to turn, change lanes or stop.
Page 306: When You Are Ready To Leave After Parking On A Hill
When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: start your engine, shift into a gear, and release the parking brake. 2. Let up on the brake pedal. 3.
Page 308: Service And Appearance Care
Section 5 Service Doing Your Own Service Work Adding Equipment to the Outside of Your Vehicle Fuel Gasoline Octane Gasoline Specifications California Fuel Additives ... Fuels in Foreign Countries Filling Your Tank Filling a Portable Fuel Container ... Checking Things Under the Hood ... - 5 - 1 0 Hood Release Engine Compartment Overview Engine Oil ...
Page 309 Section Appearance Care Cleaning the Inside of Your Vehicle Care of Safety Belts Weatherstrips Cleaning the Outside of Your Vehicle ... 5-90 Sheet Metal Damage Finish Damage Underbody Maintenance Chemical Paint Spotting GM Vehicle Care/Appearance Materials Service and Appearance Care Vehicle Identification 5.87 Vehicle Identification Number (VIN)
Page 310: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you’ll go to your dealer for all your service needs. You’ll get genuine GM parts and GM-trained and supported service people. We hope you’ll want to keep your GM vehicle all GM. Genuine GM parts have one of these marks: Doing Your Own Service Work If you want to do some of your own service work, you’ll...
Page 311: Adding Equipment To The Outside Of Your Vehicle
You should keep a record with all parts receipts and list the mileage and the date of any service work you Maintenance Record perform. See Part E: - . - You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about Be sure you have sufficient knowledge, experience, the proper replacement parts...
Page 312: Fuel
Use of the recommended fuel is an important part of the proper maintenance of your vehicle. Gasoline Octane Use regular unleaded gasoline with a posted octane of 87 or higher. If the octane is less than 87, you may get a heavy knocking noise when you drive. If this occurs, use a gasoline rated at 87 octane or higher as soon as possible.
Page 313: California Fuel
California Fuel If your vehicle is certified to meet California Emission Standards (see the underhood emission control label), it is designed to operate on fuels that meet California specifications. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal specifications, but emission control system performance may be affected.
Page 314: Fuels In Foreign Countries
Fuels in Foreign Countries If you plan on driving in another country outside the United States or Canada, the proper fuel may be hard to find. Never use leaded gasoline or any other fuel not recommended in the previous text on fuel. Costly repairs caused by use of improper fuel wouldn’t be covered by your warranty.
Page 315 While refueling, let the fuel cap hang by the tether as shown. If you get fuel on yourself and then something ignites you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly.
Page 316 When you put the fuel cap back on, turn (clockwise) until you hear a clicking sound. Make sure you fully install the cap. The diagnostic system can determine if the fuel cap has been left off or improperly installed. This would allow fuel to evaporate into the atmosphere.
Page 317: Checking Things Under The Hood
Checking Things Under the Hood A'CAUTION: An electric fan under the hood can start up and injure you even when the engine is not running. Keep hands, clothing and tools away from any underhood electric fan. Things that burn can get on hot engine parts and start a fire.
Page 318 Lift the hood. Pull forward on the hood prop to release it from its storage clip. The hood prop may be hot due to increased engine temperatures under the hood, so be careful when handling it. Use your hood prop sleeve when handling the hood prop.
Page 319: Engine Compartment Overview
Engine Compartment Overview When you lift the hood, you’ll see these items: 5-1 2...
Page 320 A. Underhood Fuse Block B. Remote Positive (+) Terminal C. Windshield Washer Fluid Reservoir D. Radiator Pressure Cap E. Power Steering Fluid Reservoir Engine Oil Fill Cap G. Engine Oil Dipstick H. Transaxle Fluid Dipstick I . Brake Master Cylinder Reservoir J.
Page 321: Checking Engine Oil
Engine Oil ENG OIL LEVEL United States If the low engine oil level message appears on the instrument cluster, it means you need to check your engine oil level right away. For more information, see Low Engine Oil Level Message on page 3-55. You should check your engine oil level regularly;...
Page 322: When To Add Engine Oil
When to Add Engine Oil If the oil is at or below the cross-hatched area at the tip the dipstick, then you’ll need to add at least one quart of oil. But you must use the right kind. This part explains what kind of oil to use.
Page 323: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Oils recommended for your vehicle can be identified by looking for the starburst symbol. This symbol indicates that the oil has been certified by the American Petroleum Institute (API). Do not use any oil which does not carry this starburst symbol. If you choose to perform the engine oil change service yourself, be sure...
Page 324: Engine Oil Additives
As in the chart shown previously, SAE 5W-30 is the only viscosity grade recommended for your vehicle. You should look for and use only oils which have the API Starburst symbol and which are also identified as SAE 5W-30. If you cannot find such SAE 5W-30 oils, you can use an SAE 1OW-30 oil which has the API Starburst symbol, if it's going to be or above.
Page 325: How To Reset The Change Engine Oil Message
How to Reset the Change Engine Oil Message The GM Oil Life System calculates when to change your engine oil and filter based on vehicle use. Anytime your oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where you change your oil prior to a change engine oil message being turned on, reset the system.
Page 326: Engine Air Cleanedfilter
Engine Air CleanedFilter The engine air cleaner/filter is located at the front of the engine compartment, on the driver’s side of the vehicle, under the engine coolant reservoir. See Engine Compartment Overview on page 5- information on location. Checking or Replacing the Engine Air Cleaner/Filter 1.
Page 327: Automatic Transaxle Fluid
Automatic Transaxle Fluid When to Check and Change A good time to check your automatic transaxle fluid level is when the engine oil is changed. Change both the fluid and filter every 50,000 miles km) if the vehicle is mainly driven under one or more of these conditions: In heavy city traffic where the outside temperature regularly reaches 90°F (32°C) or higher.
Page 328: Checking The Fluid Level
Checking the Fluid Level Prepare your vehicle as follows: Park your vehicle on a level place. Keep the engine running. With the parking brake applied, place the shift lever in PARK (P). With your foot on the brake pedal, move the shift lever through each gear range, pausing for about three seconds in each range.
Page 329: How To Add Fluid
3. Check both sides of the dipstick, and read the lower level. The fluid level must be in the cross-hatched area. 4. If the fluid level is in the acceptable range, push the dipstick back in all the way. How to Add Fluid Refer to the Maintenance Schedule to determine what kind of transaxle fluid to use.
Page 330: Engine Coolant
Engine Coolant The cooling system in your vehicle is filled with DEX-COOL@ engine coolant. This coolant is designed to remain in your vehicle for 5 years or 150,000 miles (240 000 km), whichever occurs first, if you add only DEX-COOL@ extended life coolant. The following explains your cooling system and how to add coolant when it is low.
Page 331: What To Use
What to Use Use a mixture of one-half clean, drinkable water and one-half DEX-COOL@ coolant which won’t damage aluminum parts. If you use this coolant mixture, you don’t need to add anything else. Adding on plain wa to your cooling system can be dangerous.
Page 332: Adding Coolant
The vehicle must be on a level surface. When your engine is cold, the coolant level should be at the FULL COLD mark, or a little higher. When your engine is warm, the level should be above the FULL COLD mark or a little higher.
Page 333: Radiator Pressure Cap
Radiator Pressure Cap Notice: Your radiator cap is a pressure-type cap and must be tightly installed to prevent coolant loss and possible engine damage from overheating. Be sure the arrows on the cap line overflow tube on the radiator filler neck. The radiator pressure cap is located at the front of the engine compartment on the passenger’s side of the vehicle.
Page 334: If Steam Is Coming From Your Engine
If Steam Is Coming From Your Engine Steam fr rheated engine you badly, even if you just open the hood. Stay away from the engine if you see or hear steam coming from Just turn everyone away from the vehicle until down.
Page 335: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine If you get an engine overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: Climb a long hill on a hot day. Stop after high-speed driving.
Page 336: Cooling System
Cooling System When you decide it’s safe to lift the hood, here’s what you’ll see: A. Radiator Pressure Cap B. Electric Engine Cooling Fans C. Coolant Recovery Tank An electric engine cooling far. -..-er the hood can start up even when the engine is not running and can injure you.
Page 337 The coolant level should be at or above the FULL COLD mark. If it isn’t, you may have a leak at the pressure cap or in the radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system. 5-30 Heater and radiator hoses, and other engine parts, can be very hot.
Page 338 Notice: Engine damage from running your engine without coolant isn’t covered by your warranty. See “Overheated Engine Protection Operating Mode” in the Index for information on driving to a safe place in an emergency. Notice: When adding coolant, it is important that you use only DEX-COOL@ (silicate-free) coolant.
Page 339 Notice: In cold weather, water can freeze and crack the engine, radiator, heater core and other parts. Use the recommended coolant and the proper coolant mixture. 5-32 You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol will burn if the engine parts are hot enough.
Page 340 Steam and scaldi,,, liquids ,.dm a hot cooli.., system can blow out and burn you badly. They are under pressure, and if you turn the radiator pressure cap even a little they can come out at high speed. Never turn the cap when the cooling system, including the radiator pressure cap, is hot.
Page 341: How To Add Coolant To The Radiator
How to Add Coolant to the Radiator Notice: Your engine has a specific radiator fill procedure. Failure to follow this procedure could cause your engine to overheat and be severely damaged. 1. You can remove the radiator pressure cap when the cooling system, including the radiator pressure cap and upper radiator hose, is no longer hot.
Page 342 You can burned if you sc-.. coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Don't spill coolant on a hot engine. 3. After the engine cools, open the coolant air bleed valves.
Page 343 Start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fans. By this time, the coolant level inside the radiator filler neck may be lower. If the level is lower, add more of the proper DEX-COOL@ coolant mixture through the filler neck until the level reaches the base...
Page 344: Power Steering Fluid
Power Steering Fluid FULL 9. Then fill the coolant recovery tank to the COLD mark. The power steering fluid reservoir is located to the right 10. Put the cap back on the coolant recovery tank. of the windshield washer fluid reservoir, at the back of the engine compartment.
Page 345: Windshield Washer Fluid
When to Check Power Steering Fluid It is not necessary to regularly check power steering fluid unless you suspect there is a leak in the system or you hear an unusual noise. A fluid loss in this system could indicate a problem. Have the system inspected and repaired.
Page 346: Brakes
Noiice: When using concentrated washer fluid, follow the manufacturer’s instructions for adding water. Don’t mix water with ready-to-use washer fluid. Water can cause the solution to freeze and damage your washer fluid tank and other parts of the washer system. Also, water doesn’t clean as well as washer fluid.
Page 347: What To Add
There are only two reasons why the brake fluid level in the reservoir might go down. The first is that the brake fluid goes down to an acceptable level during normal brake lining wear. When new linings are put in, the fluid level goes back up.
Page 348: Brake Wear
h the wrong kind of fluid in system, your brakes may not work well, or they may not even work at all. This could cause a crash. Always use the proper brake fluid. Notice: Using the wrong fluid can badly damage brake system parts.
Page 349: Brake Pedal Travel
Properly torqued wheel nuts are necessary to help prevent brake pulsation. When tires are rotated, inspect brake pads for wear and evenly tighten wheel nuts in the proper sequence to GM torque specifications. Your rear drum brakes don’t have wear indicators, but if you ever hear a rear brake rubbing noise, have the rear brake linings inspected immediately.
Page 350: Battery
Battery Your new vehicle comes with a maintenance free ACDelco@ battery. When it’s time for a new battery, get one that has the replacement number shown on the original battery’s label. We recommend an ACDelco@ battery. See Engine Comparfment Overview on page 5-72 for battery location.
Page 351: Jump Starting
Jump Starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to follow the steps below to do it safely. On vehicles equipped with the optional power sliding door, a low-voltage battery or replacing a battery may cause the system to become inoperative.
Page 352 Notice: If you leave your radio on, it could be badly damaged. The repairs wouldn’t be covered by your warranty. Turn off the ignition on both vehicles. Unplug unnecessary accessories plugged into the cigarette lighter or in the accessory power outlet. Turn off the radio and all lamps that aren’t needed.
Page 353 Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded. Use a flashlight if you need more light. Be sure the battery has enough don’t need to add water to the ACDelco@ battery installed in your new vehicle.
Page 354 6. Connect the red positive (+) cable to the positive (+) terminal the dead battery. Use a remote positive (+) terminal if the vehicle has one. 7. Don’t let the other end touch metal. Connect it to the positive (+) terminal battery.
Page 355 Connect the other end of the negative (-) cable at least 18 inches (45 cm) away from the dead battery, but not near engine parts that move. The electrical connection is just as good there, and the chance of sparks getting back to the battery is much less.
Page 356 Jumper Cable Removal A. Heavy, Unpainted Metal Engine Part B. Good Battery or Remote Positive (+) Terminal C. Dead Battery or Remote Positive (+) Terminal To disconnect the jumper cables from both vehicles, do the following: 1. Disconnect the black negative (-) cable from the vehicle that had the dead battery.
Page 357: All-Wheel Drive
All-Wheel Drive If you have an all-wheel-drive vehicle, be sure to perform the lubricant checks described in this section. However, they have two additional systems that need lubrication. Transfer Case (Power Transfer Unit) When to Check Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant.
Page 358 Carrier Assembly-Differential (Rear Drive Module) When to Check and Change Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant and when to change it. See Part A: Scheduled Maintenance Services on page 6-4. How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface.
Page 359: Bulb Replacement
Bulb Replacement For the type of bulbs, see Replacement Bulbs on page 5-57. For any bulb changing procedure not listed in this section, contact your dealer. Halogen Bulbs Ha.,Jen ,Jibs e pressurized ga, .nside and can burst if you drop or scratch the bulb. You or others could be injured.
Page 360 7. Install the new bulb through the black retainer ring :-+e. + L e -l--+";--l -n----rL-.r ~ t b t u ~ . i1u LI C i t b L I ibal b u t retainer ring in place. Push the bulb firmly enough so that the blue tabs hook over the tab on the bulb.
Page 361: Front Turn Signal, Sidemarker And Parking Lamps
9. Align the pins on the bottom of the headlamp assembly with the holes in the lamp support bracket. 10. To reinstall the front turn signaVparking lamp assembly. See Front Turn Signal, Sidemarker and Parking Lamps on page 5-54 next. 5-54 Front Turn Signal, Sidemarker and Parking Lamps...
Page 362 3. Pull the front turn signaVparking lamp assembly away from the vehicle. Front Turn SignaVParking Lamp Front Sidemarker Lamp Unscrew the bulb socket from the lamp assembly by pressing the tab while turning it counterclockwise. Replace the bulb by pulling the old one out and gently pushing the new one into the lamp socket.
Page 363: Taillamps, Turn Signal, Stoplamps And Back-Up Lamps
To reinstall the lamp assembly, line up and insert the tabs on the back of the assembly in the slots in the fender. Engage the lower clip on the back of the lamp assembly into the fender, keeping the upper tab on the front turn signaVparking lamp assembly inboard of the headlamp bracket tab.
Page 364: Replacement Bulbs
A. Taillamp Bulb C. Turn Signal Lamp Bulb 6. Back-up Lamp Bulb D. StopTTailIamp Bulb 5. Replace the bulb by pulling the old bulb out and gently pushing the new bulb into the bulb holder socket. 6. Snap the bulb holder back into place, making sure all retaining tabs are properly over the bulb holder tabs.
Page 365: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected at least twice a year for wear or cracking. See “Wiper Blade Check in At Least Twice a Year on page 6-10 for more information. Replacement blades come in different types and are removed in different ways.
Page 366 5. Push the release clip at the connecting point of the blade and the arm up. Then pull the blade assembly down toward the glass to remove it from the wiper arm. 6. Push the new wiper blade securely on the wiper arm until you hear the release clip “click”...
Page 367: Tires
Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your Oldsmobile Warranty booklet for details. Poorly maintained and improperly used tires are dangerous.
Page 368: Inflation - Tire Pressure
Inflation Tire Pressure The Certificationflire label, which is on the rear edge ot the driver’s door, shows the correct inflation pressures for your tires when they’re cold. “Cold” means your vehicle has been sitting for at least three hours or driven no more than 1 mile (1.6 km).
Page 369: Tire Inspection And Rotation
Tire Inspection and Rotation Tires should be rotated every 7,500 miles (12 500 km). Any time you notice unusual wear, rotate your tires as soon as possible and check wheel alignment. Also check for damaged tires or wheels. See When It Is Time for New Tires on page 5-63 and Wheel Replacement on page 5-66 for more information.
Page 370: When It Is Time For New Tires
After the tires have been rotated, adjust the front and rear inflation pressures as shown on the Certification/Tire label. Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque” under Capacities and Specifications on page 5- 103. -3ust or dirt on a wheel, or on the parts to which is fastened, can make wheel nuts...
Page 371: Buying New Tires
Buying New Tires To find out what kind and size of tires you need, look at the Certificationflire label. The tires installed on your vehicle when it was new had a Tire Petformance Criteria Specification (TPC Spec) number on each tire’s sidewall. When you get new tires, get ones with that same TPC Spec number.
Page 372: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance.
Page 373: Wheel Alignment And Tire Balance
Temperature A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 374: Tire Chains
If you need to replace any of your wheels, wheel bolts or wheel nuts, replace them only with new GM original equipment parts. This way, you will be sure to have the Using the wrong replacement wheels, wheel bolts or wheel nuts on your vehicle can be dangerous.
Page 375: Accessory Inflator
Accessory Inflator Your vehicle may have an air inflator. With it, you can inflate things like air mattresses and basketballs, and you can also use it to bring your tires up to the proper pressure. The air inflator is located in the rear compartment on the driver’s side.
Page 376: If A Tire Goes Flat
Your air inflator will automatically shut off after about 10 minutes. The light in the switch will blink. After about one minute you can use the system again. Press the inflator switch and the indicator light will come on. Notice: Don’t run your air inflator for longer minutes at one time.
Page 377: Changing A Flat Tire
Changing a Flat Tire If a tire goes flat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard v.--nin- 'lashers. Chan,,,lg a tire can cause an injury. The vehicle can slip off the jack and roll over you or other people.
Page 378: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools To remove the tools, do the following: 1. Remove the side convenience net. 2. Open the jack storage compartment by lifting up the tab and pulling the cover off. E. Jacking Instructions A. Jack F.
Page 379 The tools you’ll be using include the jack (A), extension and folding wrench (C). The compact spare tire is located under the rear of the vehicle. See “Compact Spare Tire” later in this section for more information about the compact spare. 5-72 To remove the compact spare tire, do the following: A.
Page 380 3. To remove the compact spare tire from the cable, tilt the retainer at the end of the cable so it can be pulled up through the wheel opening. -. If your vehicle is an all-wheel-drive vehicle, after removing the compact spare tire turn the wrench clockwise to raise the cable back up.
Page 381: Secondary Latch System
Secondary Latch System Your vehicle may have an underbody mounted tire hoist assembly equipped with a secondary latch system. It‘s designed to stop a tire from suddenly falling off your vehicle if the cable holding the spare tire is damaged. For the secondary latch to work, the tire must be stowed with the valve stem pointing down.
Page 382 1. Place the jack under the vehicle, ahead of the rear bumper. Position the center lift point of the jack under the center of the compact spare tire. 2. Turn the folding wrench clockwise to raise the jack until it lifts the secondary latch device under the wheel plate.
Page 383: Removing The Wheel Covers
Removing the Wheel Covers If the wheel has a center cap, use the handle of the folding wrench to pry it off. Then, with the other end of the folding wrench, loosen the nuts. If your vehicle has the plastic “bolt-on” wheel covers, loosen the bolts completely using the folding wrench, and remove the wheel cover.
Page 384 2. Near each wheel, there is a notch in the vehicle's body. Position the jack and raise the jack head until it fits firmly into the notch in the vehicle's frame nearest the flat tire. Notice: Do not place the jack under the rear axle control arms or you may damage your vehicle.
Page 385 3. Attach the folding wrench to the jack, and turn the wrench clockwise to raise the jack head a few inches. 4. Raise the vehicle by turning the folding wrench clockwise in the jack. Raise the vehicle far enough off the ground so there is enough room for the compact spare tire to fit under the wheel well.
Page 386 Nev,. use oil or grease on st, , s do, the nuts might come loose. Your wheel could fall off, causing a serious accident. 7. Install the compact spare tire and put the wheel nuts back on with the rounded end toward the wheel.
Page 387 9. Tighten the wheel nuts firmly in a crisscross sequence, as shown. Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts.
Page 388 Storing a Fla' or Spare 'ire Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. d Tools The underbody-mounted spaL, tire needs to be stored with the valve stem pointing down.
Page 389: Storing The Spare Tire And Tools
Storing the Spare Tire and Tools 1. Lay the tire near the rear of the vehicle with the valve stem down. 2. If the vehicle has aluminum wheels, remove the small center cap by tapping the back of the cap with the extension of the shaft.
Page 390 To put the cover back on, line up the tabs on the right of the cover with the slots in the cover opening. Push the cover in place and push down the tab so that it rests in the groove. This secures the cover in place. A.
Page 391 Storing the Flat Tire on an All-Wheel-Drive Vehicle 1 . Remove the tire storage bag and cable package from the jack storage area. If the vehicle has aluminum wheels, remove the small center cap by tapping the back of the cap with the extension of the shaft.
Page 392 5. Hook the cable onto the outside portion of the liftgate hinges. 6. Pull on the cable to make sure it is secure. 7. Make sure the metal tube is centered at the striker. Push the tube towards the front of the vehicle. 8.
Page 393: Compact Spare Tire
Compact Spare Tire Although the compact spare tire was fully inflated when your vehicle was new, it can lose air after a time. Check the inflation pressure regularly. It should be 60 psi (420 kPa). After installing the compact spare on your vehicle, you should stop as soon as possible and make sure your spare tire is correctly inflated.
Page 394: Appearance Care
Appearance Care Remember, cleaning products can be hazardous. Some are toxic. Others can burst into flames if you strike a match or get them on a hot part of the vehicle. Some are dangerous if you breathe their fumes in a closed space.
Page 395: Using Cleaner On Fabric
Here are some cleaning tips: Always read the instructions on the cleaner label. Clean up stains as soon as you can they set. Carefully scrape off any excess stain. Use a clean cloth or sponge, and change to a clean area often.
Page 396: Top Of The Instrument Panel
Vinyl Use warm water and a clean cloth. Rub with a clean, damp cloth to remove dirt. You may have to do this more than once. Things like tar, asphalt and shoe polish will stain if you don't get them off quickly. Use a clean cloth and vinyl/leather cleaner.
Page 397: Care Of Safety Belts
Care of Safety Belts Keep belts clean and dry. Do not bleach or dye safety belts. If you do, it may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.
Page 398: Finish Care
Cleaning Exterior LarnpdLenses Use only lukewarm or cold water, a soft cloth and a car washing soap to clean exterior lamps and lenses. Follow instructions under “Washing Your Vehicle” previously. Finish Care Occasional waxing or mild polishing of your vehicle by hand may be necessary to remove residue from the paint finish.
Page 399: Aluminum Wheels
Aluminum Wheels Keep your wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water. After rinsing thoroughly, dry with a soft clean towel. A wax may then be applied. The surface of these wheels is similar to the painted surface of your vehicle.
Page 400: Underbody Maintenance
Underbody Maintenance Chemicals used for ice and snow removal and dust control can collect on the underbody. If these are not removed, accelerated corrosion (rust) can occur on the underbody parts such as fuel lines, frame, floor pan and exhaust system even though they have corrosion protection.
Page 401 GM Vehicle Care/Appearance Materials (cont’d) Description Removes dirt and grime Chrome and Wire from chrome wheels and Wheel Cleaner wire wheel covers. Removes dust, fingerprints, and surface Finish Enhancer contaminants, Spray on wipe off. Removes swirl marks, fine scratches and other Swirl Remover Polish light surface contamination.
Page 402: Vehicle Identification
Vehicle Identification Vehicle Identification Number (VIN) This is the legal identifier for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle. The VIN also appears on the Vehicle Certification and Service Parts labels and the certificates of title and registration.
Page 403: Electrical System
Electrical System Add-on Electrical Equipment Notice: Don’t add anything electrical to your vehicle unless you check with your dealer first. Some electrical equipment can damage your vehicle and the damage wouldn’t be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 404: Instrument Panel Fuse Block
Instrument Panel Fuse Block The instrument panel fuse block is located to the right of the glove box on the end of the instrument panel. Pull the door open access the instrument panel fuse block. MALL CLUSTER RR WPWSHR PCWCRANK FRTMPWSHR PASSKEY HAZARD...
Page 405 Fuse Blank Not Used Powertrain Control Module (PCM), PCM/CRANK Ignition Crank PASS KEY PASS-Key@ Ill System LOCK Locks Power Door HTD MIRROR Heated Mirrors RH T/LP Driver’s Side Taillamp (Export Only) RR FOG LP Fog Lamps (Export Only) CIGAR/DIC/ Cigarette Lighter, DIC, Front APO FRT Auxiliary Power Outlets, Data Link T/SIG...
Page 406 Fuse Usage CTSY LAMP Courtesy Lamp BCM, Electronic Brake Control Indicator Lamp Driver Module, IGN 1 Instrument Panel Cluster, Rear Side Door Actuator Control Module, Rear Windows, Rear Parking Aid RR HVAC Rear HVAC-A/C Control TEMP CONT Rear Window Wiper Motor, RR WPR/ Rear Window WiperNVasher and WSHR...
Page 407: Underhood Fuse Block
Underhood Fuse Block This fuse block is located in the engine compartment, in front of the windshield washer fluid reservoir. See Engine Compartment Overview on page 5-12 for more information on location. The fuses marked spare are available if a replacement fuse is needed.
Page 408 Fuse Ignition Switch to Fuses (Instrument Panel): ABS/TCS Ignition, Cruise, DRL, Electronic PRNDL, Ignition 1, AWD, PSD, Air Bag, Turn Signal and Powertrain Control Module [IGN MAIN Relay (Underhood Fuse Block: A/C Clutch, Electronic Ignition, Ignition Fans Coolant Fuses (Instrument Panel): ABS Module Battery, Cigarette Lighter, Courtesy Lamps, Front Power Socket, Power Locks, Power Mirrors...
Page 409 Fuse Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to Powertrain Control Module Fuel Pump Relay Powertrain Control Module Not Used Fog Lamp Relay Relay Horn Daytime Running Lamps (DRL) Control Module, Headlamps and Instrument Panel Dimmer Switch Theft-Deterrent Relay to Headlamps Not Used Mini Fuse Puller [ T I...
Page 410: Capacities And Specifications
Capacities and Specifications The following approximate capacities are given in English and metric measurements. Please refer to Part D: Recommended Fluids and Lubricants on page 6-16 for more information. Application Air Conditioning Refrigerant Systems Front Front and Rear Automatic Transaxle Pan Removal and Replacement Complete Overhaul AWD Automatic Transaxle...
Page 411: Engine Specifications
Engine Specifications Engine 5-1 04 VIN Code Transaxle Automatic Spark Plug Firing Order 0.060 inches 1-2-3-4-5-6 (1 5 2 mm)
Page 412: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Engine Air Cleaner/Filter Engine Oil Filter Passenger Compartment Air Filter Kit Spark Pluas Windshield Wiper Blades Length Type Wiper Blade (Backglass) Length TY Pe *ACDelco@ part number. Part Number A-I 208C* PF47 GM Part No. 52482929 41 -1 01 * 24.0 inches (60.0 cm) Shepherd’s Hook...
Page 413 NOTES 5-1 06...
Page 414: Maintenance Schedule
Section 6 Maintenance Schedule Introduction Your Vehicle and the Environment Maintenance Requirements ... 6. 2 How This Section is Organized Part A: Scheduled Maintenance Services Using Your Maintenance Schedule ... Scheduled Maintenance ... Part B: Owner Checks and Services At Each Fuel Fill ... At Least Once a Month ...
Page 415: Introduction
Maintenance Schedule Introduction KEEP ENGINE OIL AT THE PROPER -EVEL AND CHANGE AS RECOMMENDED Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Your Vehicle and the Environment Proper vehicle maintenance not only helps to keep your vehicle in good working condition, but also helps the...
Page 416: How This Section Is Organized
How This Section is Organized This maintenance schedule is divided into five parts: “Part A: Scheduled Maintenance Services” explains what to have done and how often. Some of these services can be complex, so unless you are technically qualified and have the necessary equipment, you should let your dealer’s service department or another qualified service center jobs.
Page 417: Part A: Scheduled Maintenance Services
Part A: Scheduled Maintenance Services This part contains engine oil and chassis lubrication scheduled maintenance which explains the engine oil life system and how indicates when to change the engine oil and filter. Lubricate chassis components with each oil change. Also, listed are scheduled maintenance services which are to be performed at the mileage intervals specified.
Page 418: Engine Oil And Chassis Lubrication Scheduled Maintenance
Scheduled Maintenance The services shown in this schedule up to 100,000 miles (1 66 000 km) should be repeated after 100,000 miles (1 66 000 km) at the same intervals for the life of this vehicle. The services shown at 150,000 miles (240 000 km) should be repeated at the same interval after 150,000 miles (240 000 km) for the life of this vehicle.
Page 419 If the system is ever reset accidentally, you must change your oil at 3,000 miles (5 000 km) since your last oil change. Remember to reset the oil life system whenever the oil is changed. See Engine Oil on page 5-74 for information on resetting the system. An Emission Control Service.
Page 420 30,000 Miles (50 000 km) 0 Replace passenger compartment air filter. If you drive regularly under dusty conditions, the filter may require replacement more often. 0 Rotate tires. See Tire Inspection and Rotation on page 5-62for proper rotation pattern and additional information.
Page 421 60,000 Miles (100 000 km) Replace passenger compartment air filter. If you drive regularly under dusty conditions, the filter may require replacement more often. Rotate tires. See Tire Inspection and Rotation on page 5-62 for proper rotation pattern and additional information.
Page 422 100,000 Miles (166 000 km) 0 Inspect spark plug wires. An Emission Control Service. Replace spark plugs. An Emission Control Service. Change automatic transaxle fluid and filter if the vehicle is mainly driven under one or more of these conditions: In heavy city traffic where the outside temperature regularly reaches 90°F (32°C) or higher.
Page 423: Part B: Owner Checks And Services
Part B: Owner Checks and Services Listed in this part are owner checks and services which should be performed at the intervals specified to help ensure the safety, dependability and emission control performance of your vehicle. Be sure any necessary repairs are completed at once. Whenever any fluids or lubricants are added to your vehicle, make sure they are the proper ones, as shown in Part D.
Page 424: At Least Once A Year
Also look for any opened or broken air bag coverings, and have them repaired or replaced. (The air bag system does not need regular maintenance.) Wiper Blade Check Inspect wiper blades for wear or cracking. Replace blade inserts that appear worn or damaged or that streak or miss areas of the windshield.
Page 425: Starter Switch Check
Starter Switch Check When you are doing this check, the vGIlicle could move suddenly. If it does, you or others could be injured. Follow the steps below. 1. Before you start, be sure you have enough room around the vehicle. 2.
Page 426: Ignition Transaxle Lock Check
Ignition Transaxle Lock Check While parked, and with the parking brake set, try to turn the ignition key to LOCK in each shift lever position. The key should turn to LOCK only when the shift lever is in PARK (P). The key should come out only in LOCK.
Page 427: Part C: Periodic Maintenance Inspections
Part C: Periodic Maintenance Inspections Listed in this part are inspections and services which should be performed at least twice a year (for instance, each spring and fall). You should let your dealer’s service department or other qualified service center do these jobs.
Page 428: Throttle System Inspection
Throttle System Inspection Inspect the throttle system for interference or binding, and for damaged or missing parts. Replace parts as needed. Replace any components that have high effort or excessive wear. Do not lubricate accelerator and cruise control cables. Transfer Case (Power Transfer Unit) and Carrier Assembly-Differential (Rear Drive Module) All-Wheel Drive Inspection...
Page 429: Part D: Recommended Fluids And Lubricants
Part D: Recommended Fluids and Lubricants Fluids and lubricants identified below by name, part number or specification may be obtained from your dealer. Fluid/Lubricant Usage Engine oil with the American Engine Oil Petroleum Institute Certified for Gasoline Engines starburst symbol the proper viscosity.
Page 430 Usage FluWLubricant Carrier VERSATRAKTM Fluid Assembly (GM Part No. U.S. 1237851 4, Differential in Canada 88901 045). (Rear Drive Module) and Transfer Case (Power Transfer Unit) Hood Latch Lubriplate Lubricant Aerosol Assembly, (GM Part No. U.S. 12346293, Secondary in Canada 992723, or equivalent) Latch, Pivots, or lubricant meetina reauirements Spring Anchor...
Page 431: Part E: Maintenance Record
Part E: Maintenance Record After the scheduled services are performed, record the date, odometer reading and who performed the service and any additional information from “Owner Checks and Services” or “Periodic Maintenance” on the following record pages. Also, you should retain all maintenance receipts. Maintenance Record...
Page 432 Maintenance Record (cont’d) 6-1 9...
Page 433 Maintenance Record (cont’d) 6-20...
Page 434: Customer Assistance Information
Section 7 Customer Assistance Information ... 7. 2 Customer Satisfaction Procedure Customer Assistance for Text Telephone ( l T Y ) Users ... Customer Assistance Offices GM Mobility Program for Persons with Disabilities Roadside Assistance Program ... Customer Assistance Information Courtesy Transportation 7.
Page 435: Customer Assistance Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Oldsmobile. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 436: Customer Assistance For Text Telephone (Tty) Users
To assist customers who are deaf, hard of hearing, or speech-impaired and who use Text Telephones (TTYs), Oldsmobile has TTY equipment available at its Customer I s e r c a n commlmicate A s s i s t a n c e C e n t e r A n y with Oldsmobile by dialing: 1 -800-833-OLDS (6537).
Page 437: Customer Assistance Offices
Customer Assistance Off ices Oldsmobile encourages customers to call the toll-free number for assistance. If a U.S. customer wishes to write to Oldsmobile, the letter should be addressed to Oldsmobile’s Customer Assistance Center. United States Oldsmobile Customer Assistance Center P.O. Box 33171...
Page 438: Gm Mobility Program For Persons With Disabilities
Roadside Assistance Program Security While You Travel 1 -800-442-OLDS (6537) As the proud owner of a new Oldsmobile vehicle, you are automatically enrolled in the Oldsmobile Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road.
Page 439: Canadian Roadside Assistance
Vehicle model, year and color Mileage of vehicle Vehicle Identification Number (VIN) Vehicle license plate number Oldsmobile reserves the right to limit services or reimbursement to an owner or driver when, in Oldsmobile’s judgement, the claims become excessive in frequency or type of occurrence.
Page 440: Courtesy Transportation
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait Oldsmobile helps minimize your inconvenience by providing several transportation options. Depending on the circumstances,...
Page 441: Courtesy Rental Vehicle
Courtesy Rental Vehicle When your vehicle is unavailable due to overnight warranty repairs, your dealer may arrange to provide you with a courtesy rental vehicle or reimburse you for a rental vehicle you obtained, at actual cost, up to a maximum of $30.00 per day supported by receipts. This requires that you sign and complete a rental agreement and meet state, local and rental vehicle provider requirements.
Page 442: Reporting Safety Defects To The United States Government
General Motors In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. Please call us at 1-800-442-6537, Oldsmobile Customer Assistance Center P.O. Box 33171 netreit, !A! 48232-5! In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 443: Service Publications Ordering Information
Service Publications Ordering Information Service Manuals Service Manuals have the diagnosis and repair information on engines, transmission, axle, suspension, brakes, electrical, steering, body, etc. RETAIL SELL PRICE: $120.00 Transmission, Transaxle, Transfer Case Unit Repair Manual This manual provides information on unit repair service procedures, adjustments, and specifications for GM transmissions, transaxles, and transfer cases.
Page 444: Current And Past Model Order Forms
Current and Past Model Order Forms Service Publications are available for current and past model GM vehicles. To request an order form, please specify year and model name of the vehicle. ORDER TOLL FREE: 1-800-551 -41 Monday-Friday 8:OO AM 6:QQ PM Eastern Time For Credit Card Orders Only (VISA-Mastercard-Discover), visit Helm, Inc.
Page 446 Accessory Inflator Accessory Power Outlets Adding Washer Fluid Additional Program Information Additives, Fuel Add-on Electrical Equipment Adjusting the Captain's Chairs (Second Row) ... Adjusting the Speakers (Balance/Fade) Air Bag Readiness Light Air Bag Systems How Does Air Bag Restrain? Servicing Your Air Bag-Equipped Vehicle What Makes an Air Bag Inflate? What Will You See After an...
Page 447 Audio Systems (cont.) Radio with Cassette and CD Radio with CD Radio with Six-Disc CD Rear Seat Audio (RSA) Setting the Time ... Theft-Deterrent Feature ... Understanding Radio Reception ... 3-1 03 Automatic Door Locks Automatic Level Control ... Automatic Transaxle Fluid ...
Page 448 Capacities and Specifications ... Captain Chairs. Rear Carbon Monoxide 4-26, 4-36, 2-22, 2-43 Care of Safety Belts ... Care of Your Cassette Tape Player ... CD and DVD Player CDs and DVDs Cargo Lamp ... Carrier Assembly-Differential (Rear Drive Module) Cassette Tape Messages Cassette Tape Player Service ...
Page 449 Climate Control System (cont.) Outlet Adjustment ... Rear ... Comfort Controls Compact Disc Messages Compact Overhead Console ... Compact Spare Tire ... Compass Variance ... Content Theft-Deferrent ... Content Theft-Deterrent System ... Content Theft-Deterrent System, Arming and Disarming ... Control of a Vehicle Convenience Center ...
Page 450 Door Ajar Warning Message Dual Sliding Doors ... Last Door Closed Locking Locks ... Power Door Locks ... Power Sliding Door ... Power Sliding Warning Message ... Programmable Automatic Door Locks ... 2-1 2 Driver Position, Safety Belt ... Driver Information Center (DIC) ... Driving At Night ...
Page 451 Engine (cont.) Coolant Temperature Warning Message Cooling System Inspection ... Engine Compartment Overview ... Exhaust Low Oil Level Message ... Overheating Starting ... Engine Coolant Level Check ... Engine Oil Additives ... Engine Oil and Chassis Lubrication Scheduled Maintenance ... Engine Oil Level Check Engine Specifications ...
Page 452 Fuel (cont.) Filling a Portable Fuel Container Filling Your Tank ... Fuels in Foreign Countries ... Gage ... Gasoline Octane ... Gasoline Specifications ... Low Warning Message System Inspection ... Fuses Fuses and Circuit Breakers ... Windshield Wiper ... Gage Engine Coolant Temperature Fuel ...
Page 453 How to Use This Manual ... How to Wear Safety Belts Properly Hydroplaning ... 4-20 Steam Is Coming From Your Engine ... If Steam Is Coming From Your Engine If the Light Is Flashing If the Light Is On Steady If You Are Stuck in Sand.
Page 454 Lamps Exterior Interior ... Lamps on Reminder ... Lap Belt ... Lap-§boulder Belt ... Last Door Closed Locking ... Last Door Locking ... LATCH System Child Restraints Securing a Child Restraint Designed for the LATCH System ... Leather ... LeavifiCJ L'shicle YGl.i7 Leaving Your Vehicle With the...
Page 455 Maintenance Schedule (cont.) Exhaust System Inspection Fuel System Inspection How This Section is Organized Introduction ... Maintenance Requirements Part A Scheduled Maintenance Services ... 6-4 Part B Owner Checks and Services ... 6-10 Part C Periodic Maintenance Inspections Part D Recommended Fluids and Lubricants Part E...
Page 456 New Vehicle Break-In Normal Maintenance Replacement Parts ... 5-1 05 Odometer Off -Road Recovery ... 4-1 4 Engine ... Pressure Message Older Children, Restraints Onstar@ Personal Calling ... OnStap Services Onstar@ System Onstar@ Virtual Advisor Operation Operation Tips Other Warning Devices Outlet Adjustment ...
Page 457 PASS-Key@ Ill Security Message Plan Ahead When Possible Playing a Cassette Tape Playing a Compact Disc ... 3-69, 3-78, 3-86 Playing a Specific Loaded Compact Disc ... Playing the Radio ... Programmable Modes Power Accessory Outlets ... Door Locks Eight-Way Seats Electrical System ...
Page 458 Rear Seat Radio Controls Rear Storage Area Rear Window Defogger ... Rearview Mirrors Reclining Seatbacks Recreational Vehicle Towing ... Remote Alarm Remote Control Remote Driver Unlock Control ... Remote Keyless Entry System Remote Keyless Entry System, Operation Remote Lock and Unlock Confirmation ... 2-67 Remote Power Sliding Door Operation ...
Page 459 Safety Belt Pretensioners Reminder Light ... Safety Belts Care of Center Passenger Position Driver Position How to Wear Safety Belts Properly Questions and Answers About Rear Safety Belt Comfort Guides for ..., Children and Small Adults Rear Seat Passengers Right Front Passenger Position Safety Belt Extender Safety Belt Use During Pregnancy Safety Belts Are for Everyone...
Page 460 Setting the Temperature Setting the Time Setting the Tone (BassTTreble) ... 3.66. 3.73. Sheet Metal Damage Shifting Into Park (P) Shifting Out of Park ‘(P) ... Shoulder Belt Height Adjuster Skidding Sliding Door Power Sliding Door Delayed Locking Sliding Door Lock Sliding Door Security Lock Sliding Doors.
Page 461 Throttle System Inspection ... Tilt Wheel Tire Inflation Check Tires Buying New Tires ... Chains ... Changing a Flat Tire ... Compact Spare Tire If a Tire Goes Flat Inflation Tire Pressure Inspection and Rotation Uniform Tire Quality Grading ... Wheel Alignment and Tire Balance Wheel Replacement ...
Page 462 Using RDS Using Song List Mode ... 3-89 Ustrasonic Rear Parking Assist (URPA) Vehicle Control Damage Warnings Loading Symbols Vehicle Identification Number (VIN) Service Parts Identification Label Vehicle Personalization Arming and Disarming the Content Theft-Deterrent System Automatic Door Locks Content Theft-Deterrent System Delayed Illumination and Exit Lighting Entering Programming Mode Exitinq Proqramminq Mode...
Page 463 When to Check and Change When to Check Power Steering Fluid When You Are Ready to Leave After Parking on a Hill Where to Put the Restraint ... Why Safety Belts Work ... Windshield, Backglass and Wiper Blades ... 5-91 Windows ...

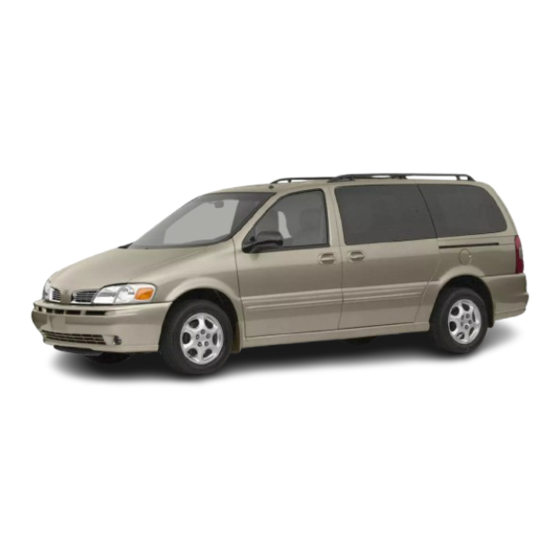

Oldsmobile 2003 Silhouette Owner's Manual

Manual

Seats and Restraint Systems 1

Section 2 Features and Controls

Instrument Panel 3

Driving Your Vehicle Section

Quick Links

Chapters

Need help?

Questions and answers

Related Manuals for Oldsmobile 2003 Silhouette

Summary of Contents for Oldsmobile 2003 Silhouette
