EVGA X570 FTW Introduction

X570 FTW WIFI

DESIGN DETAILS

DESIGN DETAILS T TAILS
Supported CPUs -
AMD Ryzen™ 5000, 5000G, 4000G and 3000 Series Desktop Processors
Socket Type - AMD AM4 Socket
Chipset - AMD X570
PCIe Slots - 2x PCIe 4.0 x16 (x16, x8/8), 1x PCIe 4.0 x4
Memory DIMMs - 4 DIMMs Dual-Channel
Memory Type - DDR4 4600MHz+ (OC)
Memory Capacity - 128GB
SATA 6 Gb/s Ports- 8 from AMD X570
RAID Support - RAID 0, 1, 10
M.2 Key-M Sockets - 2x 110mm PCIe 4.0 (Up to 64Gb/s)
M.2 Key-E Sockets - 1x 32mm
Internal USB Ports/Headers -
1x USB 2.0 Port (for BIOS update),
2x USB 2.0 Headers, 1x USB 3.2 Gen1 Header

PRODUCT WARRANTY

This product is covered under EVGA's 3 year limited warranty which covers parts and labor. Further warranty extension
is available upon registration within 90 days of purchase. For more details please visit: www.evga.com/warranty
Part No: 121-VR-A577

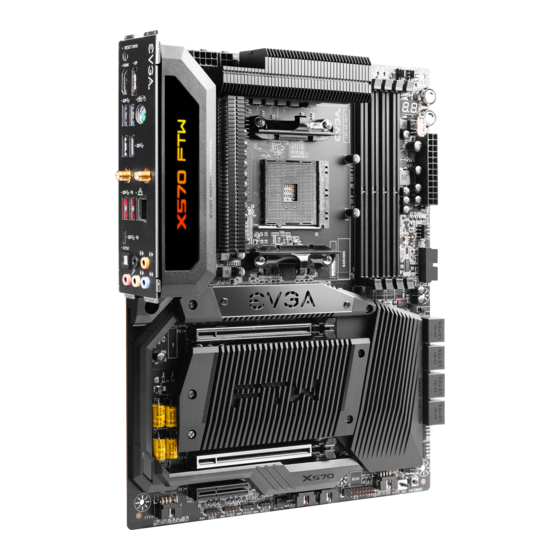

The EVGA X570 FTW WIFI is a motherboard built upon the AMD X570 chipset to provide
everything you need while giving you the performance you demand. Designed and engineered
from scratch with a 15-phase digital VRM design, this is one sleek-looking motherboard
jam-packed with the latest features and EVGA GUI BIOS. Paired with an AMD Ryzen™ 5000
Series processor, this board is PCIe Gen4-ready with a data transfer rate of up to 16 GT/s to
support the latest graphics cards and M.2 NVMe SSDs, scorching-fast 4600MHz+(OC) memory,
HDMI/DisplayPort outputs, lots of USB and SATA 6Gb/s ports, and RGB/ARGB options. The EVGA
X570 FTW WIFI gives you the freedom to choose your EVGA motherboard without sacri ce or
compromise.
Rear I/O USB Ports-
4x USB 3.2 Gen1 Type-A, 2x USB 3.2 Gen2 Type-A, 1x USB 3.2
Gen2 Type-C
Network Speed - 10/100/1000Mbps
Network Controller - Intel® I211-AT Gigabit NIC
Wi-Fi/BT –
Intel® AX200 Wi-Fi 6/BT 5.2 module,
preinstalled in the M.2 Key-E 32mm Slot
Audio - 7.1 Channel Realtek 1220, EVGA NU Audio
Display Output - DP 1.4, HDMI 2.0
Fan Headers - 2x CPU PWM, 5x PWM/DC, 1x PUMP Header
RGB Headers - 2x RGB Headers, 2x ARGB Headers
BIOS Type -
Latest UEFI BIOS with mouse/keyboard control,
OC Robot, In-BIOS Stress Test
Software - EVGA ELEET X1 Tuning Utility
INTRODUCTION

KEY SPECS

15 Phase Digital VRM
Preinstalled Rear I/O Cover
EVGA Wi-Fi Antenna
150% Increased Socket Gold Content 150% Increased Socket Gold Content
PCI Express 4.0 Ready
NVIDA® SLI® Ready Enthusiast Layout NVIDA® SLI® Ready Enthusiast Layout
Supports NVIDIA® Resizable BAR
Metal Reinforced PCIe slots

DIMENSIONS

Width: 9.6in - 244mm
Length: 12in - 305mm
Form Factor: ATX Form Factor

ACCESSORIES

EVGA Quick Installation Guide
2x SATA 6G Data Cables
M.2 Thermal Pads
EVGA Wi-Fi Antenna
USB Flash Drive
+ Contains Drivers and Manual
