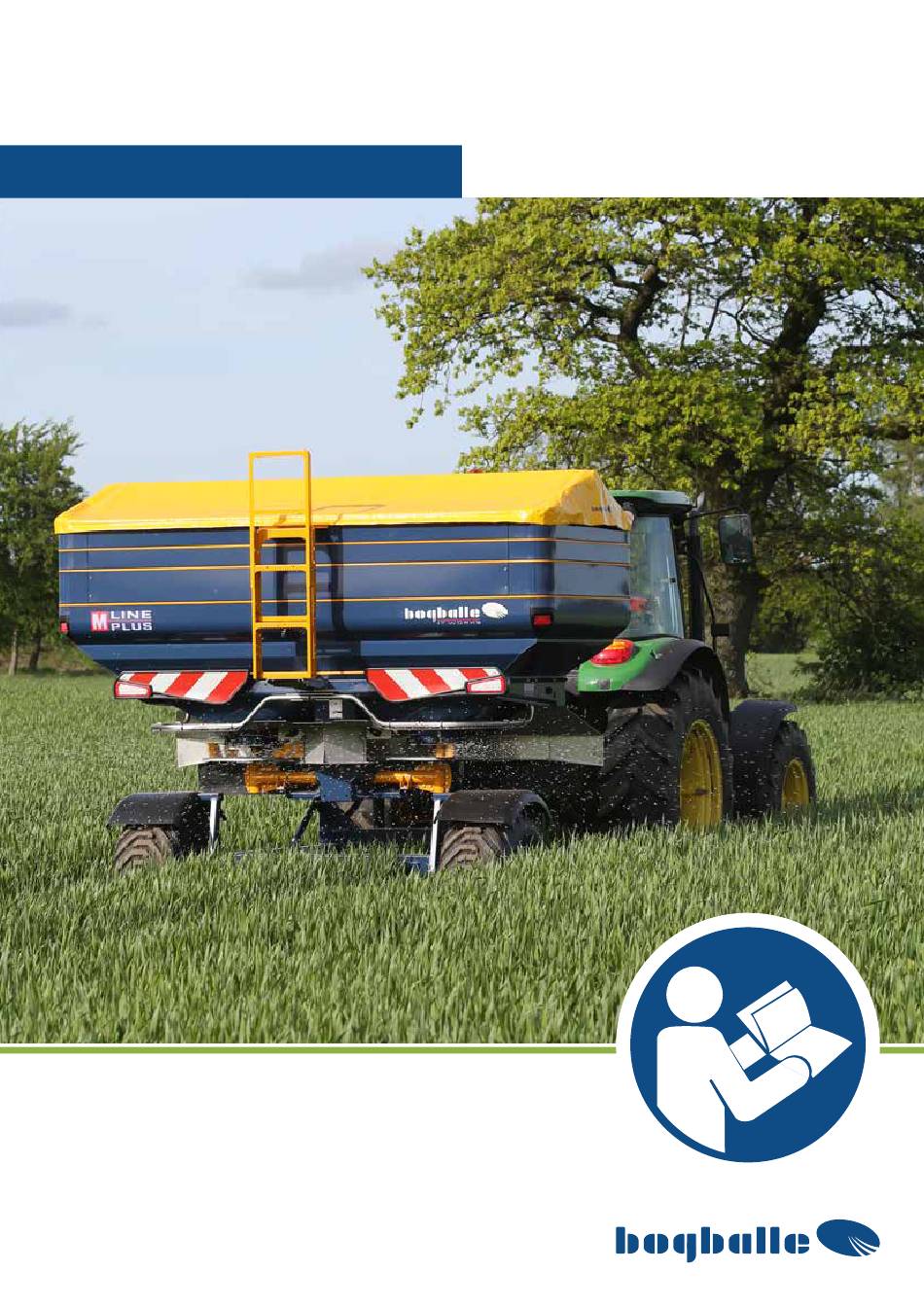

- Page 1 Operator's Manual L-Trail + M-Trail...
-
Page 3: Table Of Contents
Table of Contents Safety ............................... 4 Safety and protection ..................................4 Legend ......................................5 Liability ..............................6 Main settings ............................7 Principle sketch ............................8 L20 / M35-Trail ....................................8 M45-Trail ......................................9 Setting and Service ..........................10 M45-Trail - height adjustable implement carrier ...........................10 M45-Trail - tightening of construction ............................10 L20 / M35-Trail and M45-Trail - wheel track adjustment .......................10 L20 / M35-Trail and M45-Trail - wheel hub and wheel bolts ......................10... -
Page 4: Safety
Safety Safety and protection ● Read Operator’s Manual and safety rules before starting. ● Read Operator’s Manual for the PTO shaft. ● Do not leave the tractor cabin without stopping the PTO system of the tractor! ● Turn off tractor engine and all electrical controlling devices during maintenance and other intervention on the spreader ●... -
Page 5: Legend
Safety Legend Read Operator’s Manual and safety rules before starting. Never go under a raised spreader. Never go between spreader and tractor when engine is started. Never use the ladder when the spreader is not mounted on a tractor. Safety distance for flying material must be observed. Never go behind the spreader with rotating spreading discs. -
Page 6: Liability
Liability Liability You are fully responsible for the setting of the spreader. The spreader must be set according to the fertiliser in use. Be aware that the fertiliser batch tested in the BOGBALLE A/S test facilities may differ from the fertiliser delivered to you even if with the same specifications. -
Page 7: Main Settings
Main settings Main settings If the spreader is mounted on M-Trail or other carriages – the distance from the ground to the spreading discs is increased from 75 cm, typically up to 100 cm to 140 cm. H: 100 - 140 cm. (see figure 1) Spread width Tilt angle- reduction (according to Spread chart) -
Page 8: Principle Sketch
Principle sketch L20 / M35-Trail 50 cm 20+30 cm 20 cm 195 cm Net weight 500 kg Payload max. 4.000 kg Gross weight max. 4.500 kg Tyres 400/60-15,5: 4,7 bar 3-point linkage Cat. II / ISO 730/l Max. driving speed 25 km/h... -
Page 9: M45-Trail
Principle sketch M45-Trail 95 cm 120 cm 200 cm Net weight 1.000 kg Payload max. 5.000 kg Gross weight max. 6.000 kg Tyres 400/55-22,5: 3,5 bar 3-point linkage Cat. II / ISO 730/l Max. driving speed 25 km/h... -
Page 10: Setting And Service
Setting and Service M45-Trail - height adjustable implement carrier The system makes it possible to optimise the spreader height in proportion to the M45-Trail . In cases (see figure 1) where the spreader must be tilted negative (-) the spreading vanes can collide with respectively the guards and the wheels. -
Page 11: L20 / M35-Trail And M45-Trail - Pto Tractor
Setting and Service L20 / M35-Trail and M45-Trail - PTO Tractor ● A standard PTO shaft can maximum resist an angle turning of 25º ● A wide angle PTO shaft can maximum resist an angle turning of 80º If there is a need for turning angles higher than 25º - The carriage must be fitted with a wide angle PTO shaft. L20 / M35-Trail and M45-Trail - adjustment of wheel hub Servicing and adjusting the clearance in the taper roller bearings on the wheel hub. -
Page 12: Corrosion
Corrosion Remember always to grease the entire spreader in a corrosion protective oil. It is not sufficient just to wash the spreader, as dried-in fertiliser dust will absorb water and escalate corrosion. Mineral fertiliser is extremely corrosive and often with a high content of nitrogen and sulphur, which combined with water generate sulphuric acid. -
Page 13: Ec-Declaration Of Conformity
EC-Declaration of conformity Manufacturer: BOGBALLE A/S Bogballe DK-7171 Uldum Phone +45 7589 3266 Fax +45 7589 3766 Declares that machine: Under carriage for Centrifugal fertiliser spreader: L20-Trail / M35-Trail / M45-Trail Is made in conformity with: Directive of 17th May 2006 conc. mutual approximation of the laws of the member states on machines (2006/42/ EØF), with special reference to the enclosure II, A and enclosure I of the directive, conc. - Page 14 Notes...
- Page 15 Notes...
- Page 16 FIND MORE INFORMATION ON www.bogballe.com...
